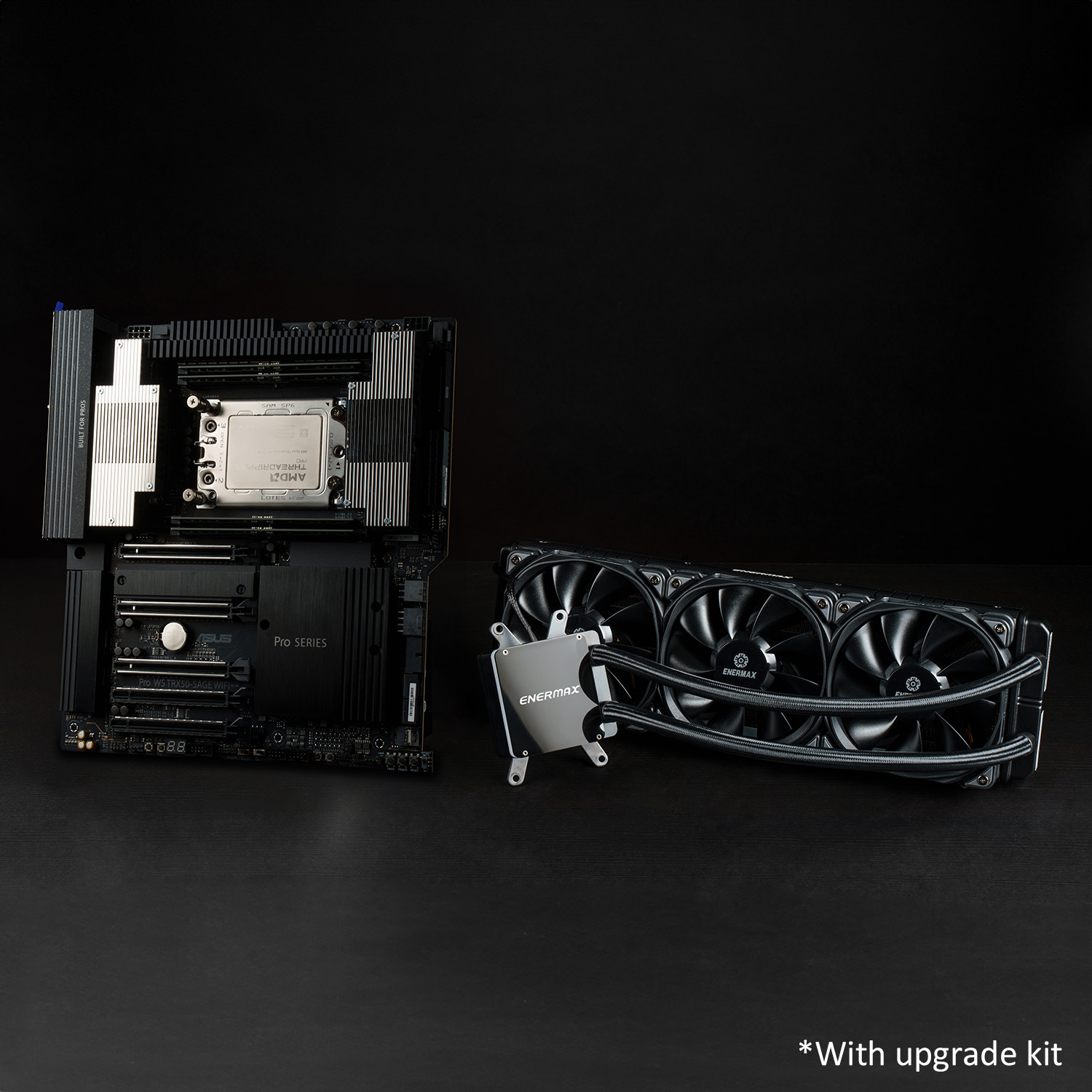

LIQTECH TR4 II Series 360mm Liquid CPU Cooler ( LGA 4677 Ready)
- European Hardware Awards 2019 Best CPU Cooler (Water)
- Support Intel® Xeon® W-3400 and W-2400 Processor
- Support AMD Ryzen™ Threadripper™ PRO Processors
- 100% IHS Coverage for Workstation Level CPU
- Cooling Capacity up to 500W TDP
- Ultra-Premium Water Block Featuring Addressable RGB Lighting
Color
Overview
AMD® Socket sTR5 and Intel® Socket LGA 4677 Ready!
Quick & user-friendly mounting system for desktop workstation processor with socket AMD sWRX8 / sTRX4 / TR4 / SP3 and Intel® LGA4677
AMD® TR5 (sTR5/sTRX5/sWRX9) / SP6 socket supported!
100% AMD Ryzen™ Threadripper™ PRO & Intel® Xeon® IHS Coverage
100% cover integrated heat spreader (IHS) of both AMD Ryzen™ Threadripper™ PRO & Intel® Xeon® CPU
Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)
Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer
EF1 Pump Design
Robust pump with precision engineering delivers extremely high flow rate of up to 450 L/h for superior cooling performance
Ultra-premium Water Block Featuring Addressable RGB Lighting
Unique RGB water block provides synchronizable RGB lighting via the latest addressable RGB header of motherboards for vivid rainbow lighting effects
Innovative High Pressure Blades
High-pressure blade design enhances the cooling performance
Anti-vibration rubber pads provide noiseless stable operation
2 ways to control RGB lighting effects
Through Motherboard Software
Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)
Addressable RGB lighting synchronization
Through ENERMAX RGB Control Box
Users can use the included control box to adjust preferred lighting effects (10 pre-set effects) brightness and speed
Dimension
unit:mm
Find Stores
| North America |    |
| Europe | |
| Taiwan |  |
| Worldwide |  |
Specifications
General Data
- Model
- ELC-LTTRTO360-TBP
- CPU Socket
- Intel® LGA 4677* (with upgrade kit) AMD® TR5 (sTR5/sTRX5/sWRX9) / SP6* (with upgrade kit) AMD® sWRX8 / sTRX4 / TR4 / SP3
- TDP
- 500W
- Cold Plate Material
- Copper
- Radiator Material
- Aluminum
- Radiator Dimension
- 394 x 120 x 28 mm
- Pump Bearing
- Ceramic Nano PI Bearing
- Pump MTBF
- ≧ 100,000 hrs
- Pump Rated Voltage
- 12 V
- Fan Speed
- 500 - 2300 RPM ± 10%
- Pump Rated Current
- 0.4 A
- Pump Rated Current - RGB LED
- 0.2 A
- Fan Dimension (Radiator)
- 120 x 120 x 25 mm
- Fan MTTF
- ≧ 160,000 hrs
- Fan Rated Voltage
- 12 V
- Fan Rated Current
- 0.3 A
- Fan Air Flow
- 23.81 ~ 102.17 CFM
- Fan Static Pressure
- 0.673 ~ 6.28 mm-H2O
- Fan Connector
- 4 Pin PWM
- Fan Maximum Noise
- 14 ~ 28 dBA
- ACCESSORY
- Thermal grease included
- Fan Screw
- M3.5
Shipping Information
- EAN
- 4713157723666
- UPC
- 819315023662
- Box Dimension
- 443 x 205 x 137mm
- Gross Weight / unit
- 2.74 kg
- Carton Dimension
- 462 x 295 x 450mm
- Q'ty / carton
- 4 PCS
- Gross Weight / Carton
- 11.3 kg
