LIQTECH TR4 II Series 280mm Liquid CPU Cooler
- 100% sTRX4 / TR4 IHS Coverage
- Exclusive for AMD Threadripper Platform
- Support 500W+ TDP
- Patented Shunt Channel Technology
- Ultra-premium Water Block Featuring Addressable RGB Lighting
Color
Overview
AMD Socket sTRX4 / TR4 Ready!
Quick & user-friendly mounting system for top-end AMD Threadripper CPUs (sTRX4 / TR4)
100% sTRX4 / TR4 IHS Coverage
Tailored to 100% cover AMD Threadripper’s integrated heat spreader (IHS) for uncompromised cooling performance
Central Coolant Inlet (CCI) design and patented Sunt-Channel Technology (SCT)
Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer
EF1 Pump Design
Robust pump with precision engineering delivers extremely high flow rate up to 450 L/h for superior cooling performance
Ultra-premium Water Block Featuring Addressable RGB Lighting
Unique RGB water block provides synchronizable RGB lighting via the latest addressable RGB header of motherboards for vivid rainbow lighting effects

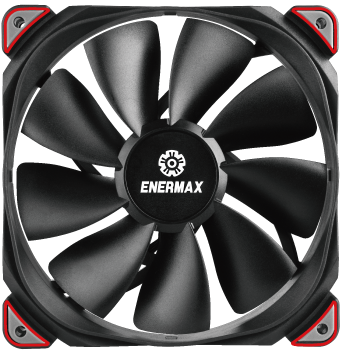

Innovative High Pressure Blades
High-pressure blade design enhances the cooling performance
Anti-vibration rubber pads provide noiseless stable operation
2 ways to control RGB lighting effects
Through Motherboard Software
Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)
Addressable RGB lighting synchronization
Through ENERMAX RGB Control Box
Users can use the included control box to adjust preferred lighting effects (10 pre-set effects) brightness and speed
Dimension
unit:mm
Product Introduction
Installation Guide
Specifications
General Data
- Model
- ELC-LTTRTO280-TBP
- CPU Socket
- sTRX4 / sTR4 / SWRX8 / SP3
- TDP
- 500W
- Cold Plate Material
- Copper
- Radiator Material
- Aluminum
- Radiator Dimension
- 313 x 140 x 28 mm
- Pump Bearing
- Ceramic Nano PI Bearing
- Pump MTBF
- 100,000 hours
- Pump Rated Voltage
- 12 V
- Fan Speed
- 500 - 1500 RPM ± 10%
- Pump Rated Current
- 0.4 A
- Pump Rated Current - RGB LED
- 0.2 A
- Fan Dimension (Radiator)
- 140 x 140 x 25 mm
- Fan MTTF
- ≧160,000 hours
- Fan Rated Voltage
- 12 V
- Fan Rated Current
- 0.2 A
- Fan Air Flow
- 31.86 ~ 80.71 CFM
- Fan Static Pressure
- 0.960 ~ 4.812 mm-H2O
- Fan Connector
- 4 pin PWM
- Fan Maximum Noise
- 14 ~ 25 dBA
- ACCESSORY
- Thermal grease included
- Fan Screw
- M3.5
Shipping Information
- EAN
- 4713157723659
- UPC
- 819315023655
- Box Dimension
- 364 x 183 x 171mm
- Gross Weight / unit
- 2.46 kg
- Carton Dimension
- 570 x 385 x 380mm
- Q'ty / carton
- 6
- Gross Weight / Carton
- 15.7 kg
