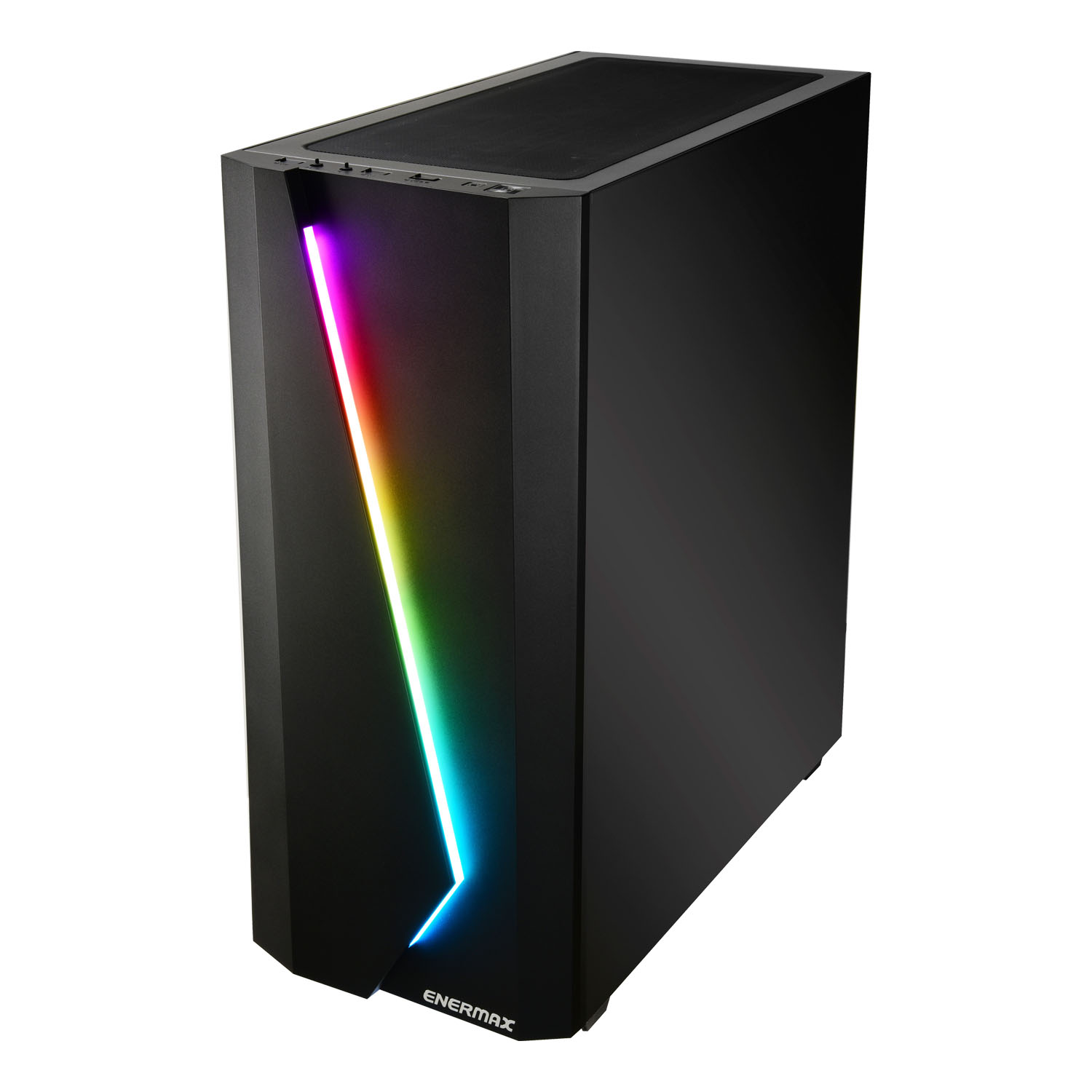

MAKASHI MK50 ARGB Tempered Glass Full-Tower PC Case
- Support Addressable RGB Lighting Synchronization
- Spacious Interior Supports E-ATX Motherboard
- Movable HDD Cage for 20cm PSU Installation
Color
Overview

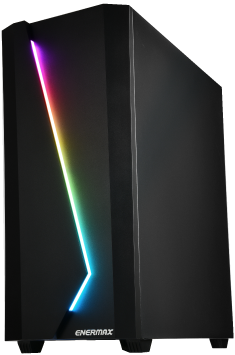

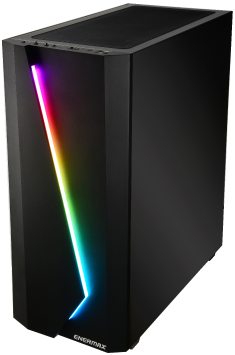

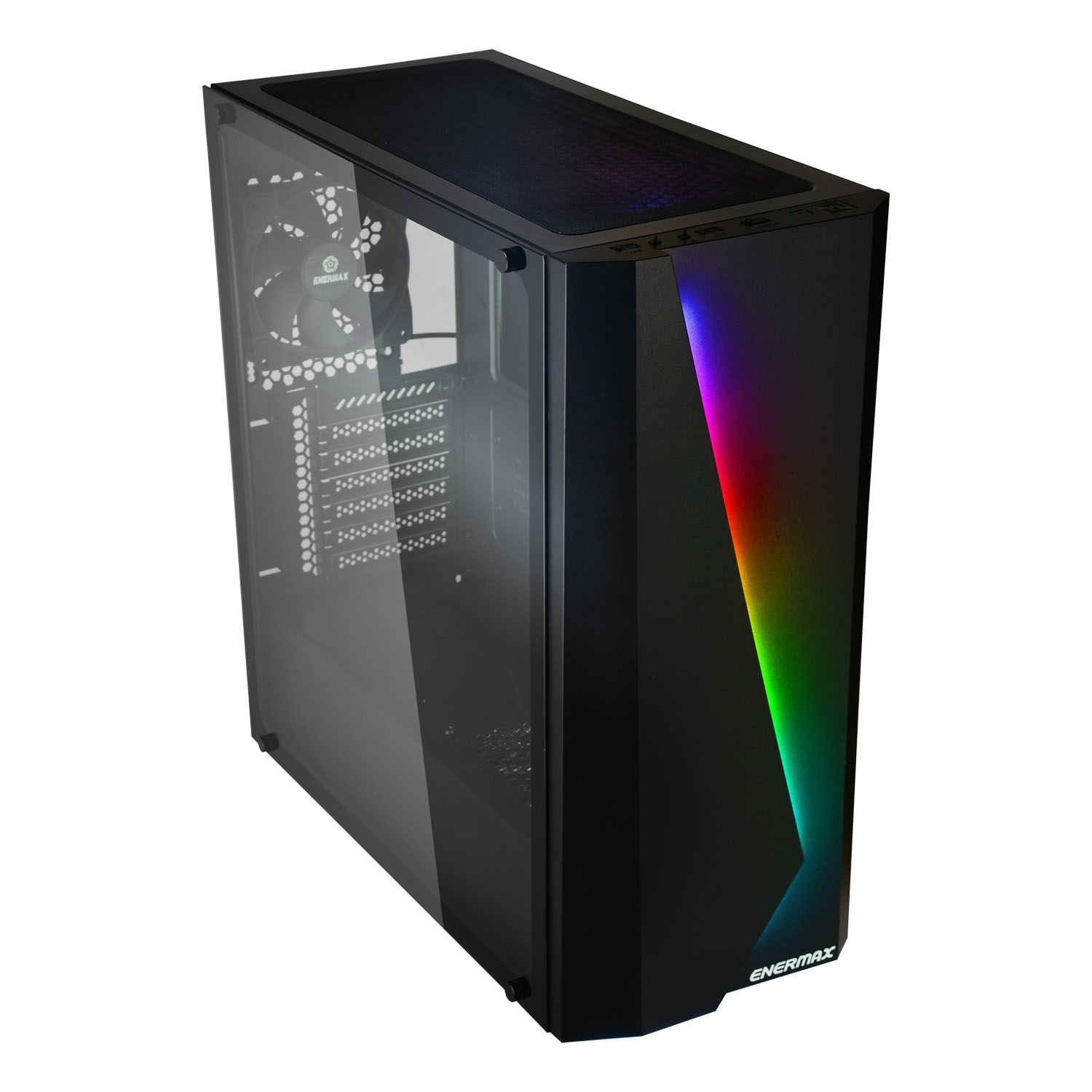

Simple and decent exterior design

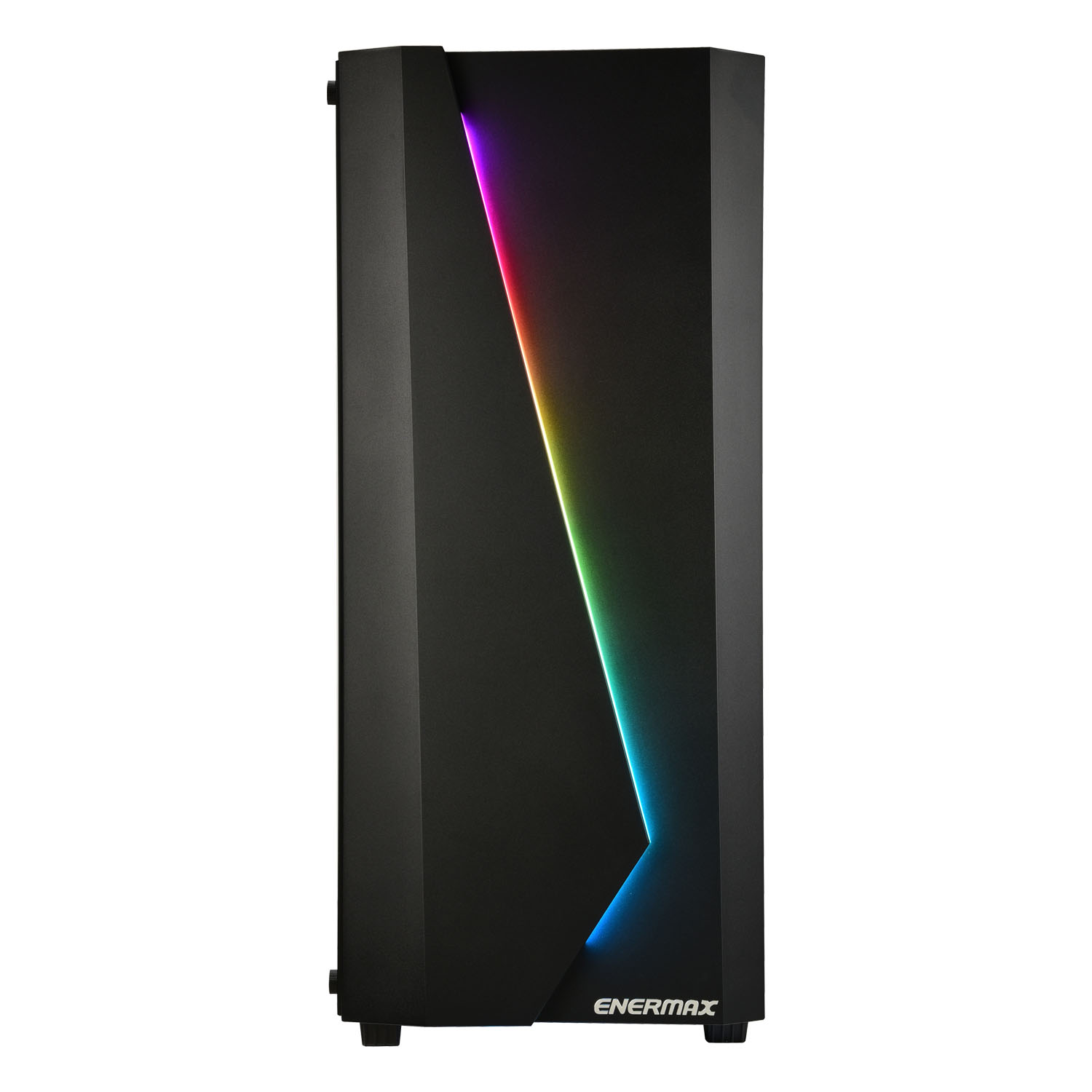

Unique lightning-shaped RGB strip in the front panel creates a visually appealing look; the lighting of the strip can be easily controlled via a button on I/O (13 pre-set effects)
Addressable RGB lighting synchronization
Support synchronizable RGB Lighting via motherboards with header (3 pin assignment is 5V/D/G). Users can program preferred lighting effects via the motherboard software with 16.8 million color options

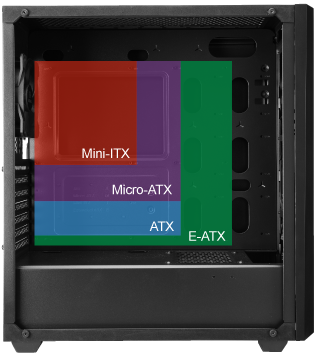

Support E-ATX motherboard

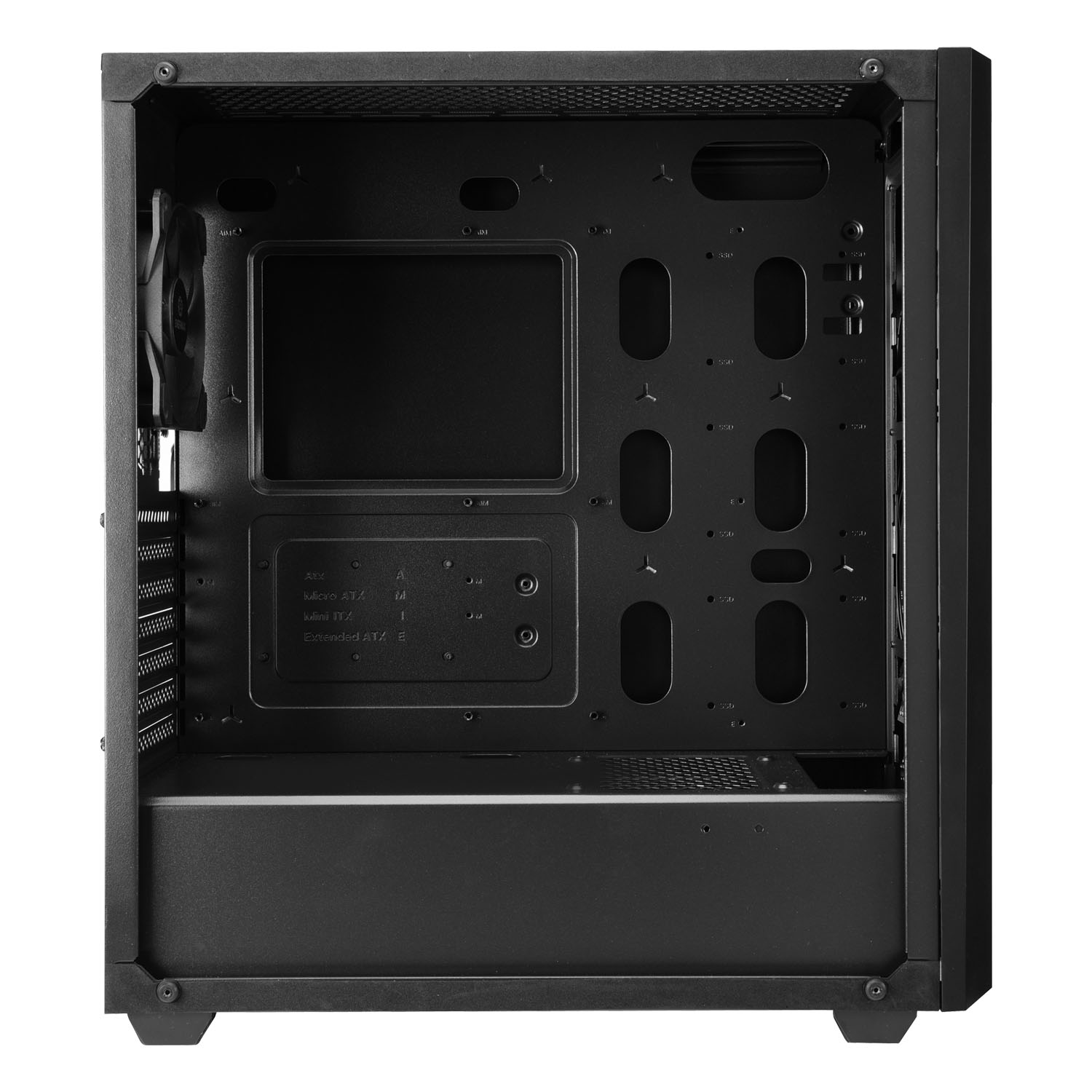

Spacious interior supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards

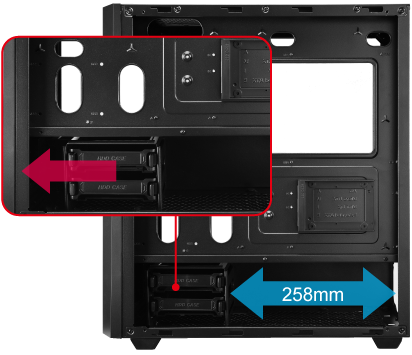

Movable HDD cage
Movable HDD cage can create extra space for longer PSU (max. 20cm) installation

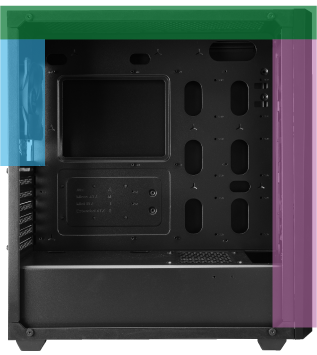

Versatile water cooling options
Flexible cooling system configuration supports 3 x designated areas for liquid cooler installation
| Liquid Cooler Compatibility Chart | |||||
| Radiator size (mm) | 360 | 280 | 240 | 140 | 120 |
| Front | ✔ | ✔ | ✔ | ||
| Top | ✔ | ✔ | ✔ | ✔ | ✔ |
| Rear | ✔ | ||||

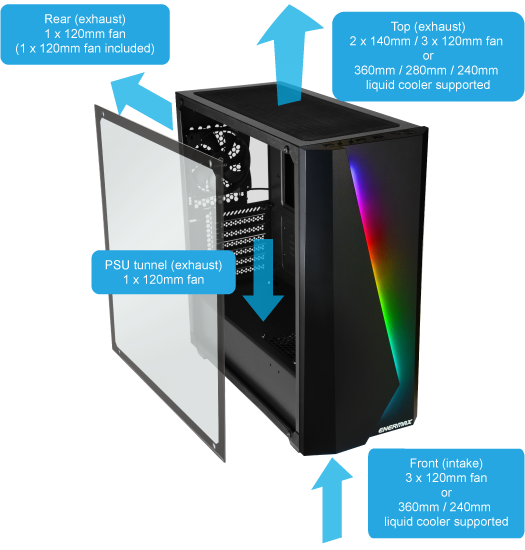

Advanced ventilation system to support up to 8x fans

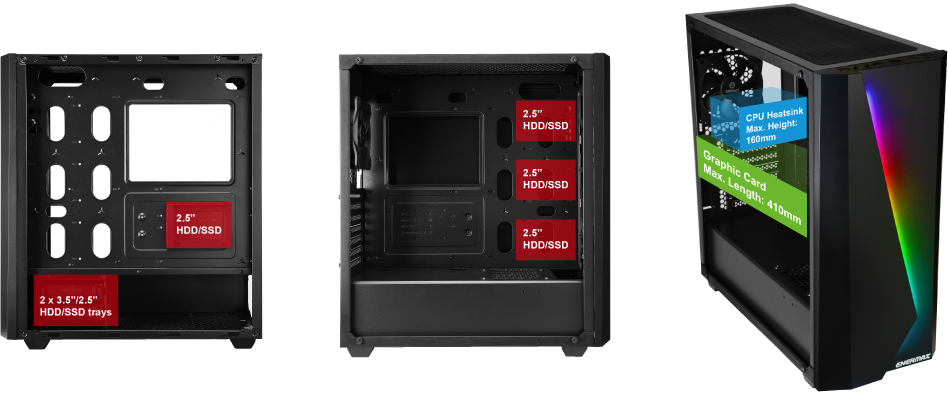

Flexible system configuration

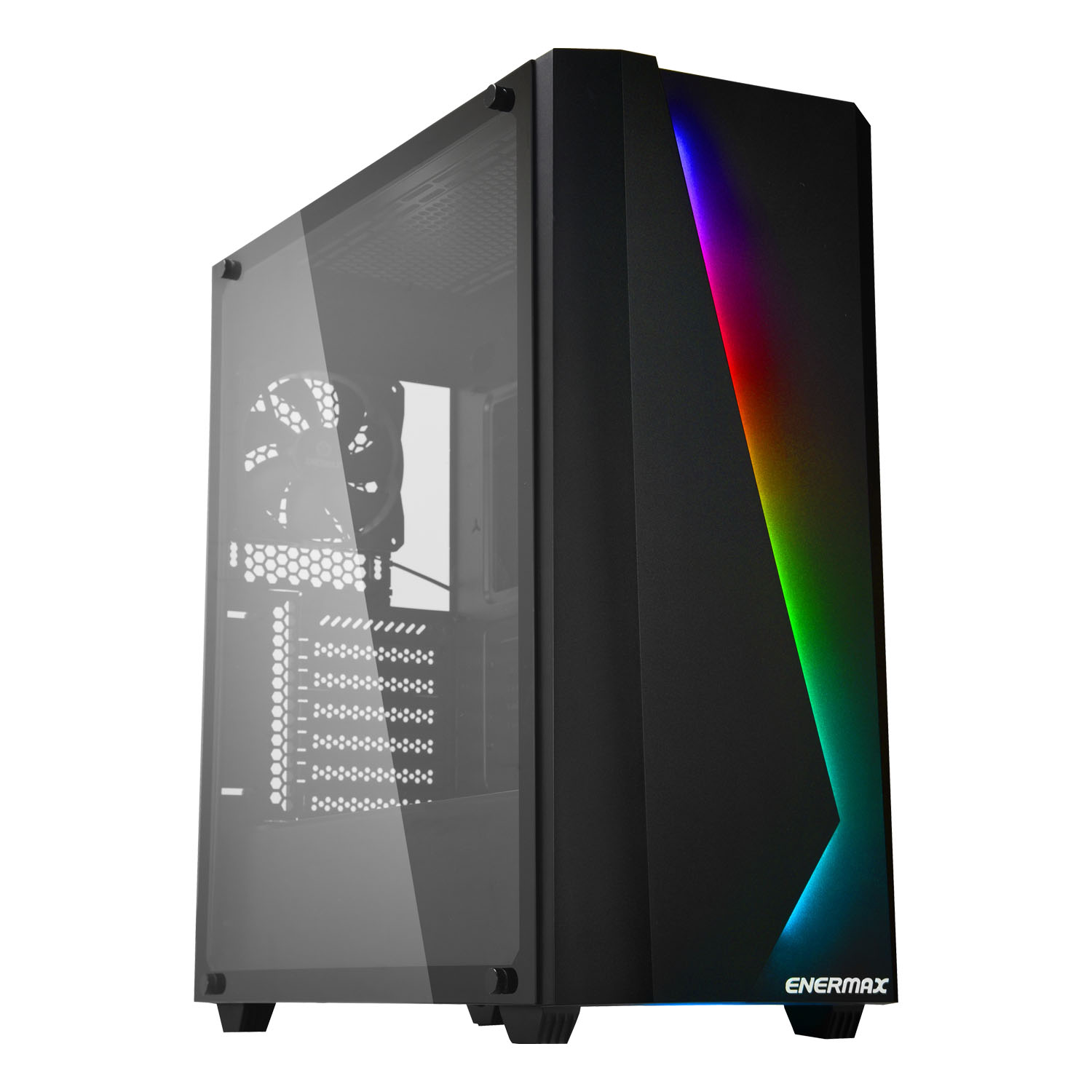

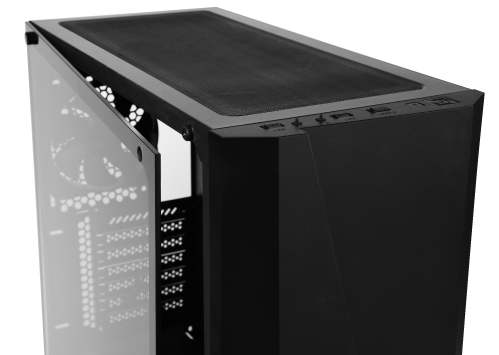

4mm panoramic tempered glass window
4mm full-view tempered glass side panel allows you to show off your rigs
Anti-dust rubber plugs

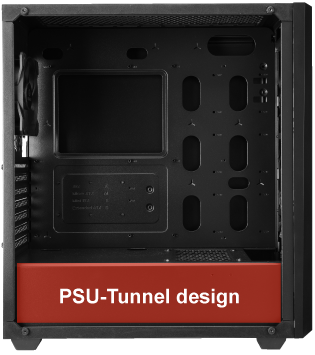

PSU-Tunnel design (aka PSU shroud)
The design minimizes the cable clutter, which makes the system clean and neat, and helps improve the air circulation
Dimension
unit:mm
Product Introduction
Specifications
General Data
- Model Name
- ECA-MK50-BB-ARGB
- Dimensions (D x W x H)
- 452 x 212 x 495 mm
- M/B Type
- E-ATX, ATX, Micro ATX, Mini ITX
- I/O

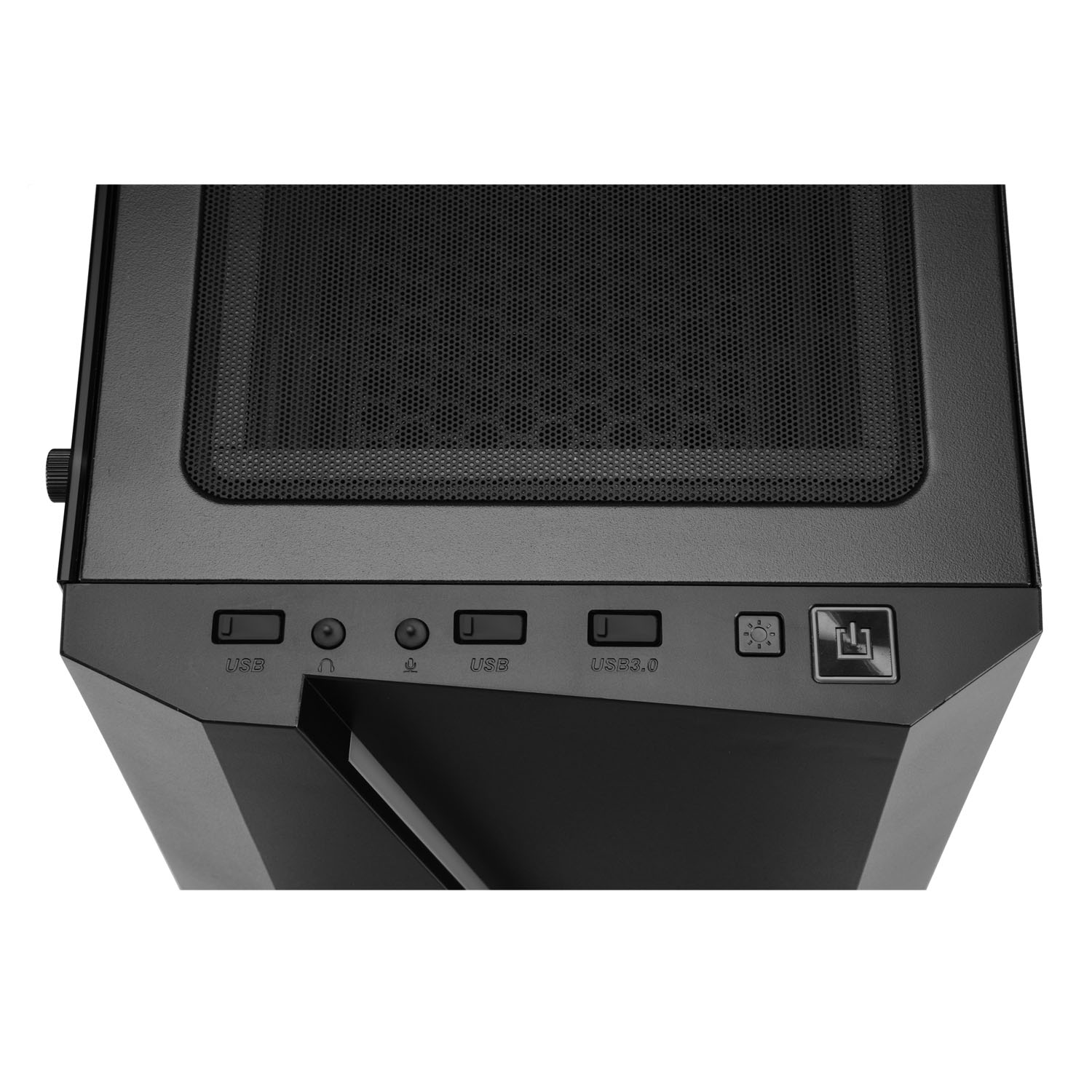

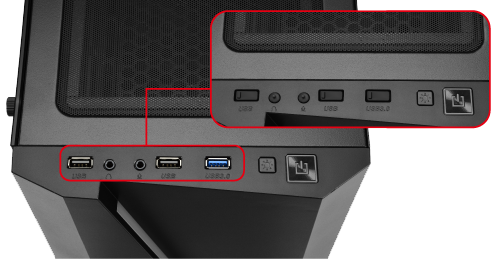

- USB3.0 x 1, USB2.0 x 2, HD Audio, Lighting control
- 3.5'' Drive Bays
- 2
- Material
- SPCC, T=0.6mm
- 2.5'' Drive Bays
- 6 (2 x Converted from 3.5”HDD tray)
- Expansion Slots
- 7
- Fan Slots - Front
- 3 x 120mm
- Fan Slots - Top
- 2 x 140mm or 3 x 120mm
- Fan Slots - Rear
- 1 x 120mm (1 x 120mm fan pre-installed )
- Fan Slots - Tunnel
- 1 x 120mm
- Radiator Support - Front
- 360mm / 240mm
- Radiator Support - Top
- 360mm / 280mm / 240mm
- Radiator Support - Rear
- 120mm
- PSU Support
- 180mm / 200mm (Moving HDD cage forward)
- Clearance - VGA card
- 410mm
- Clearance - CPU Cooler
- 160mm
Shipping Information
- EAN code
- 4713157724014
- UPC code
- 819315024010
- Carton dimensions (D x W x H), (mm)
- D535 x W270 x H520mm
- Gross Weight (kg)
- 8kgs
- Net Weight (kg)
- 6.8kgs
