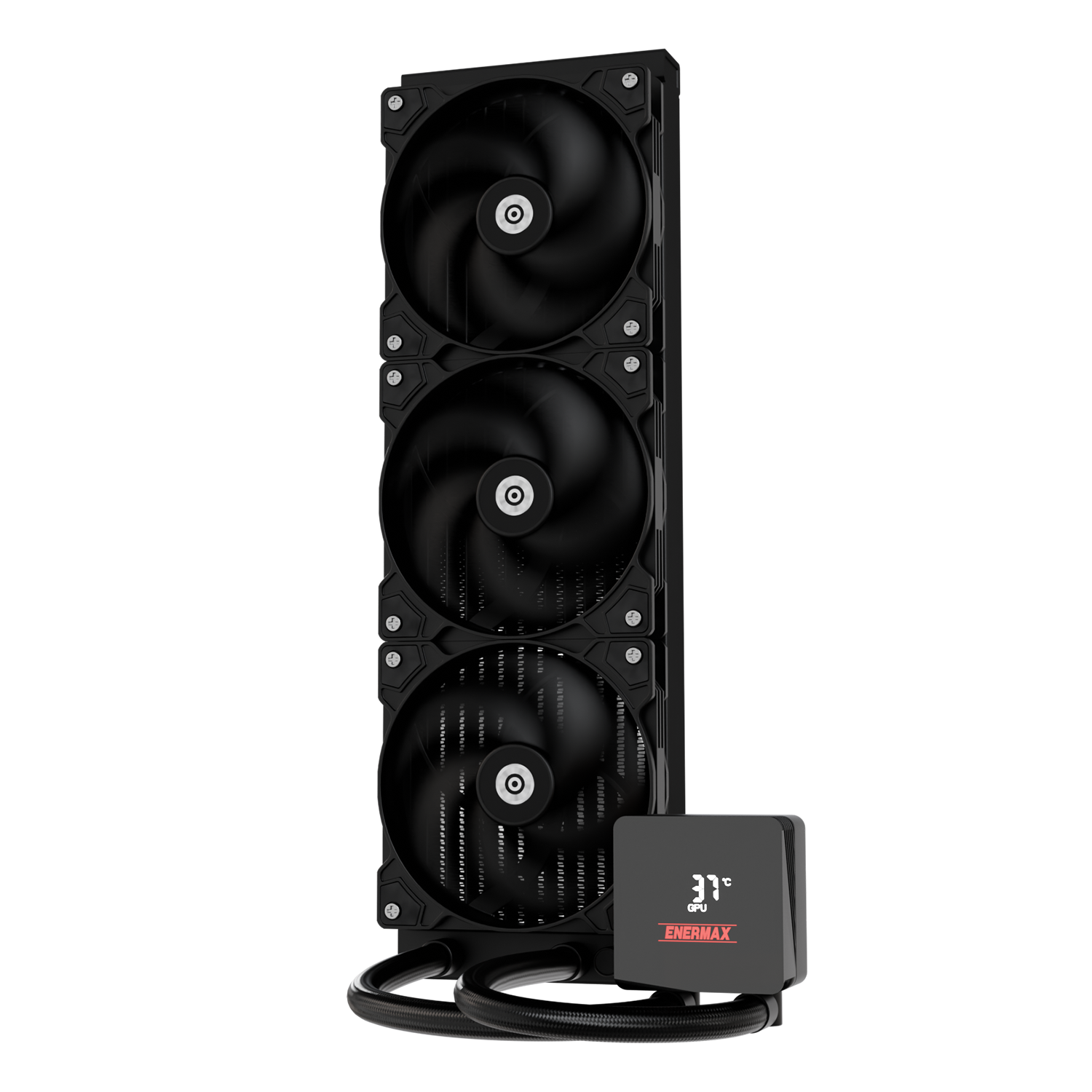

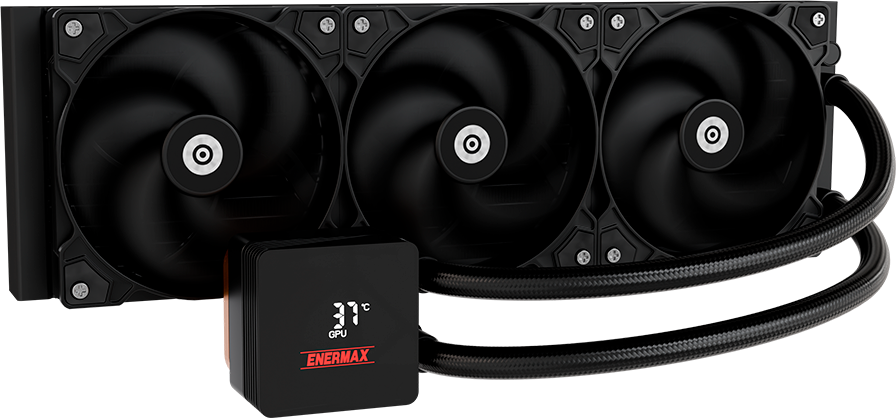

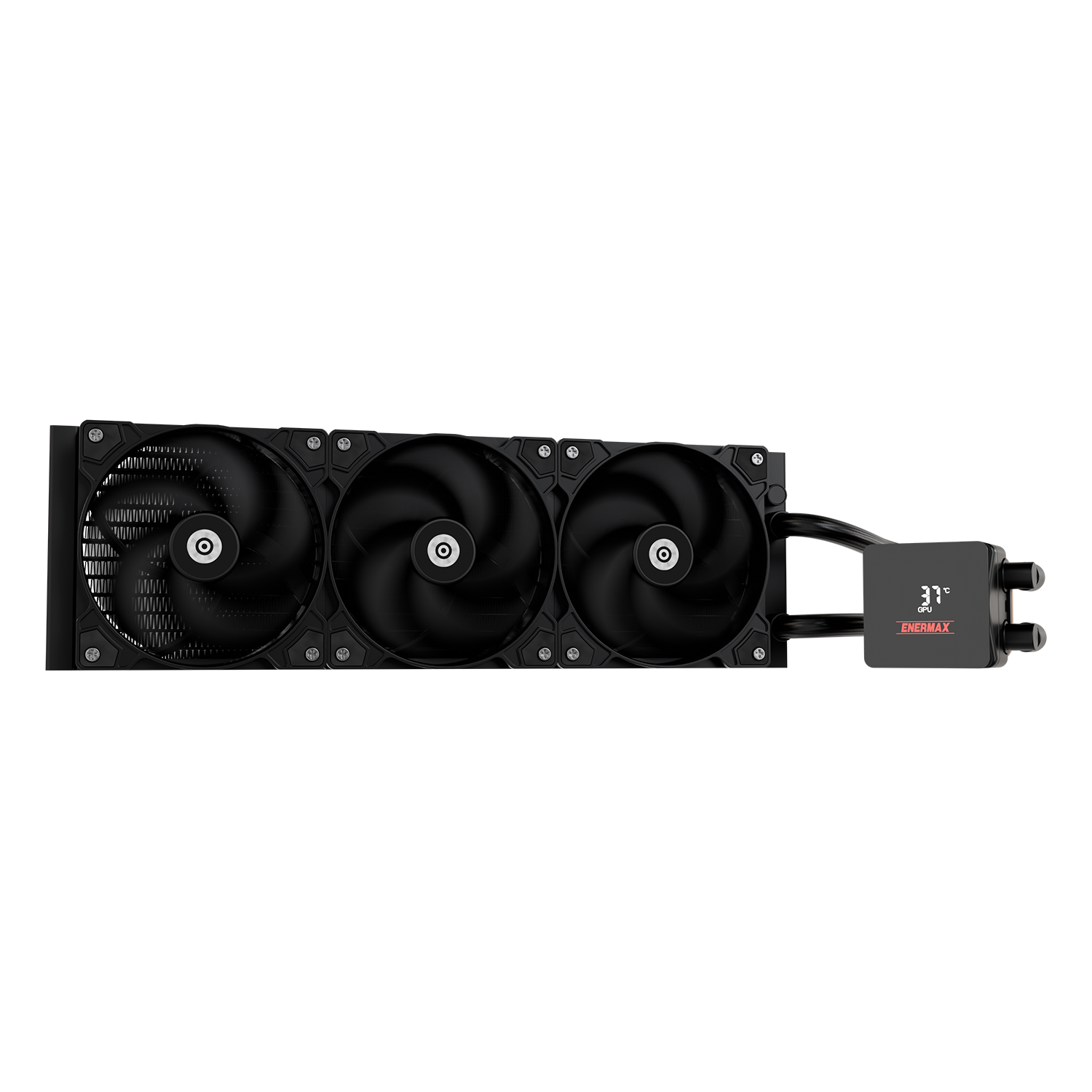

LIQMAX IV Series 360mm Liquid CPU Cooler
- Superior Cooling Capacity (390W TDP)
- Patented Dual-Chamber Water Block with Gen.2 Xtreme Pump Design
- High-Performance PWM Fan (500-1800RPM)
- Support AMD AM5 and Intel LGA 1851 Sockets
- Magnetic Rotatable Real-time Status Digital Display
Color
Overview
PATENTED DUAL-CHAMBER WATER BLOCK WITH ENERMAX GEN.2 XTREME PUMP DESIGN
Deliberately made with a larger cooler base and paired with our innovative pump design, the ENERMAX Gen.2 Xtreme Pump Technology can deliver unmatched cooling capacity.
ENERMAX GEN. 2 XTREME PUMP TECHNOLOGY
ENERMAX Gen.2 Xtreme Pump Technology features a 35% larger base for significantly better heat dissipation and is coupled with our most optimized pump yet: it now delivers a 31% boost in flow rate. This powerful combination can lower temperatures by 5°C on a 250W CPU compared to other high-performance liquid cooling solutions on the market, ensuring the best performance for even the most demanding systems.
Intel Ultra 9 285K Processor 250W Heat Load
A QUIET PERFORMANCE
PWM-controlled radiator and pump fans allow the cooler to strike the perfect balance between silence and performance.
Fan Speed: 500-1800RPM
Pump Fan Speed: 1500-3100RPM
MAGNETIC ROTATABLE REAL-TIME STATUS DIGITAL DISPLAY
Our exclusive magnetic digital display on the water block allows users to manually adjust the display direction.
Experience seamless installation with the help of our 3100 Gauss magnets, coupled perfectly with our low-resistance digital displays.
DIMENSIONS
Unit: mm
Specifications
General Data
- Model
- ELC-LMIV360-SF
- CPU Socket
- Intel® LGA 1851/1700/115x/2066 AMD® AM5/AM4
- TDP
- 390 W
- Cold Plate Material
- Copper
- Radiator Material
- Aluminum
- Radiator Dimension
- 394 x 120 x 27mm
- Pump Bearing
- Ceramic Bearing
- Pump MTBF
- 100,000 hrs
- Pump Rated Voltage
- 12 V
- Fan Speed
- 500~1800 RPM ±10%
- Pump Rated Current
- 0.35A
- Fan Dimension (Radiator)
- 120 x 120 x 26.8 mm
- Fan MTTF
- ≧ 60,000 hrs
- Fan Rated Voltage
- 12 V
- Fan Rated Current
- 0.08A
- Fan Air Flow
- 58.03 CFM
- Fan Static Pressure
- 2.4 mmH2O
- Fan Connector
- 4 Pin PWM
- Fan Maximum Noise
- 23.46 dBA
Shipping Information
- EAN
- 4713157729286
- UPC
- 819315029282
- Box Dimension
- 448 x 137 x 210mm
- Gross Weight / unit
- 2.46 kg
- Carton Dimension
- 467 x 292 x 450mm
- Q'ty / carton
- 4 PCS
- Gross Weight / Carton
- 10.9 kg
