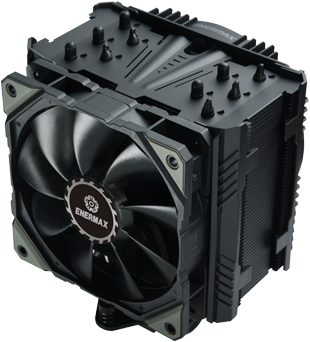

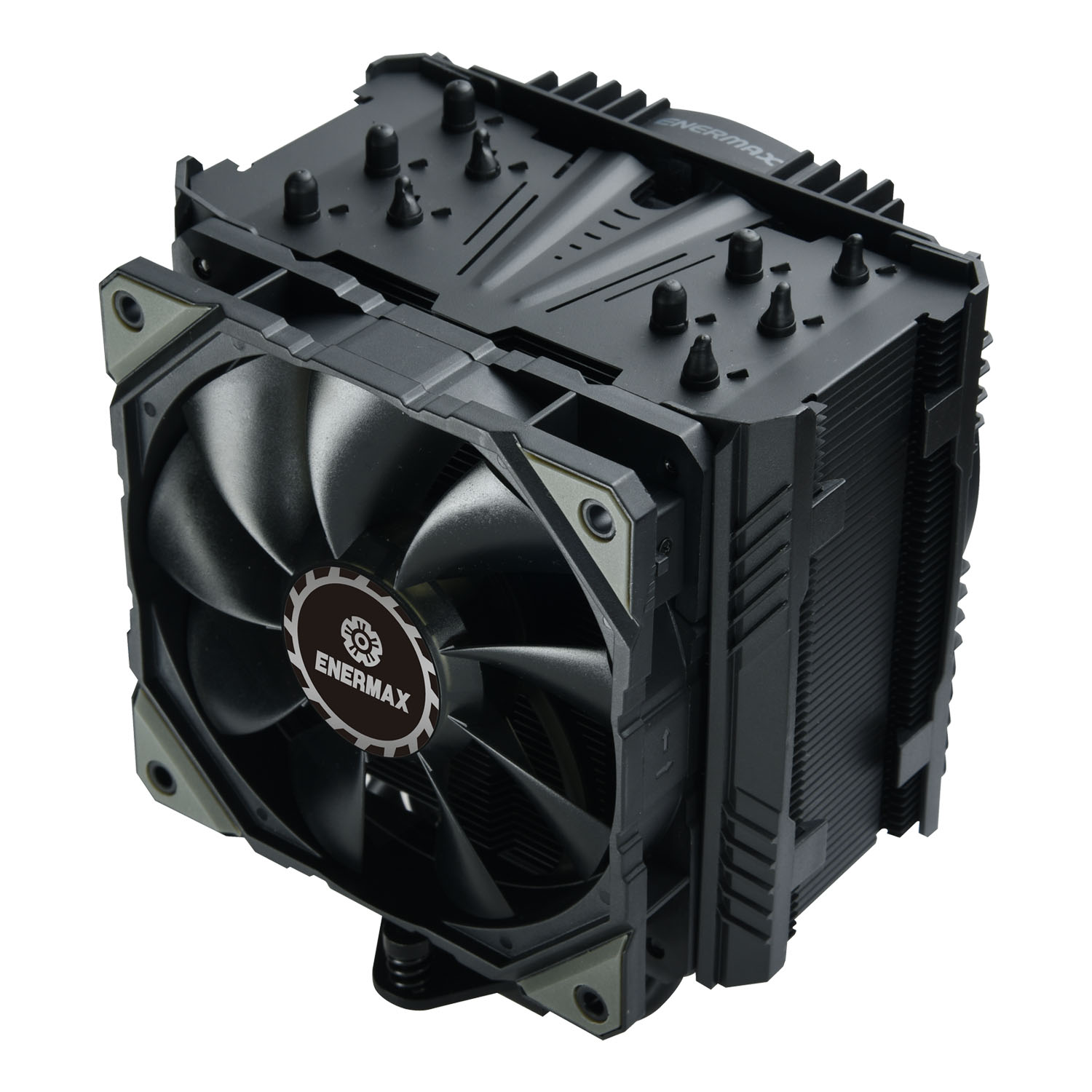

ETS-T50 AXE Series 120mm Air CPU Cooler, DFP
- Powerful 250W+ TDP support
- Super high static pressure fan
- Patented Dust Free Rotation (DFRTM) technology fan
- Patented Pressure Differential Flow (PDF) design
- Patented Rotatable Air Guide
Color
Overview

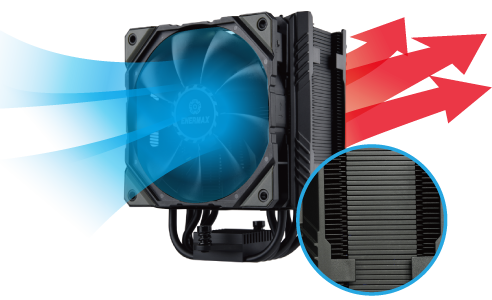

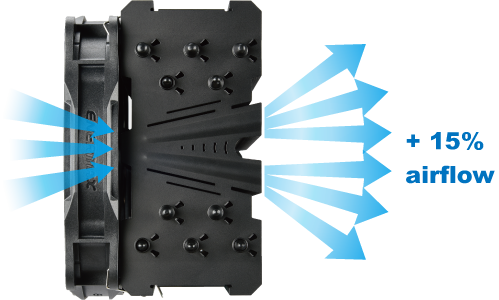

Patented PDF (Pressure Differential Flow) design
By using differential wind pressure, the PDF design is to squeeze the air flow to pass through the cone-shaped tunnel rapidly. This patented design can help increase 15% more airflow and enhance the cooling performance.

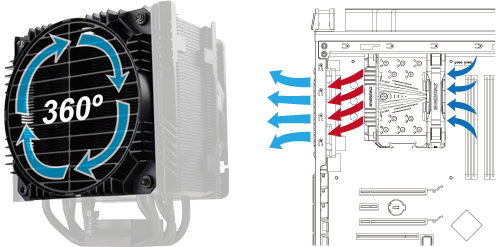

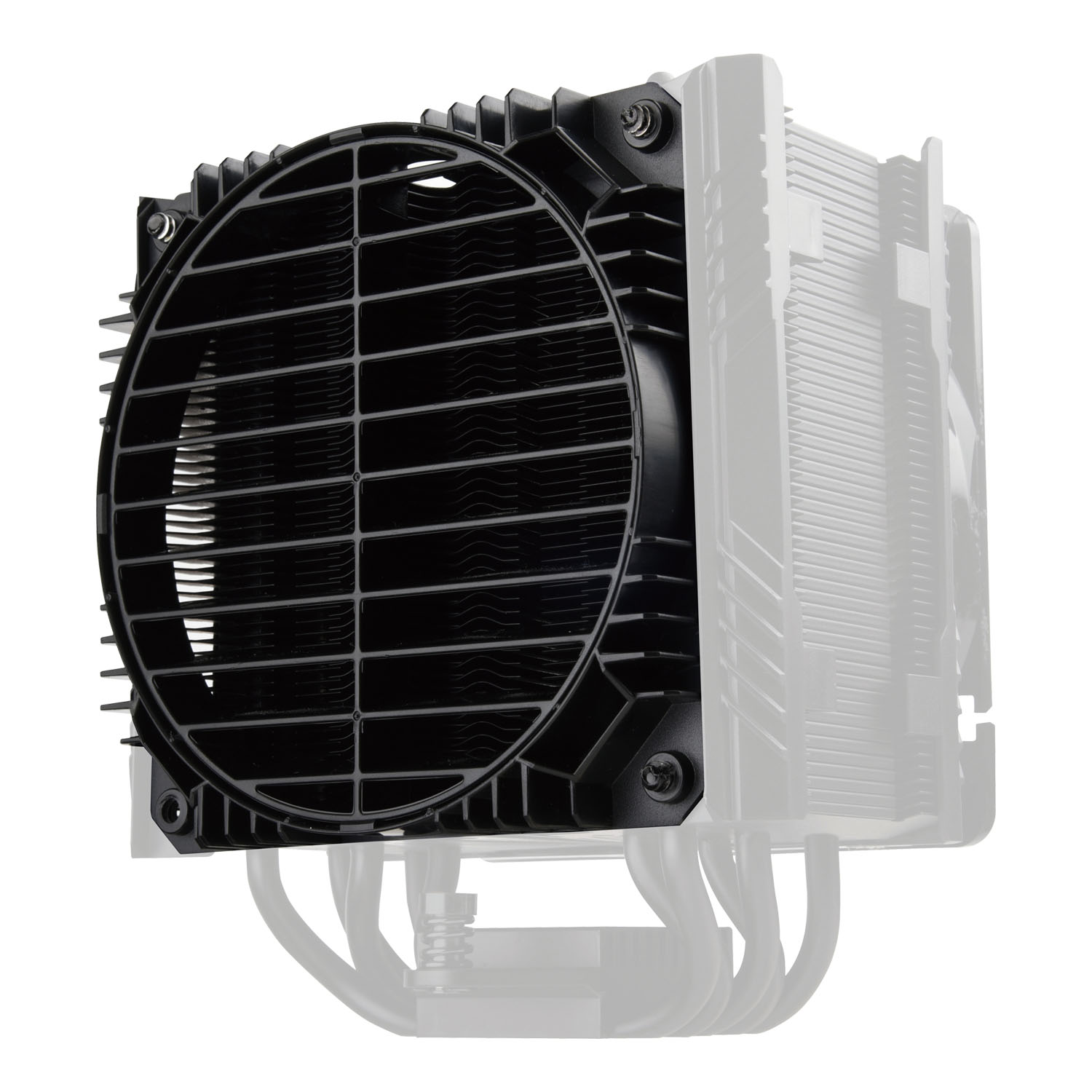

Patented Air Guide with rotatable grill for preferred airflow direction adjustment directly toward the rear case fan area

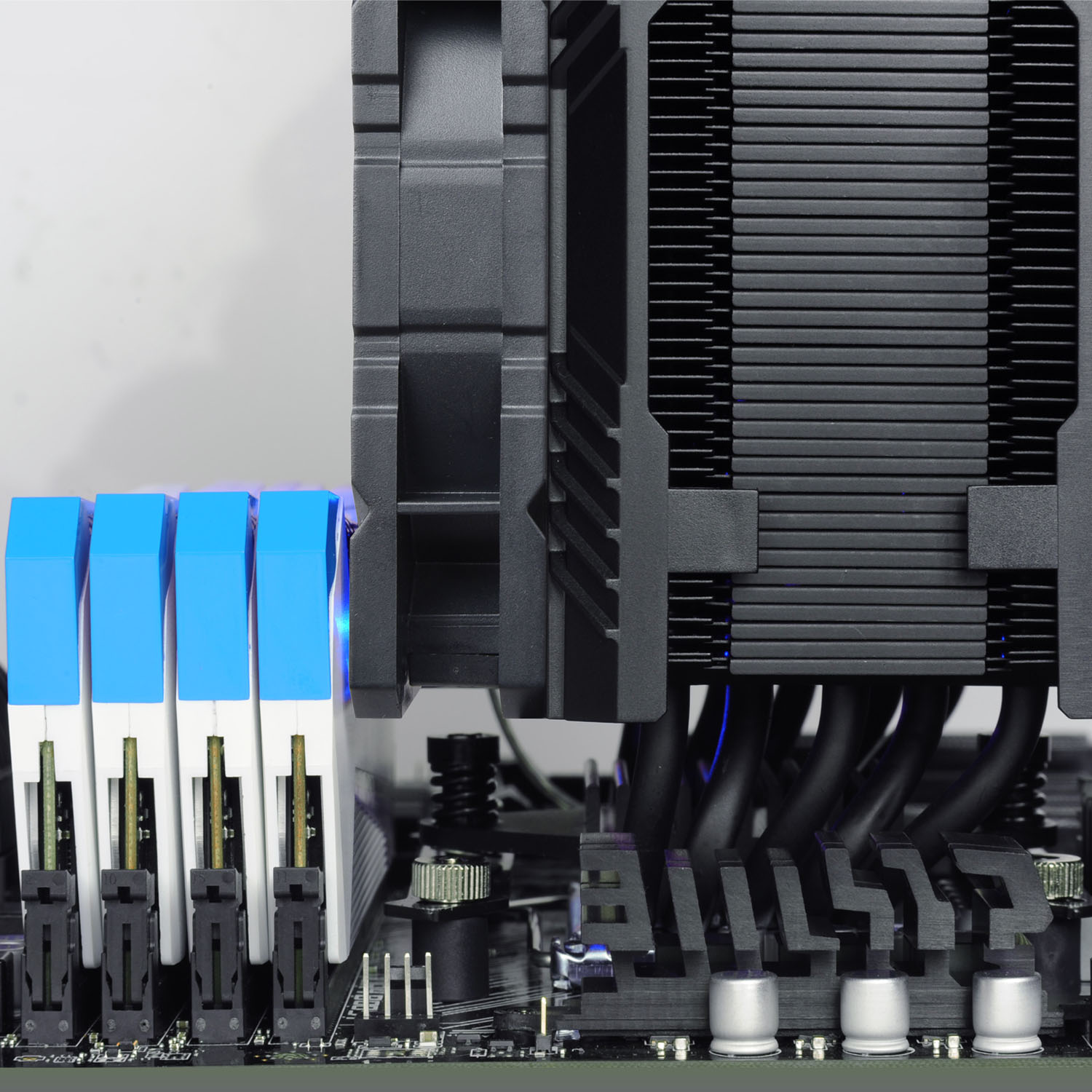

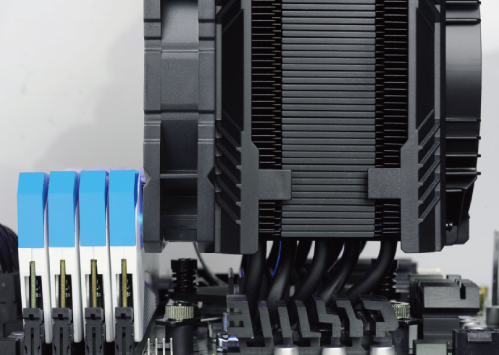

Asymmetric heat pipe design allows extra space for ideal RAM compatibility

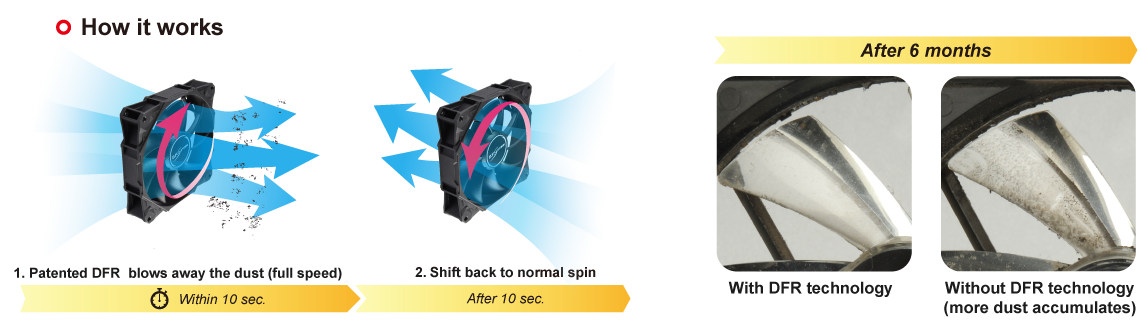

Patented DFRTM (Dust Free Rotation) technology instantly blows away the dust to prolong the lifespan

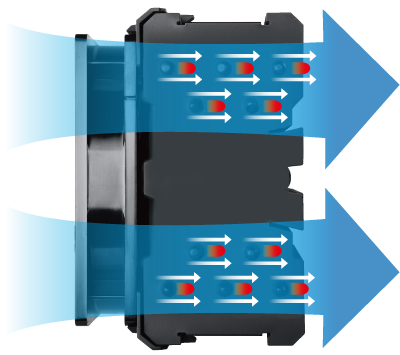

Unique air path creating high VEF (Vacuum Effect) to optimize the airflow
ETS-T50 AXE – no air leaks from sides

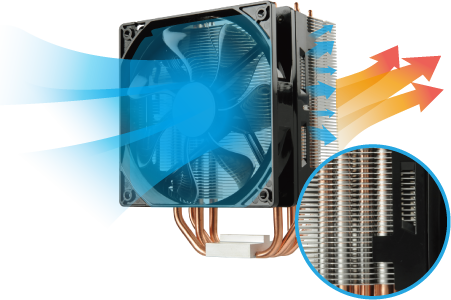

Other cooler- air leaks from sides

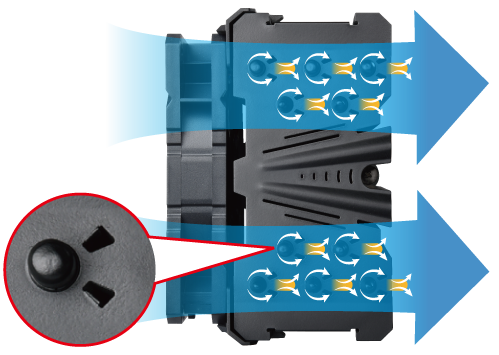

Patented VGF (Vortex Generation Flow) to increase air convection around the heat pipe
ETS-T50 AXE
Other cooler
High Pressure Technology

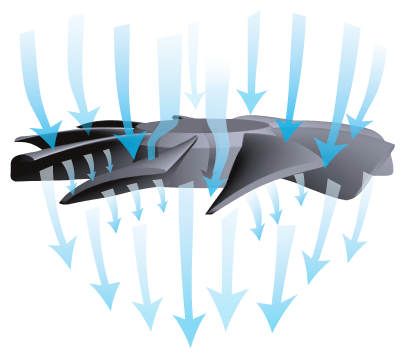

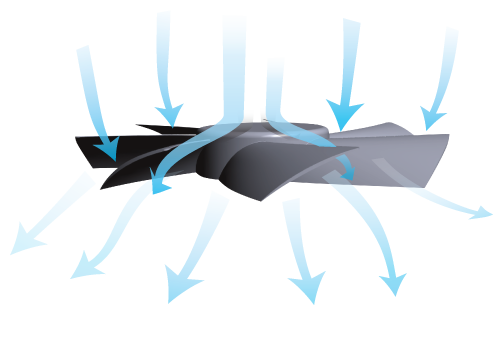

High pressure blade design is a precision engineering of the blade angle and shape calculation. The blades centralize dispersed air flow to the center of the fan and create extremely high air pressure high airflow while maintaining outstanding quietness.
ETS-T50 AXE – D.F Pressure
Other cooler- Normal fan

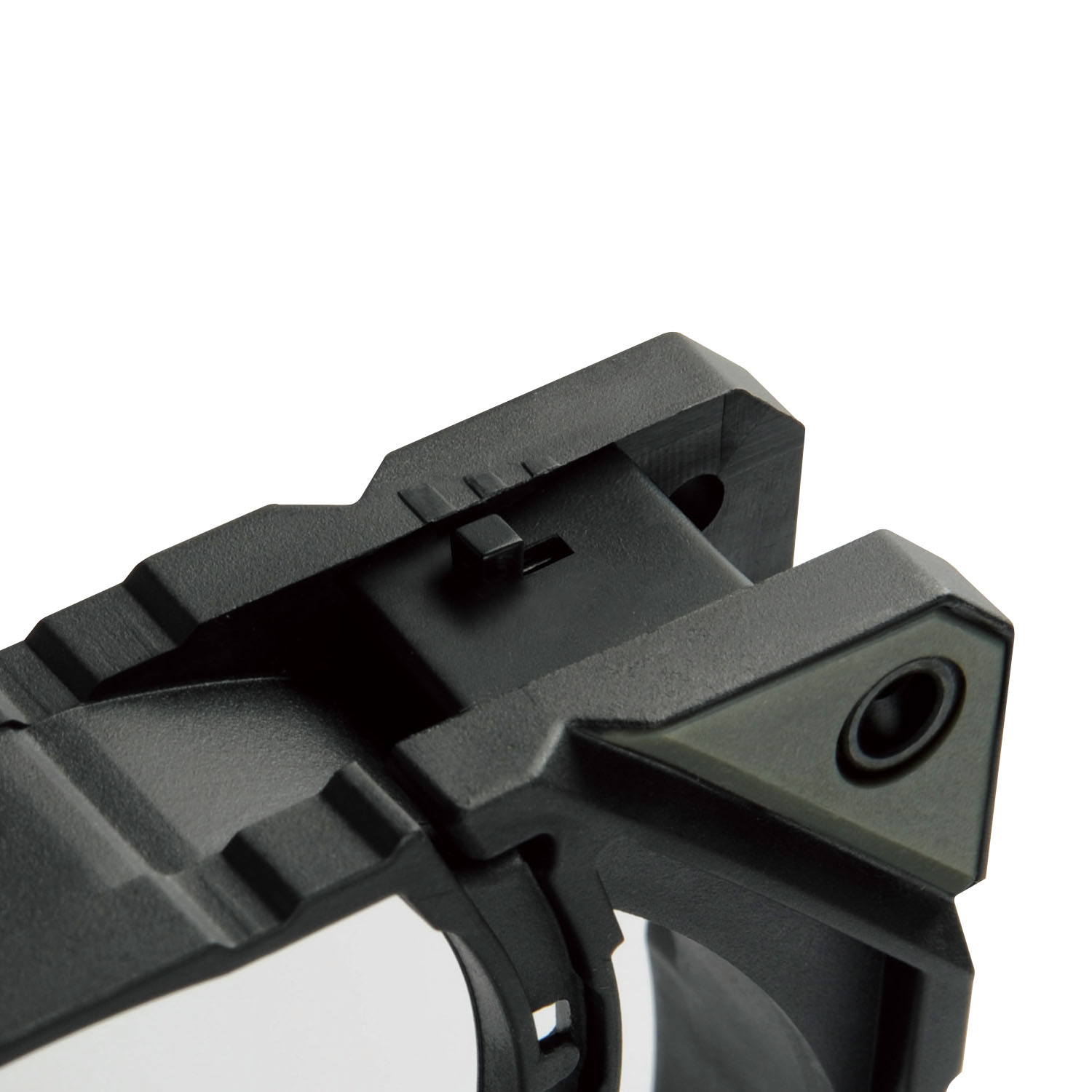

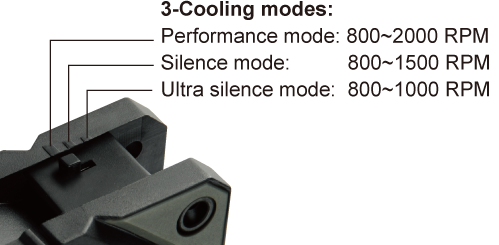

Patented APS (Adjustable Peak Speed) control providing 3 peak rpm options

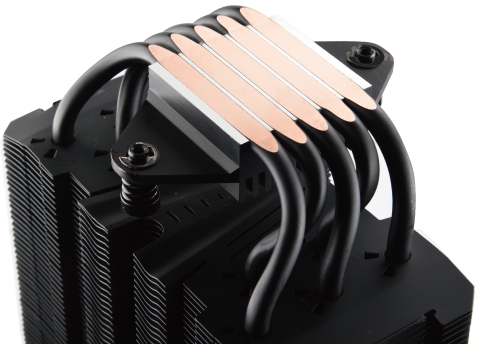

HDT (Heat-pipe Direct Touch) technology to ensure rapid thermal conduction and eliminate CPU hot spots
Gen. 2 TCC (Thermal Conductive Coating) creates better velocity of thermal transferring and prevents oxidation

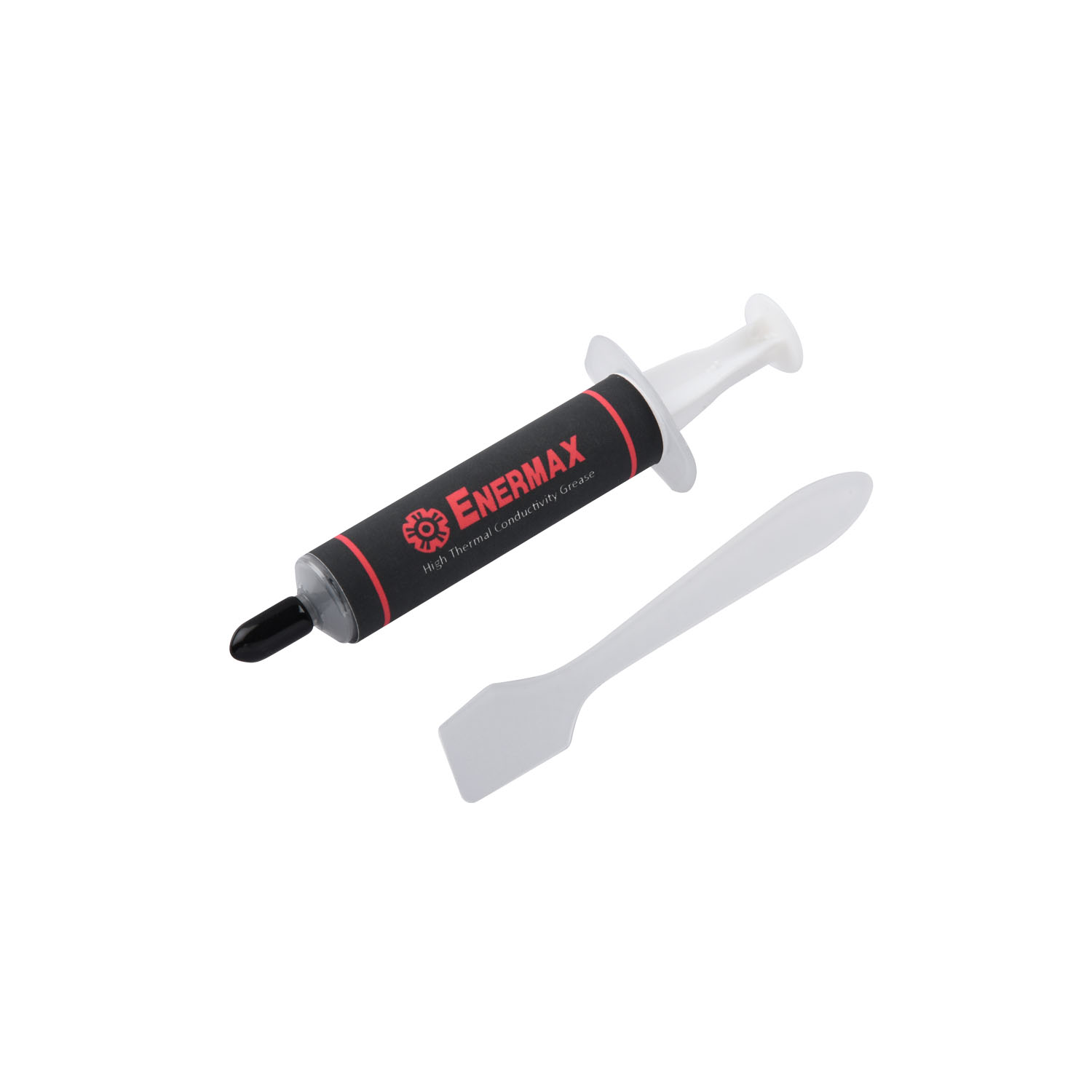

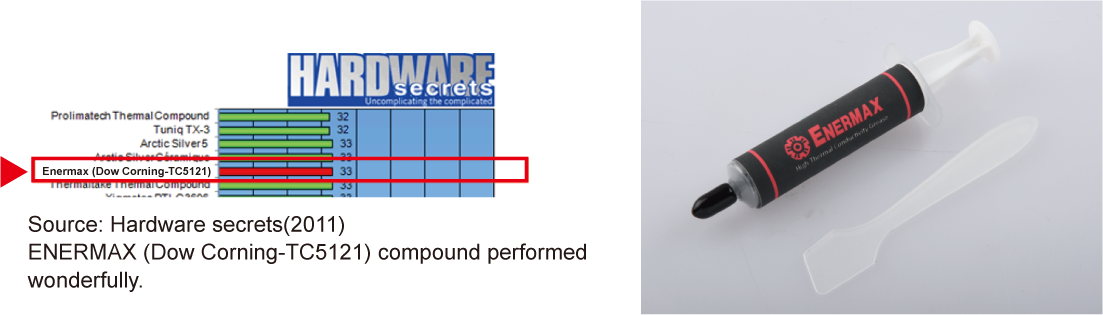

Dow Corning® TC-5121 (3g) thermal grease for perfect thermal conduction between CPU and the heat sink

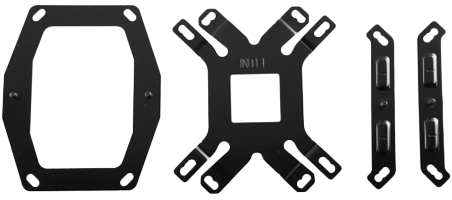

Durable metal installation kits offer universal AMD & Intel desktop CPU compatibility with durable metal brackets

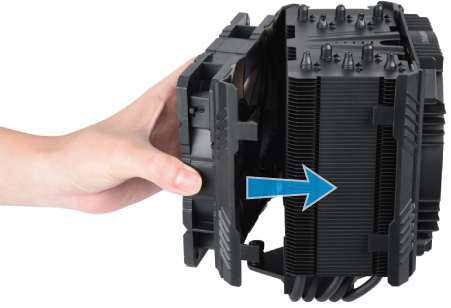

“1-clip” fan bracket design for user-friendly installation
Specifications
General Data
- Model
- ETS-T50A-DFP
- CPU Socket
- Intel® LGA 1851/1700/1200/115x/2066/2011/2011-3/1366 AMD® AM5/AM4/AM3+/FM2+/FM1
- Overall Dimension
- 138.7(L) x 112.5(W) x 160(H) mm
- Weight
- 860g (w/ fan)
- TDP (W)
- 250W
- Heat Pipe
- 5
- Material
- Copper Heat Pipes / Aluminum Fins
- Thermal Grease
- TC5121C
- Fan Dimension
- 120 x 120 x 25 mm
- Fan Speed
- 800 ~ 1000/1500/2000 rpm
- Fan Air Flow (CFM)
- 33.69 ~ 42.30 / 66.87 / 85.43 CFM
- Air Flow (m3/h)
- 57.24 ~ 71.87 / 113.61 / 145.15 m3/h
- Fan Static Pressure (mm-H2O)
- 0.819 ~ 1.358 / 2.701 / 4.812 mm-H2O
- Connector
- 4 pin PWM connector
- Fan Noise (dBA)
- 16 ~ 18 / 23 / 27 dBA
- Fan Rated Voltage (V)
- 12V
- Bearing Type
- Twister Bearing
- MTTF (FAN)
- ≥160,000 hours
- ACCESSORY
- Thermal grease included
- Heat Sink Dimension
- 135.2(L) x 65(W) x 160(H) mm
Shipping Information
- EAN
- 4713157722720
- UPC
- 816163008940
- Box Dimension
- 222 x 175 x 130 mm
- Gross Weight / unit
- 1390g
- Carton Dimension
- 460 x 370 x 295 mm
- Q'ty / carton
- 8 pcs
- Gross Weight / Carton
- 12.5kg
