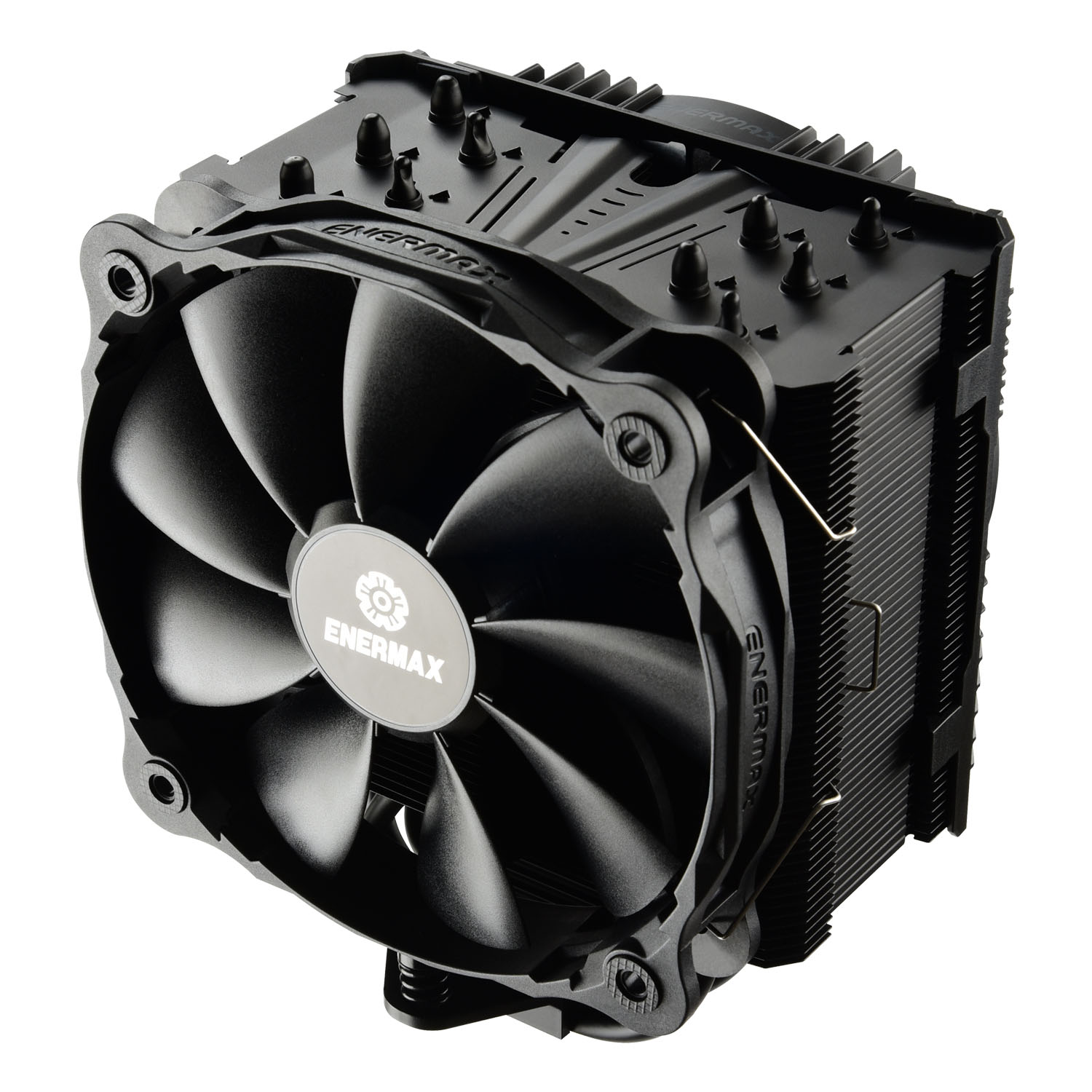

ETS-T50 AXE Series 140mm Air CPU Cooler, FSS
- Support up to 230W+ TDP
- 14cm silent fan with huge airflow design
- Patented Air Guide
- Patented Pressure Differential Flow (PDF) design
Color
Overview

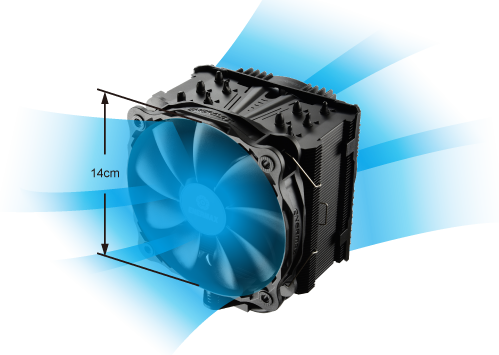

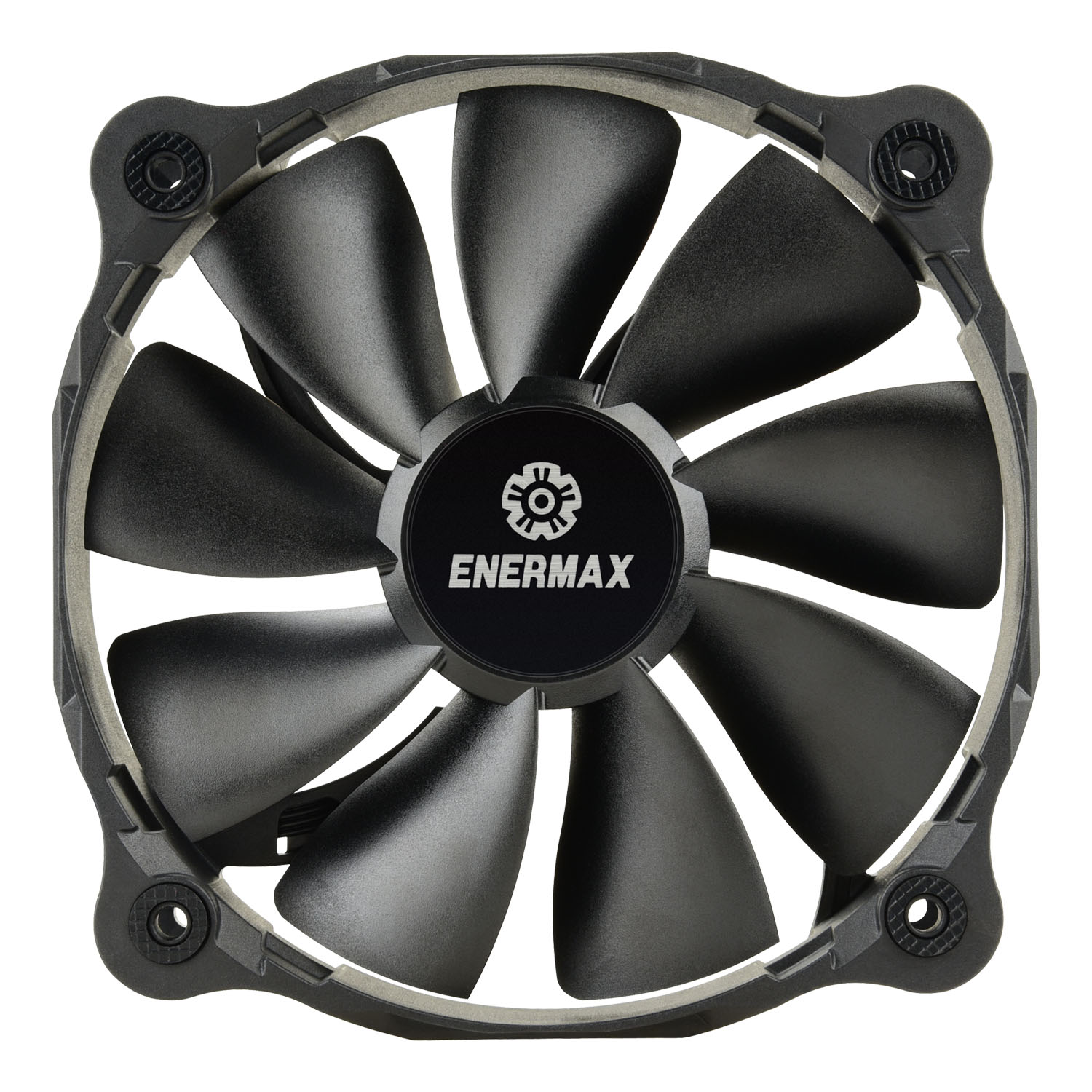

Included 14cm silent fan aims to reach the perfect balance between silence and performance

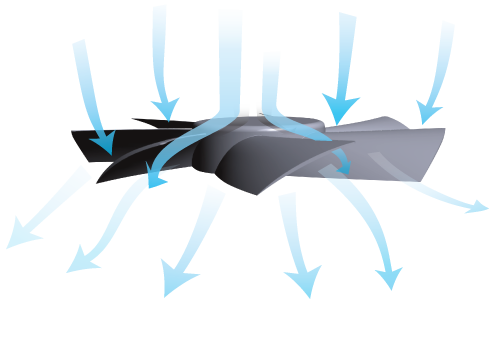

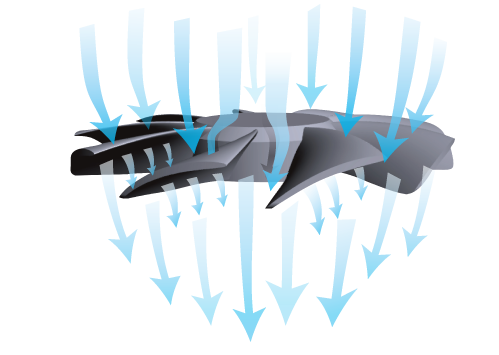

Innovative High Pressure Blades design enhances the cooling performance
ETS-T50A-FSS
Other cooler – Normal fan

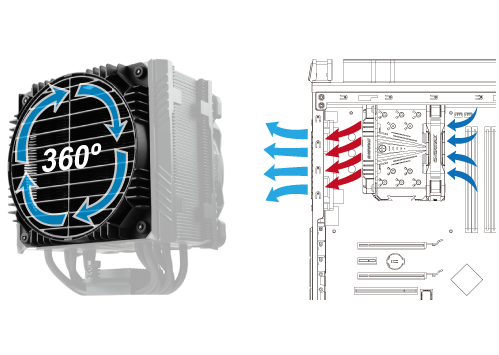

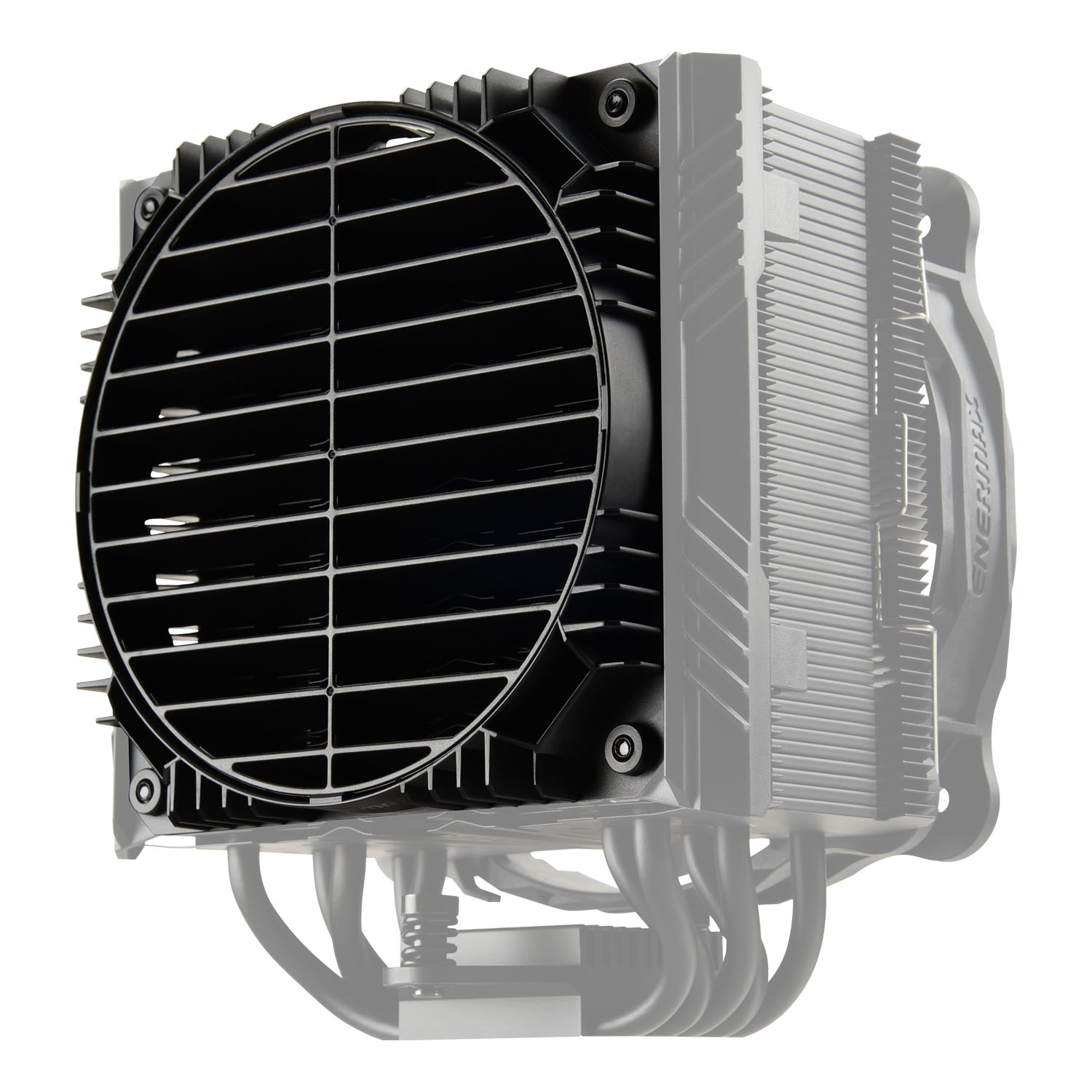

Patented Air Guide with rotatable grill for preferred airflow direction adjustment directly toward the rear case fan area

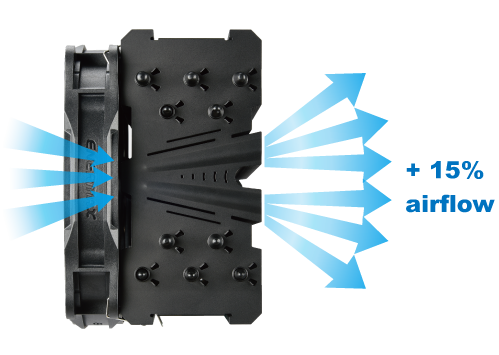

Patented PDF (Pressure Differential Flow) design uses differential wind pressure to increase 15% more airflow

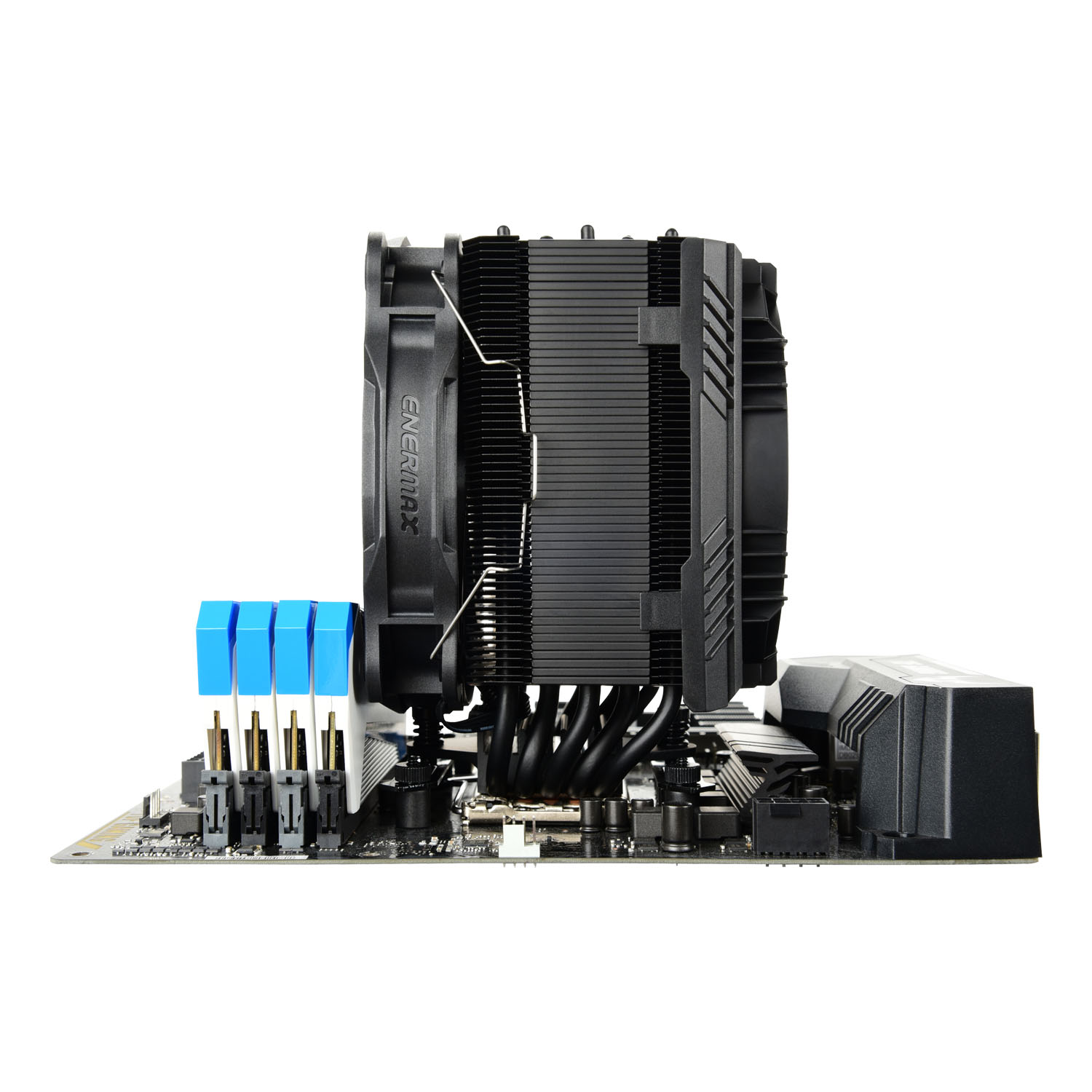

Asymmetric heat pipe design allows extra space for ideal RAM compatibility
Unique air path creating high VEF (Vacuum Effect) to optimize the airflow

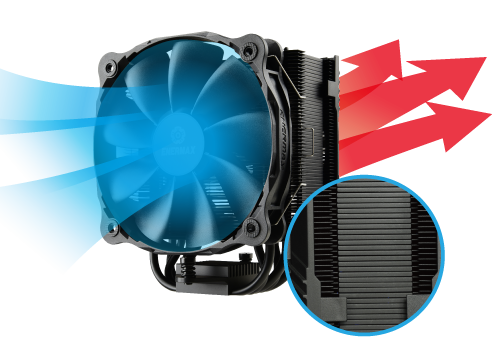

ETS-T50 AXE – no air leaks from sides

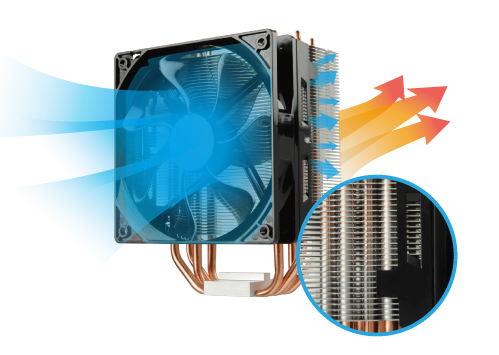

Other cooler - air leaks from sides

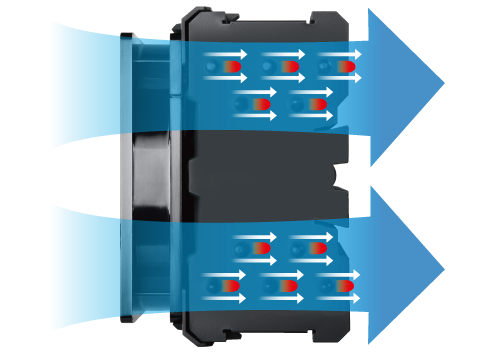

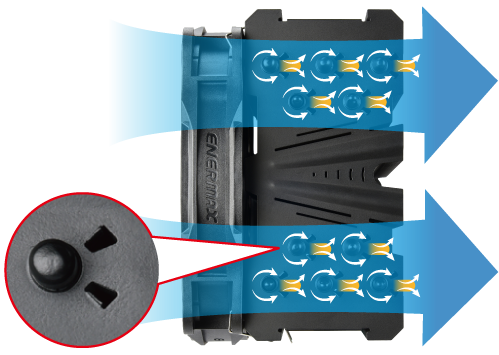

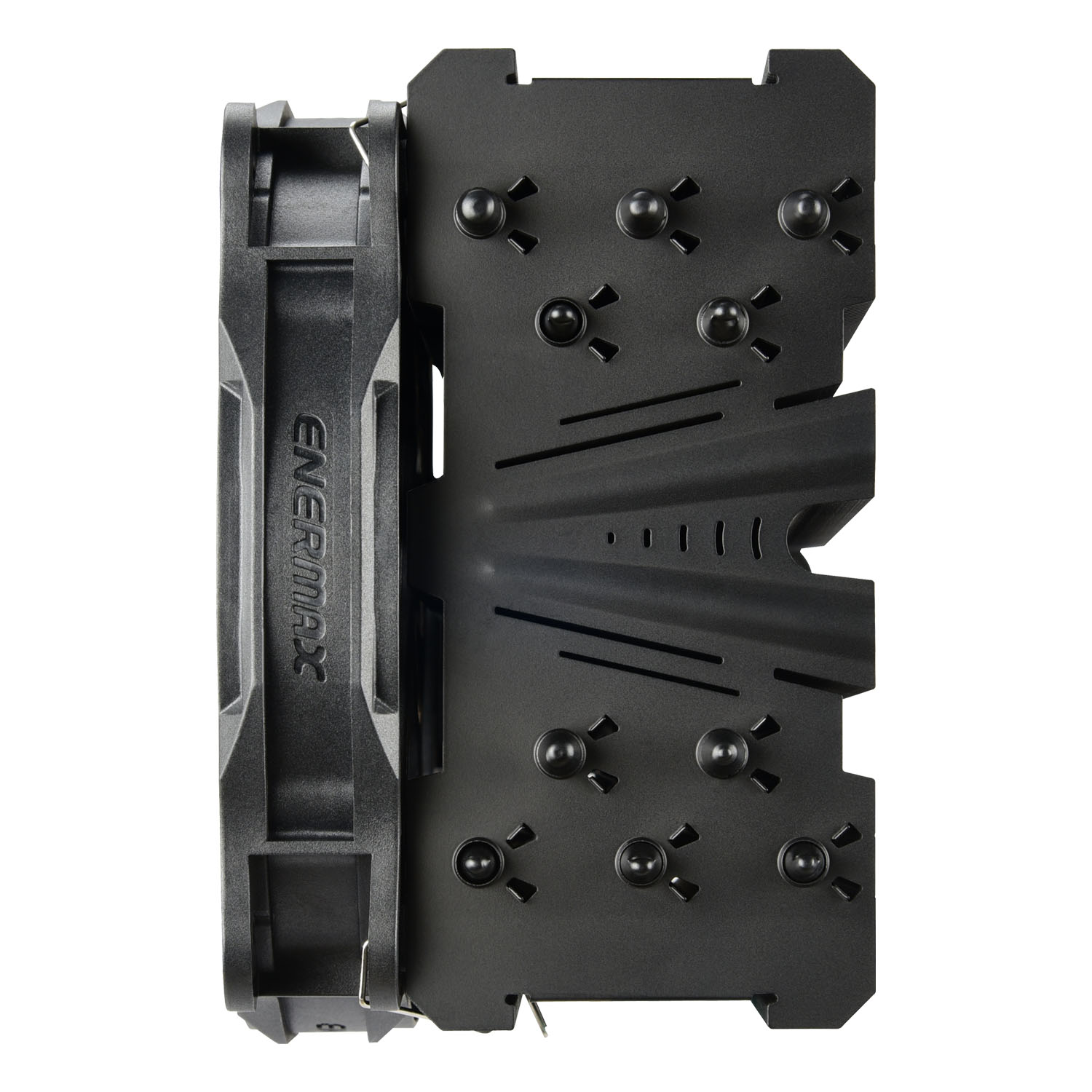

Patented VGF (Vortex Generation Flow) to increase air convection around the heat pipe
ETS-T50 AXE
Other cooler

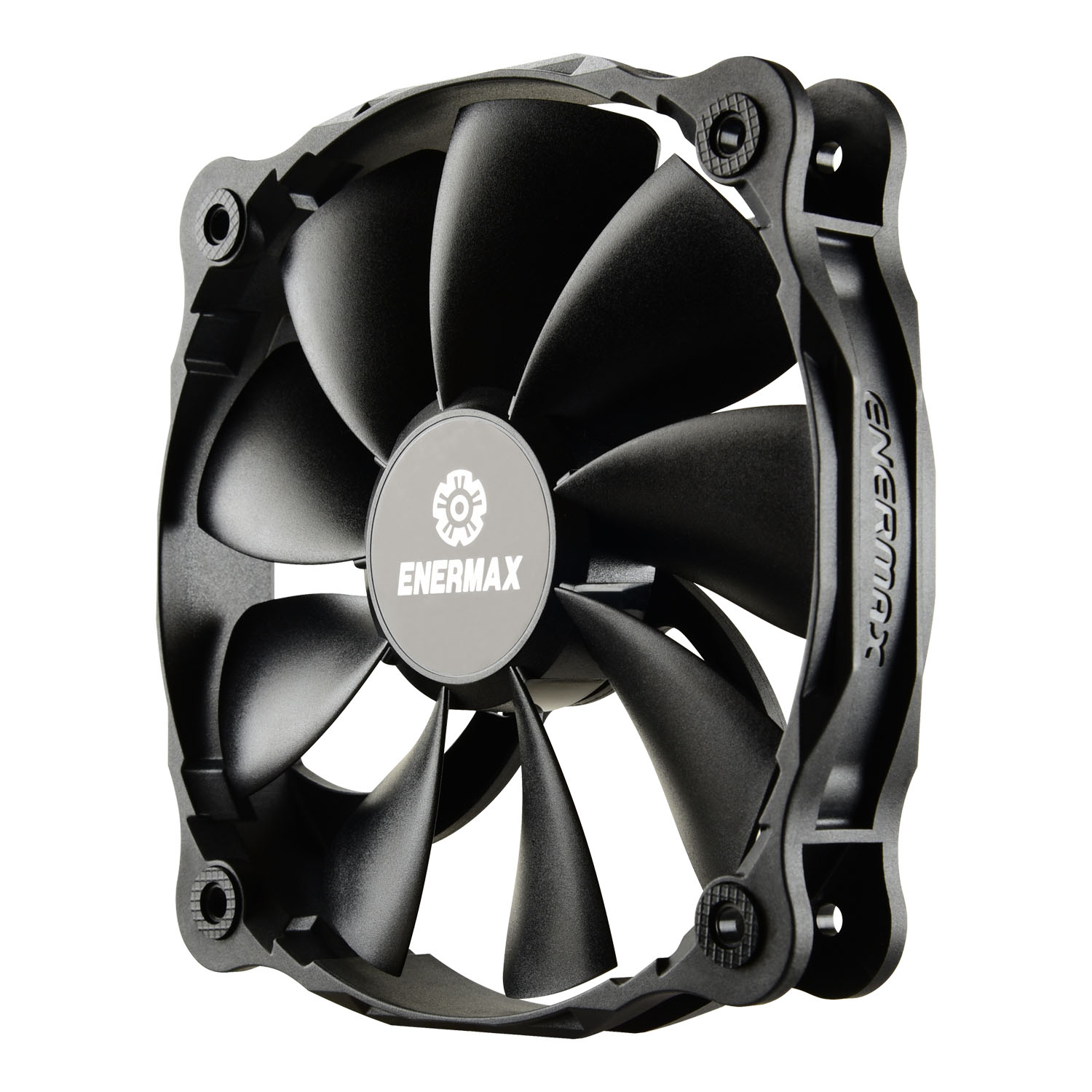

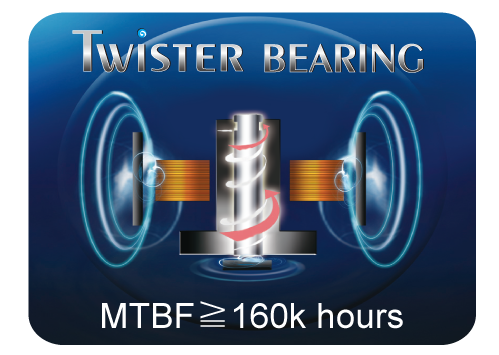

Patented Twister Bearing technology
Long life and low noise

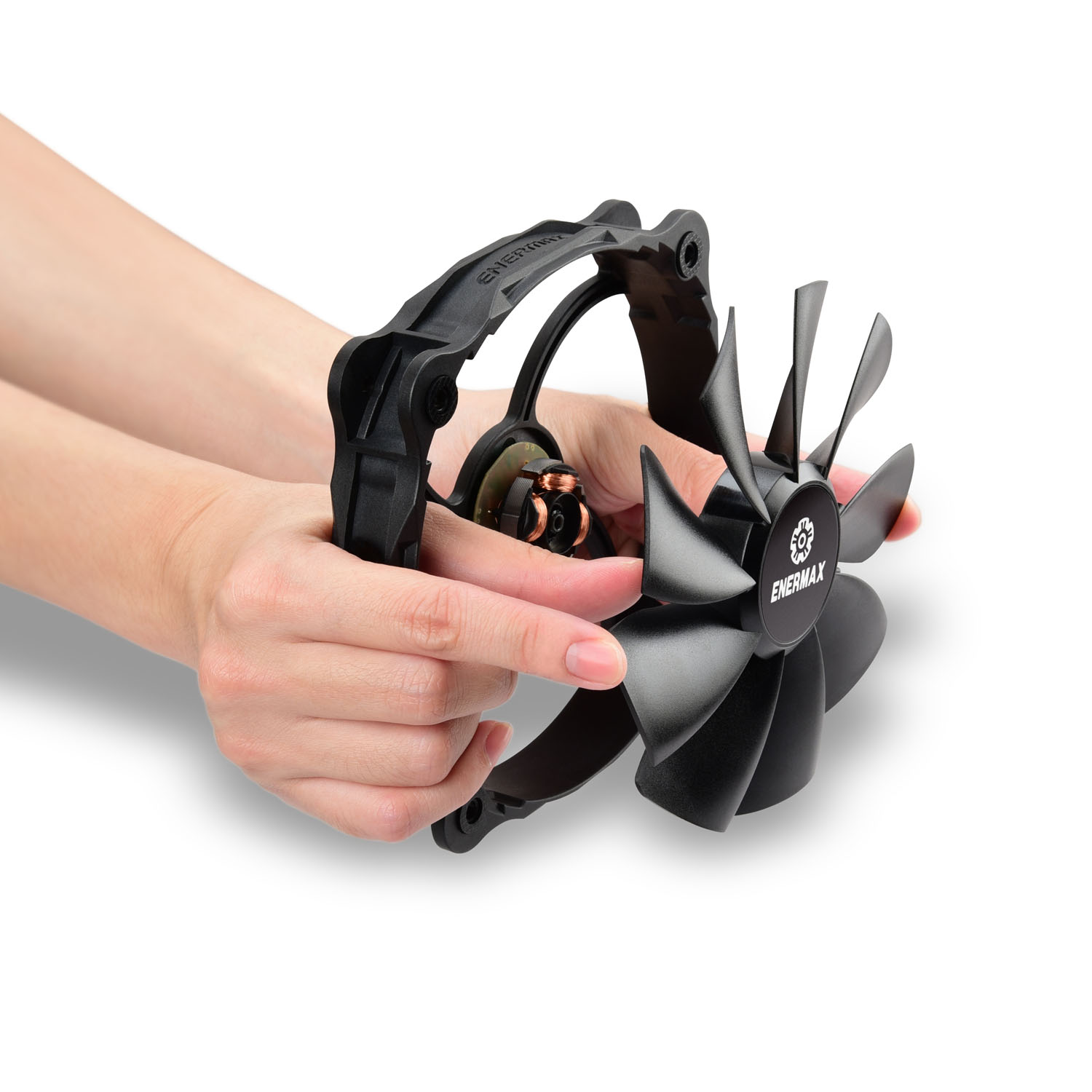

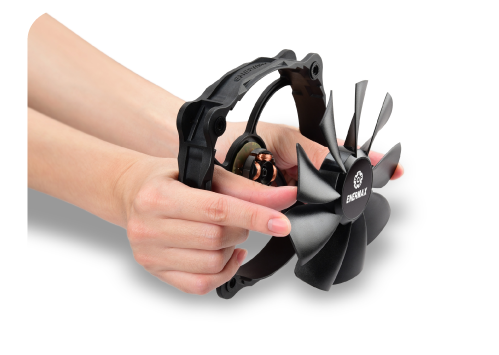

Detachable blade for easy cleaning
Specifications
General Data
- Model
- ETS-T50A-FSS
- CPU Socket
- Intel® LGA 1851/1700/1200/115x/2066/2011/2011-3/1366 AMD® AM5/AM4/AM3+/FM2+/FM1
- Overall Dimension
- 144.2(L) x 109.5(W) x 163(H) mm
- Weight
- 864g (w/ fan)
- TDP (W)
- 230W
- Heat Pipe
- 5 x Ø6 mm
- Material
- Copper Heat Pipes / Aluminum Fins
- Thermal Grease
- Dow Corning® TC-5121
- Fan Dimension
- 140 x 140 x 25.5 mm
- Fan Speed
- 500 ~ 1000 ±10% rpm
- Fan Air Flow (CFM)
- 29.78~ 55.45 CFM
- Air Flow (m3/h)
- 50.59 ~ 94.21 m3/h
- Fan Static Pressure (mm-H2O)
- 0.57 ~ 2.13 mm-H2O
- Connector
- 4 pin PWM
- Fan Noise (dBA)
- 13 ~ 22 dBA
- Fan Rated Voltage (V)
- 12V
- Bearing Type
- Twister Bearing
- MTTF (FAN)
- ≧160,000 hours @ 25°C

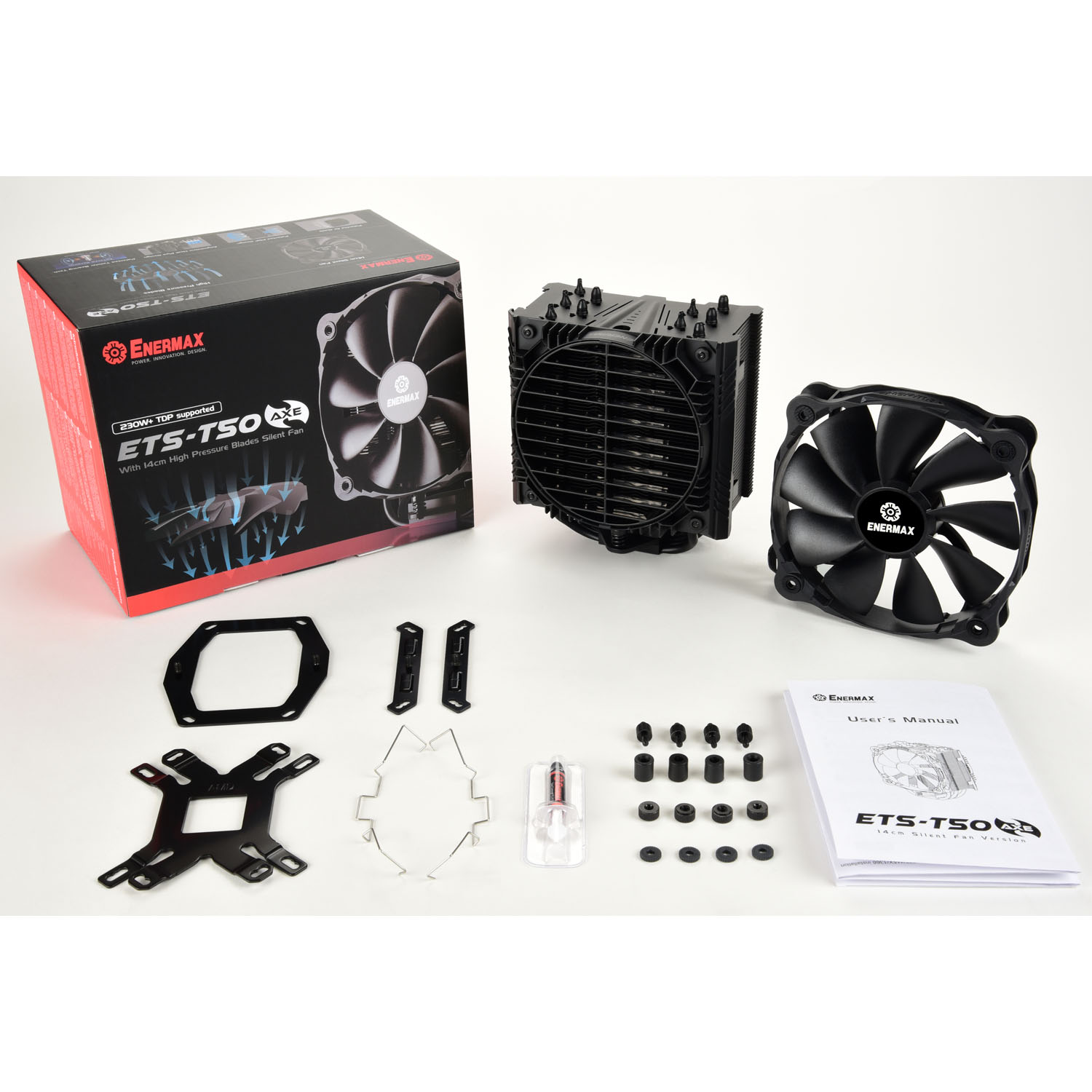

- ACCESSORY
- Thermal grease included
- Heat Sink Dimension
- 135.2(L) x 65(W) x 160(H) mm
Shipping Information
- EAN
- 4713157723376
- UPC
- 819315023372
- Box Dimension
- 222 x 175 x 130 mm
- Gross Weight / unit
- 1390 g
- Carton Dimension
- 460 x 370 x 295 mm
- Q'ty / carton
- 8 PCS
- Gross Weight / Carton
- 12.5 kgs
