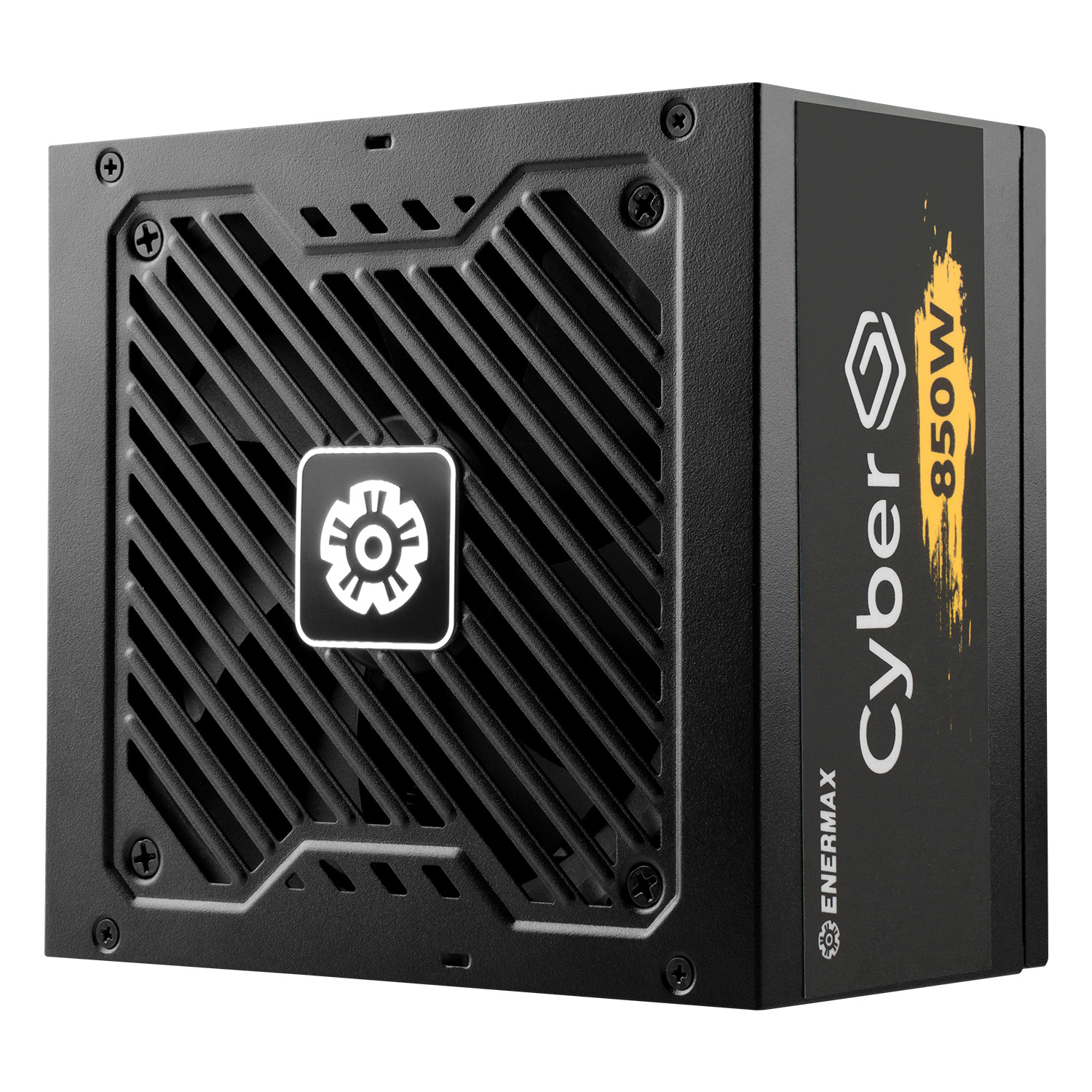

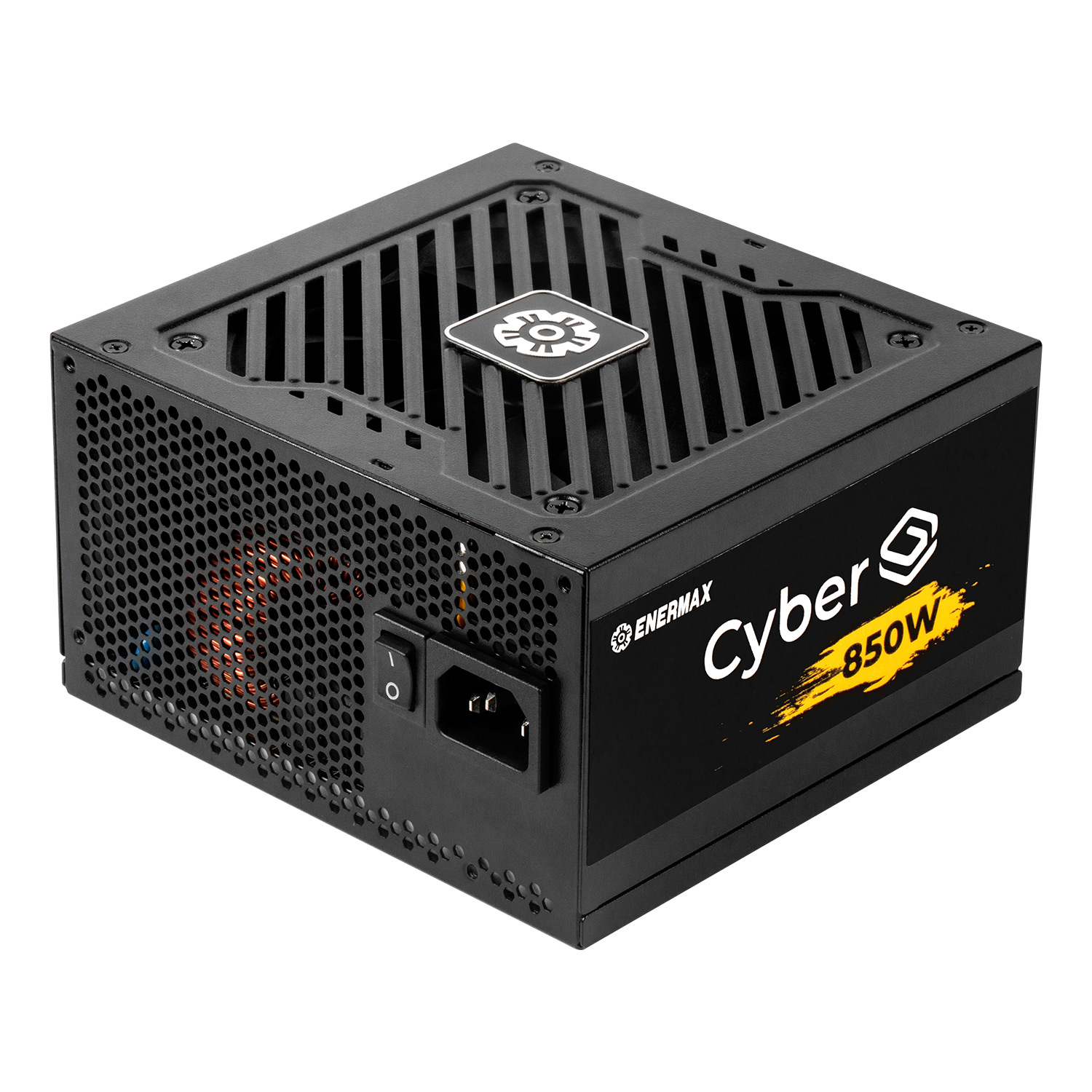

CyberG 850 Watt 80 PLUS Gold Non-Modular Power Supply
- 80 PLUS® Gold Certified
- 100% Japanese Electrolytic Capacitors
- Ultra Quiet 120mm FDB Fan
- All Black Flat Cable Design
Color
Overview
▪ 80 PLUS® Gold Certified
▪ 100% Japanese Electrolytic Capacitors
▪ Ultra Quiet 120mm FDB Fan
▪ All Black Flat Cable Design
Feature
▪ Easy Installation
- Non-modular design makes installation worry-free
- Flexible black flat cables long enough to meet the needs of most sizes of cases
▪ Energy Conservation
- 80 PLUS® Gold certified with 90% efficiency at 50% loading, which saves more energy and reduces extra heat
- Better power factor performance with active PFC
▪ High Quality
- 100% Japanese electrolytic capacitors increase the PSU's lifespan
▪ Silent Operation
- 120mm FDB fan provides an ultra-silent user experience
▪ User Friendly
- Single rail +12V design makes GPU and CPU operate with less restriction to avoid shutting down from heavy usage
- 100-240VAC auto-adjustment input for universal use
▪ Safety
- Multiple protection circuitries of OCP, OVP, UVP, OPP, SCP, and OTP

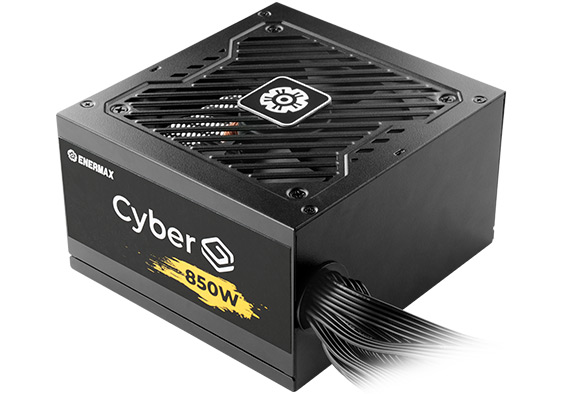

Non-modular design
Black flat cables
80 PLUS® Gold Certified
Ultra quiet with 120mm
fluid dynamic bearing fan
High quality Japanese
electrolytic capacitors
Dimension
Unit : mm
Cables & Connectors
| ECG850G | |
| ATX Motherboard 24 (20+4)pin | 1 [ 1 x 65cm ] |
| CPU 4+4 pin | 2 [ 2 x 70cm ] |
| PCIe 6+2 pin (2connectors) | 2 [ 2 x 65cm ] |
| SATA | 6 [ 2 x 50/15/15cm ] |
| 4P Molex | 3 [ 1 x 45/15/15cm ] |
Notice:
For users looking to put in high-end, power-demanding GPU cards, please connect the 6 / 6+2P PCIe connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply as a result of it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire meltdown and could void the warranty.
Specifications
General Data
- 80 PLUS Efficiency
- Gold
- Modular
- Non-modular
- Cable type
- Black flat
- Total power (W)
- 850
- Input Voltage (V)
- 100-240
- Input Current (A)
- 10A Max.
- Input Frequency (Hz)
- 50-60
- Fan size (mm)
- 120
- Operating temperature (°C)
- 40
- MTBF (hours)
- >100K
- Protection
- OCP, OVP, UVP, OPP, OTP, SCP
- Dimension (D x W x H), (mm)
- 140 x 150 x 86
Output
- +3.3V(A)
- 20
- +5V(A)
- 20
- +12V1(A)
- 70
- -12V(A)
- 0.3
- +5Vsb(A)
- 2.5
- Combined Wattage 12V (W)
- 840
- Combined Wattage 3.3V + 5V(W)
- 100
Shipping Information
- EAN code
- 4713157728005
- UPC code
- 819315028001
