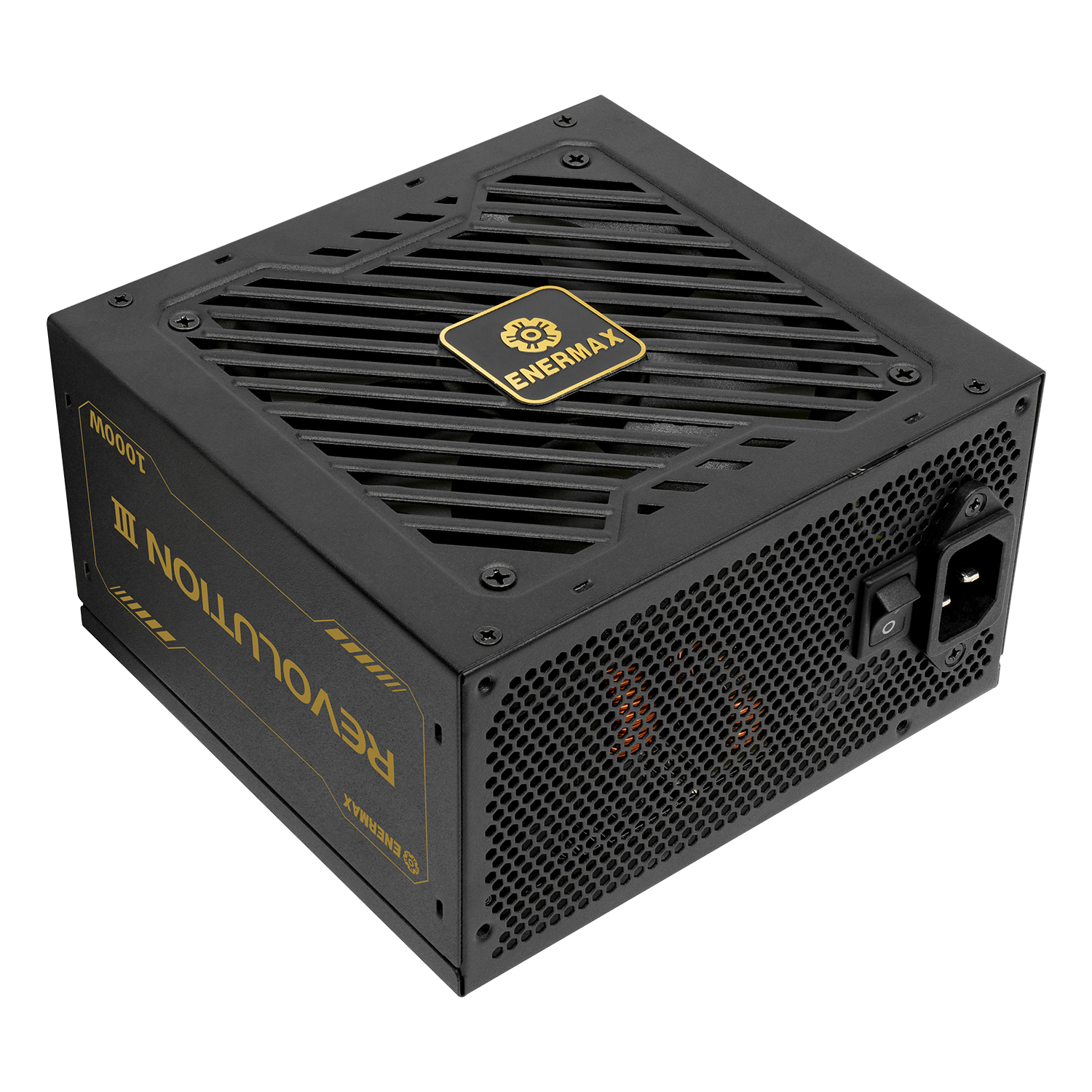

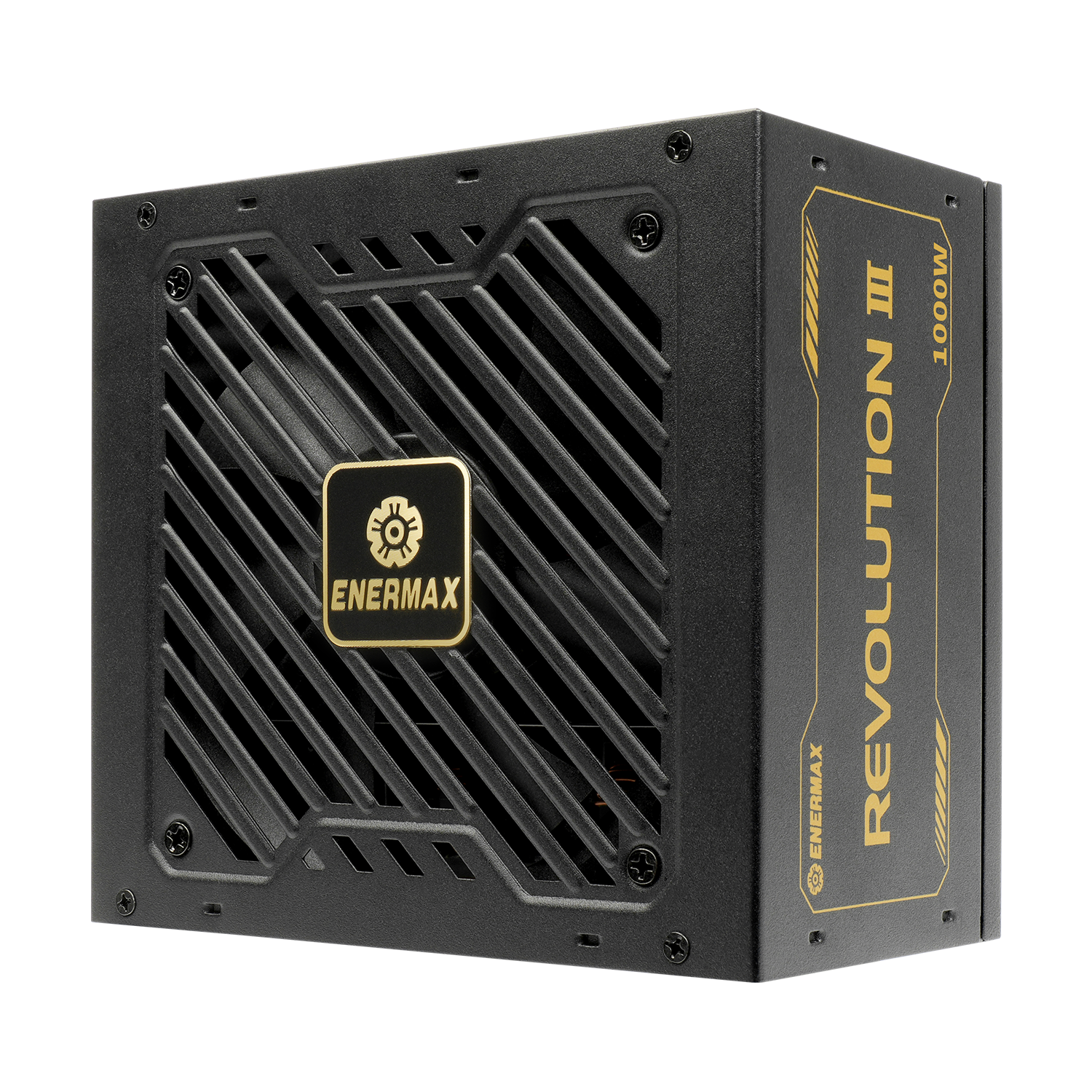

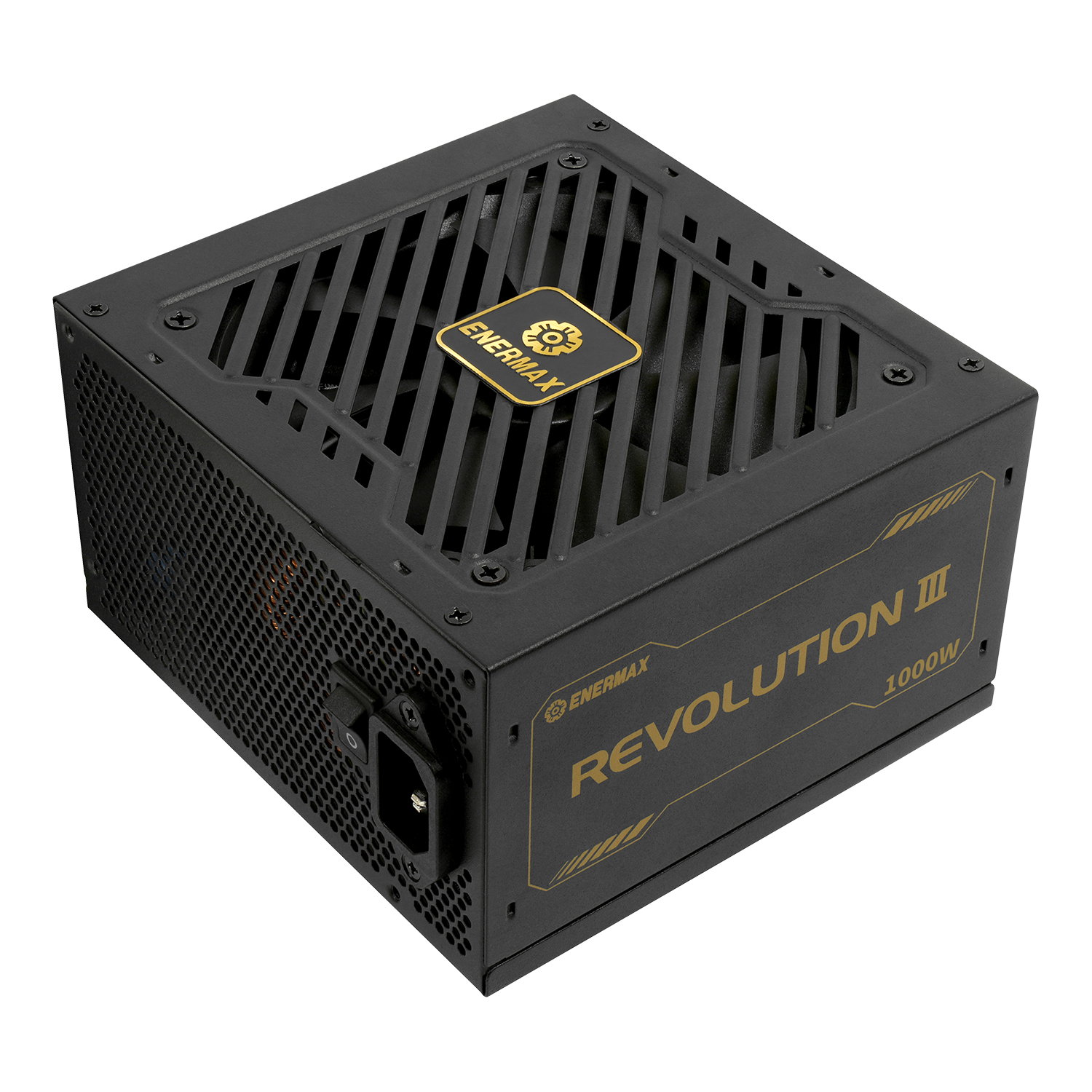

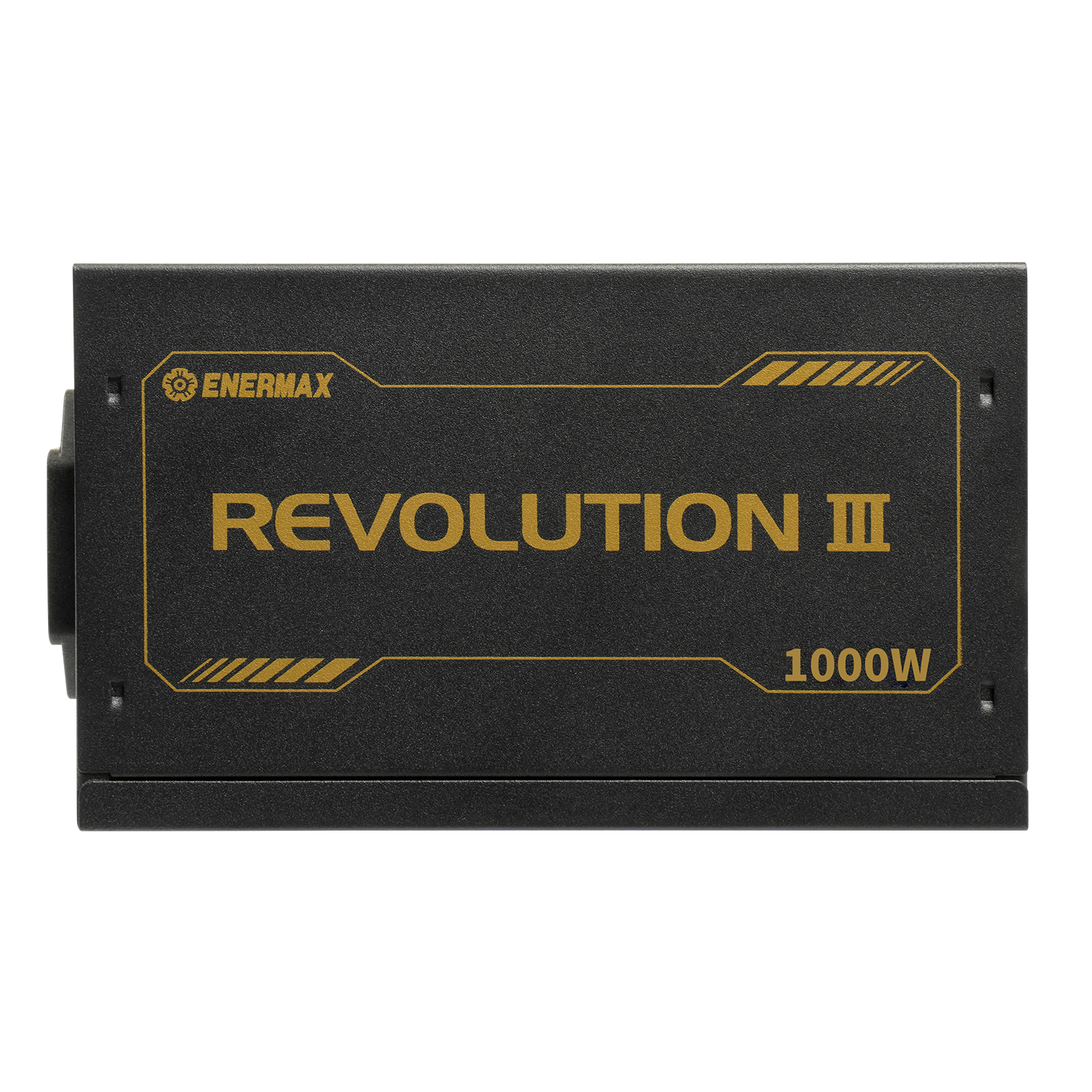

REVOLUTION III 1000 Watt 80 PLUS Gold Fully Modular ATX 3.1 Power Supply
- Integrated with Intel ATX 3.1
- Fully Modular 80 PLUS® Gold Certified
- One 600W Native 12V-2x6 Cable Included
- Industrial-Grade 100% Japanese Capacitors
- Ultra Quiet 120mm FDB Fan
- Mesh-sleeved Cables with 21 pcs Cable Comb Kit
Color
Overview
THE LEGEND OF POWER SUPPLY
80 PLUS® GOLD CERTIFIED
REVOLUTION III 1000W power supply is 80 PLUS® Gold certified with efficiency up to 93% on standard loading.
ATX 3.1 READY
REVOLUTION III 1000W power supply meets the Intel ATX 3.1 standards to ensure top-notch performance of power hungry graphics cards.
100% JAPANESE CAPACITORS
REVOLUTION III 1000W power supply incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.
FLUID DYNAMIC BEARING FAN
The F.D.B. (Fluid Dynamic Bearing) fan delivers a quiet operation while maintaining the cooling performance.
CERTIFIED FOR OPERATION AT 5000M ALTITUDE AREA
REVOLUTION III 1000W power supply is designed with high-quality components and optimized layout for superior insulation and cooling performance. It can continually operate at 40°C and at altitudes up to 5,000 meters, making it suitable for a wide range of environments.
PREMIUM MESH-SLEEVED CABLES
The REVOLUTION III 1000W power supply features premium individually mesh-sleeved cables with cable combs for a clean and organized build. The modular sockets, inclined to one side, offer effortless cable routing and management.
HEAVY-DUTY INDUSTRIAL-GRADE PROTECTIONS
Over Current
Protection
Over Voltage
Protection
Under Voltage
Protection
Over Power
Protection
Over Temperature
Protection
Short Circuit
Protection
CABLE AND POWER AS YOU NEED
Only connect the cable you need with fully modular design
| Model Name | ERV650G-AHG-MAC ERV650G-AHG-MAV |
ERV750G-AHG-MAC ERV750G-AHG-MAV |
ERV850G-AHG-MAC ERV850G-AHG-MAV |
ERV1000G-AHG-MAC ERV1000G-AHG-MAV |
|
| Wattage | 650W | 750W | 850W | 1000W | |
| ATX Motherboard 24 (20+4)Pin / 60cm |
 |
1 | 1 | 1 | 1 |
| CPU 4+4Pin / 65cm |
 |
0 | 1 | 1 | 2 |
| CPU (4+4)Pin+(4+4)Pin / 60+15cm |
 |
1 | 1 | 1 | 0 |
| PCIE (6+2)Pin / 60cm |
 |
0 | 1 | 1 | 1 |
| PCIE (6+2)Pin+(6+2)Pin / 55+15cm |
 |
1 | 1 | 1 | 0 |
| 12V-2x6 (12+4)Pin / 60cm |
 |
1 (450W) |
1 (600W) |
1 (600W) |
1 (600W) |
| 3*SATA+4P Molex / 45+15+15+15cm |
 |
2 | 3 | 3 | 3 |
| 12V-2x6 to 2*PCIe(6+2)P / 60cm |
 |
0 | 0 | 0 | 1 |
Dimensions
Unit: mm
Cables & Connectors
| REVOLUTION III 1000W | |
| Motherboard 24 (20+4) pin | 1 [ 1x 60cm ] |
| CPU 4+4 Pin | 1 [ 1 x 65cm ] |
| CPU (4+4)+(4+4) Pin | 2 [ 1 x 60/15cm ] |
| 12V-2x6 12+4 pin | 1 [ 1 x 60cm ] |
| PCIe 6+2pin | 1 [ 1 x 60cm ] |
| PCIe (6+2)+(6+2) Pin | 2 [ 1 x 55+15cm ] |
| 3*SATA + 4P Molex | 9+3 [ 3 x 45/15/15/15cm ] |
For users looking to put in a high-end, power-demanding GPU, please plug in the 12+4P / 6P / 6+2P PCIe connector(s) from your ENERMAX power supply to the GPU properly. This will prevent the motherboard from overloading and possibly causing any damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage caused to the power supply, as a result, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU’s user manuals to configure your system properly to prevent the motherboard from overloading and causing any damage to your system and your power supply.
The modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for the rated current of the DC cables: The safety current is 6A per single DC wire. Please note that overloading may cause the connectors or wires meltdown and could void the warranty.
Specifications
General Data
- 80 PLUS Efficiency
- Gold
- Modular
- Fully Modular
- Cable type
- Individually Mesh-Sleeved Cable
- Total power (W)
- 1000
- Input Voltage (V)
- 100-240
- Input Current (A)
- 15-8A 8A (for China only)
- Input Frequency (Hz)
- 50-60
- Fan size (mm)
- 120
- Operating temperature (°C)
- 40
- MTBF (hours)
- >100K
- Protection
- OCP, OVP, UVP, OPP, OTP, SCP
- Dimension (D x W x H), (mm)
- 140 x 150 x 86
Output
- +3.3V(A)
- 20
- +5V(A)
- 20
- +12V1(A)
- 83.3
- -12V(A)
- 0.4
- +5Vsb(A)
- 3.0
- Combined Wattage 12V (W)
- 999.6
- Combined Wattage 3.3V + 5V(W)
- 100
Shipping Information
- EAN code
- 4713157728906
- UPC code
- 819315028919
- Box dimensions (D x W x H), (mm)
- 310 x 190 x 110
- Gross Weight / unit (kg)
- 1.6
