REVOLUTION D.F. 750 Watt 80 PLUS Gold Fully Modular Power Supply
- 80 PLUS® Gold certification
- D.F. switch for users to activate DFRTM function anytime
- during operation
- Smart Airflow Control (SAC) design ensures an almost
- inaudible operation
- Full modular design with 100% flat cables
Color
Overview
80 PLUS® Gold certified
87-92% high efficiency performance @ 20-100% load
Dust Free Rotation Tech. (patented)
Dust Free Rotation technology enables the fan to instantly blow away the dust to prolong the lifespan
D.F. switch
D.F. switch design allows users to activate DFR self-cleaning function at anytime during operation
Smart Airflow Control (SAC) design
SAC design keeps PSU fan spinning at almost inaudible 400rpm within 70% system load to provide the optimal silent experience
Twister Bearing fan (patented)
Twister Bearing Technology ensures ultra silent cooling and long lifetime of fan (160,000 hours MTBF)
100% 105°C Japanese electrolytic capacitors
Highest component standards for maximum durability and stability
Full modular design
Full modular cable design facilitates system installation and cable management
Zero load ready!
DC to DC converter circuit ensures stable output voltage and delivers higher efficiency
2013 ErP Lot 6 ready
Help system meet 2013 ErP Lot 6 (< 0.5W at standby mode) with high efficiency +5Vsb circuitry. (With 2013 ErP Lot 6 enabled motherboard)
World ready!
100-240VAC auto-adjustment input for universal use. Active PFC with PF value up to 0.99, reducing thereactive power loss to the minimum
SafeGuard
Multiple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP and SIP protects your system
Product Introduction

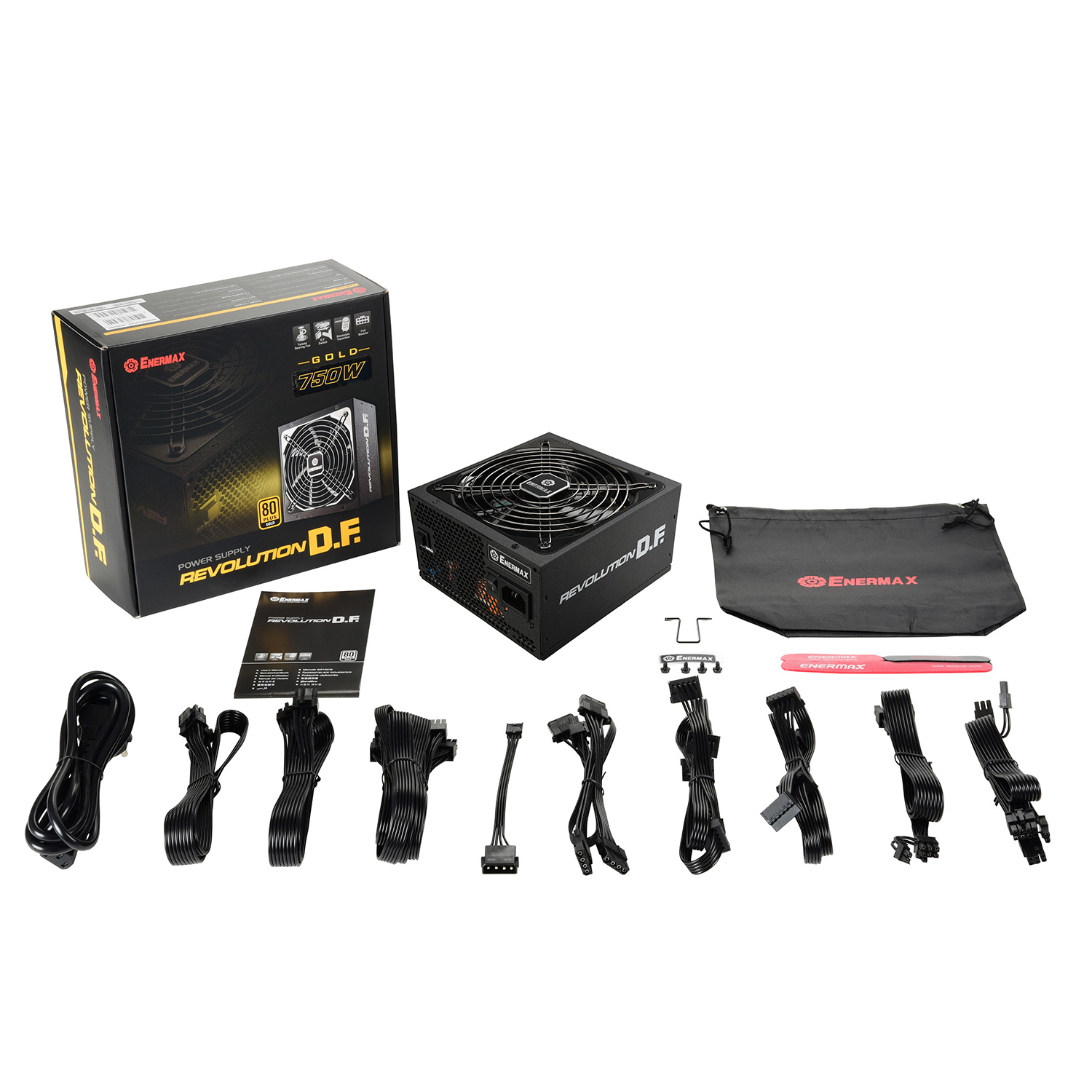

Cables & Connectors
| ERF750EWT | |
| Mainboard 24 Pin | 1 [ 1 x 60cm ] |
| CPU 4+4 Pin | 2 [ 2 x 70cm ] |
| PCI-E 6+2 Pin (8 Pin) | 4 [ 2 x 50/15cm ] |
| SATA | 8 [ 2 x 45/15/15/15cm ] |
| 4 Pin Molex | 4 [ 1 x 45/15/15/15cm ] |
| FDD | 1 [ 1 x 10cm ] |
Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.
Specifications
General Data
- 80 PLUS Efficiency
- GOLD
- Modular
- Full modular
- Cable type
- Black flat
- Total power (W)
- 750
- Input Voltage (V)
- 100-240
- Input Current (A)
- 10
- Input Frequency (Hz)
- 47-63
- Fan size (mm)
- 135
- Operating temperature (°C)
- 50
- MTBF (hours)
- >100K
- Protection
- OCP, OVP, UVP, OPP, OTP, SCP, SIP
- Dimension (D x W x H), (mm)
- 160 x 150 x 86
Output
- +3.3V(A)
- 22
- +5V(A)
- 22
- +12V1(A)
- 25
- +12V2(A)
- 25
- +12V3(A)
- 35
- +12V4(A)
- 35
- -12V(A)
- 0.3
- +5Vsb(A)
- 2.5
- Combined Wattage 12V (W)
- 750
- Combined Wattage 3.3V + 5V(W)
- 120
Shipping Information
- EAN code
- 4713157723956
- UPC code
- 819315023952
- Box dimensions (D x W x H), (mm)
- 248 x 233 x 96.5
- Gross Weight / unit (kg)
- 2.8
