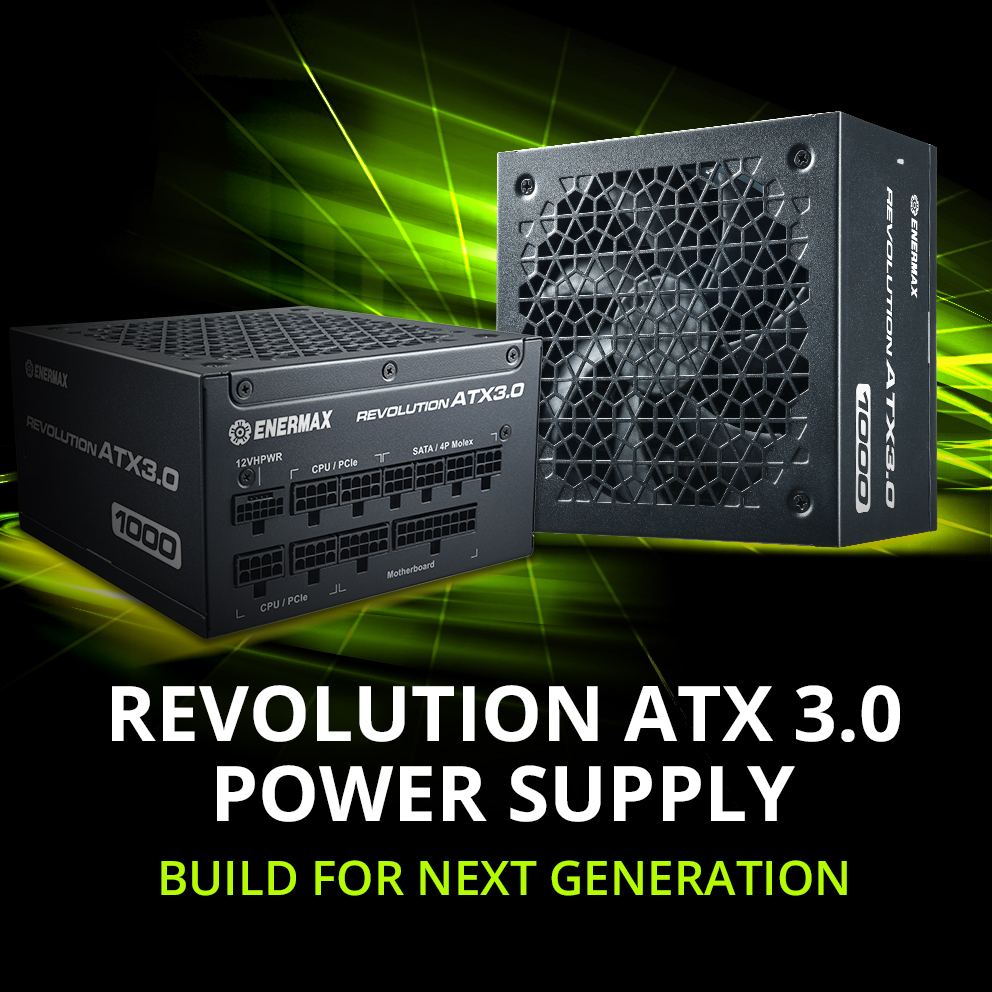

FULLY MODULAR ATX POWER SUPPLIES
REVOLUTION ATX 3.0 series is fully compatible with Intel ATX 3.0 specification which will unlock the full power potential of next-generation hardware. Each power will come with a native 12+4 pin (12VHPWER) cable and extra dual 8 pin to12+4 pin (12VHPWER) cable to offer you the most advanced performance.

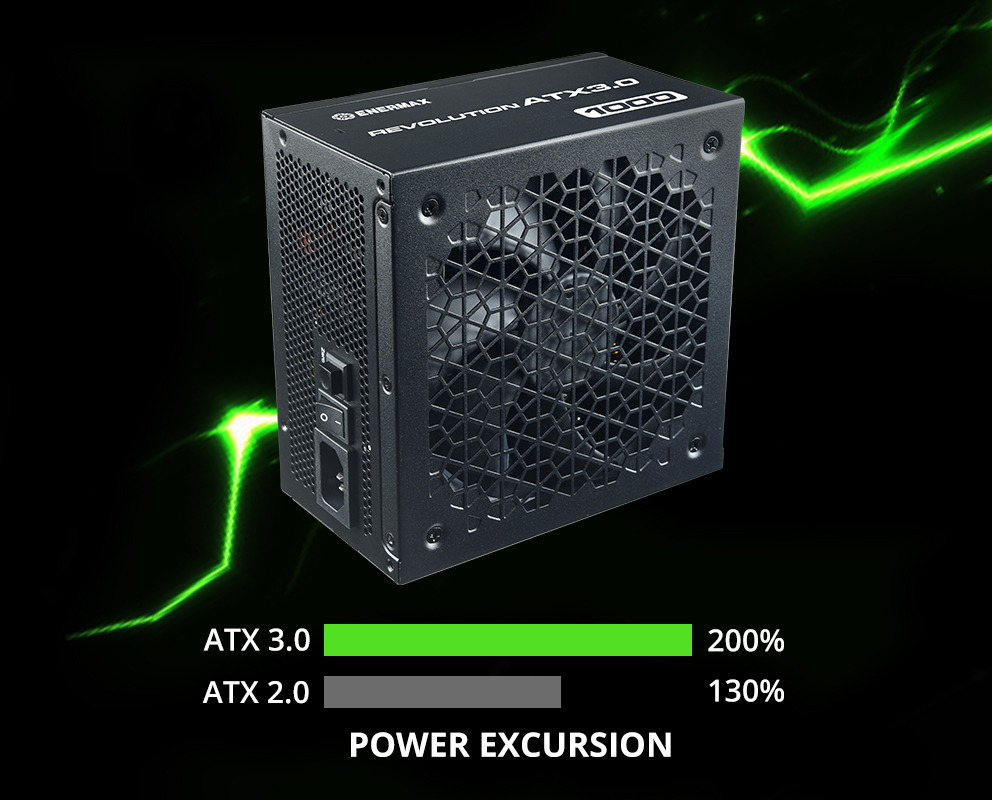

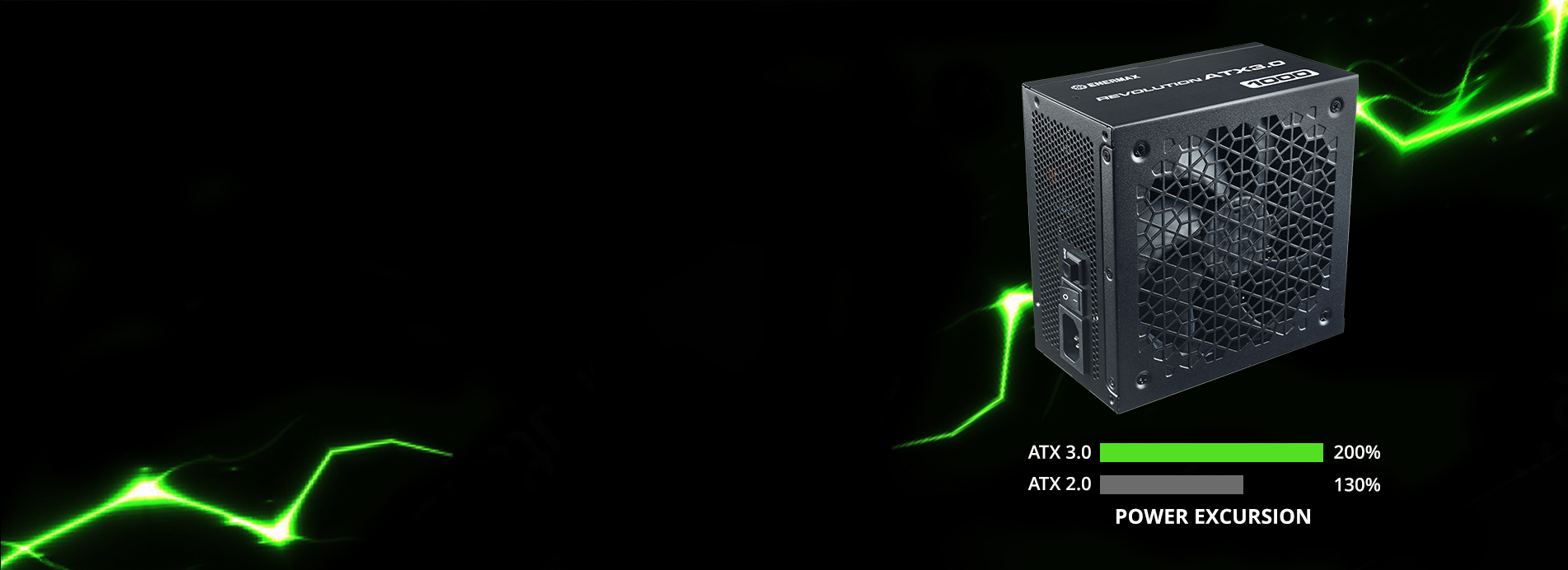

The new specifications of ATX 3.0 will have a positive impact for power and performance improvements across all desktop segments. It can sustain up to 200% power load for power excursion, reach 60%-70% efficiency even during low loading and shorter power-on time to make you power up your system faster.
REVOLUTION ATX 3.0 comes with native 12+4 pin 12VHPWR cable that directly supply up to 600W to the latest NVIDIA graphics cards for gamers and creators to have the most stable and powerful system they will ever have.
REVOLUTION ATX 3.0 will also come with another dual PCIe 8pin to 12VHPWR cable in the box for you to install up to two high-end graphics cards to get an even better performance and experience.
Dual 8 pin to 12+4 pin (12VHPWER) cable
*Please be aware of the total wattage requirement when you connect more than 1 GPU.
Use your fingers to hold both sides of the cable and insert the cable into the port straight in line with the port. Make sure to insert the cable firmly and evenly straight in without any gaps or bending.
With the need of extra power for graphics cards, the REVOLUTION ATX 3.0 is designed to support all of the AMD, Intel and NVIDIA graphics cards according to their different types of power connectors.
1 GPU Power Connector
2 GPU Power Connector
3 GPU Power Connector
12+4pin GPU Power Connector
(Extra Cable for Another GPU)

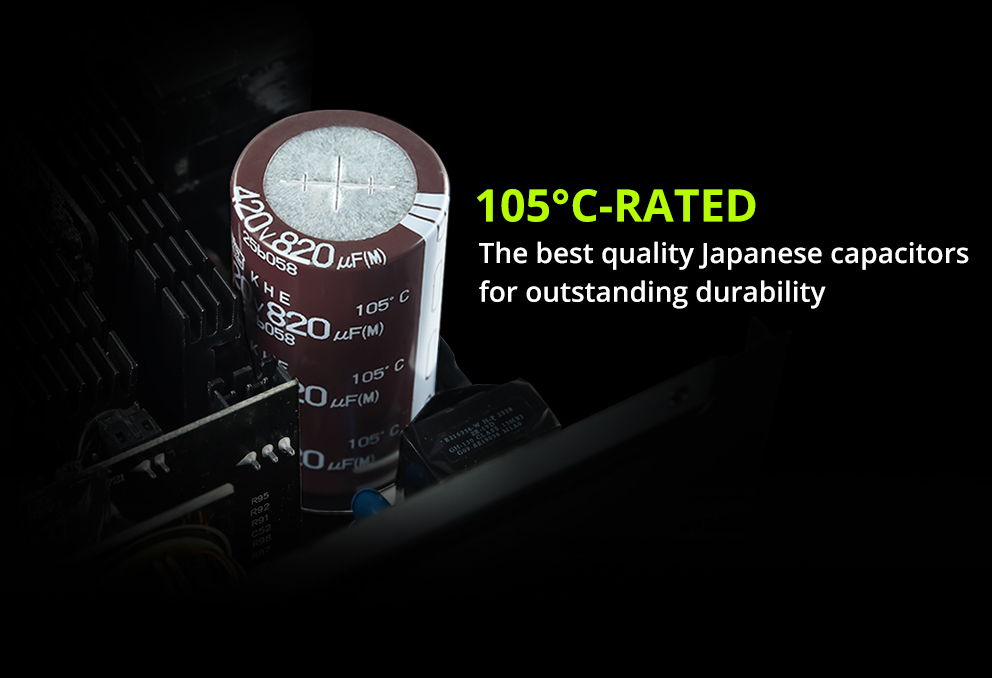

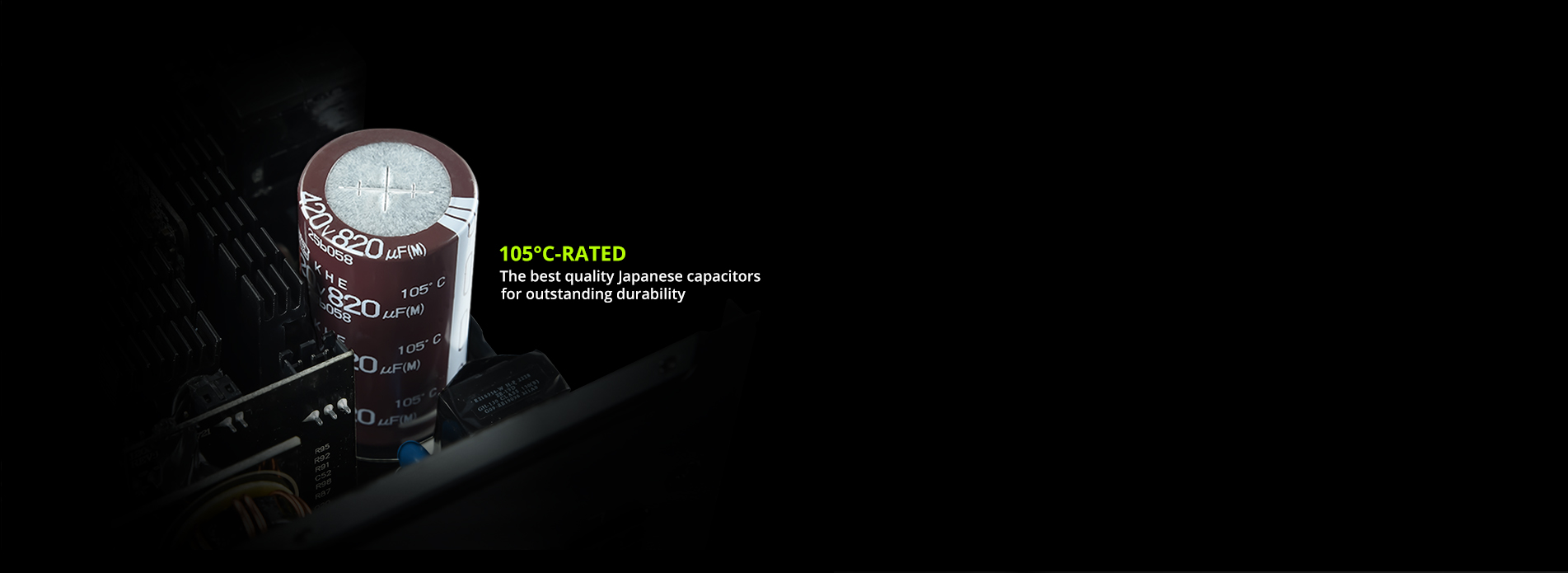

With up to 92% efficiency and the best quality Japanese electrolytic capacitors to reduce unnecessary power consumption, save energy and create lower temperature.
Designed with ENERMAX Semi-Fanless Tech, fan will be completely off until the load exceeds 30% for you to enjoy absolute silence of 0 dB(A) during minimum load. The fan control button next to the power switch allows you to turn off the function as you need and ensure active cooling for all time.
REVOLUTION ATX 3.0 applied advanced LLC and Synchronous Rectifier (SR) design which provides uncompromised power output. DC-to-DC conversion optimizing the stability for better voltage regulation. These ensure reliable operation for high-end processors and graphics cards.
Only connect the cable you need with full modular design. REVOLUTION ATX 3.0 will also deliver the power you need for the best compatibility and avoid overloading with single rail +12V design.
BUILD FOR NEXT GENERATION
| ERA1000EWT | |
| Motherboard 24 (20+4) pin | 1 [ 1x 60cm ] |
| CPU 4+4 Pin | 2 [ 2 x 70cm ] |
| 12VHPWR 12+4 pin (600W) |
1 [ 1x 60cm ] |
| 2xPCIe 8pin-12VHPWR Splitter Cable |
1 [ 1x 60cm ] |
| PCIe 6+2pin | 4 [ 2 x 60/15cm ] |
| SATA | 12 [ 3 x 50/15/15/15cm ] |
| 4P Molex + FDD | 4 + 1 [ 1 x 50/15/15/15/15cm ] |
Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCIe connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.
