PlatimaxII 1200DF 1200W ATX 3.1 Power Supply
- 80 PLUS and CYBENETICS Platinum Certified
- Integrated with Intel ATX3.1
- Native 12V-2x6 Cable, Providing the GPU with 600W Power
- 100% Japanese Capacitors and Up to 235% Power Excursion
- Dust-Free Rotation Tech. & D.F. Switch
- Optimal Semi-Fanless Tech. with 60% Zero-RPM
Color
Overview
BORN FOR PERFORMANCE
PlatimaxII 1200DF is a fully modular power supply available in sleek black or white finishes. Certified with both 80 PLUS and Cybenetics Platinum efficiency, it meets the latest ATX 3.1 standards and includes a native PCIe 5.1 12V-2x6 cable, providing up to 600W of stable power for next-generation components.
ATX 3.1 CERTIFIED
PlatimaxII 1200DF meets the Intel ATX 3.1 standard and can handle power excursions up to 235% of its rated output. It ensures stable performance during sudden power spikes, providing reliable support for high-end graphics cards and preventing system instability.
PCIE 5.1 READY
PlatimaxII 1200DF comes with a native 12V-2x6 connector, and the included PCIe 5.1 cable supports up to 600W for next-gen hardware.
100% JAPANESE CAPACITORS
PlatimaxII 1200DF power supply incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.
DUST-FREE ROTATION (D.F.R.) TECHNOLOGY
Press the D.F. switch on the power switch side to initiate the D.F.R. function whenever you want. There are two types of way for cleaning paired with semi-fanless control technology.
√ Power Supply under 60% Load & Under-Temperature
(=Fan is not spinning) Press the switch then the fan will spin clockwise for 20 seconds and turn back to anticlockwise direction for another 20 seconds then it will stop entirely.
√ Power Supply over 60% Load or Over-Temperature
(=Fan is spinning) If you press the D.F. switch while the fan is spinning, the fan will stop immediately and start to spin clockwise for 20 seconds, it will then turn back to the anticlockwise direction.
OPTIMAL SEMI-FANLESS CONTROL TECHNOLOGY
The built-in optimal semi-fanless technology allows the fan to remain stopped until you reach 60% working load or over-temperature, the fanless mode will improve the overall system acoustics by reducing fan noise when the cooling demand is low while reducing the power consumption and operating costs over time.

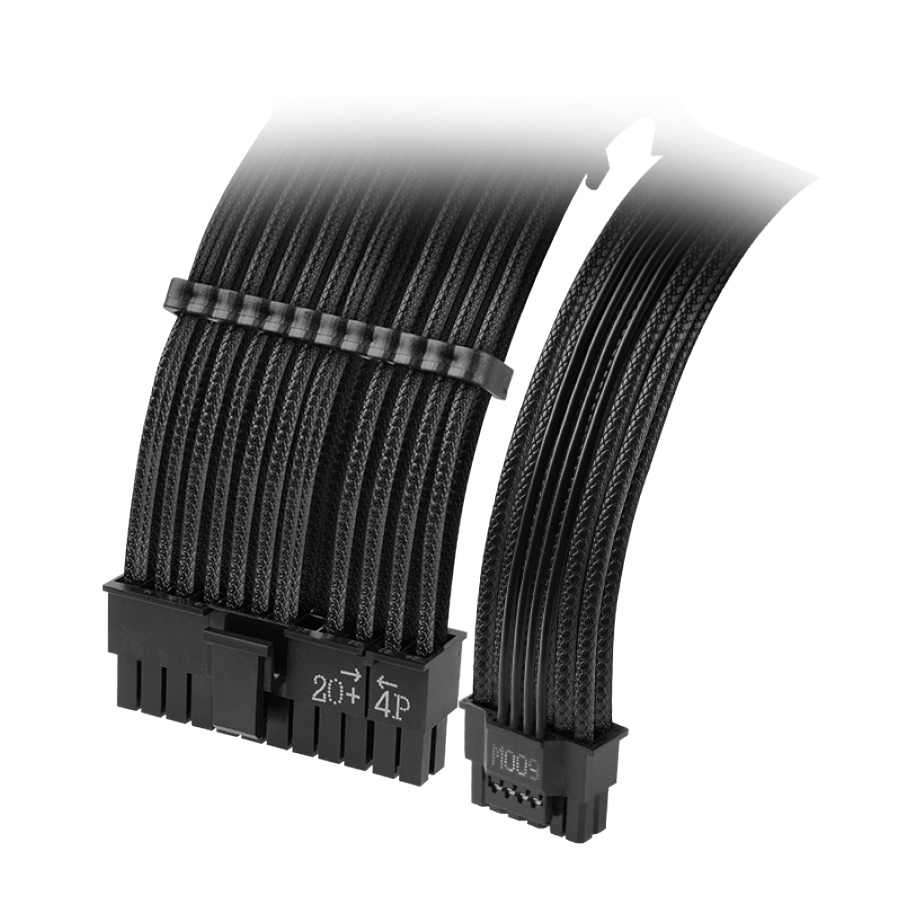

PREMIUM EMBOSSED CABLES
PlatimaxII 1200DF features upgraded embossed cables for a cleaner and more organized build. The modular sockets, inclined to one side, offer effortless cable routing and management.
13-YEAR WARRANTY
Engineered with top-tier components, PlatimaxII 1200DF delivers exceptional reliability and performance. We stand behind its quality with full confidence, backing it with a 13-year warranty for complete peace of mind.
HEAVY-DUTY INDUSTRIAL-GRADE PROTECTIONS
It also includes — OCP (Over Current Protection), OVP (Over Voltage Protection),
UVP (Under Voltage Protection),OPP (Over Power Protection), OTP (Over Temperature Protection),
and SCP (Short Circuit Protection) — ensuring a safe and reliable user experience.
CABLE AND POWER AS YOU NEED
| Model Name | EPS1200P-NPX | Cable Quantity |
|---|---|---|
| ATX Motherboard 24 (20+4) Pin 60cm |
 |
1 |
| CPU 4+4 Pin 70cm |
 |
2 |
| PCIe (6+2) Pin 60cm |
 |
3 |
| 12V-2x6 (12+4) Pin 60cm |
 |
1 (600W) |
| 4P Molex (4 connectors) 45+15+15+15cm |
 |
1 |
| SATA (4 connectors) 45+15+15+15cm |
 |
2 |
DIMENSIONS
Unit: mm
Cables & Connectors
| EPS1200P-NPX | |
| Motherboard 24 (20+4) pin | 1 [ 1x 60cm ] |
| CPU 4+4 Pin | 2 [ 2 x 70cm ] |
| PCIe 6+2 pin | 3 [ 3 x 60cm ] |
| 12V-2x6 12+4 pin | 1 [ 1 x 60cm ] |
|
SATA (4 connectors) |
8 |
|
4P Molex (4 connectors) |
4 [ 1 x 45/15/15/15cm ] |
Notice:
For users looking to put in high-end, power-demanding GPU card, please correctly connect the 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply due to it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat-type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire to melt down and void the warranty.
| North America |    |
| Europe | |
| Taiwan |  |
| Worldwide |  |
Specifications
General Data
- 80 PLUS Efficiency
- Platinum
- Modular
- Fully modular
- Cable type
- Mesh-Sleeved Cables
- Total power (W)
- 1200
- Input Voltage (V)
- 100-240
- Input Current (A)
- 15-8
- Input Frequency (Hz)
- 50-60
- Fan size (mm)
- 135
- Operating temperature (°C)
- 50
- MTBF (hours)
- >100K
- Protection
- OCP,OVP, UVP, OPP, OTP, SCP
- Dimension (D x W x H), (mm)
- 150 x 150 x 86
Output
- +3.3V(A)
- 20
- +5V(A)
- 20
- +12V1(A)
- 1200
- -12V(A)
- 0.4
- +5Vsb(A)
- 3.0
- Combined Wattage 12V (W)
- 1200
- Combined Wattage 3.3V + 5V(W)
- 100
Shipping Information
- EAN code
- 4713157728579
- UPC code
- 819315028575
