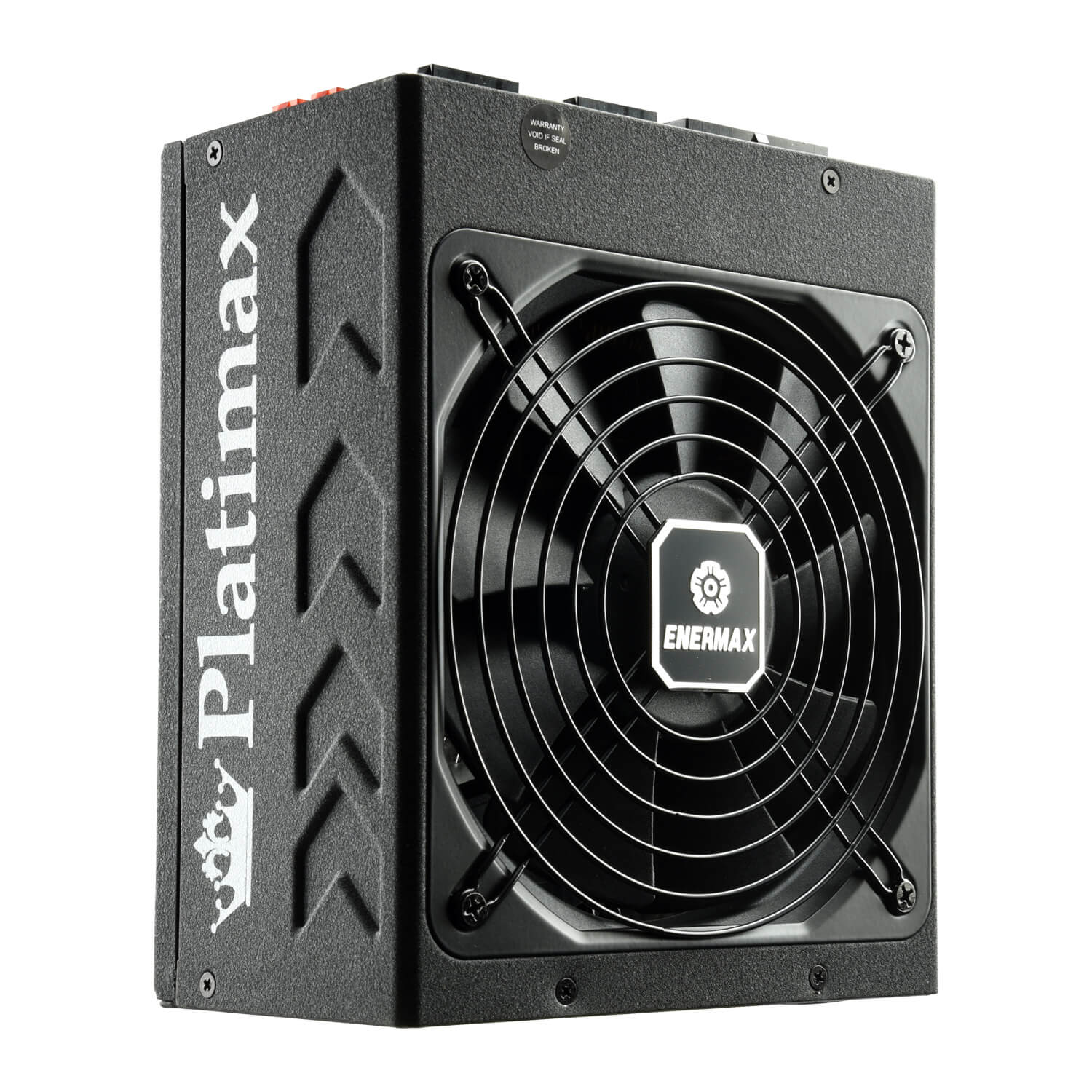

Platimax 1350 Watt Fully Modular Power Supply
Color
Overview
Features
- FMQ Design
Fully utilize transformer’s quad magnetic quadrants energy to provide maximum switching efficiency and outstanding stability - 89 PLUS ready!
World’s leading modular cable PSU series with 89-94% efficiency @ 20-100% load. Compliant with 80PLUS® PLATINUM efficiency requirement. - ErP Lot 6 ready!
ErP Lot 6 ready! Help system to meet ErP Lot 6 2013 (< 0.5W at standby mode) with high efficient +5Vsb circuitry.
* With ErP Lot 6 enabled motherboard. - AMD CrossFireX certified
AMD® AMD GAME! Ready and ATI CrossFireX™ certified. (ENERMAX Platimax 1350W, EPM1350EWT, © 2012 Advanced Micro Devices, Inc., ATI, The ATI logo, CrossFireX, and Radeon are trademarks of Advanced Micro Devices, Inc.) - Copper-Bridge Array Transmission
Unique Copper-Bridge Array creating wider conduction path greatly helps reduce airflow resistance, voltage drop and energy loss. - C6 & Hybrid ready!
Maximum compatibility with C6 & hybrid states of current and future CPU & GPU generations by ZERO LOAD design. - DXXI ready!
100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards. - Future ready!
12P modular design for possibly upcoming new CPU and GPU 10P and/or 12P connectors. - Modular ready!
Full modular cable design for easy customized support for various peripheral settings.
- SERVER ready!
SSI PSDG support for latest Intel® Core™ Extreme/i7/i5/i3, Xeon™ and AMD® Opteron™ and SLI® or CrossFireX™ and downward compatible with EPS12V v2.92, v2.8. - World ready!
100-240VAC in with automatic adjustment and active PFC for global usage. - EMC ready!
Full-scale electromagnetic filtering protects your system against radiation interferences. - CordGuard
Fixing the AC cord tightly to avoid accidental shutdowns of your PC. - HeatGuard
Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime. - SafeGuard
Industry-leading multiple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP & SIP. - SpeedGuard
Advanced fuzzy logic fan speed control for optimal cooling and minimum noise. (Patented) - 100% 105℃ Japanese electrolytic capacitors
Highest components standards for maximum durability and stability. - Ultimate Technology
Clean and efficient layout and classic finish with decent black deco frame, Platimax considers both the aesthetics and technology of the overall design. - Enhanced Heatsink
Unique one-piece shape design ensures uniform heat distribution and increases air flow.

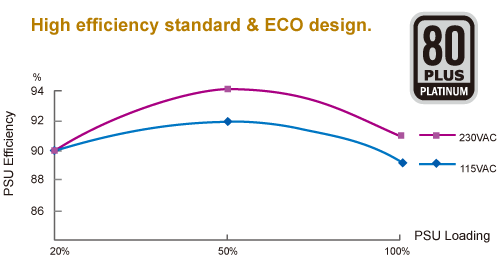

89 PLUS ready!
World’s leading modular cable PSU series with 89-94% efficiency @ 20-100% load. Compliant with 80PLUS® PLATINUM efficiency requirement.
| Server System @ 1000W load | Annual KWh*2 | Annual KWh wasted | Annual Money wasted*3 | Annual CO2 wasted*4 | ||
| Efficiency*1 | AC Draw (W) *2 | |||||
| Platimax 1000W | 92% | 1467.4 | 12854.4 | - | - | - |
| Other ~82% 1000W | 82% | 1646.3 | 14421.6 | 1567.2 | $235.24 / €344.78 | 971.7kg |
| Other ~80% 1000W | 80% | 1687.5 | 14782.5 | 1928.1 | $289.41 / €424.18 | 1195.4kg |
|
||||||
FMQ Design
Fully utilize transformer’s quad magnetic quadrants energy to provide maximum switching efficiency and outstanding stability
Copper-Bridge Array
Extreme Density Transformer
Innovative design boosts transformer core utilization rate and reduce overall dimension
- Extreme power density performance
- 50% space saving than conventional design
- Excellent heat dissipation
- Low air resistance and less air friction noise
ErP Lot 6 2013 ready!
Advanced +5Vsb circuitry with up to 20% improved efficiency in comparison to generic designs helps your system meet ErP Lot 6 2013 ( AC < 0.5W at standby) requirement.
*With ErP Lot 6 2013 enabled motherboard.

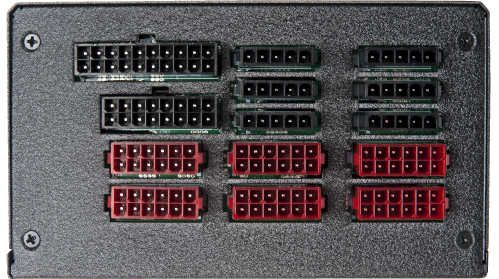

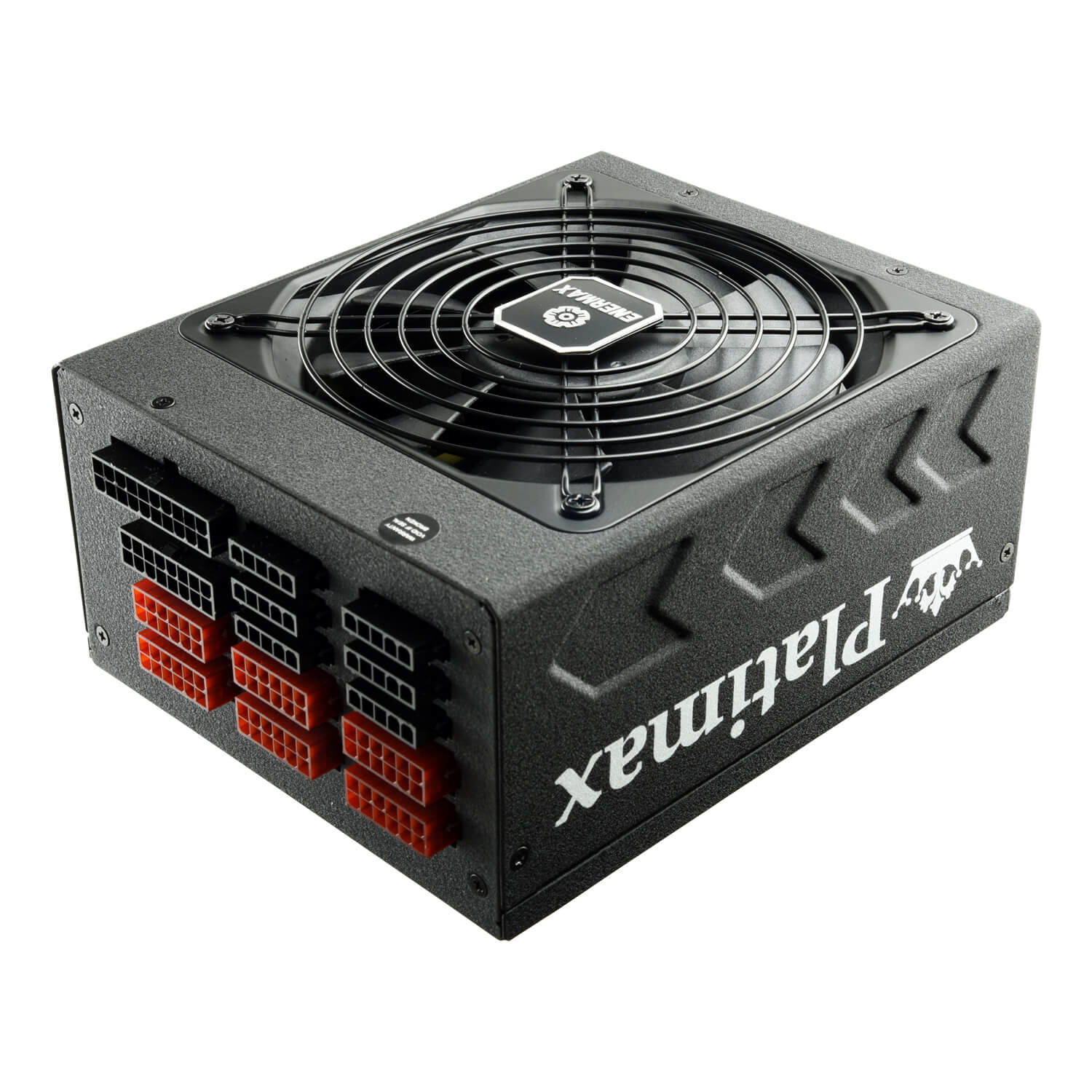

Modular ready!
Full modular cable design for easy customized support for various peripheral settings.

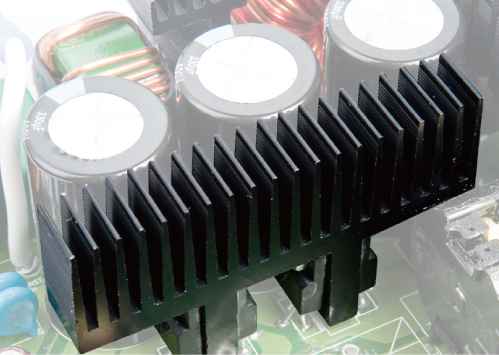

Enhanced Heatsink
Unique one-piece shape design ensures uniform heat distribution and increases air flow

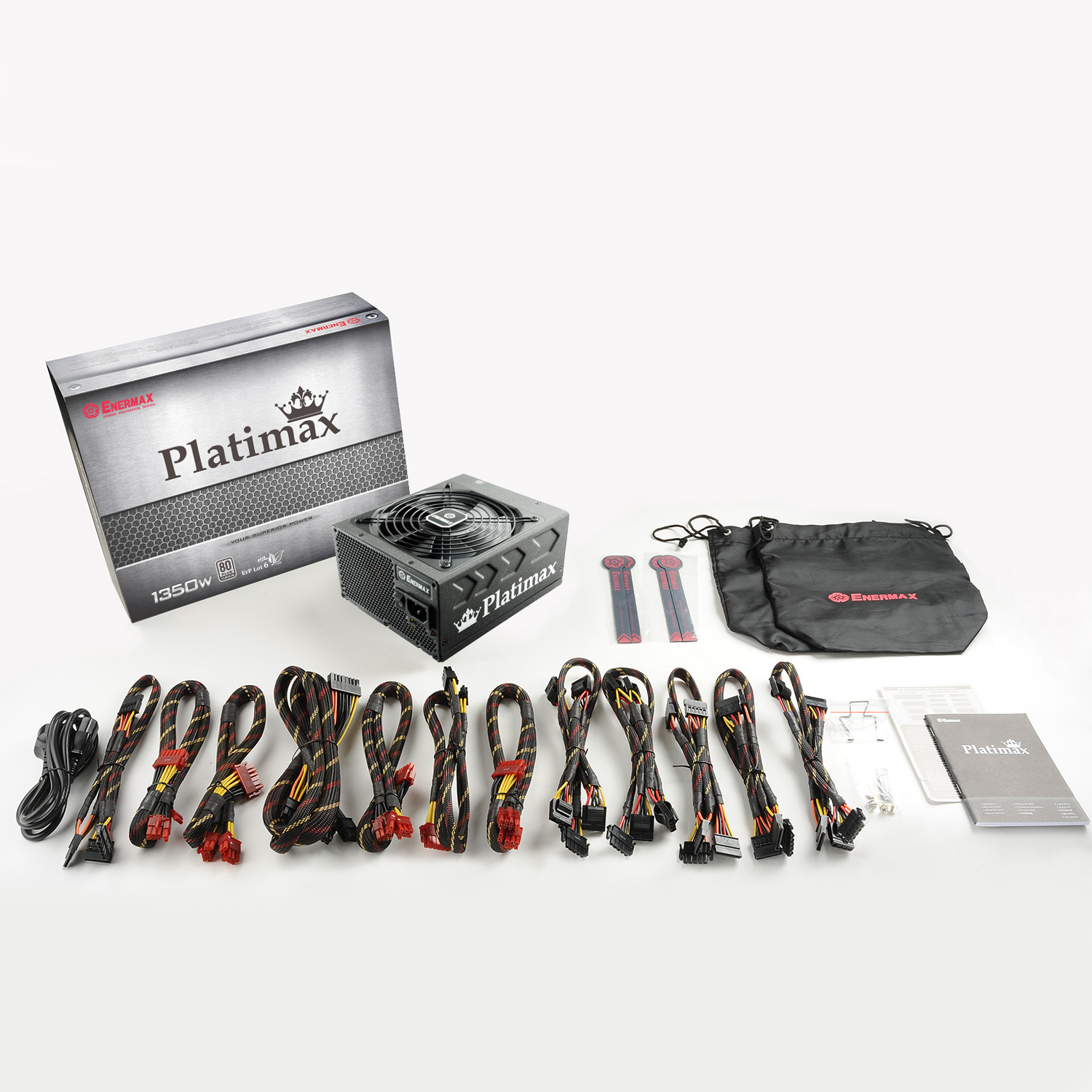

Cables & Connectors
| EPM1350EWT | |
| Mainboard 24 Pin | 1 [ 1 x 60cm ] |
| CPU 8 Pin | 1 [ 1 x 65cm ] |
| 2 x PCI-E 6+2 Pin (8 Pin) | 8 [ 4 x 50cm ] |
| 8P & 4P 12V CPU/RAM | 1 [ 1 x 60cm ] |
| SATA | 8 [ 2 x 45/15/15/15cm ] |
| 2 x SATA + 2 x 4 Pin Molex | 4 + 4 [ 2 x 45/15/15/15cm ] |
| 4 x 4 Pin Molex + FDD | 8 + 2 [ 1 x 45/15/15/15/15cm ] |
Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.
Specifications
General Data
- 80 PLUS Efficiency
- PLATINUM
- Modular
- Full modular
- Cable type
- Black flat
- Total power (W)
- 1350
- Input Voltage (V)
- 100-240
- Input Current (A)
- 50
- Input Frequency (Hz)
- 50-60
- Fan size (mm)
- 135
- Operating temperature (°C)
- 50
- MTBF (hours)
- >100K
- Protection
- OCP, OVP, UVP, OPP, OTP, SCP, SIP
- Dimension (D x W x H), (mm)
- 180 x 150 x 86
Output
- +3.3V(A)
- 24
- +5V(A)
- 24
- +12V1(A)
- 30
- +12V2(A)
- 30
- +12V3(A)
- 30
- +12V4(A)
- 30
- +12V5(A)
- 30
- +12V6(A)
- 30
- -12V(A)
- 0.5
- +5Vsb(A)
- 3
- Combined Wattage 12V (W)
- 1350
- Combined Wattage 3.3V + 5V(W)
- 120
