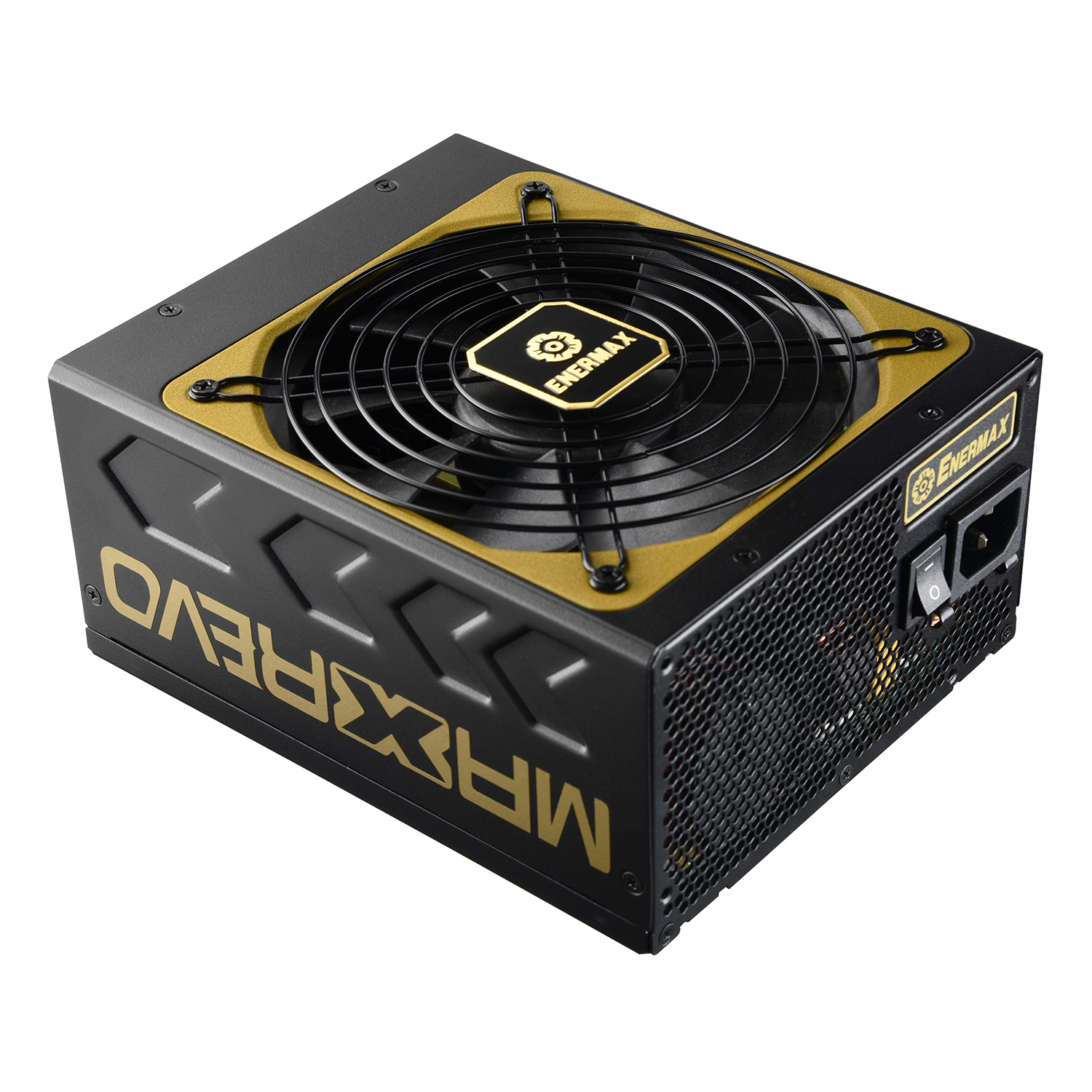

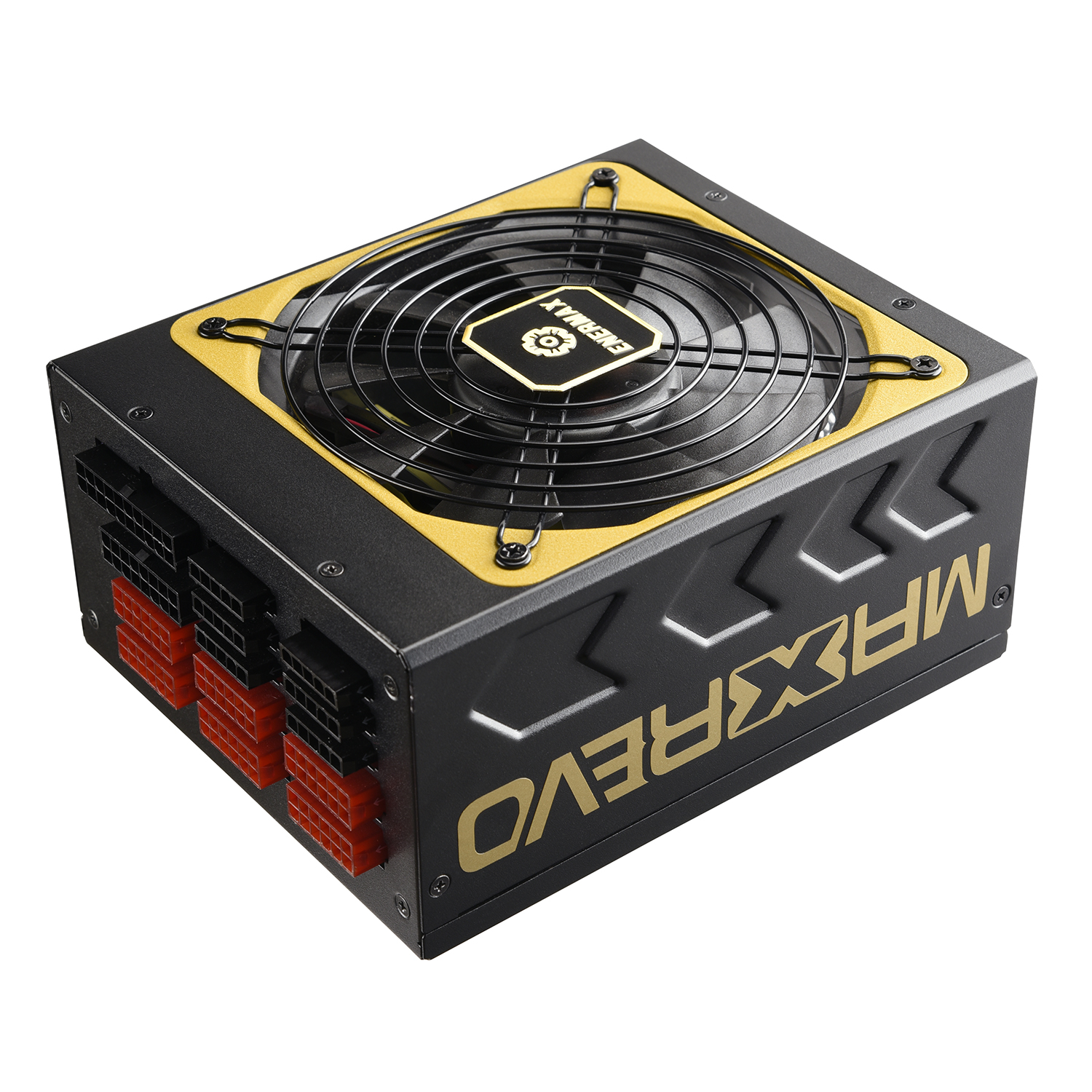

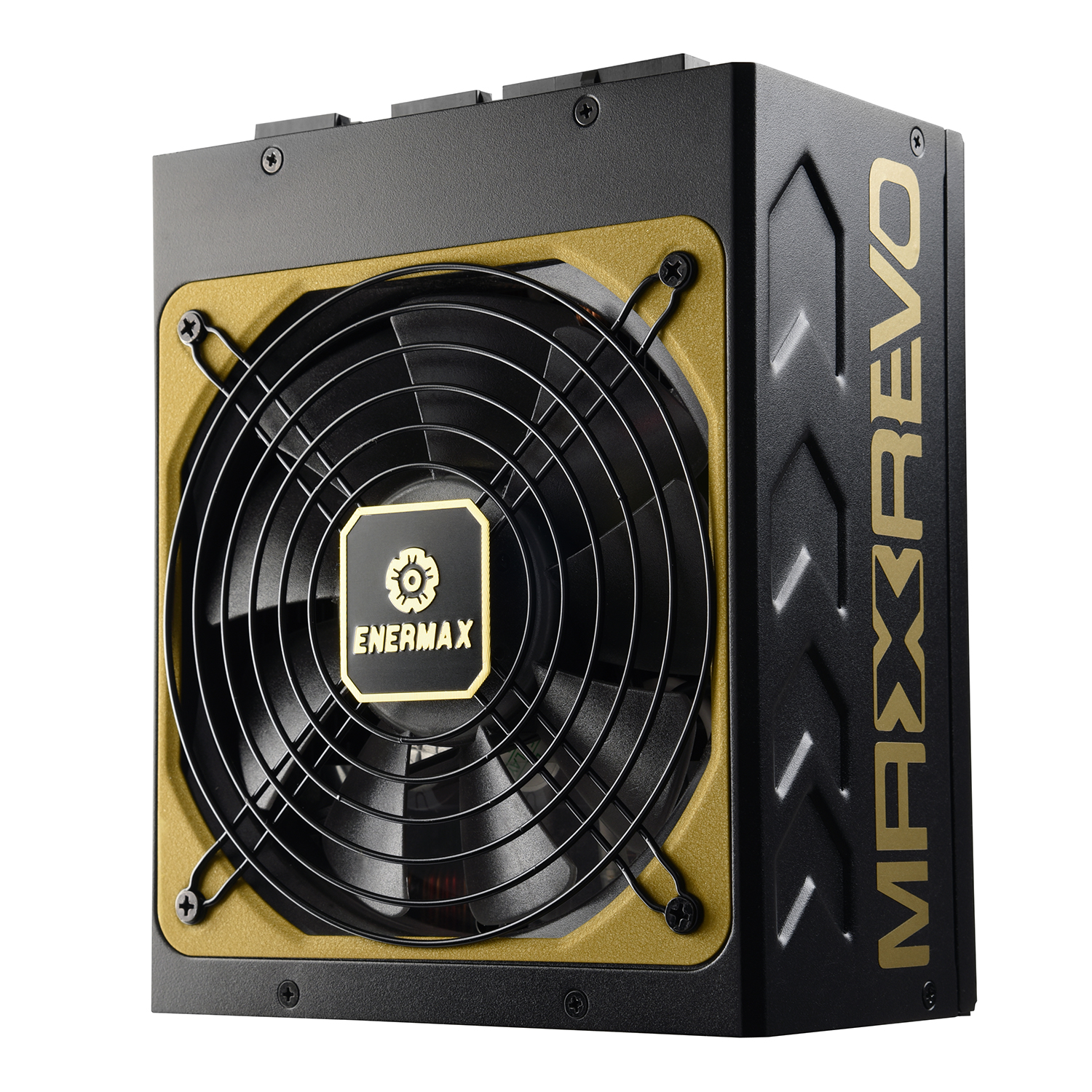

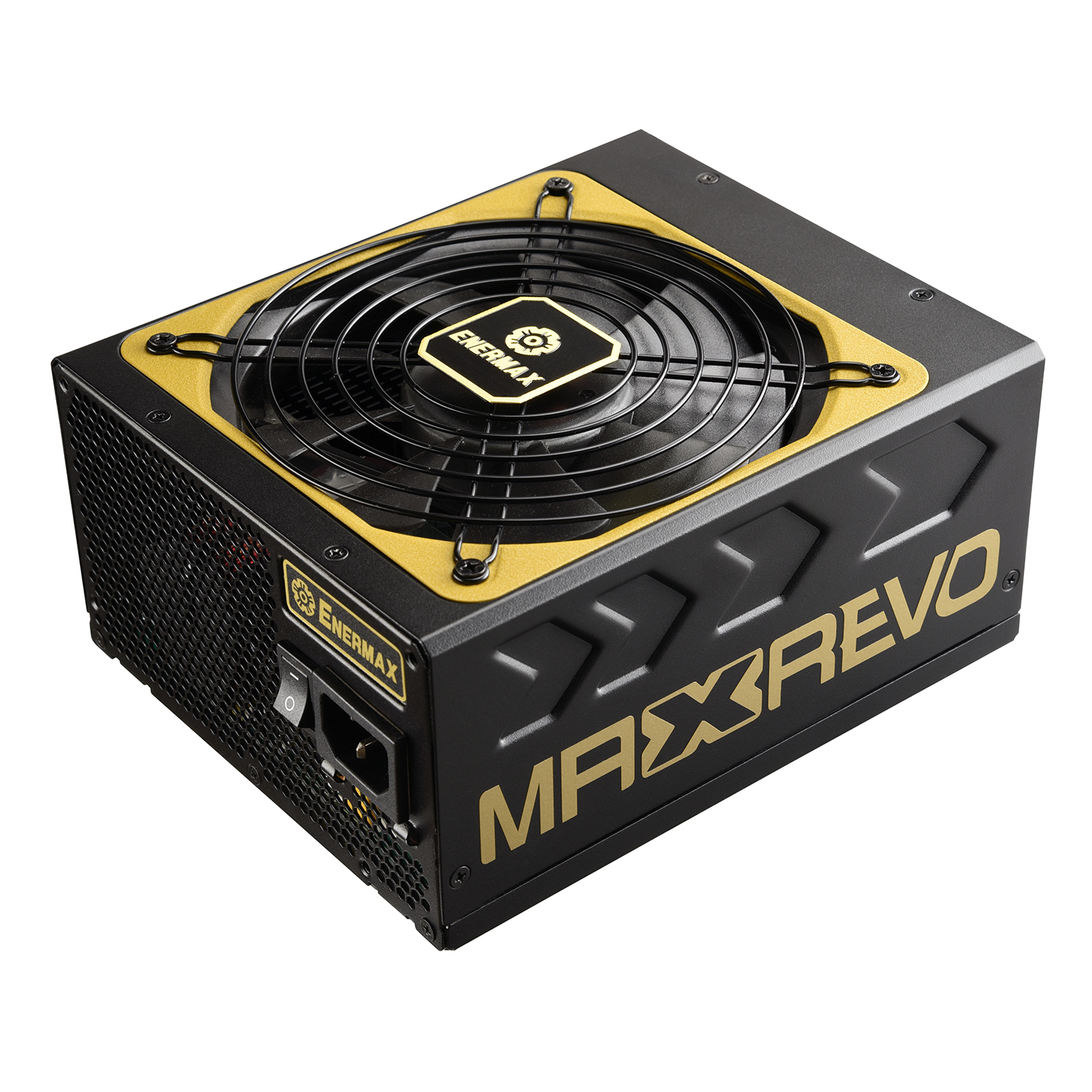

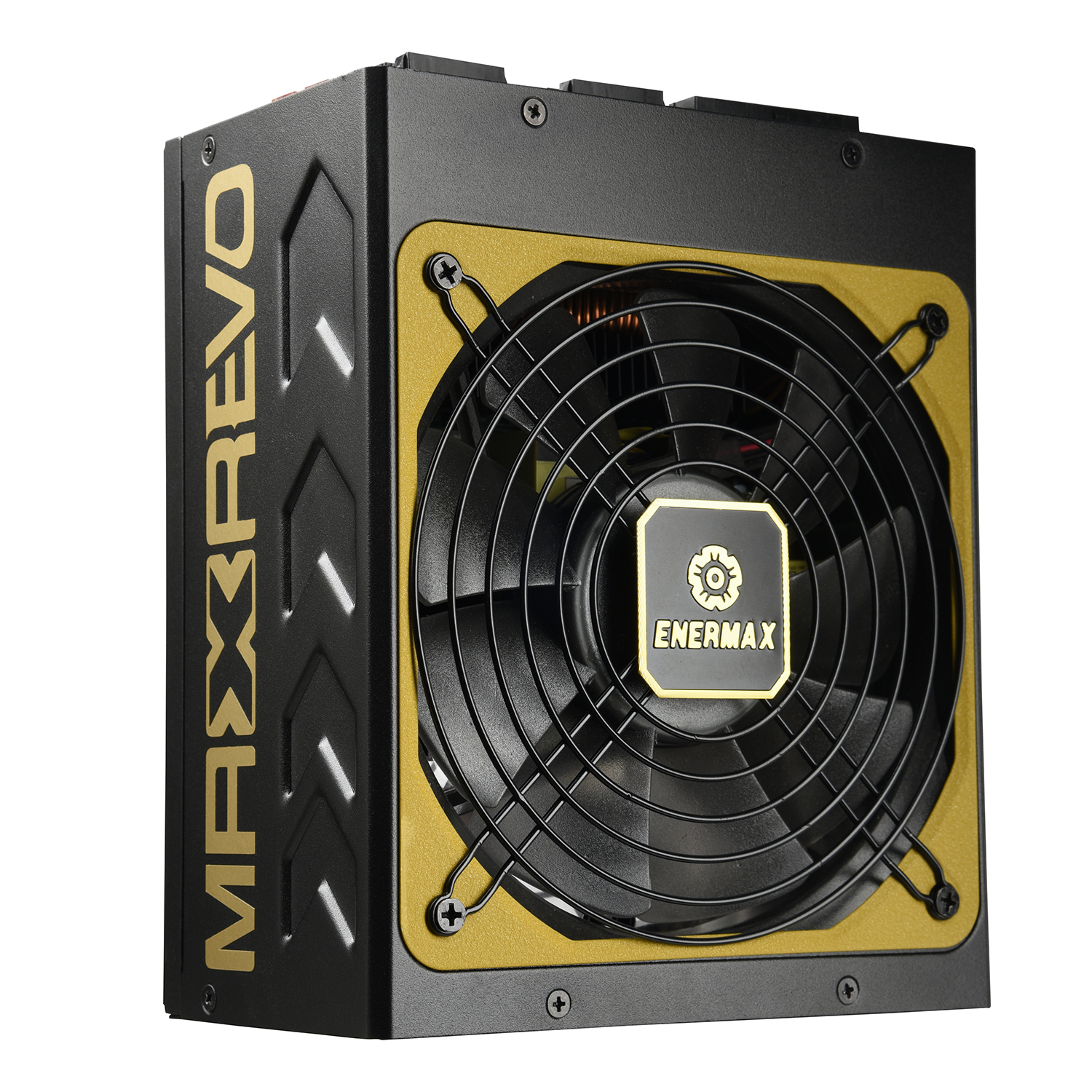

MAXREVO 1350 Watt 80 PLUS Gold Fully Modular Power Supply
Color
Overview
Features
- FMQ Design
Fully utilize transformer’s quad magnetic quadrants energy to provide maximum switching efficiency and outstanding stability. - 88PLUS ready!
World’s leading full modular cables PSU series with 88-94% efficiency @ 20-100% load. Compliant with 80 PLUS® GOLD standard (1200/1350W only). - NVIDIA® SLI® certified!
nVidia® SLI® certified. (ENERMAX MAXREVO 1350W, EMR1350EWT, NVIDIA, SLI are registered trademarks or trademarks of NVIDIA Corporation.) - ErP Lot 6 ready!
Help system meet ErP Lot 6 2013 (<0.5W at standby mode) with high efficiency +5Vsb circuitry.*
* With ErP Lot 6 enabled motherboard. - Copper-Bridge Array Transmission
Unique Copper-Bridge Array creating wider conduction path greatly helps reduce airflow resistance, voltage drop and energy loss. - C6 & Hybrid ready!
Maximum compatibility with C6 & hybrid states of current and future CPU & GPU generations by ZERO LOAD Design. - DXXI ready!
100% 6+2P (8P) PCI-E connectors to support new generation DXXI graphic cards. - Future ready!
12P modular design for possibly upcoming new CPU and GPU 10P and/or 12P connectors.
- Modular ready!
Full modular cable design for easy customized support for various peripheral settings. - SERVER ready!
SSI PSDG support for latest Intel® Core™ Extreme/i7/i5/i3, Xeon™ and AMD® Opteron™ and SLI® or CrossFireX™ and downward compatible with EPS12V v2.92, v2.8. - CordGuard
Fixing the AC cord tightly to avoid accidental shutdowns of your PC. - HeatGuard
Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolong system lifetime. - SafeGuard
Industry-leading octuple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP & SIP. - SpeedGuard
The world’s leading patented fan control starting with unmatched 900RPM to a maximum of 2000RPM for optimal cooling and minimum noise. - Twister fan inside!
13.9cm Twister-bearing fan with low noise and long lifetime. (100,000 hours MTBF, Patented) - 100% 105℃ Japanese electrolytic capacitors
Highest components standards for maximum durability and stability.
FMQ Design
Fully utilize transformer’s quad magnetic quadrants energy to provide maximum switching efficiency and outstanding stability

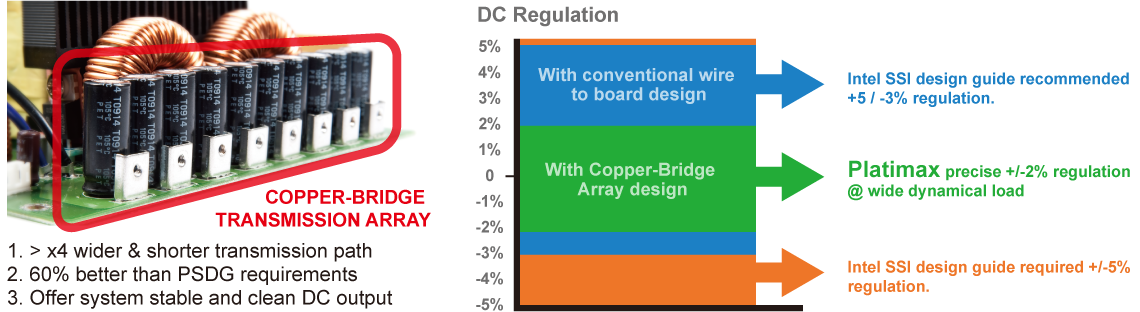

Copper-Bridge Array
Extreme Density Transformer
Innovative design boosts transformer core utilization rate and reduce overall dimension
- Extreme power density performance
- 50% space saving than conventional design
- Excellent heat dissipation
- Low air resistance and less air friction noise
ErP Lot 6 2013 ready!
Advanced +5Vsb circuitry with up to 20% improved efficiency in comparison to generic designs helps your system meet ErP Lot 6 2013 ( AC < 0.5W at standby) requirement.
*With ErP Lot 6 2013 enabled motherboard.
Twister Bearing Fan
- Minimal contact area for effective noise reduction
- Rotor with integrated magnet for frictionless and smooth motion
- Self-lubricating bearing material abrasion protection for longer lifetime
Modular ready!
Full modular cable design for easy customized support for various peripheral settings.
Cables & Connectors
| EMR1350EWT | |
| Mainboard 24 Pin | 1 [ 1 x 60cm ] |
| CPU 8 Pin | 1 [ 1 x 65cm ] |
| 2 x PCI-E 6+2 Pin (8 Pin) | 8 [ 4 x 50cm ] |
| 8P & 4P 12V CPU/RAM | 1 [ 1 x 60cm ] |
| SATA | 12 [ 3 x 45/15/15/15cm ] |
| 2 x SATA + 2 x 4 Pin Molex | 2 + 2 [ 1 x 45/15/15/15cm ] |
| 4 x 4 Pin Molex + FDD | 8 + 2 [2 x 45/15/15/15/15cm ] |
Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.
Specifications
General Data
- 80 PLUS Efficiency
- GOLD
- Modular
- Full modular
- Cable type
- Sleeve
- Total power (W)
- 1350
- Input Voltage (V)
- 115-240
- Input Current (A)
- 14-6.5
- Input Frequency (Hz)
- 50-60
- Fan size (mm)
- 139
- Operating temperature (°C)
- 50
- MTBF (hours)
- > 100k
- Protection
- OCP, OVP, UVP, OPP, OTP, SCP, SIP
- Dimension (D x W x H), (mm)
- 180 x 150 x 86
Output
- +3.3V(A)
- 25
- +5V(A)
- 25
- +12V1(A)
- 30
- +12V2(A)
- 30
- +12V3(A)
- 30
- +12V4(A)
- 30
- +12V5(A)
- 30
- +12V6(A)
- 30
- -12V(A)
- 0.5
- +5Vsb(A)
- 4
- Combined Wattage 12V (W)
- 1344
- Combined Wattage 3.3V + 5V(W)
- 140
