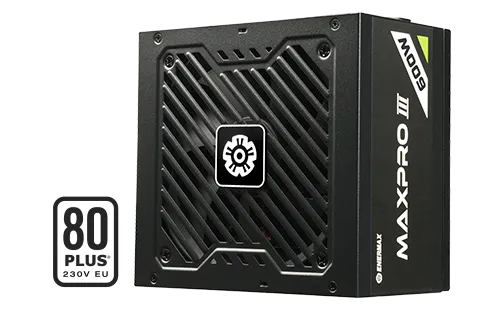

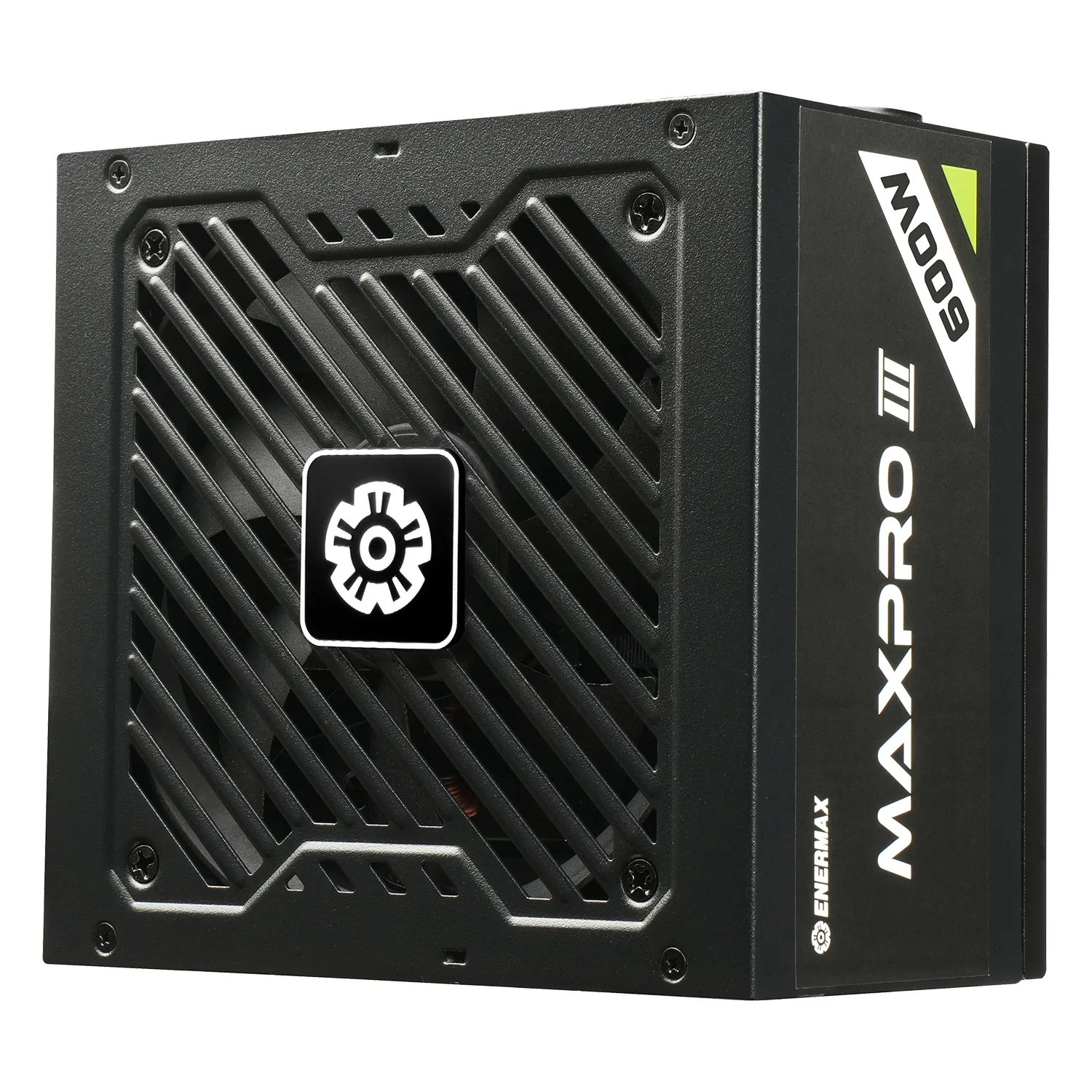

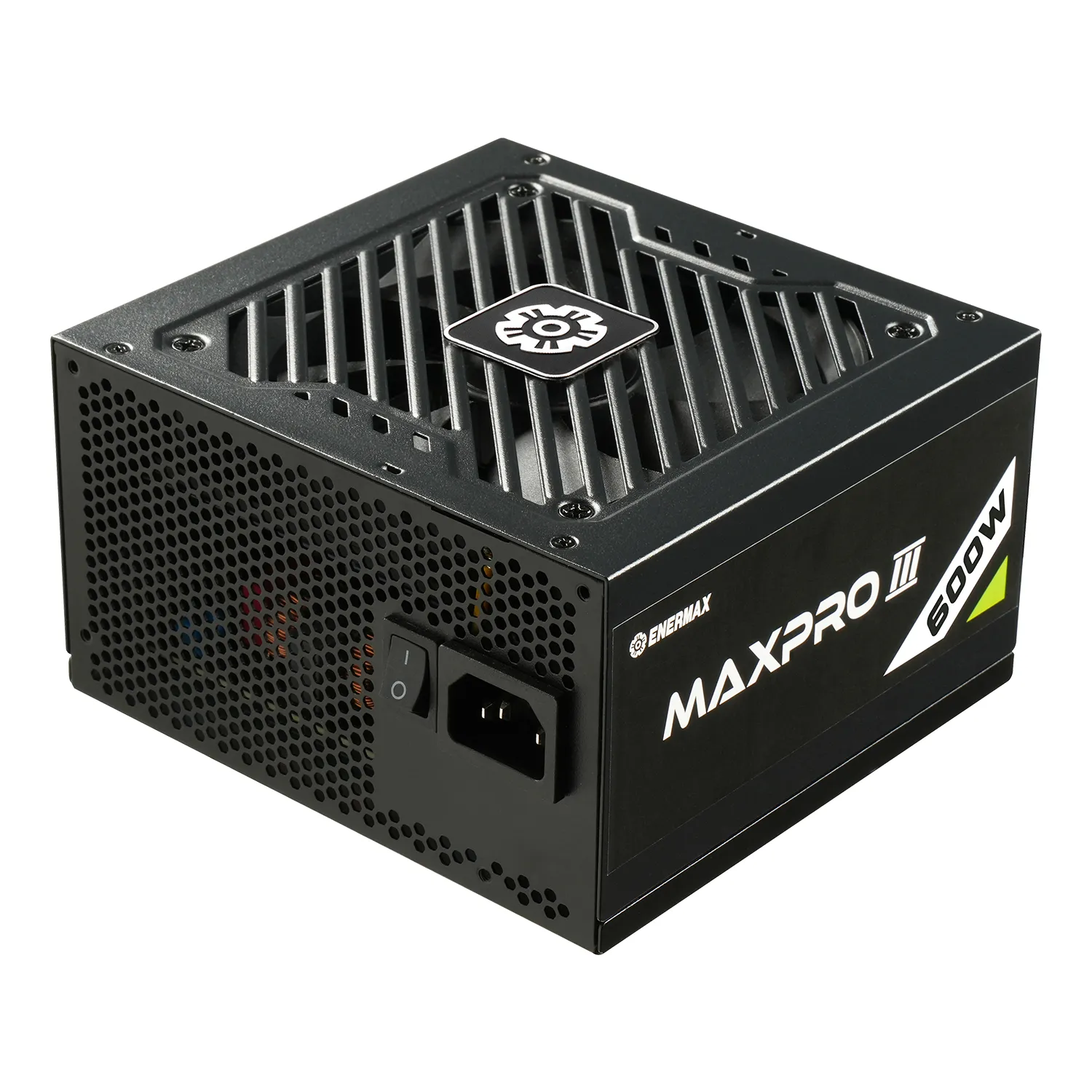

MAXPRO III 600 Watt 80 PLUS®230V EU Standard Non-Modular Power Supply
- 80 PLUS® Standard 230V EU Certified
- Japanese Primary Capacitor
- All Black Flat Cable Design
- Single +12V Rail
Color
OVERVIEW
The MAXPRO III series is certified by 80 PLUS 230V EU, delivering up to 85% efficiency at 50% load, making it an energy-saving solution for most mainstream builds.
80 PLUS® Standard 230V EU Certified
Achieves up to 85% efficiency @ 50% load under 230Vac. Compliant with 80 PLUS® 230V EU Standard efficiency requirements.
Japanese Primary Capacitor
The use of Japanese primary capacitor increases the PSU’s lifespan.
100% Flexible Flat Cables
The black flat cable design allows easy installation and clean cable management. Furthermore, it helps improve the airflow.
Over Current
Protection
Over Voltage
Protection
Under Voltage
Protection
Over Power
Protection
Over Temperature
Protection
Short Circuit
Protection
Built-in Industrial Grade Protection
MAXPRO III series is equipped with comprehensive industry-grade protection mechanisms to ensure the safety and longevity of your components.

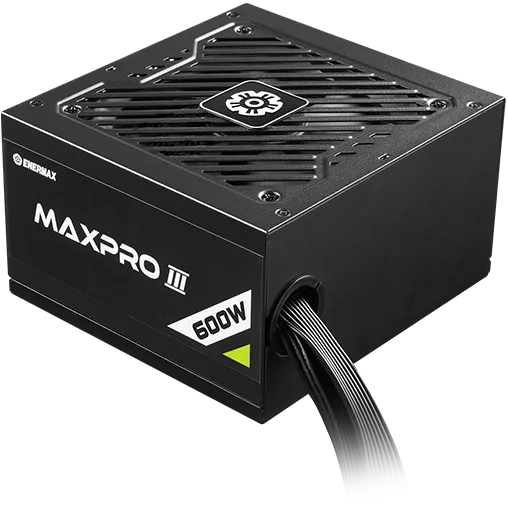

Non-Modular Connectors
MAXPRO III series features non-modular connectors that are black and low-profile. This design allows users to route the cables optimally, minimizing airflow obstruction and maintaining a clean build aesthetic.
| Connect Type | Connector Quantity | Cable Quantity | Cable Length | |
| Motherboard 24 (20+4)pin |
1 |  |
1 | 1 x 55cm |
| CPU 4+4 pin | 2 |  |
1 | 1 x 65cm |
| PCIe (6+2) pin + (6+2) pin |
2 |  |
1 | 1 x 55/15cm |
| 3 x SATA + 1 x 4P Molex |
SATA: 6 4P Molex: 2 |
SATA  Molex  |
2 | 2 x 45/15/15cm |
Single +12V Rail Design
MAXPRO III series is equipped with powerful +12V rails, makes GPU and CPU operate with less restriction to avoid shutting down from heavy usage .
| Power Table | ||||||
| Model Name | EMP500W | EMP600W | EMP700W | |||
| AC Input Voltage | 200-240VAC, 50-60Hz | |||||
| AC Input Current | 6A | |||||
| DC Output | ||||||
| Rated | Combined | Rated | Combined | Rated | Combined | |
| 3.3V | 15A | 100W | 15A | 100W | 15A | 100W |
| +5V | 15A | 15A | 15A | |||
| +12V | 38A | 456W | 46A | 552W | 56A | 672W |
| -12V | 0.3A | 3.6W | 0.3A | 3.6W | 0.3A | 3.6W |
| +5Vsb | 2.5A | 12.5W | 2.5A | 12.5W | 2.5A | 12.5W |
| Total Power | 500W | 600W | 700W | |||
Dimensions
150(W) x 86(H) x 140(D)mm
CABLES & CONNECTORS
| EMP600W | |
| ATX Motherboard 24 (20+4) pin | 1 [ 1 x 55cm ] |
| CPU 4+4 pin | 2 [ 1 x 65/15cm ] |
| 2 x PCIe 6+2 pin | 2 [ 1 x 55/15cm ] |
| 3 x SATA + 1 x 4P Molex | 6 + 2 [ 2 x 45/15/15cm ] |
Notice:
For users looking to put in high-end, power-demanding GPU card, please correctly connect the 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply due to it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat-type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire to melt down and void the warranty.
Specifications
General Data
- 80 PLUS Efficiency
- Standard
- Modular
- Non-modular
- Cable type
- Black flat
- Total power (W)
- 600
- Input Voltage (V)
- 200-240
- Input Current (A)
- 6
- Input Frequency (Hz)
- 50-60
- Fan size (mm)
- 120
- Operating temperature (°C)
- 30
- MTBF (hours)
- >100K
- Protection
- OCP, OVP, UVP, OPP, OTP, SCP
- Dimension (D x W x H), (mm)
- 140 x 150 x 86
Output
- +3.3V(A)
- 15
- +5V(A)
- 15
- +12V1(A)
- 46
- -12V(A)
- 0.3
- +5Vsb(A)
- 2.5
- Combined Wattage 12V (W)
- 552
- Combined Wattage 3.3V + 5V(W)
- 100
Shipping Information
- EAN code
- 4713157728647
- UPC code
- 819315028643
- Box dimensions (D x W x H), (mm)
- 260 x 180 x 115
