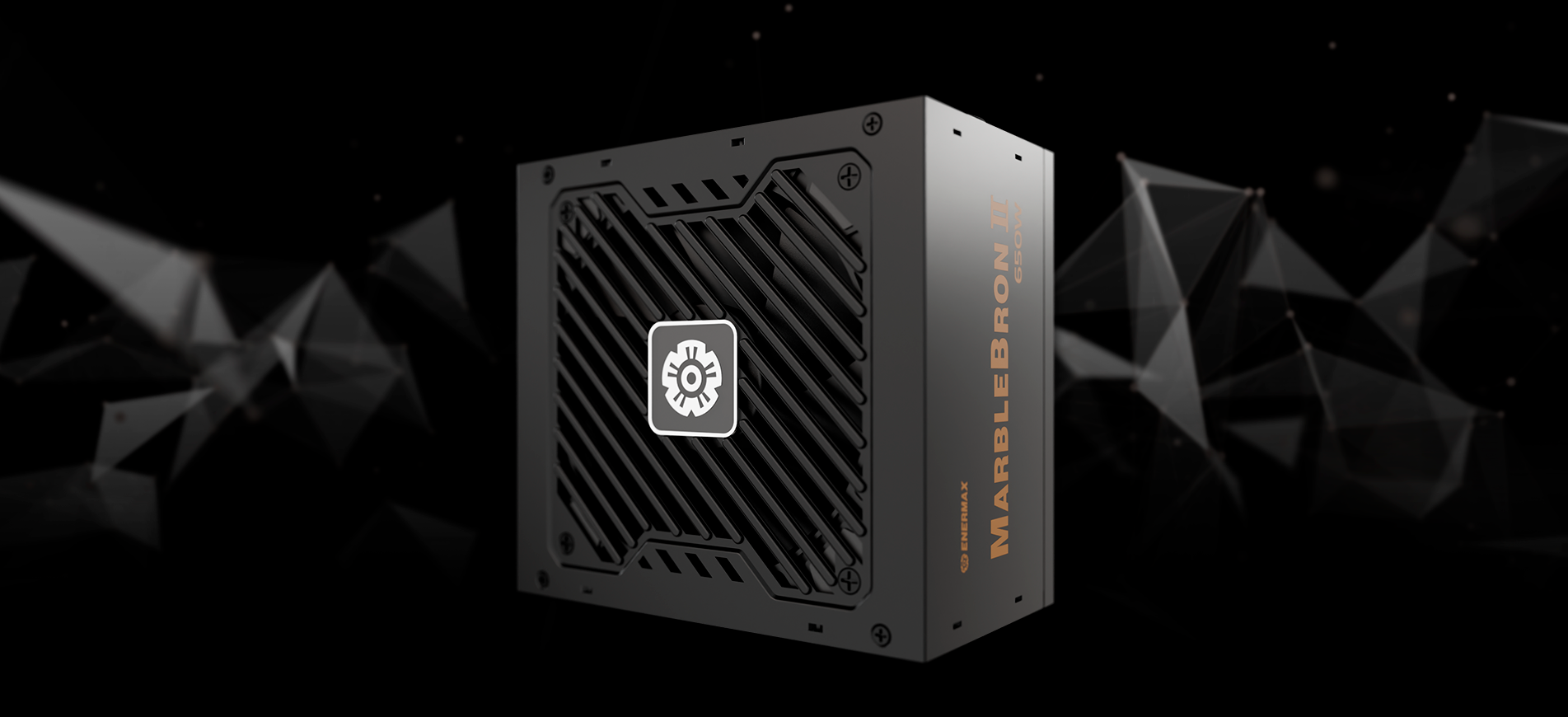

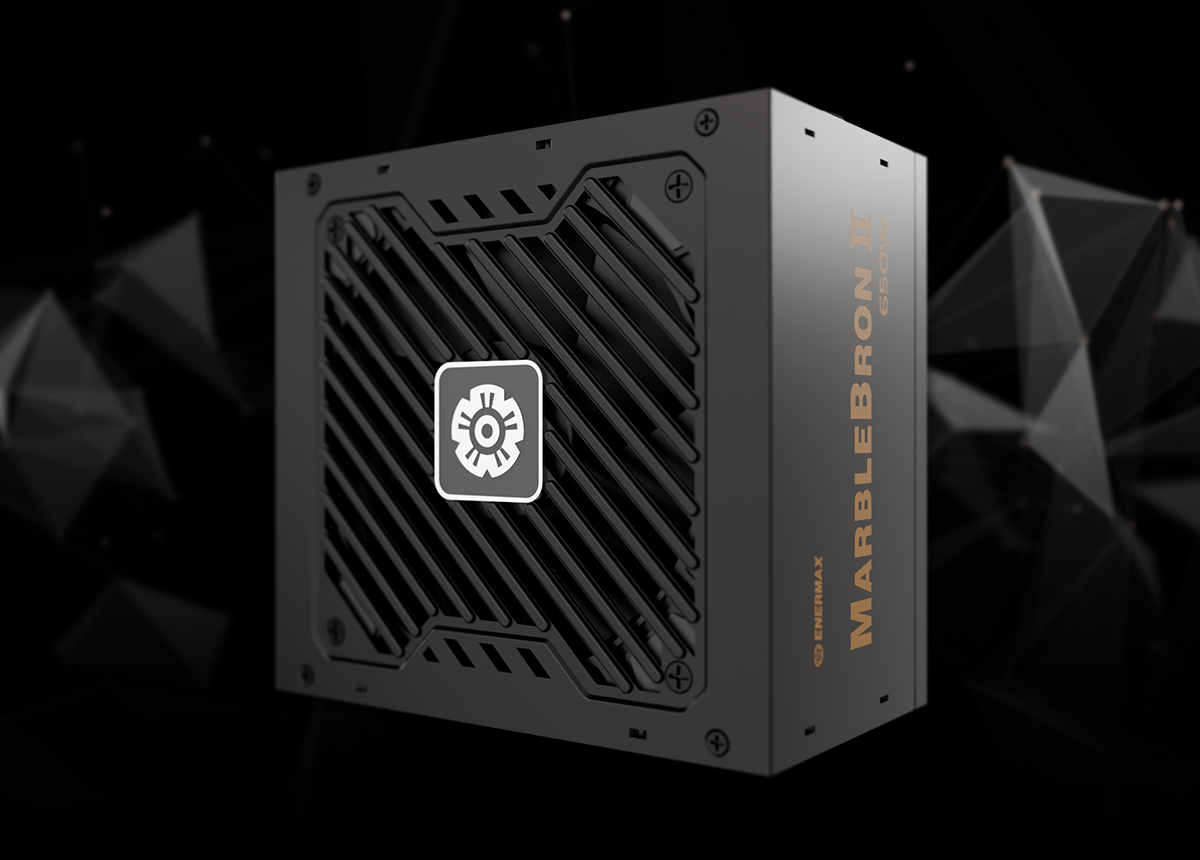

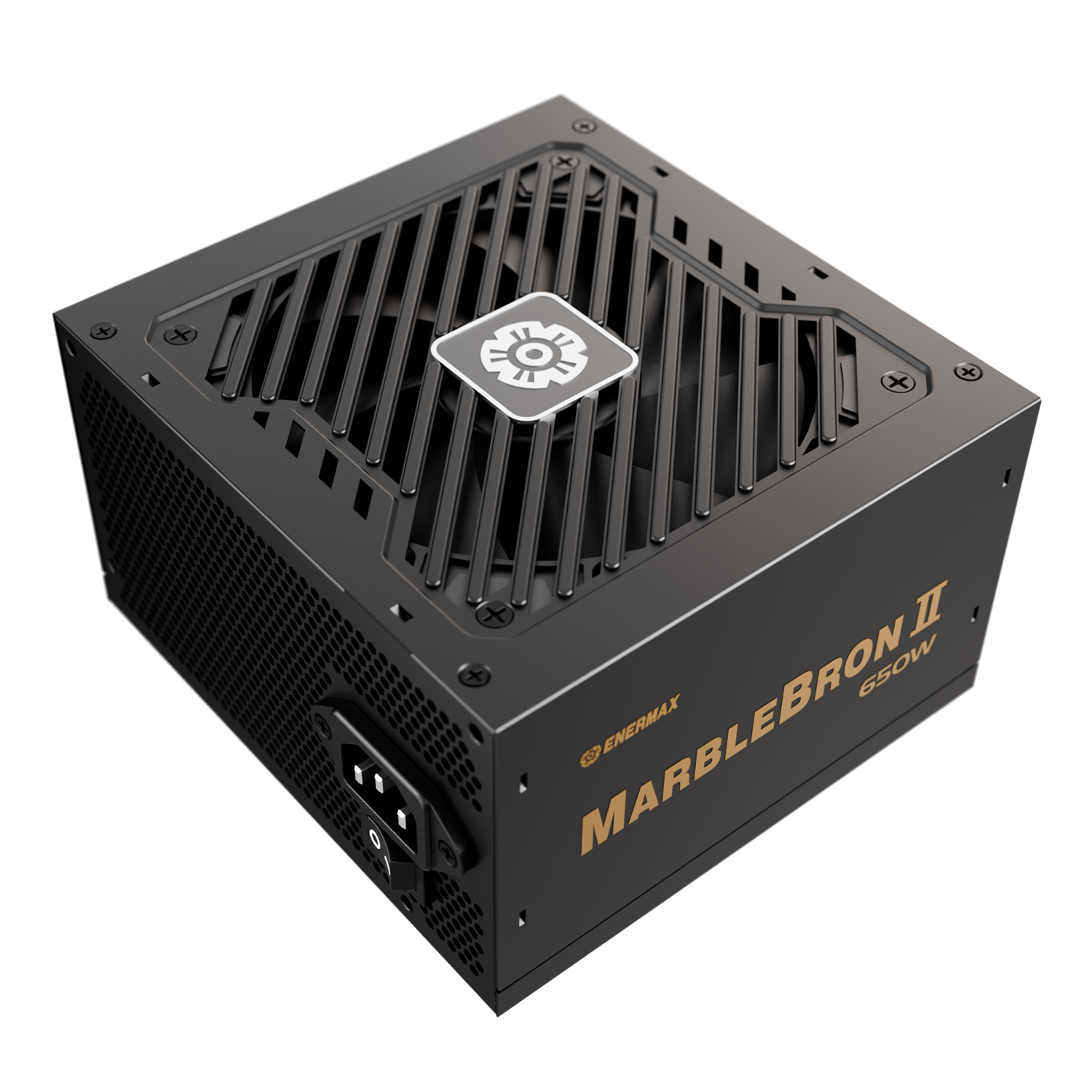

MARBLEBRON II 650 Watt 80 PLUS Bronze Semi-Modular Power Supply
- 80 PLUS® Bronze Certified Power Supply
- Integrated with ATX 3.1
- Japanese Primary Capacitors
- DC to DC Circuit
- 120mm FDB Fan
- Semi-Modular Design
Color
Overview
ATX 3.1 SEMI-MODULAR POWER SUPPLY
ENERGY CONSERVATION
- 80 PLUS® Bronze certified with 88% efficiency at 50% loading
- Better power factor performance with active PFC design
ATX 3.1 READY
MARBLEBRON II series meets the Intel ATX 3.1 standards, reaches 60% low load efficiency and complies with required power supply timing standards.

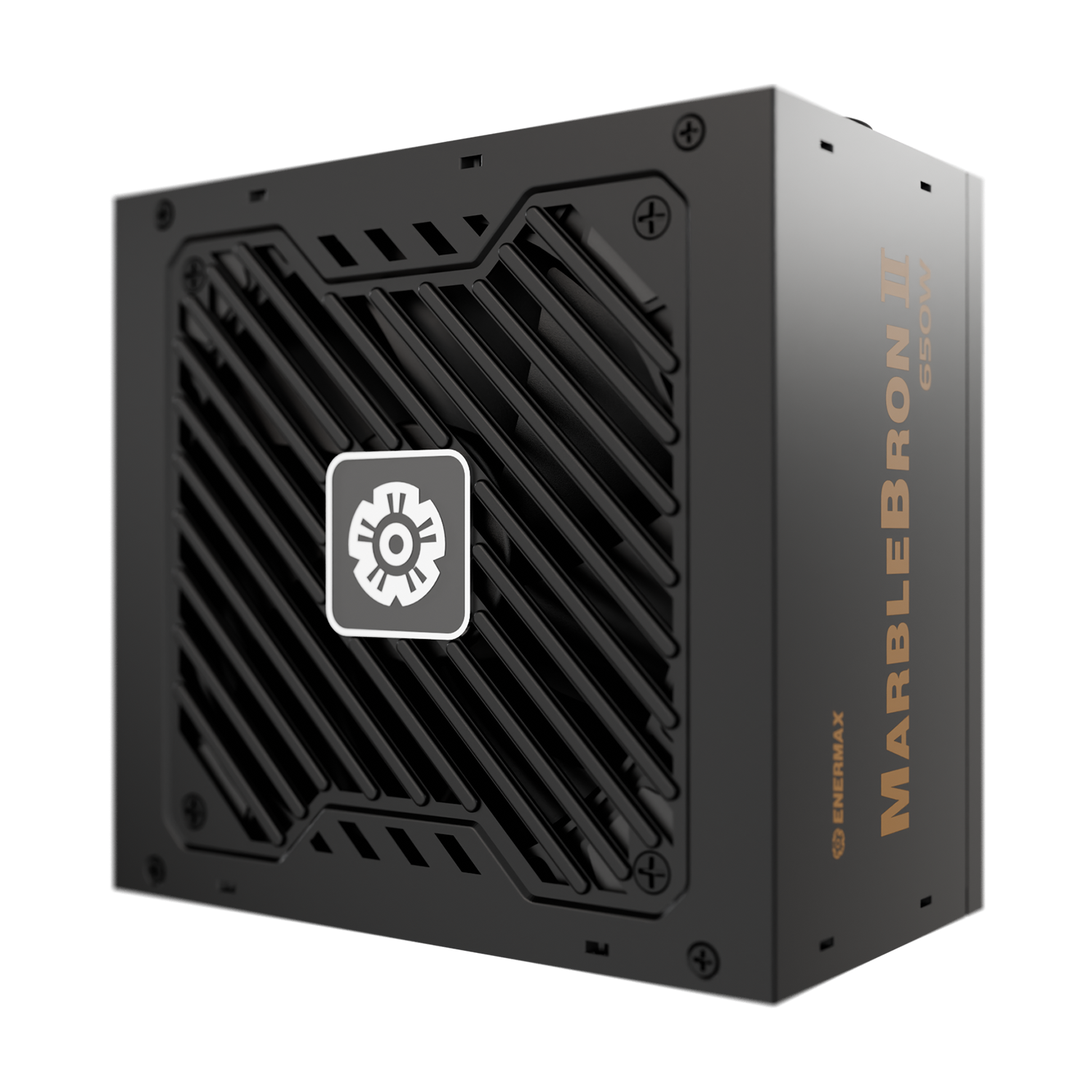

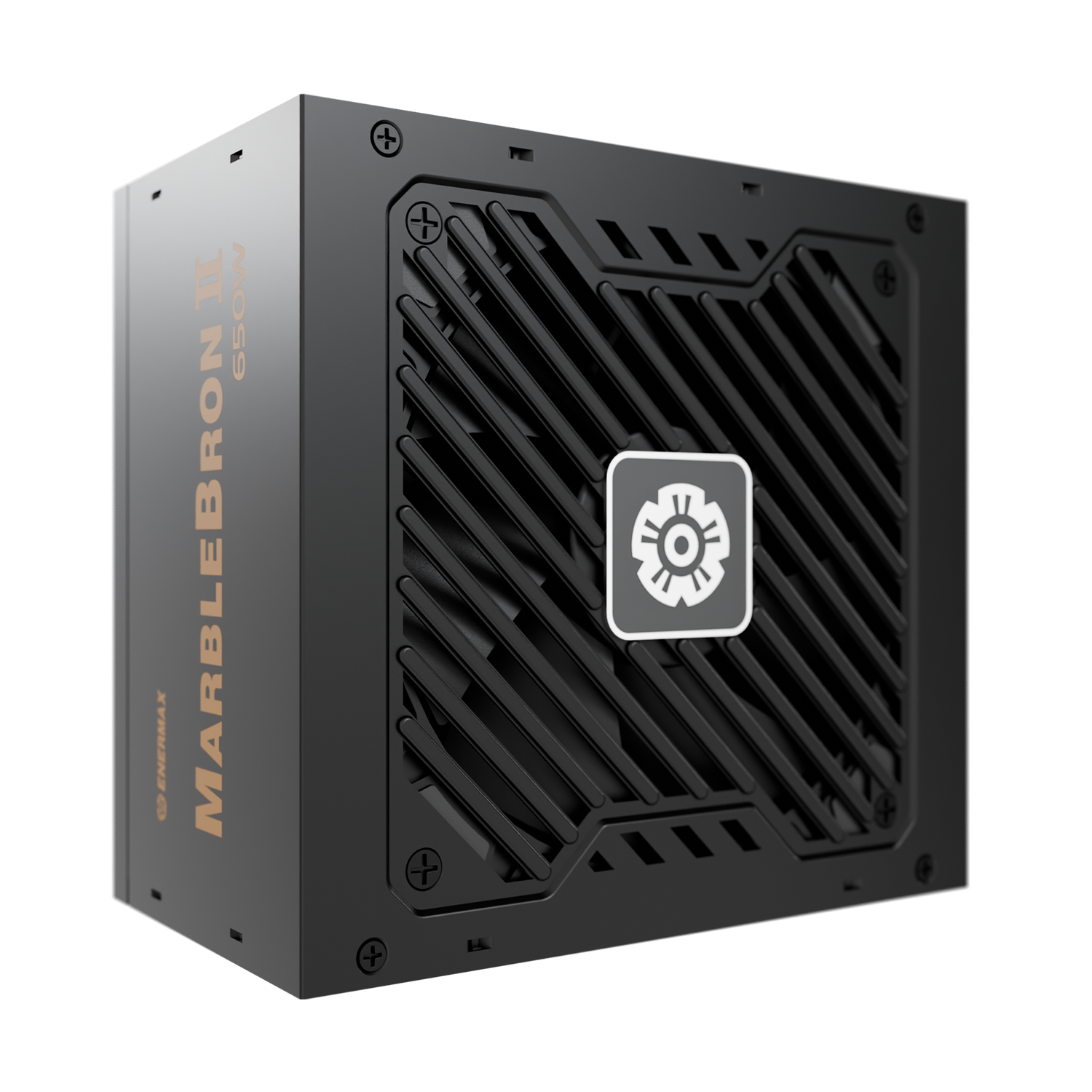

SILENT OPERATION
120mm FDB fan provides an ultra-silent user experience

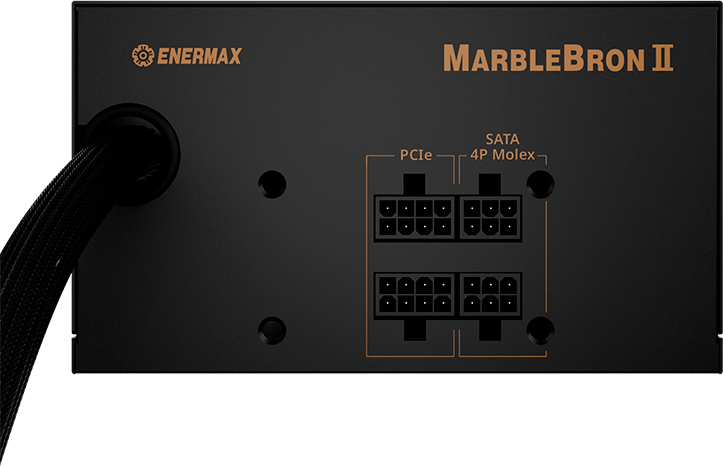

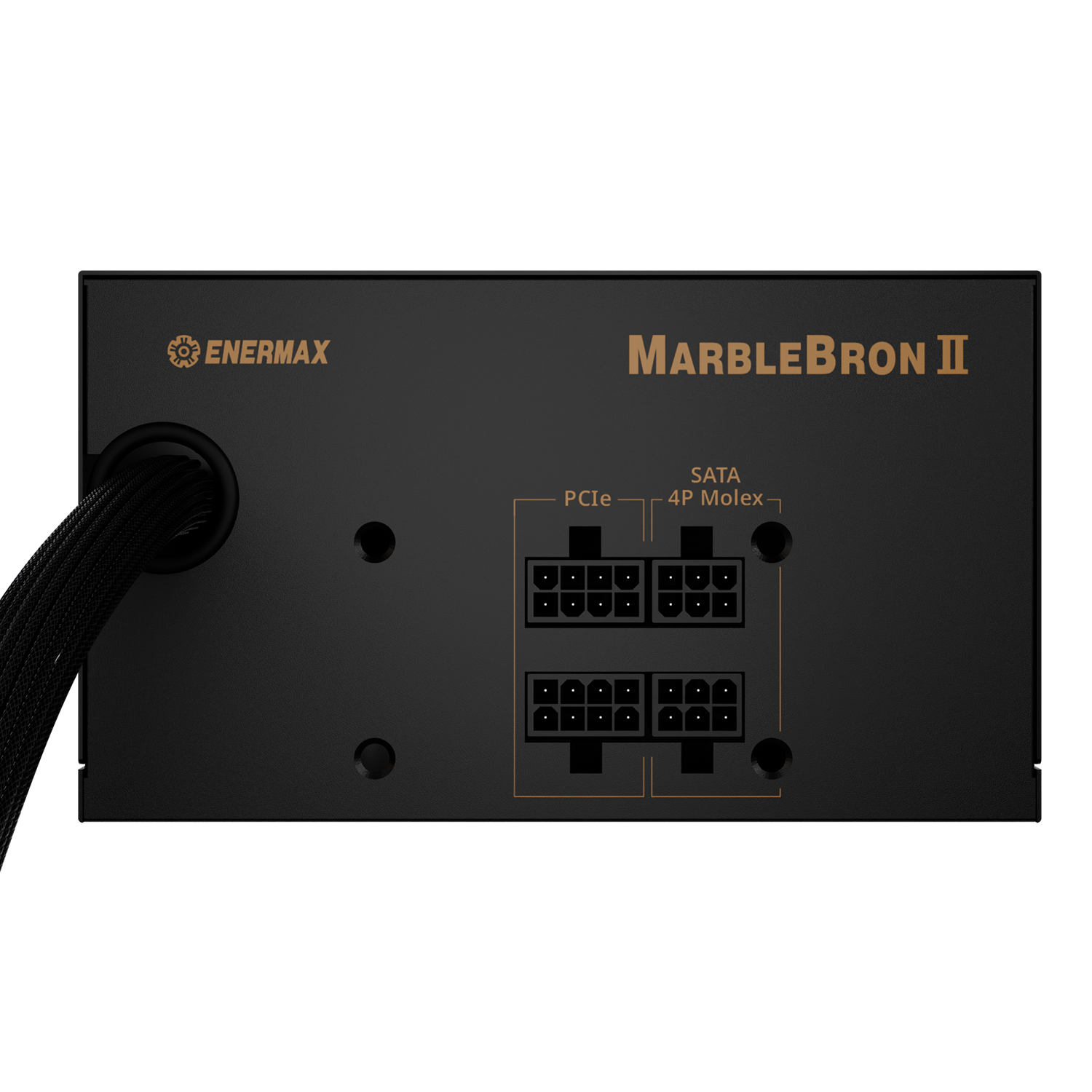

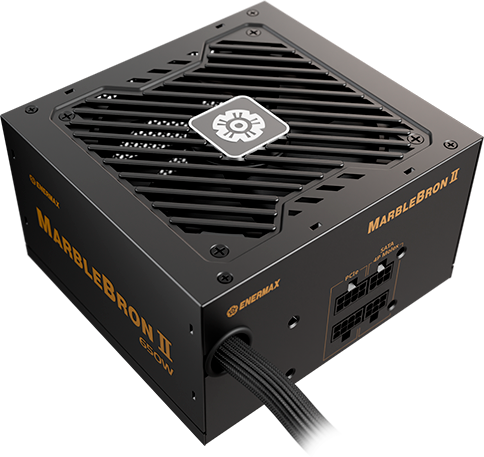

SEMI-MODULAR DESIGN WITH MESH-SLEEVED CABLES
Semi-modular design with flexible, easy-to-assemble cables.
JAPANESE PRIMARY CAPACITORS
High-quality Japanese primary capacitors provide the power supply's durability and ensure the MARBLEBRON II series is stable and reliable.

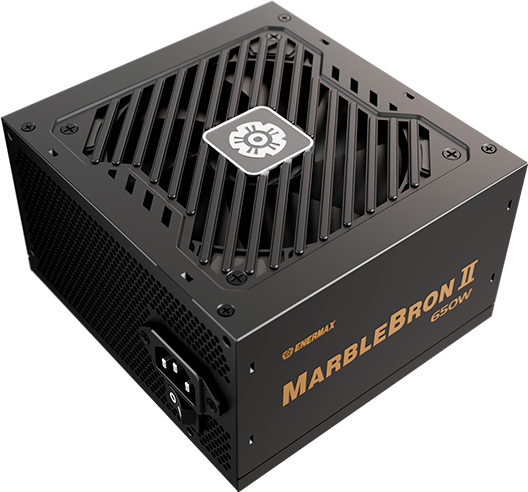

SINGLE RAIL & DC TO DC DESIGN
Delivers stable DC output and supports high-end graphics cards and processors.
| AC Input | 100-240VAC, 50-60Hz, 10-5A | ||||
|---|---|---|---|---|---|
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| 20A | 20A | 54A | 0.3A | 2.5A | |
| 120W | 648W | 3.6W | 12.5W | ||
| Total Power | 650W | ||||
INDUSTRIAL SAFETY STANDARDS
Over Current
Protection
Over Voltage
Protection
Under Voltage
Protection
Over Power
Protection
Over Temperature
Protection
Short Circuit
Protection
DIMENSIONS
Unit: mm
| Connect Type | Connector Quantity | Cable Quantity | Cable Length | |
| Motherboard 24 (20+4)pin |
1 |  |
1 | 55cm |
| CPU(4+4)Pin + (4+4)Pin |
2 |  |
1 | 60+15cm |
| PCIe (6+2) pin + (6+2) pin |
2 |  |
1 | 50+15cm |
| 2 x SATA + 4P Molex |
SATA: 4 4P Molex: 2 |
SATA  Molex  |
2 | 40+15+15cm |
Cables & Connectors
| EMB650AWT-MAC | |
| Mainboard 24 Pin | 1 [ 55cm ] |
| CPU(4+4)Pin+(4+4)Pin | 2 [ 60+15cm ] |
| PCIe (6+2)Pin + (6+2)Pin | 2 [ 50+15cm ] |
| SATA + 4P Molex | 4 + 2 [ 40+15+15cm ] |
Notice:
For users looking to put in high-end, power-demanding GPU card, please correctly connect the 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply due to it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat-type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire to melt down and void the warranty.
Specifications
General Data
- 80 PLUS Efficiency
- BRONZE
- Modular
- Semi-modular
- Cable type
- Individual mesh-sleeved cables
- Total power (W)
- 650
- Input Voltage (V)
- 100-240
- Input Current (A)
- 10-5
- Input Frequency (Hz)
- 50-60
- Fan size (mm)
- 120
- Operating temperature (°C)
- 40
- MTBF (hours)
- >100K
- Protection
- OVP, UVP, OPP, OTP, SCP, OCP
- Dimension (D x W x H), (mm)
- 140 x 150 x 86
Output
- +3.3V(A)
- 20
- +5V(A)
- 20
- +12V1(A)
- 54
- -12V(A)
- 0.3
- +5Vsb(A)
- 2.5
- Combined Wattage 12V (W)
- 648
- Combined Wattage 3.3V + 5V(W)
- 120
Shipping Information
- EAN code
- 4713157729187
- UPC code
- 819315029183
