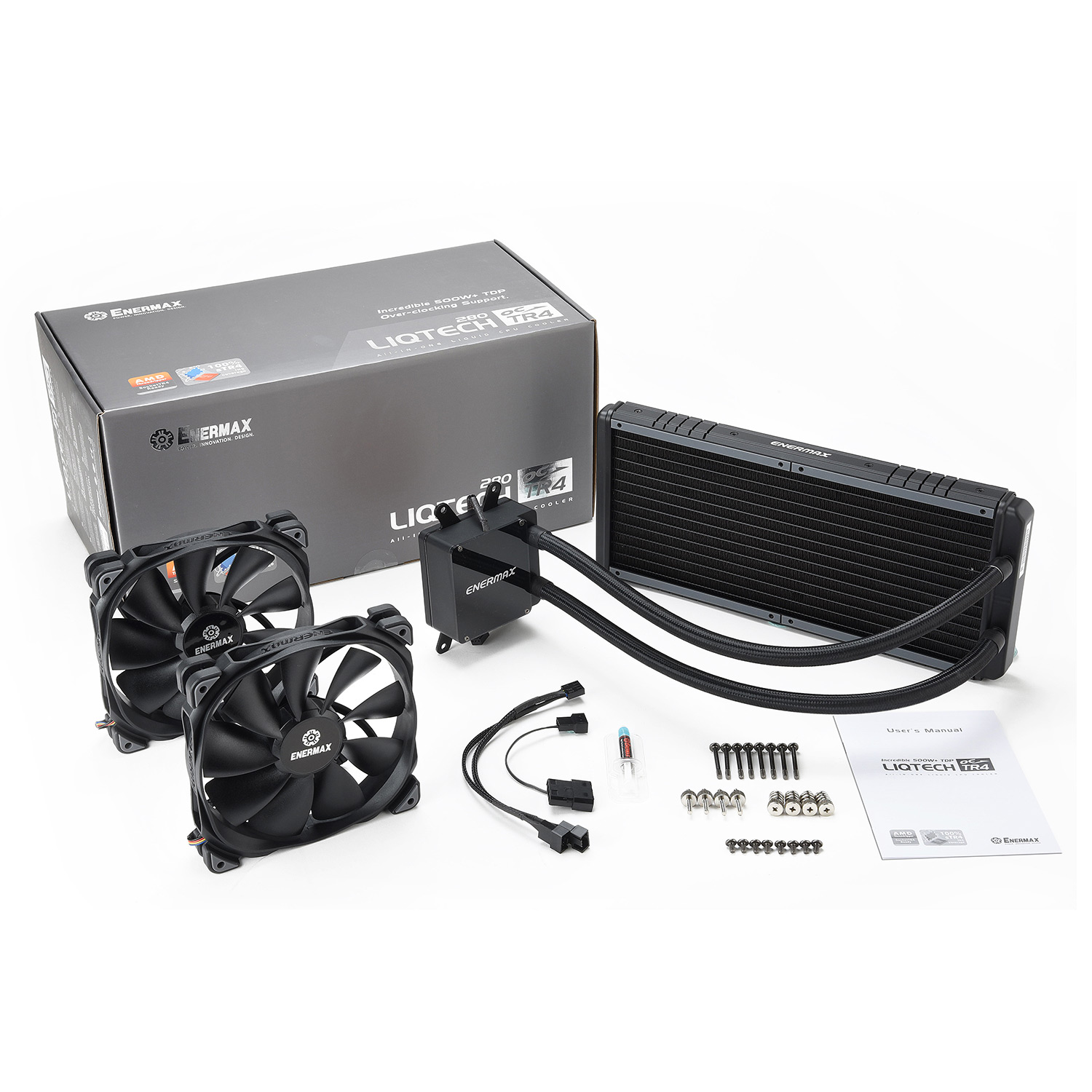

LIQTECH TR4 Series 280mm Liquid CPU Cooler
- 100% sTR4 IHS Coverage
- Exclusive for AMD sTR4 Platform
- Support 500W+ TDP
- Patented Shunt Channel Technology
- For High-end, Overclocked CPUs
Color
Overview
AMD SocketTR4 Ready!
Quick & user-friendly mounting system for the latest AMD (TR4) Threadripper CPU.
100% sTR4 IHS Coverage
Tailored to 100% cover AMD Threadripper’s integrated heat spreader (IHS) for uncompromised cooling performance.
Patented Shunt-Channel-Technology (SCT) boosts thermal conductivity and eliminates any heat surge
ENERMAX patented SCT (Shunt-Channel-Technology) design enables the cold plate to eliminate the "Boundary Layer" to increase coolant flow momentum and accelerate heat transfer performance. The SCT also lets heated and non-heated coolant to swap the channel and increase utilization rate.
Powerful pump design
Robust pump with precision engineering delivers high flow rate up to 450 L/h for superior cooling performance.
Luminous LED logo as power-on indicator
Anti-vibration rubber pads provide noiseless stable operation

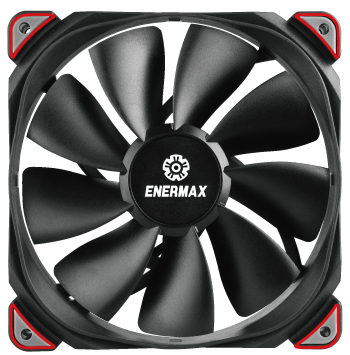

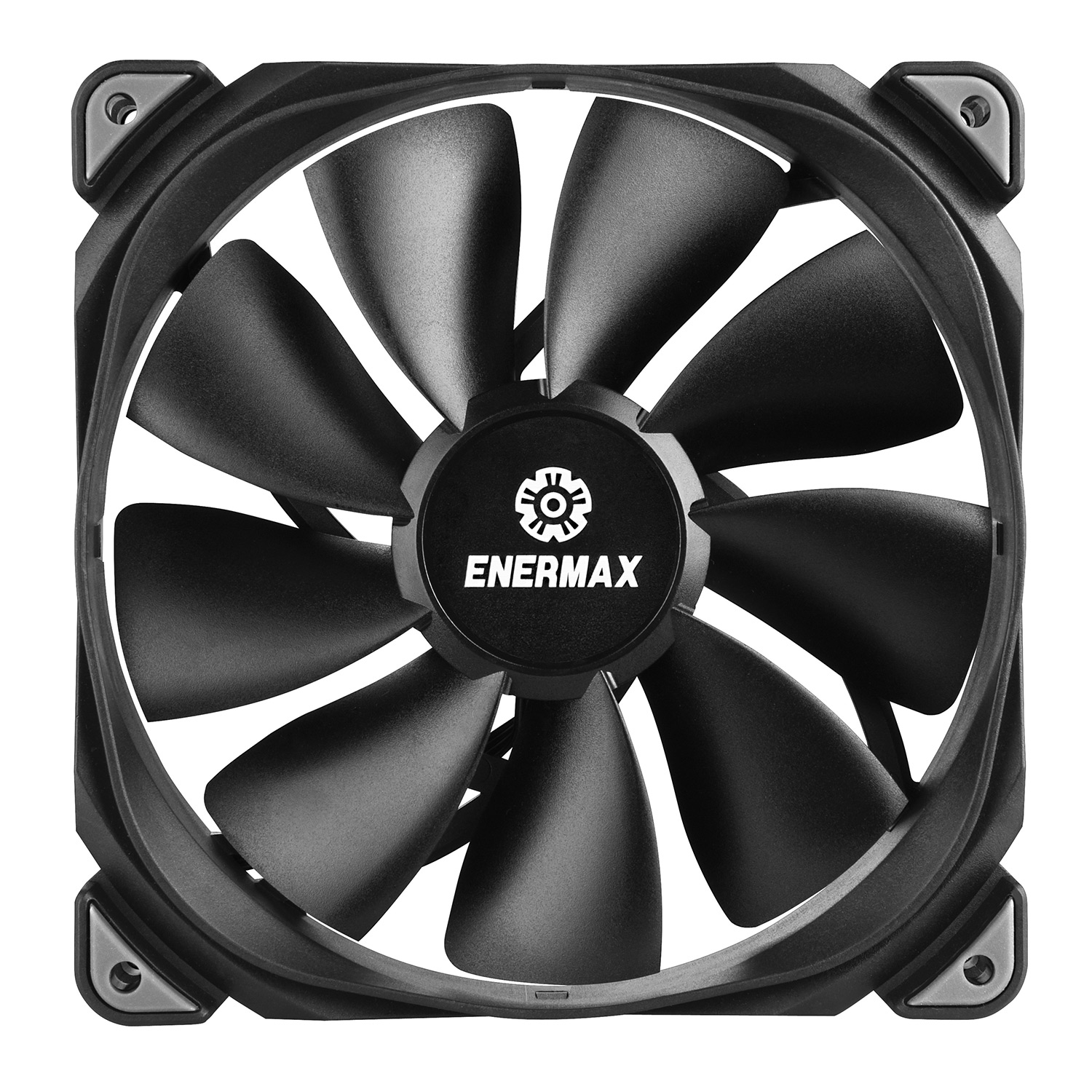

Innovative High Pressure Blades
Hi-pressure blade design enhances the cooling performance.
Dimension
unit:mm
Product Introduction
Installation Guide
Specifications
General Data
- Model
- ELC-LTTR280-TBP
- CPU Socket
- AMD® TR4 / SP3
- TDP
- 500W
- Cold Plate Material
- Copper cold plate
- Radiator Material
- Aluminum
- Radiator Dimension
- 313 x 140 x 28 mm
- Pump Bearing
- Ceramic nano PI bearing
- Pump MTBF
- 100,000 hours
- Pump Rated Voltage
- 12V
- Fan Speed
- 500 - 1500 RPM ± 10%
- Pump Rated Current
- 0.4A
- Fan Dimension (Radiator)
- 140 x 140 x 25 mm
- Fan MTTF
- ≧160,000 hours
- Fan Rated Voltage
- 12V
- Fan Rated Current
- 0.2A
- Fan Air Flow
- 31.86 ~ 80.71 CFM
- Fan Static Pressure
- 0.960 ~ 4.812 mm-H2O
- Fan Connector
- 4 pin PWM
- Fan Maximum Noise
- 14 ~ 25 dBA
- ACCESSORY
- Thermal grease included
- Fan Screw
- M3.5
Shipping Information
- EAN
- 4713157723413
- UPC
- 819315023419
- Box Dimension
- 375 x 185 x 172 mm
- Gross Weight / unit
- 2.4 kg
- Carton Dimension
- 570 x 390 x 380 mm
- Q'ty / carton
- 6 pcs
- Gross Weight / Carton
- 15.71 kg
