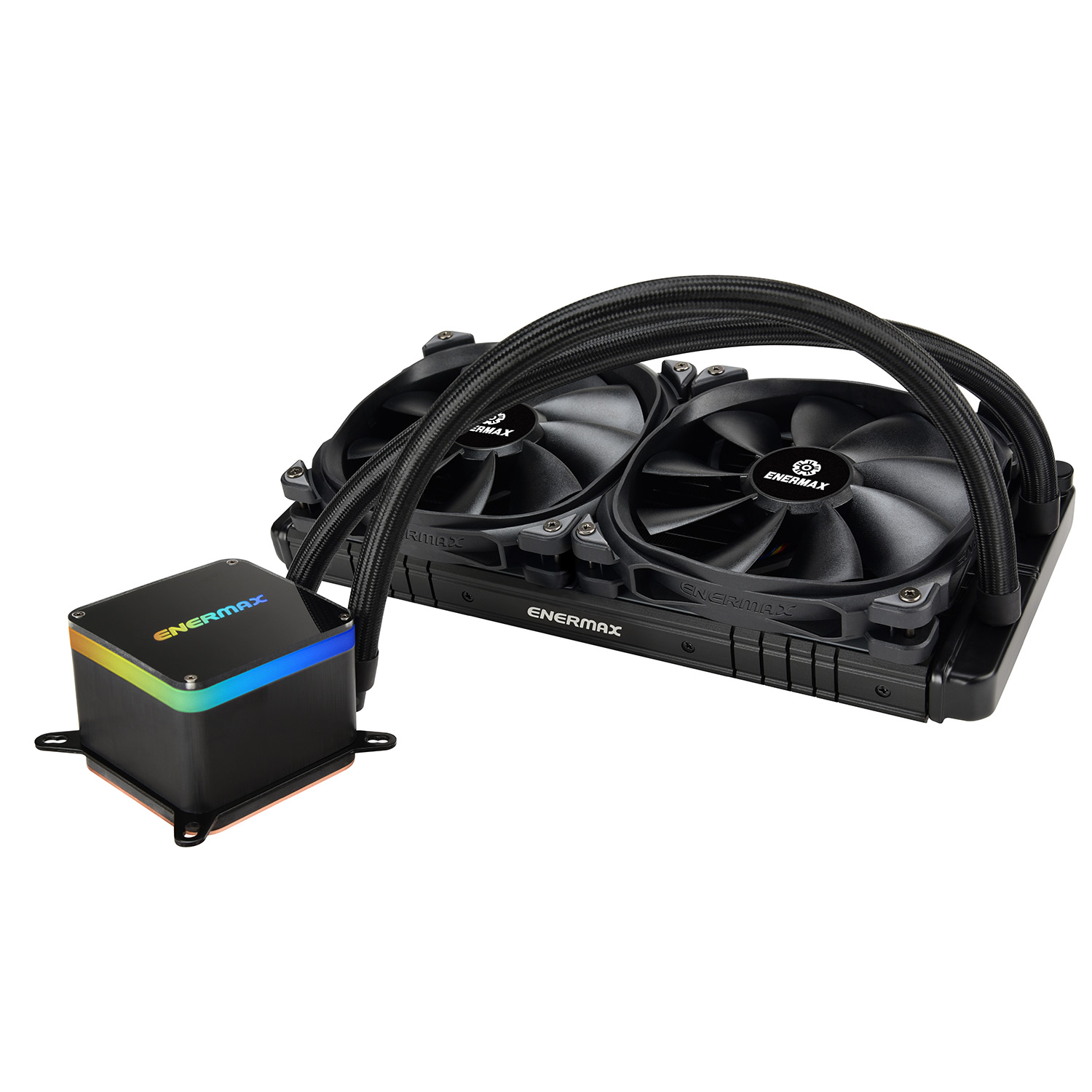

LIQTECH II Series 280mm Liquid CPU Cooler
- Universal socket compatibility
- Support 500W+ TDP
- Powerful EF1 pump design with flow rate up to 450 L/h
- Patented Dual Chamber Design structure pump
- Patented Shunt Channel Technology
- Aurabelt™ addressable RGB water block
Color
Overview

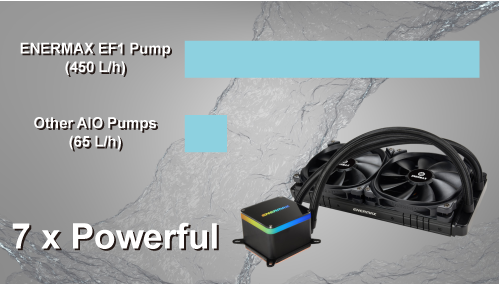

EF1 Pump Design (ceramic nano PI bearing pump)
Robust EF1 pump with precision engineering delivers extremely high flow rate up to 450 L/h for superior cooling performance
Patented Dual-Chamber Design water block
Patented Dual-Chamber Design isolate the pump from the heat to prolong the cooler’s lifetime
Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)
Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer
Aurabelt™ water block featuring addressable RGB lighting
Premium RGB water block with glossy acrylic cover and luminous Aurabelt™ for vivid lighting effects
2 ways to control RGB lighting effects
Through Motherboard Software
Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)
Through ENERMAX RGB Control Box
Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speed

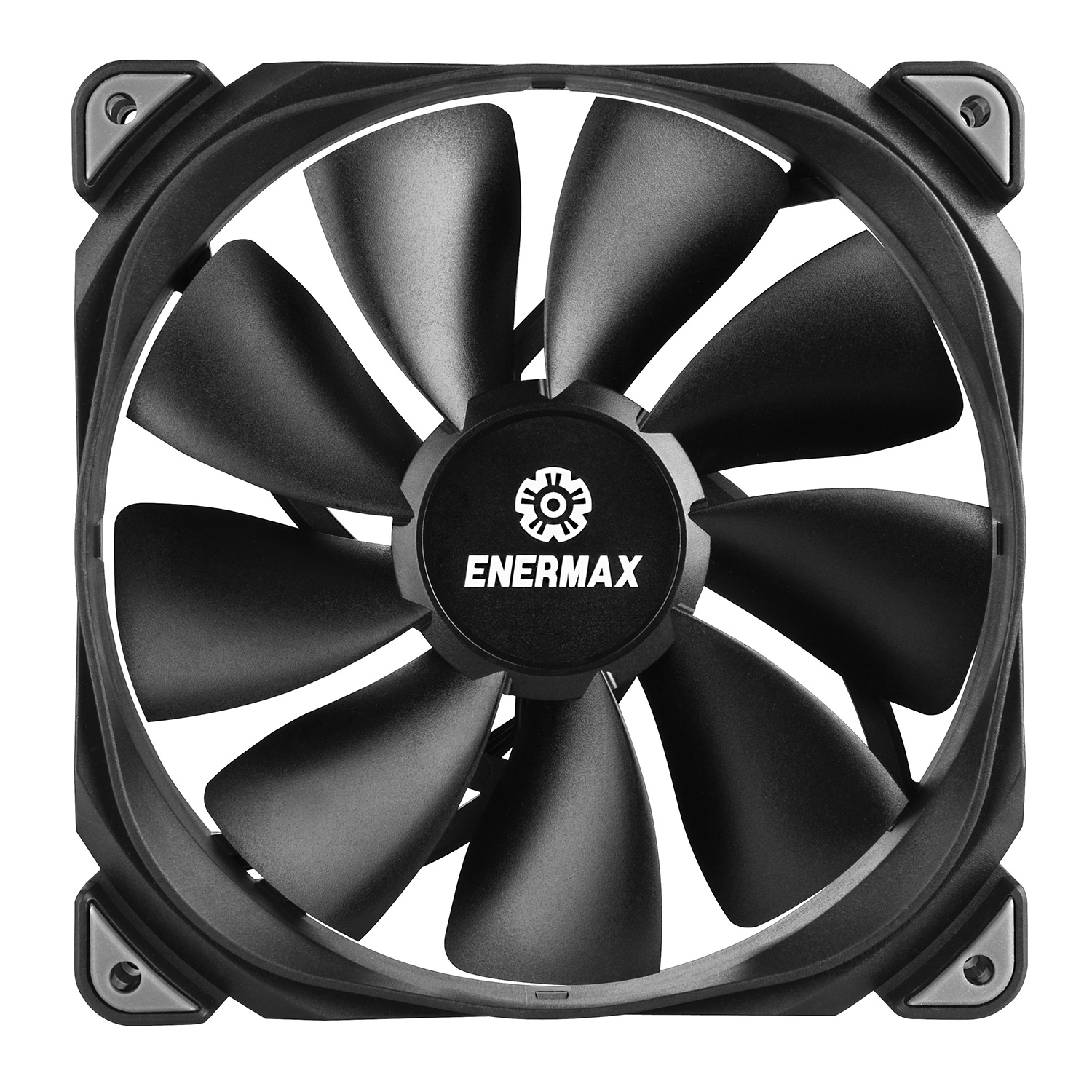

Innovative high pressure fan blades
Hi-pressure blade design enhances the cooling performance
Anti-vibration rubber pads provide noiseless stable operation
Dimension
unit:mm
Product Introduction
Installation Guide
Specifications
General Data
- Model
- ELC-LTTO280-TBP
- CPU Socket
- Intel® LGA 1700/1200/2066/2011-3/2011/1366/1156/1155/1151/1150 AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
- TDP
- 500W
- Cold Plate Material
- Copper
- Radiator Material
- Aluminum
- Radiator Dimension
- 313 x 140 x 28 mm
- Pump Bearing
- Ceramic nano PI bearing
- Pump MTBF
- 100,000 hours
- Pump Rated Voltage
- 12 V
- Fan Speed
- 500-1500 RPM
- Pump Rated Current
- 0.4 A
- Pump Rated Current - RGB LED
- 0.5 A
- Fan Dimension (Radiator)
- 140 x 140 x 25 mm
- Fan MTTF
- ≧160,000 hrs
- Fan Rated Voltage
- 12 V
- Fan Rated Current
- 0.2 A
- Fan Air Flow
- 31.86 ~ 80.71 CFM
- Fan Static Pressure
- 0.960 ~ 4.812 mm-H2O
- Fan Connector
- 4 Pin PWM
- Fan Maximum Noise
- 14 ~ 25 dBA

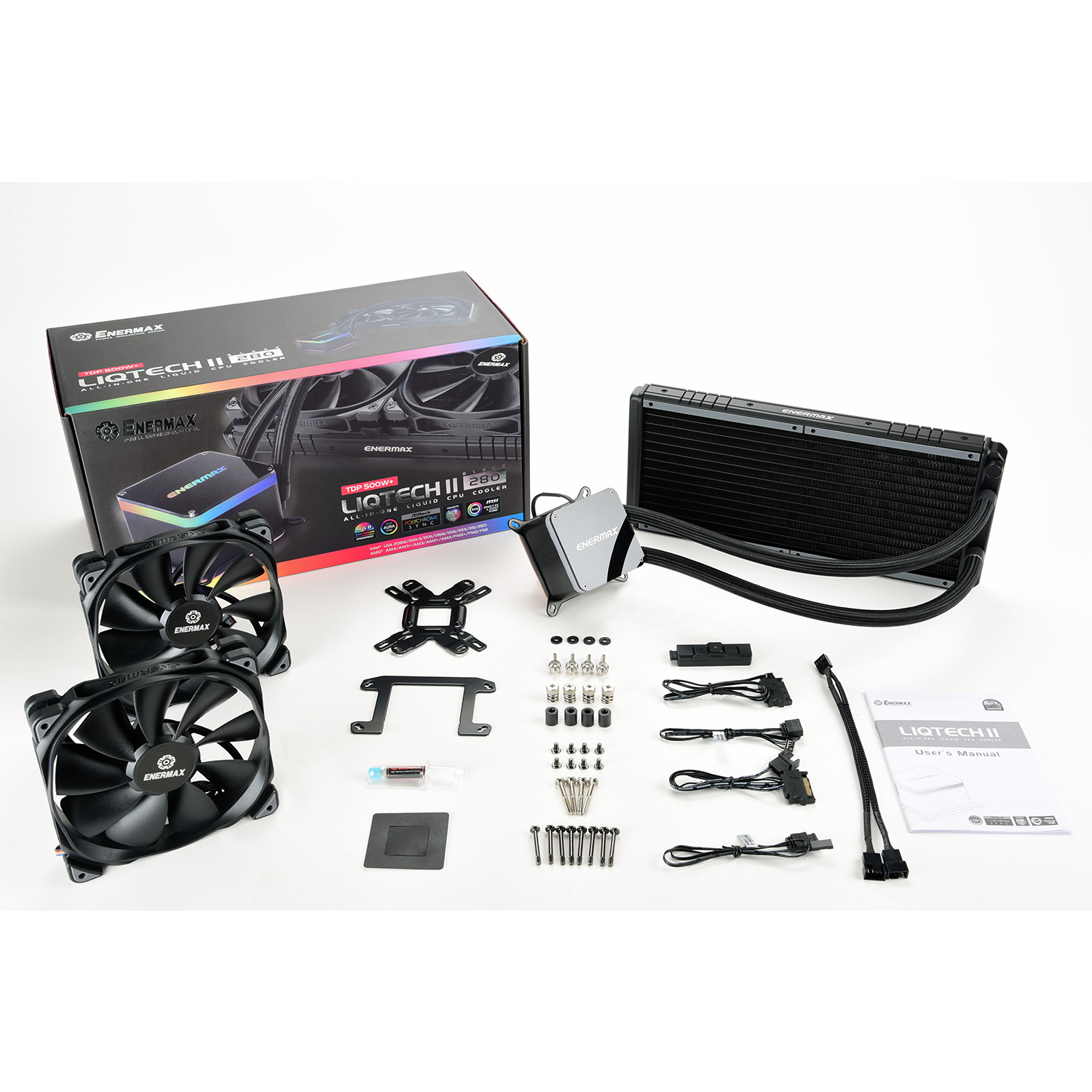

- ACCESSORY
- Thermal grease included
- Fan Screw
- M3.5
Shipping Information
- EAN
- 4713157723598
- UPC
- 819315023594
- Box Dimension
- 364 x 183 x 171mm
- Gross Weight / unit
- 2.5 kg
- Carton Dimension
- 570 x 385 x 380mm
- Q'ty / carton
- 6
- Gross Weight / Carton
- 16.5 kg
