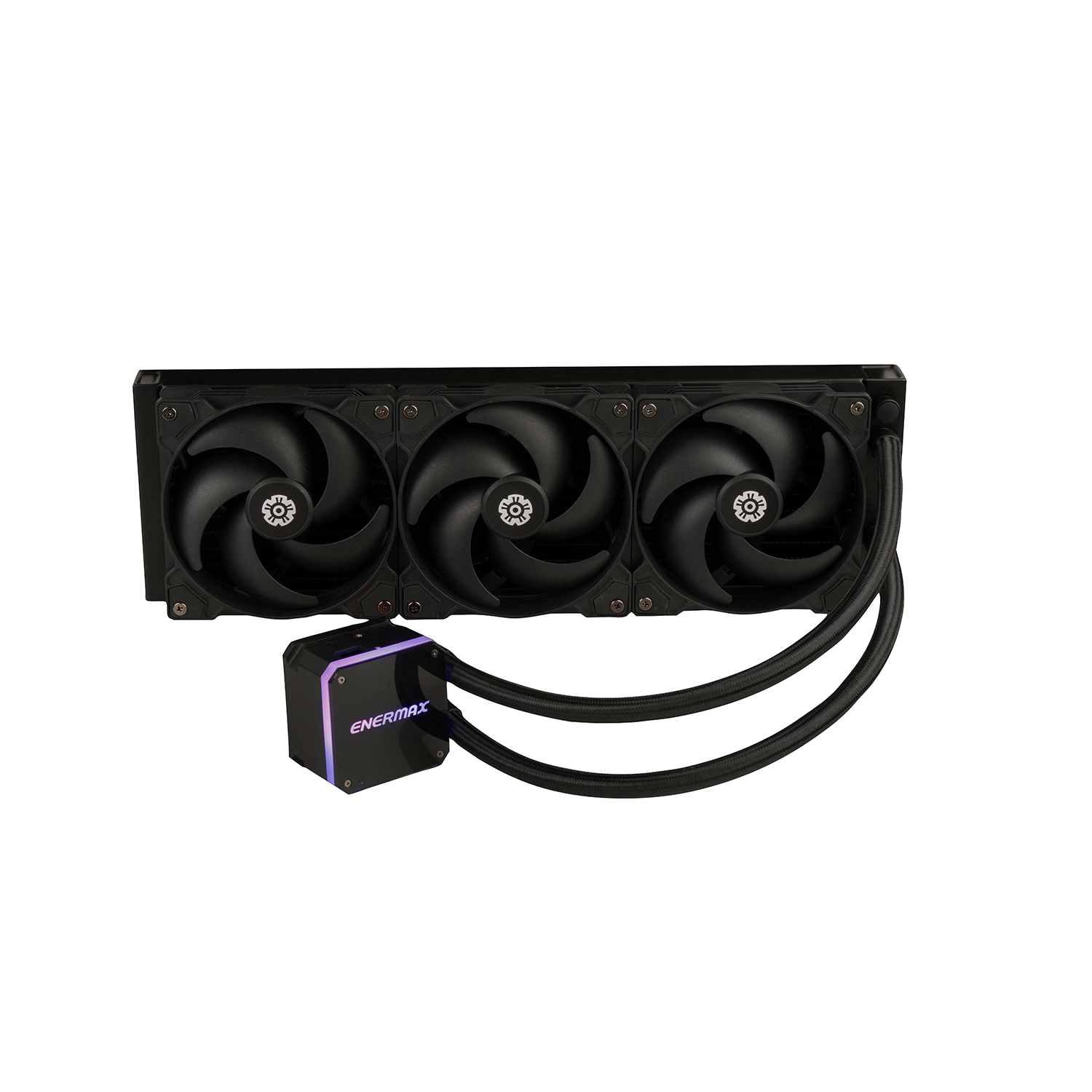

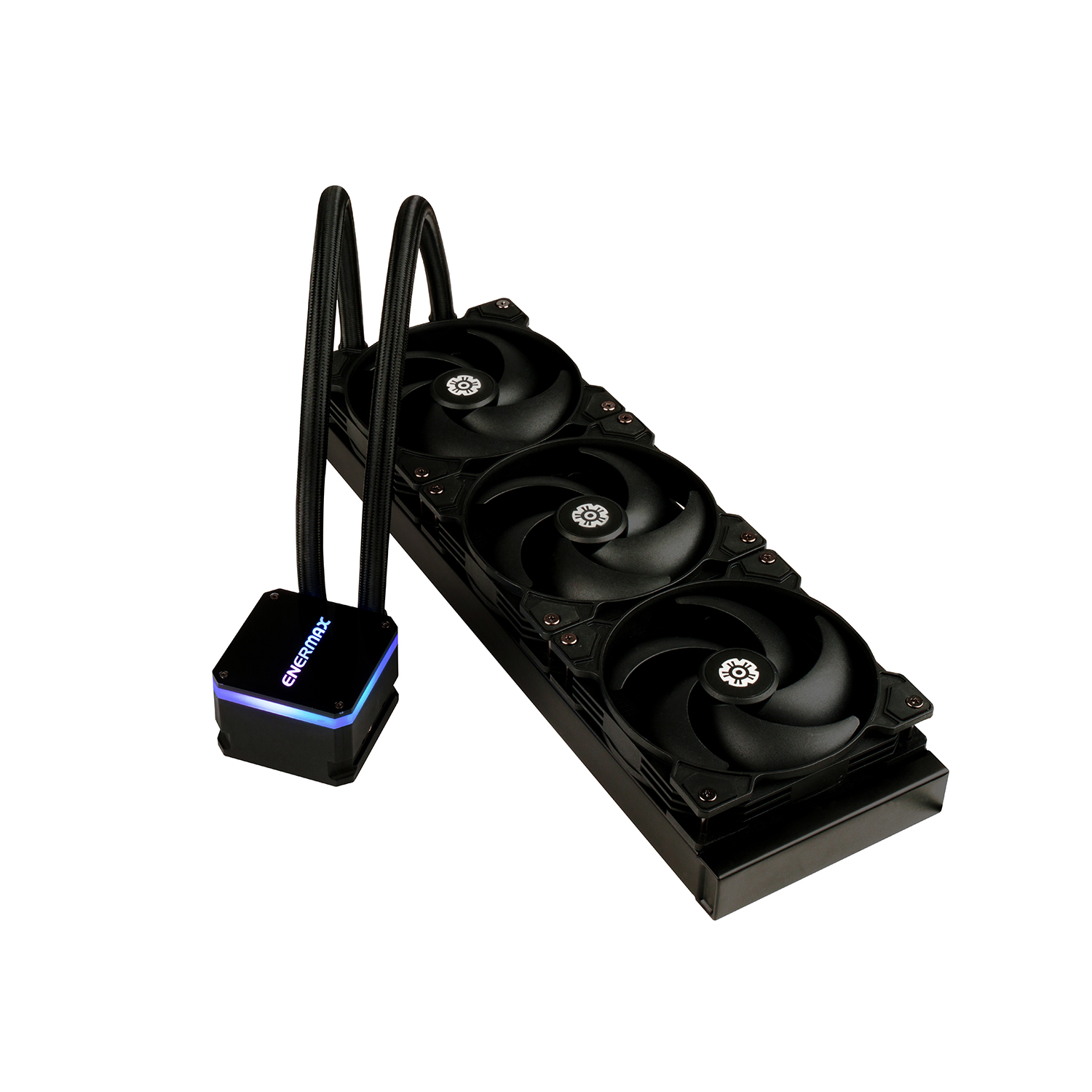

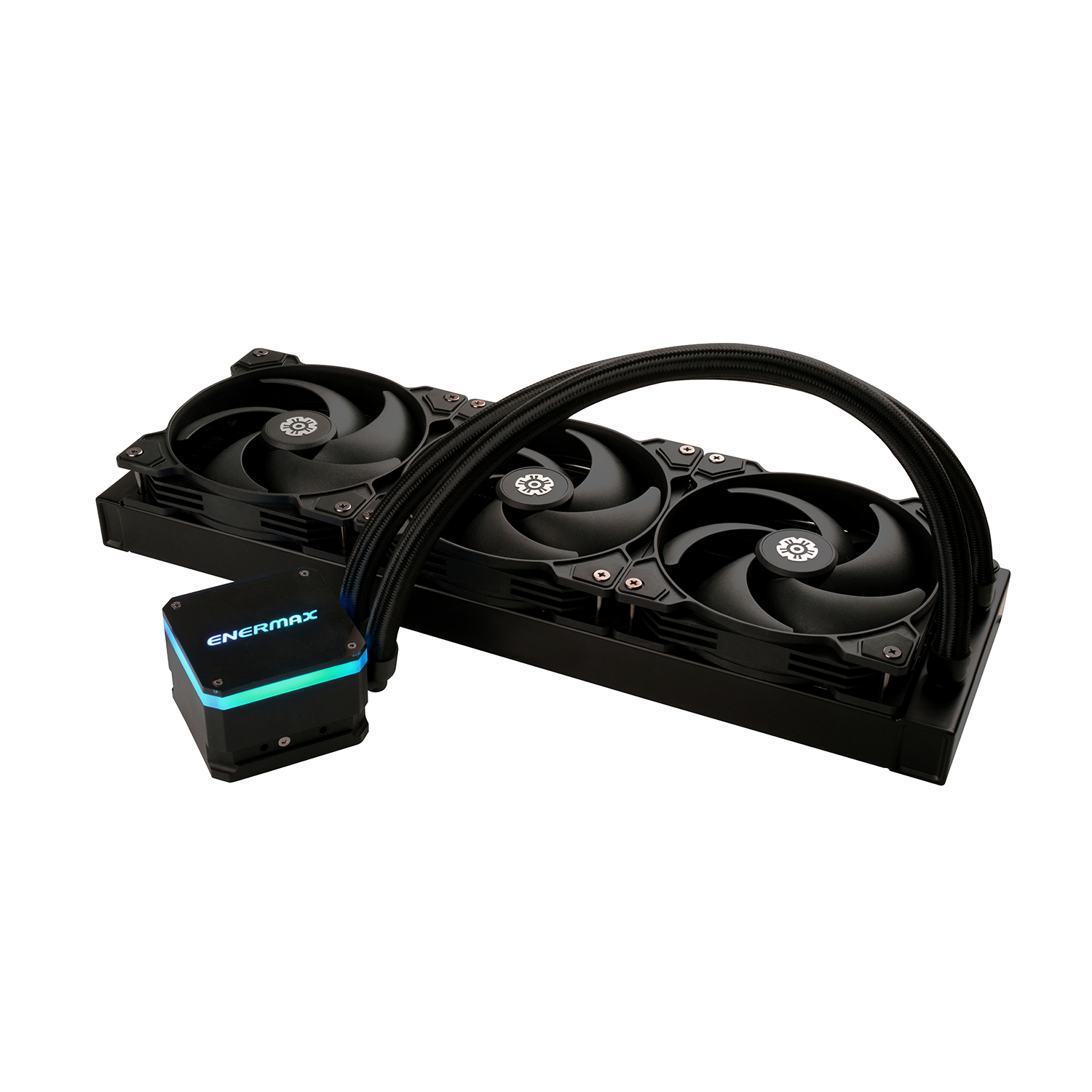

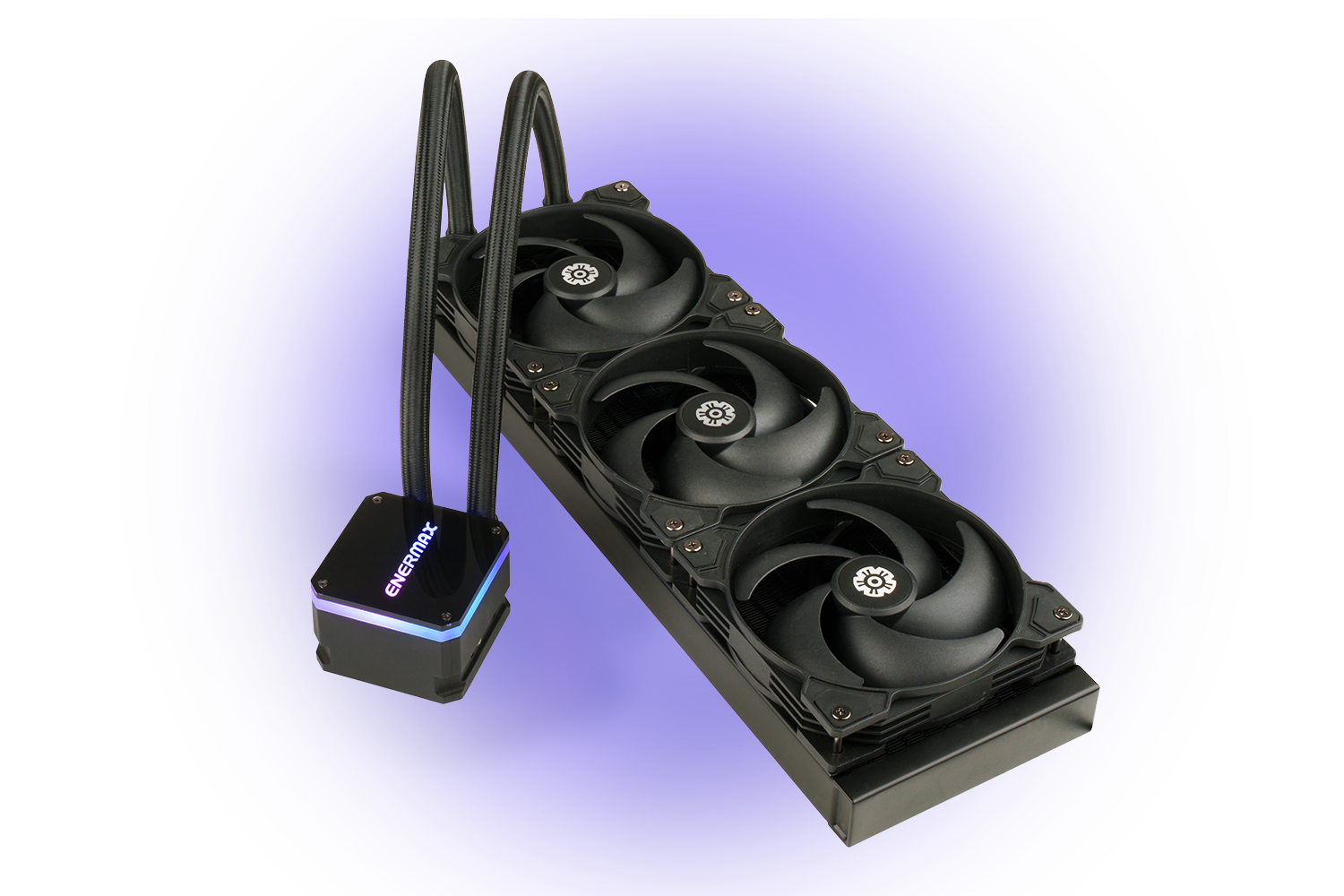

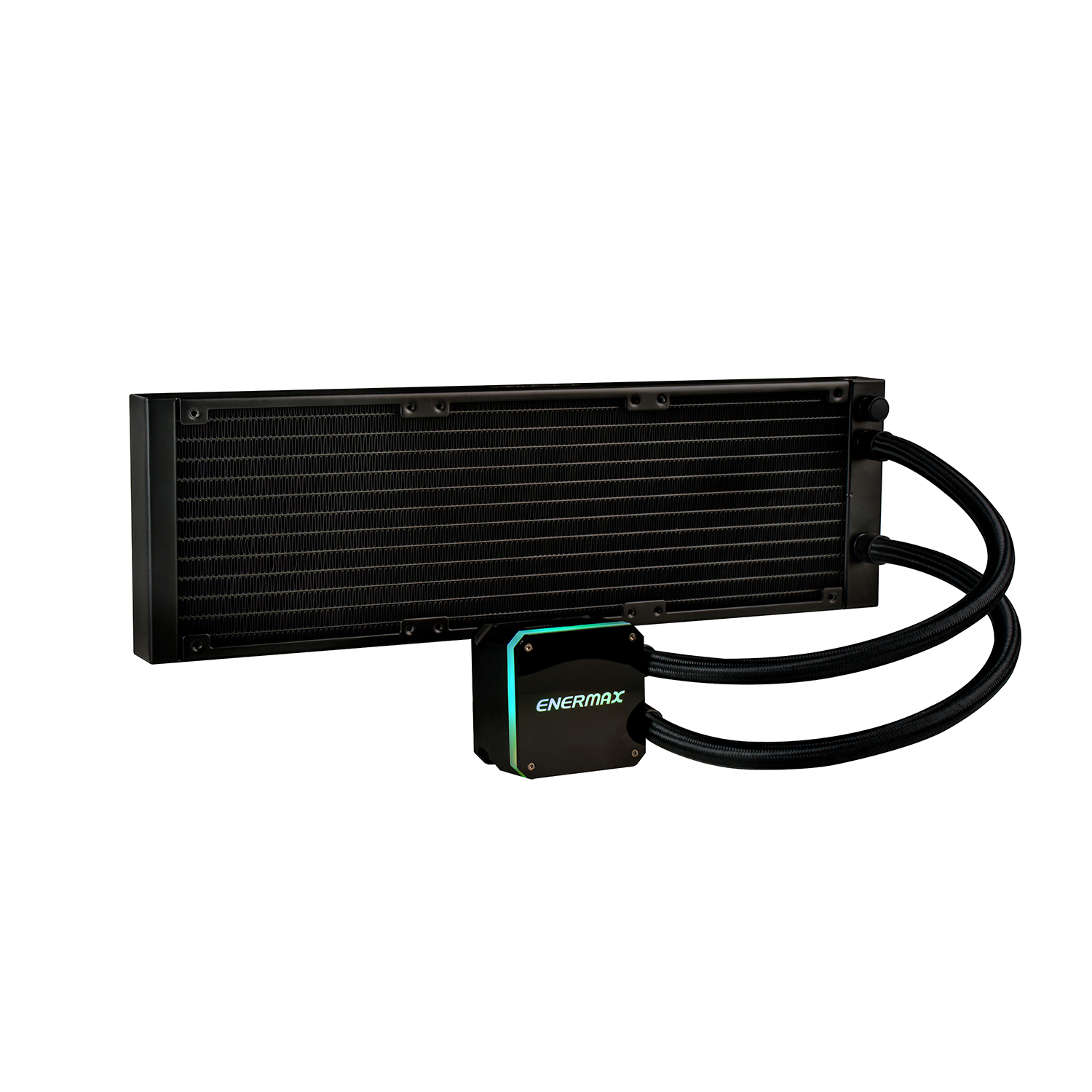

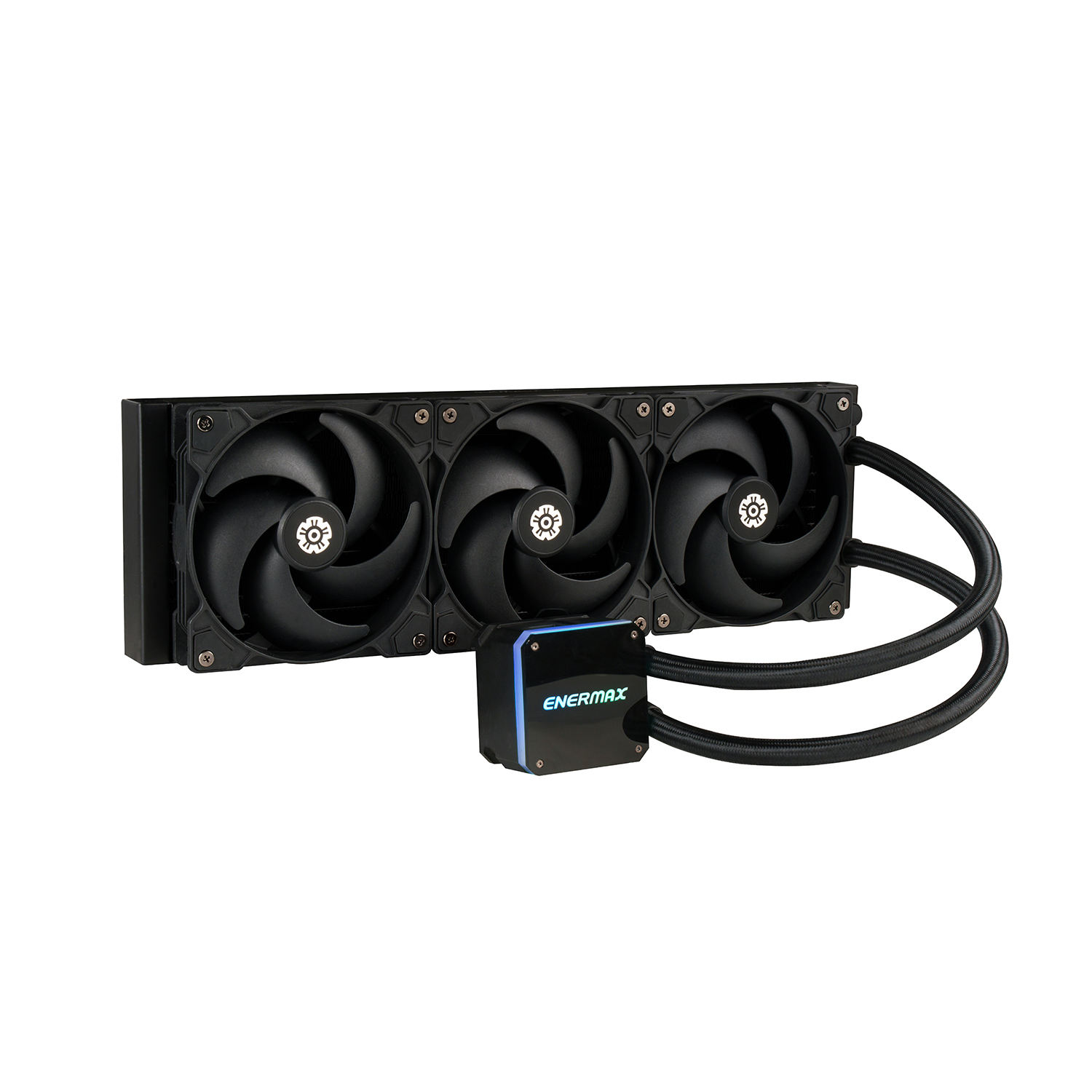

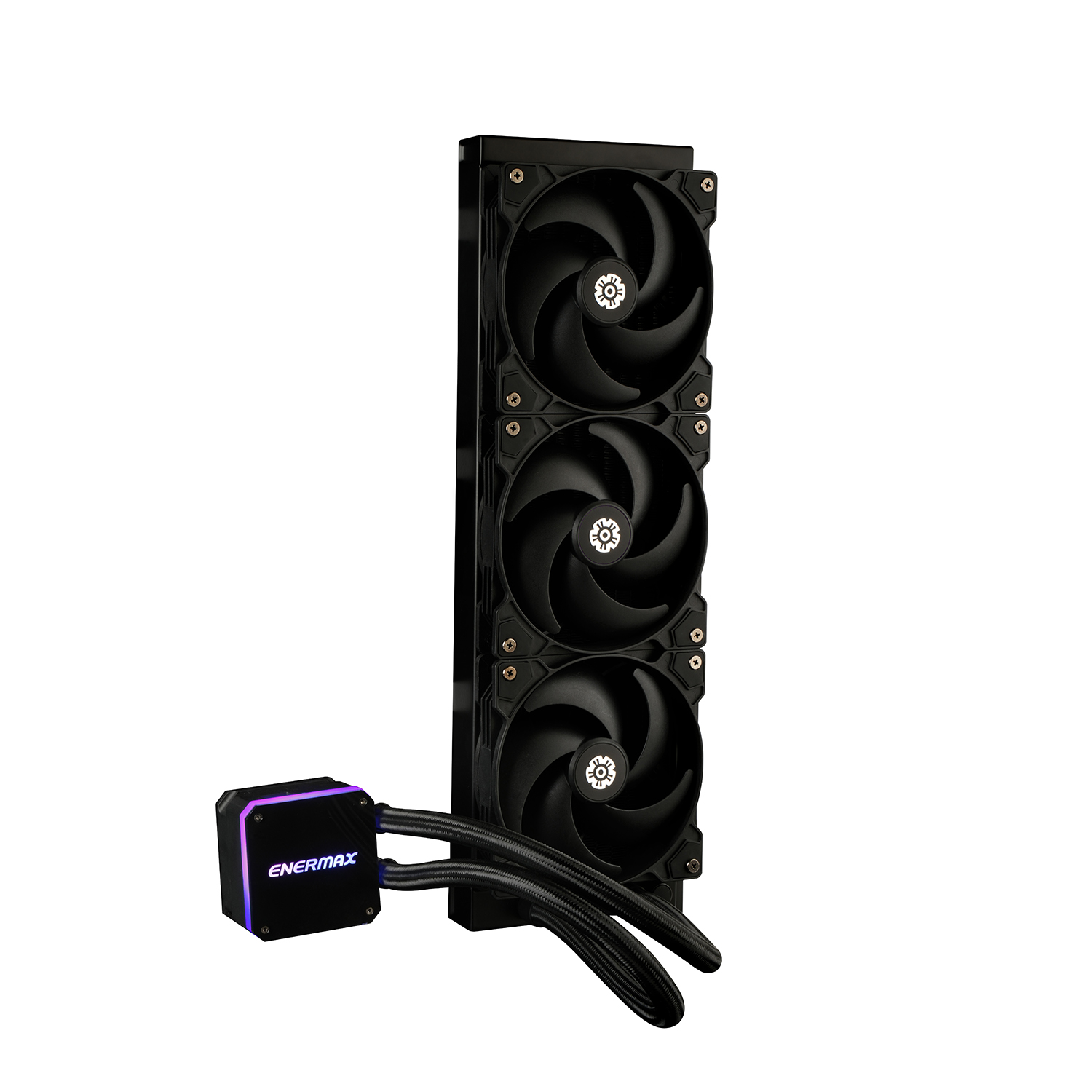

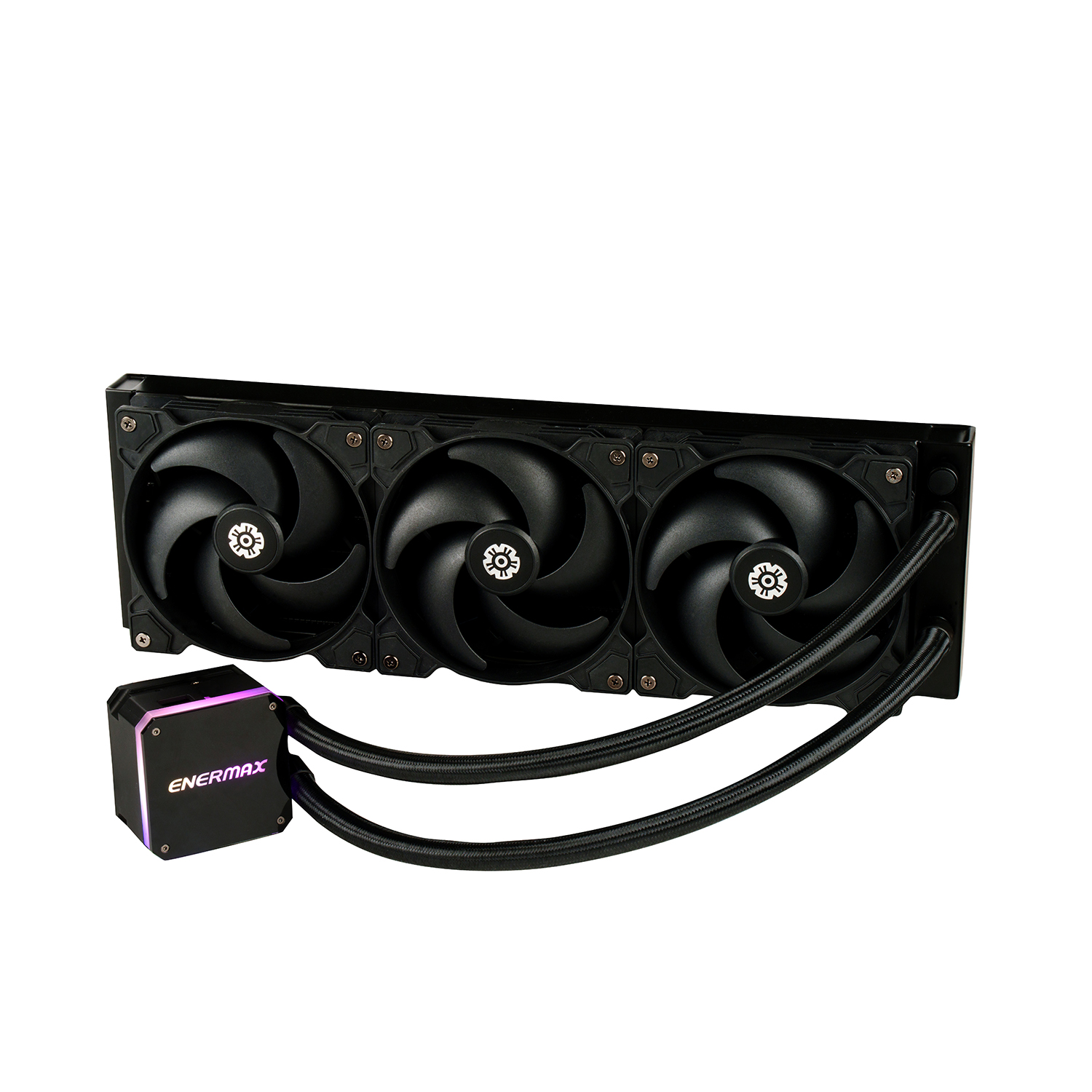

LIQMAX III SF 360mm Liquid CPU Cooler
- Equipped with ENERMAX Silent Flow Fan
- Patented Dual Chamber water block design
- Patented Shunt Channel Technology
- Pre-applied Thermal Grease for better user friendly
- The luminous addressable Aurabelt™ water block
Color
Overview
PATENTED DUAL-CHAMBER PUMP DESIGN
Patented Dual-chamber mechanism isolates the pump from the heat, significantly increases the cooler’s lifespan without compromising efficiency
PATENTED CCI + SCT TECHNOLOGY
- Central Coolant Inlet (C.C.I.) technology injects the coolant at the hottest spot to prevent heat surges
- Shunt-Channel Technology (S.C.T.) design shortens the coolant flow path, resulting in faster heat transfer
PATENTED CCI + SCT TECHNOLOGY
- Central Coolant Inlet (C.C.I.) technology injects the coolant at the hottest spot to prevent heat surges
- Shunt-Channel Technology (S.C.T.) design shortens the coolant flow path, resulting in faster heat transfer
MOTHERBOARD SYNCHRONIZATION
Coordinate your visual effects through supported RGB software and motherboard synchronization to access control for customized lighting effects
INTEGRATED WITH STRONG AND SILENCE PERFORMANCE – SILENT FLOW FAN
The LIQMAX III SF 360 comes with ENERMAX’s latest innovative silence fan,
the Silent Flow fan. It incorporates ENERMAX's unique high-pressure fan blade design, effectively amplifying airflow and air pressure without any additional noise.
With a maximum noise level of just 23.46dB(A), it remains nearly inaudible even at high speed.
EXCEPTIONAL FAN BLADE
With thicker fan blade in 3mm (compared to standard 1.8 to 2.2mm fans), the Silent Flow fan accomplish quieter operation through minimized vibration, a significant leap forward in silent performance
ANGLE OF ATTACK
The leading edge of the Silent Flow fan is characterized by a carefully calibrated “Angle of Attack” of 34.73°, a design parameter unique to its 5-blade configuration. This expertly crafted angle forms a perfect equilibrium between enhanced cooling performance and minimized noise levels.
ANGLE OF ATTACK
The leading edge of the Silent Flow fan is characterized by a carefully calibrated “Angle of Attack” of 34.73°, a design parameter unique to its 5-blade configuration. This expertly crafted angle forms a perfect equilibrium between enhanced cooling performance and minimized noise levels.

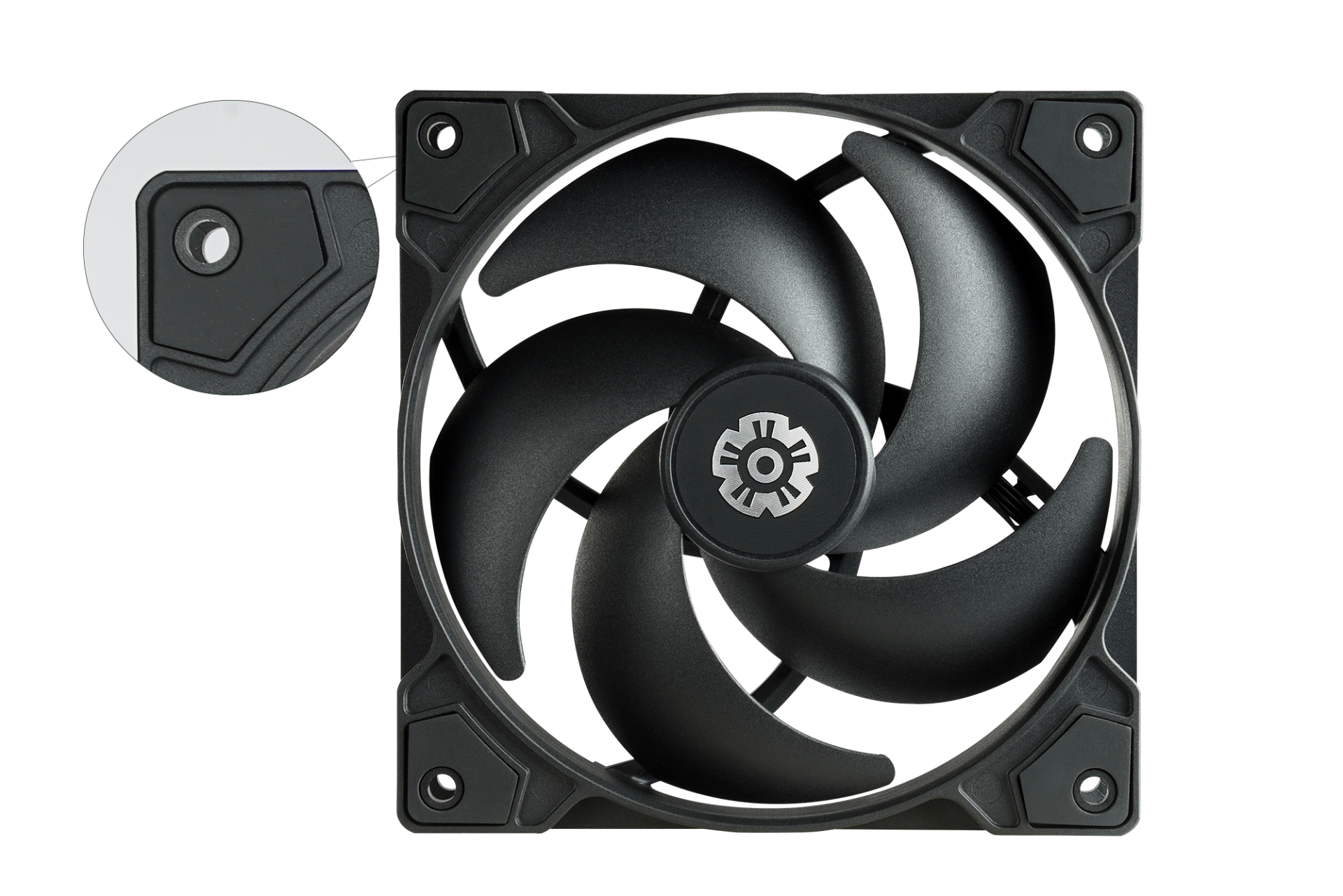

ANTI-VIBRATION RUBBER PADS
Anti-vibration rubber pads as auxiliary for Silent Flow Fan to achieve an absolute quiet environment during operation.
PRE-APPLIED THERMAL GREASE
The LIQMAX III SF 360 provides pre-applied Dow Corning® thermal grease for a hassle-free installation process.
PRE-APPLIED THERMAL GREASE
The LIQMAX III SF 360 provides pre-applied Dow Corning® thermal grease for a hassle-free installation process.
PREMIUM WEAVED TUBING
Premium 400mm weaved tubing is perfect for mainstream system builds.
Dimension
unit:mm
Specifications
General Data
- Model
- ELC-LMT360-SF
- CPU Socket
- Intel® LGA 1851/1700/1200/115x/2066/2011/2011-3(Square ILM)/1366 AMD® AM5/AM4
- Cold Plate Material
- Copper
- Radiator Material
- Aluminum
- Radiator Dimension
- 395 x 120 x 27 mm
- Pump Bearing
- Ceramic Bearing
- Pump MTBF
- ≧ 50,000 hrs
- Pump Rated Voltage
- 12 V
- Fan Speed
- 500~1800 RPM ± 10%
- Pump Rated Current
- 0.4 A
- Pump Rated Current - RGB LED
- 0.18 A
- Fan Dimension (Radiator)
- 120 x 120 x 26.8 mm
- Fan MTTF
- ≧ 100,000 hrs
- Fan Rated Voltage
- 12 V
- Fan Rated Current
- 0.08 A
- Fan Air Flow
- 58.03 CFM
- Fan Static Pressure
- 2.4 mmH2O
- Fan Connector
- 4 Pin PWM Connector
- Fan Maximum Noise
- 23.46 dBA
- Pump Speed
- 3100 RPM ± 10%
Shipping Information
- EAN
- 4713157727213
- UPC
- 819315027219
- Box Dimension
- 448 x 205 x 137 mm
- Gross Weight / unit
- 2.192 kg
- Carton Dimension
- 467x 292x 440 mm
- Q'ty / carton
- 4 PCS
- Gross Weight / Carton
- 9.788 kg
