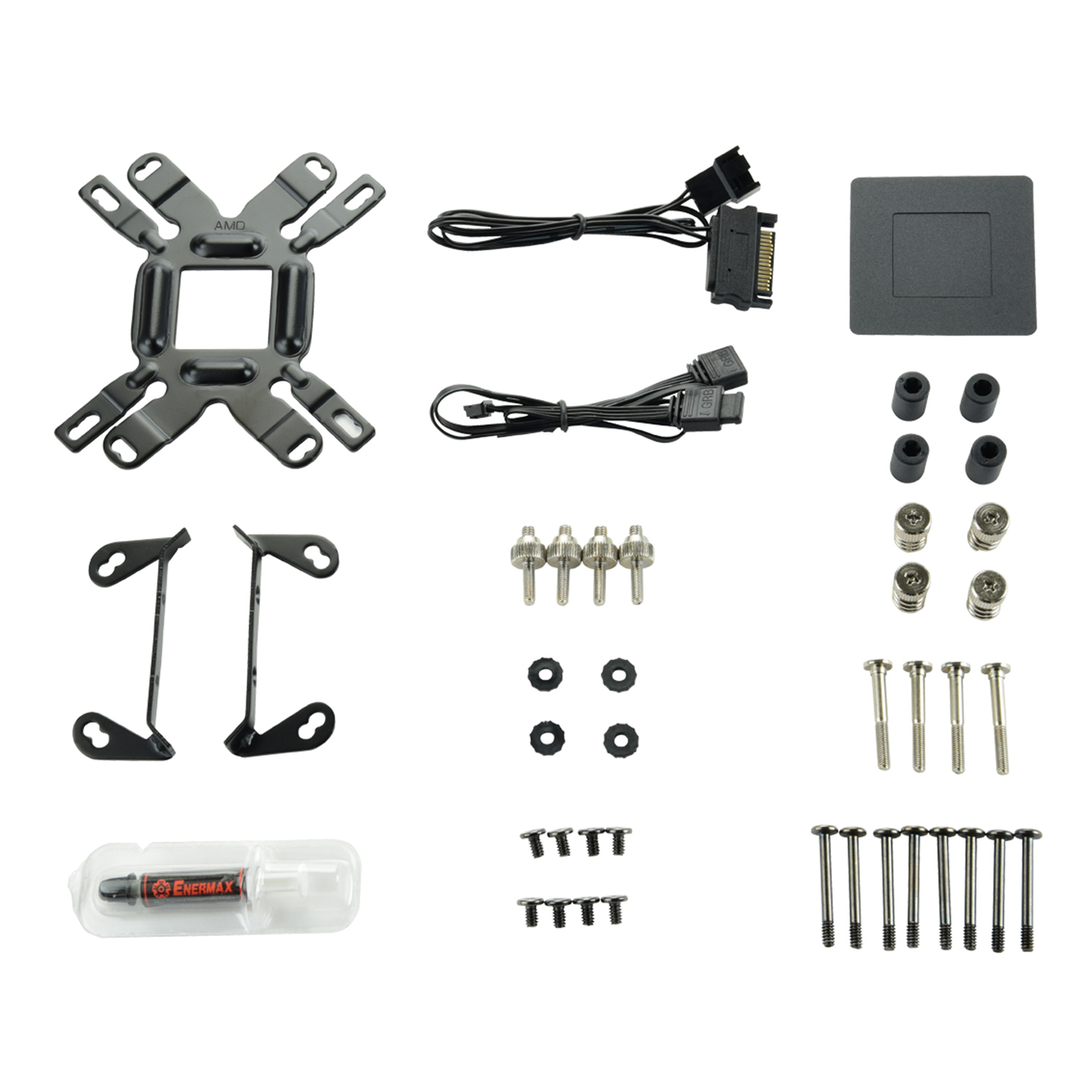

LIQMAX III ARGB series 240mm CPU liquid cooler-white-5

LIQMAX III ARGB Series 240mm Liquid CPU Cooler, White

Patented Dual Chamber water block design
Patented Shunt Channel Technology
The luminous addressable RGB fan and Aurabelt™ water block
display gorgeous lighting effects with 16.8 million colors
Exclusive dual-convex blade can create high-volume air
flow (72.1 CFM)

Overview

Patented Dual-Chamber Design water block

Patented Dual-Chamber Design isolates the pump from the heat to prolong the cooler’s lifetime

Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)

Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer

The luminous addressable RGB fan and Aurabelt™ water block display gorgeous lighting effects with 16.8 million colors

Addressable RGB lighting synchronization

LIQMAX III ARGB is designed to synchronize with motherboards featuring an addressable RGB header (3 pin assignment is 5V/D/G). User can program preferred lighting effects via motherboard software

Exclusive dual-convex blades

Exclusive dual-convex blade creates down force air pressure (max. 1.98mmH2O) and high-volume air flow (max. 72.1CFM)

Anti-vibration rubber pads minimize noise during operation

Premium 400mm weaved tubing is perfect for mainstream system builds

Universal Intel^® and AMD^® CPU cooler with quick-and-easy mounting system (Excluding TR4/ SP3 socket)

Dimension

Product Introduction

Installation Guide

Specifications

General Data

Model: ELC-LMT240-W-ARGB
CPU Socket: Intel® LGA 1851/1700/1200/115x/2066/2011/2011-3/1366 AMD® AM5/AM4/AM3+/FM2+/FM1
TDP: 330 W
Cold Plate Material: Copper Base
Radiator Material: Aluminum
Radiator Dimension: 274 x 120 x 27 mm
Pump Bearing: Ceramic Bearing
Pump MTBF: ≧ 50,000 hrs
Pump Rated Voltage: 12 V
Fan Speed: 500~1600 RPM ±10%
Pump Rated Current: 0.4 A [ or 0.53 A if not connected to 3 pin ARGB connector (5V/D/G) ]
Pump Rated Current - RGB LED: 0.18 A
Fan Dimension (Radiator): 120 x 120 x 25 mm
Fan MTTF: ≧ 50,000 hrs
Fan Rated Voltage: 12 V
Fan Rated Current: 0.17 A
Fan Rated Current RGB LED: 0.36 A
Fan Air Flow: 22.5~72.1 CFM
Fan Static Pressure: 0.2~1.98 mm-H2O
Fan Connector: 4 Pin PWM + 3 Pin ARGB (5V/D/G)
Fan Maximum Noise: 14~27 dBA
ACCESSORY: Thermal grease included
Fan Screw: 6#32
