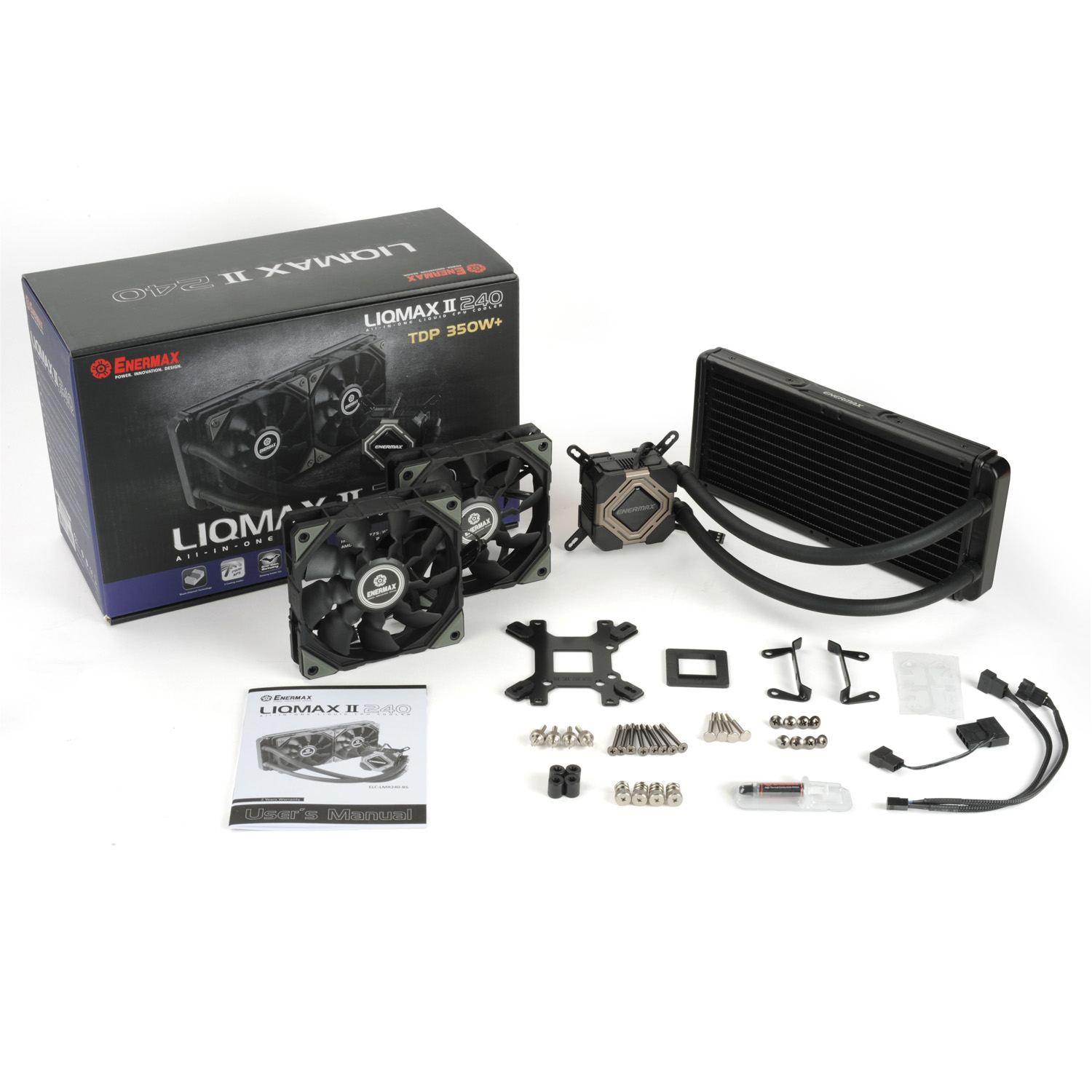

LIQMAX II Series 240mm Liquid CPU Cooler
Color
Overview
Features
- Patented Shunt-Channel-Technology (SCT) boosts thermal conductivity and eliminates any heat surge.
- Advanced impellers increase pump pressure and flow momentum performance to provide smooth coolant circulation.
- Ceramic bearing pump provides exceptional durability and noiseless operation.
- The 2nd generation Batwing blades fan creates continuous burst air flow to penetrate the radiator and dissipate the heat efficiently.
- Double length radiator enhances heat exchange efficiency and cooling performance.
- Patented smart APS (Adjustable peak speed) control provides 3 peak rpm options.
- Anti-vibration rubber pads provide noiseless stable operation.
- Durable and flexible rubber tubes ensure zero permeability.
- Easy-installation bracket with pressure adjustment spring screws ensures perfect contact force with CPU.
Innovative Batwing blades
Luminous LED logo for power on indication
Patented Shunt-Channel-Technology (SCT)
With SCT design , the cold plate can eliminate the "Boundary Layer" to increase coolant flow momentum and accelerate heat transfer performance.
Patented APS PWM control
Users can choose the most suitable mode depending on the system application without pushing fan speed up to the limit. Just gently slide the small switch at the fan frame, and an easy adjustment can be made to suit different cooling performance requirements.
Dimension
unit:mm
Product Introduction
Specifications
General Data
- Model
- ELC-LMR240-BS
- CPU Socket
- Intel® LGA 1200/2011-3/2066/1366/1156/1155/1151/1150/775 AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
- TDP
- 350W
- Cold Plate Material
- Copper cold plate
- Radiator Material
- Aluminum
- Radiator Dimension
- 274 x 120 x 27 mm
- Pump Bearing
- Ceramic Bearing
- Pump MTBF
- 50,000 hours
- Pump Rated Voltage
- 12V
- Fan Speed
- 500-1200/1600/2000 rpm ±10%
- Pump Rated Current
- 0.3A
- Fan Dimension (Radiator)
- 120 x 120 x 25 mm
- Fan Rated Voltage
- 12V
- Fan Rated Current
- 0.09/0.19/0.38 A
- Fan Air Flow
- 27.7~58.3/75.5/96.0 CFM
- Fan Static Pressure
- 0.4~1.3/2.4/3.0 mm-H2O
- Fan Connector
- 4 pin PWM
- Fan Maximum Noise
- 16~23/30/35 dBA
- Fan Screw
- M3.5
Shipping Information
- EAN
- 4713157721761
- UPC
- 816163008087
- Box Dimension
- 321 x 213 x 146 mm
- Carton Dimension
- 650 x 335 x 325 mm
- Q'ty / carton
- 6 pcs
