EVEREST ADVANCE

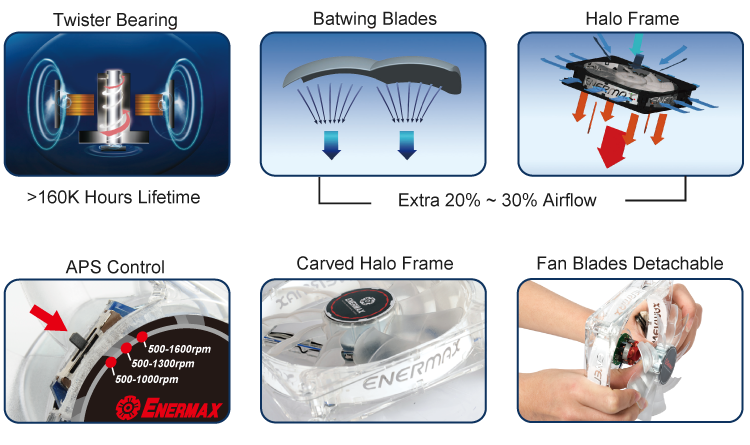

- Patented Twister Bearing for longer life span and lower noise operation
- Batwing blades and carved Halo frame provide extra 20%~30% airflow
- 3 peak speed APS (Adjustable Peak Speed) control to keep system stay cool and silent
- Detachable fan blades for easy cleaning
Color
Overview
Features
- Built-in thermal sensor for auto-adjusted fan speed control
- Smart APS (Adjustable peak speed) control providing 3 peak rpm options
- Twister Bearing technology for long lifetime and low noise
- Batwing Blade design and Carved Halo Frame for extra 20%~30% airflow
- Detachable fan blades for easy cleaning
- Isolator-mounts for shockproof and easy installation
- Blue lightning LED on/off
Specifications
General Data
- Model
- UCEVA12T
- Fans/Model
- 1
- Dimension (mm)
- 120 x 120 x 25
- Speed (RPM)
- 500 ~ 1000 rpm 500 ~ 1300 rpm 500 ~ 1600 rpm
- Air Flow (CFM)
- 500 ~ 1000 rpm：26.51~46.10 CFM 500 ~ 1300 rpm：26.51~60.11 CFM 500 ~ 1600 rpm：26.51~76.00 CFM
- Air Flow (m³/h)
- 500 ~ 1000 rpm：45.04~78.32 m3/h 500 ~ 1300 rpm：45.04~102.13 m3/h 500 ~ 1600 rpm：45.04~129.12 m3/h
- Static Pressure (mm-H2O)
- 500 ~ 1000 rpm：0.483~0.933 mm-H2O 500 ~ 1300 rpm：0.483~1.268 mm-H2O 500 ~ 1600 rpm：0.483~1.907 mm-H2O
- Fan Maximum Noise (dBA)
- 8 dBA
- Rated Voltage Fan (V)
- 12V
- Rated Current Fan (A)
- 500 ~ 1000 rpm：0.15 A 500 ~ 1300 rpm：0.20 A 500 ~ 1600 rpm：0.30 A
- MTTF (hours)
- 160,000
- Connector
- 1 x 3 pin connector ; 1 x 4 pin fan power adaptor
