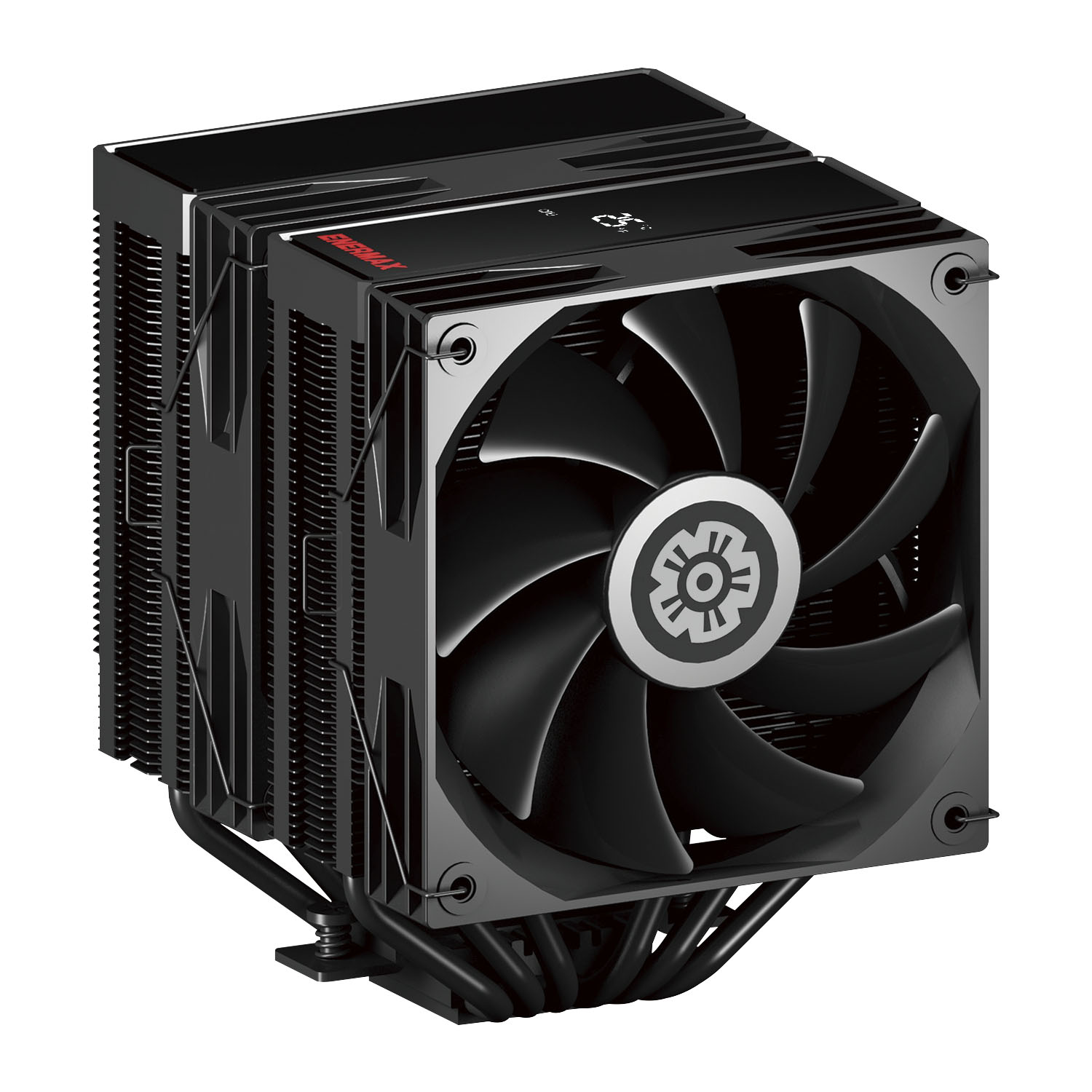

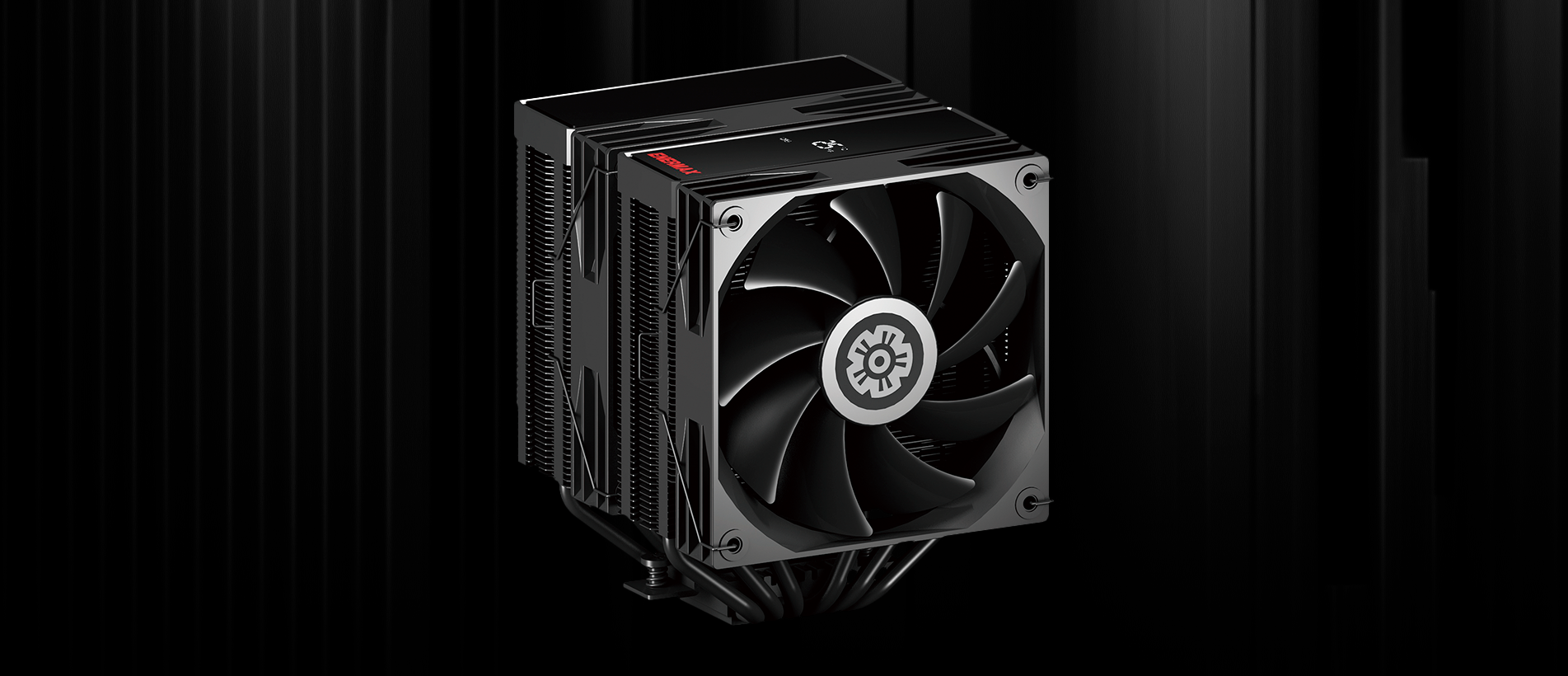

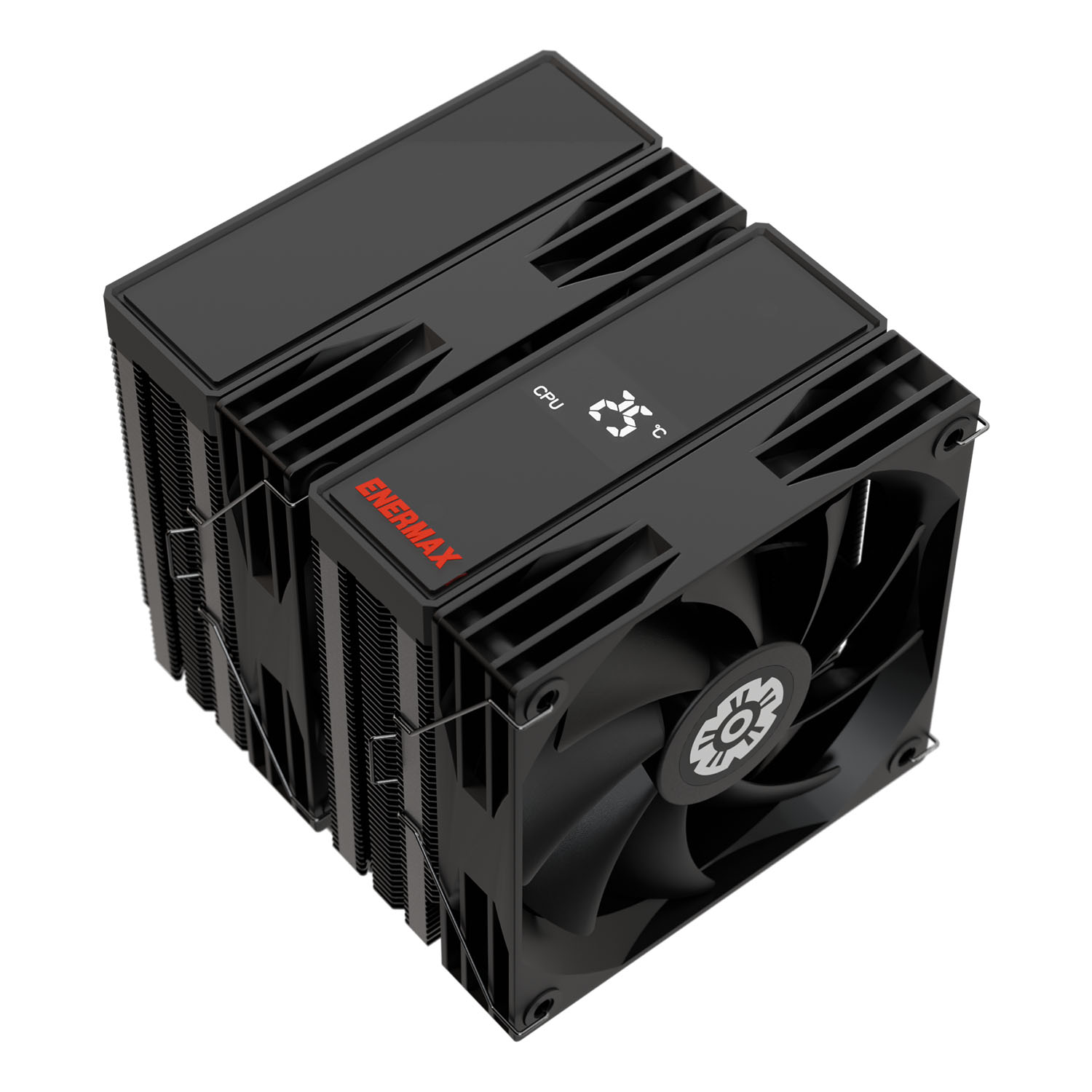

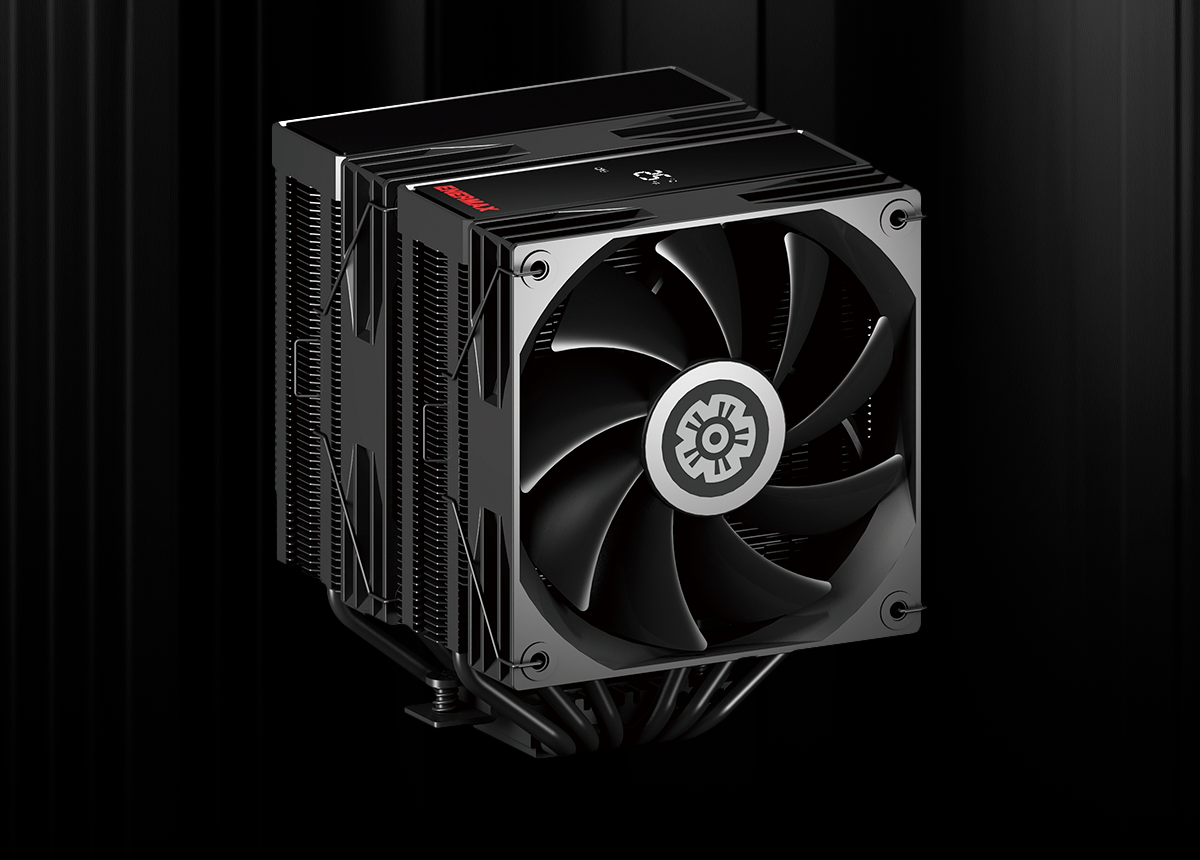

ETS-TD60 Digital CPU Air Cooler
- Superior Cooling Capacity (280W TDP)
- Dual-Tower Heatsink Design
- 2 x 120mm FDB Fans Included
- PWM Controlled Fan for Optimizes Airflow and Silent Operation
- Sleek Low-Profile Status Display
Color
OVERVIEW
Cooling Capacity
280W TDP
280W TDP

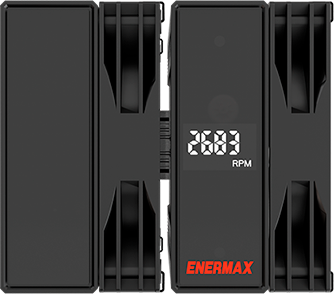

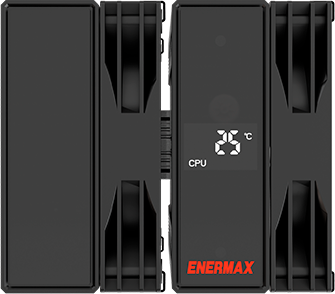

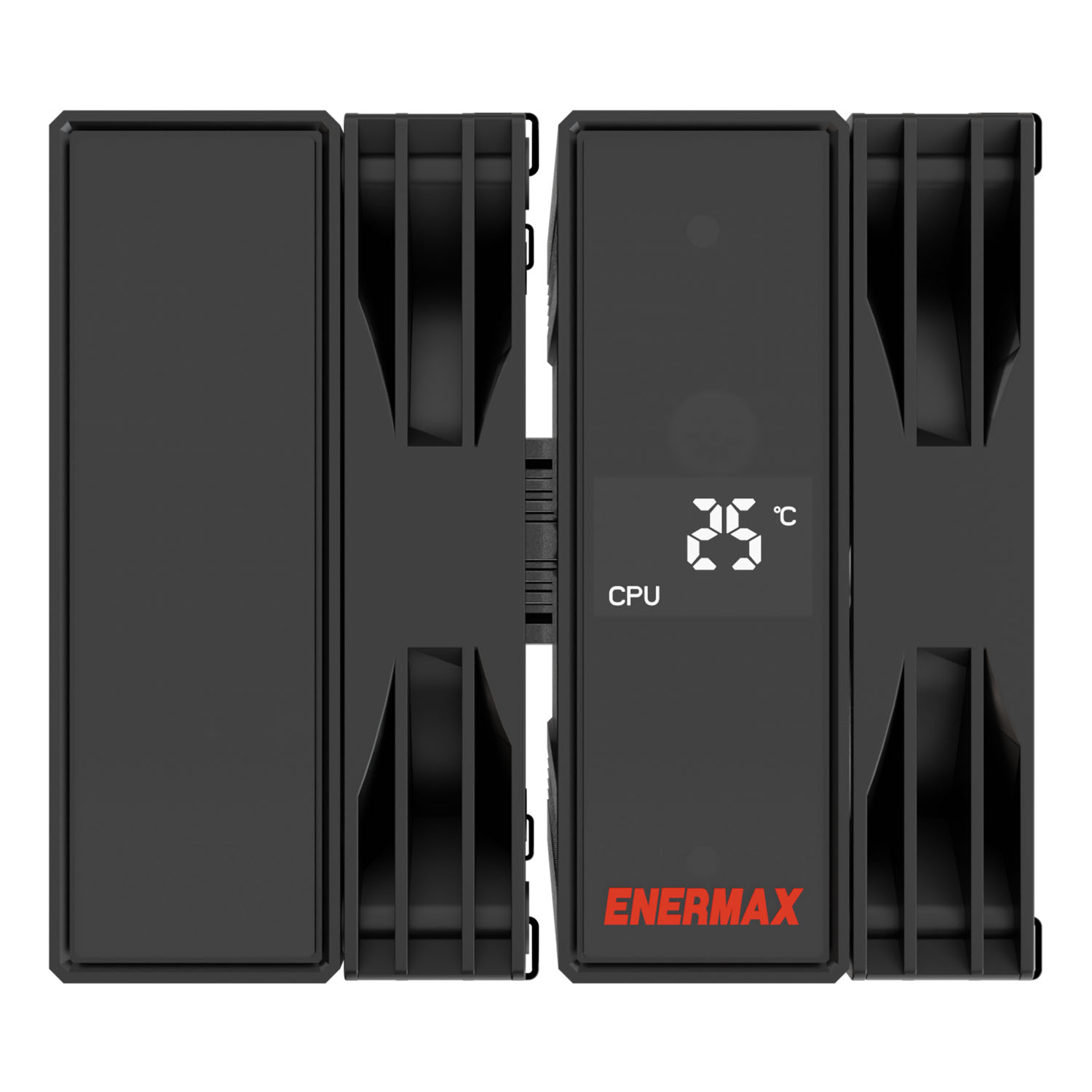

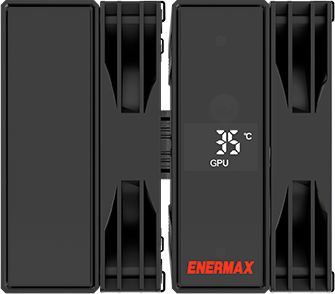

Low-Profile
Status Display
Status Display
Universal
CPU Support
CPU Support

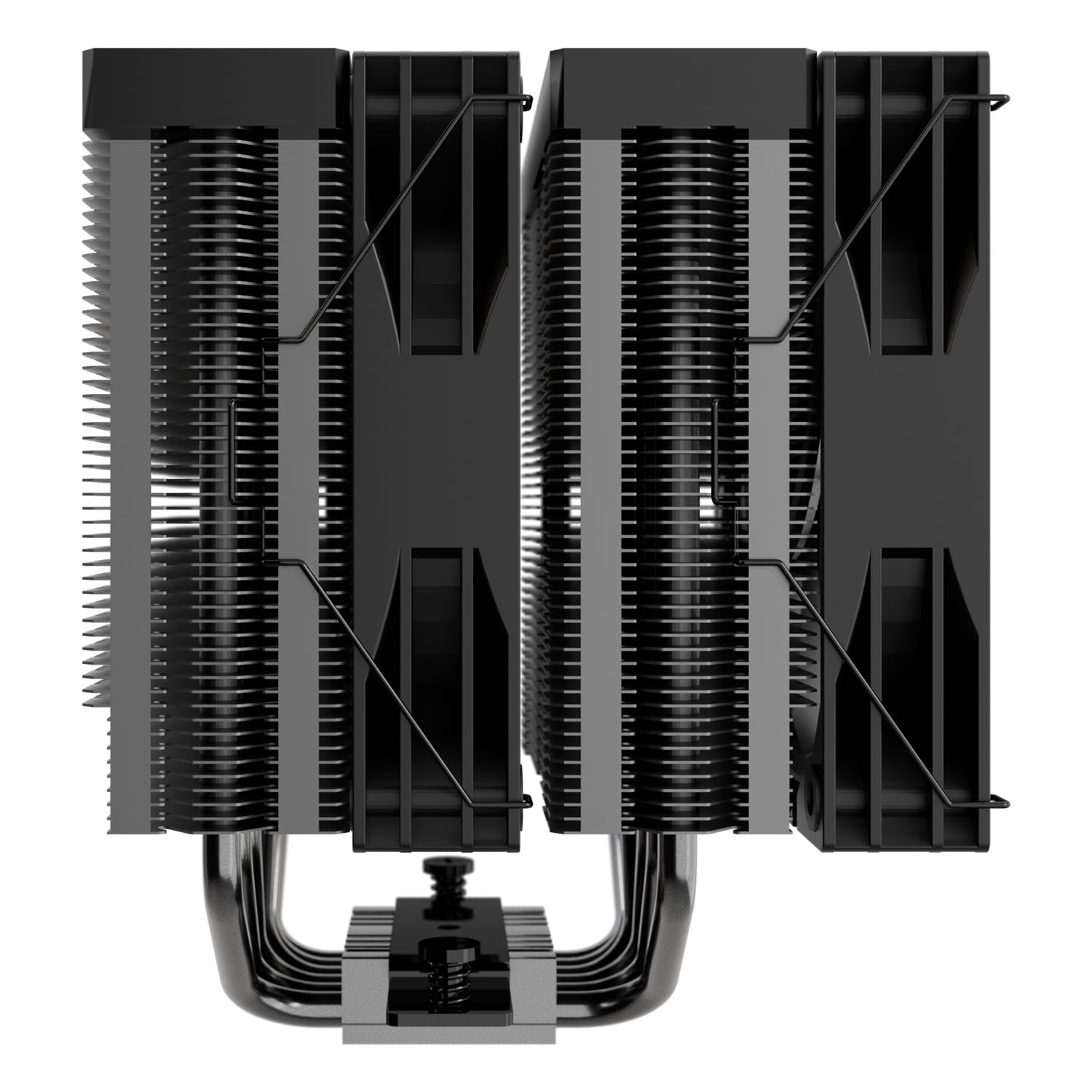

Dual-Tower
Heatsink Design
Heatsink Design

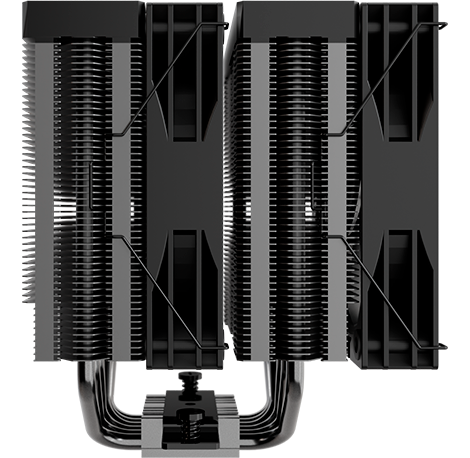

SUPERIOR COOLING CAPACITY, 280W TDP
ETS-TD60 Digital CPU air cooler is characterized by the dual-tower, dual-fan design with 6 x Ø6 mm heat pipes; it allows the two 120mm fans to push air cooling performance even.

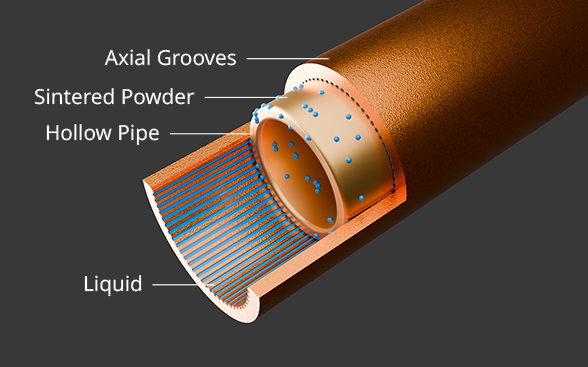

COMPOSITE HEAT-PIPES DESIGN
ETS-TD60 Digital CPU air cooler can efficiently manage the heat transfer and lower the CPU's temperature by 1°C compared to the same wattage consumption.

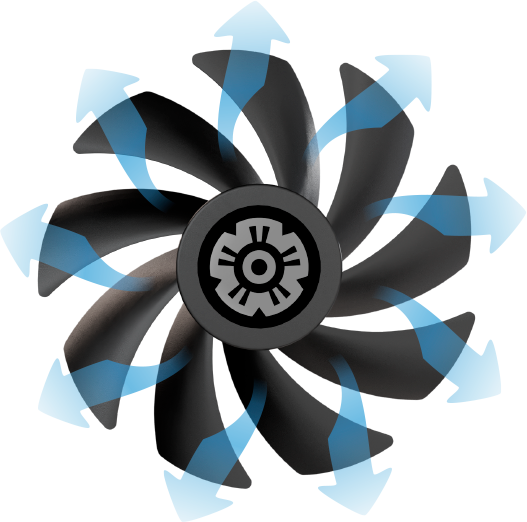

PWM CONTROLLED FDB FAN
The 120mm F.D.B. (Fluid Dynamic Bearing) fan delivers a quiet operation while maintaining the cooling performance.
DIMENSIONS
Unit: mm
Specifications
General Data
- Model
- ETS-TD60D
- CPU Socket
- Intel® LGA1851/1700/115x/1200 AMD® AM5/AM4
- Overall Dimension
- 120 X 134 x 159 mm
- Weight
- 1015g (W/ fan)
- TDP (W)
- 280W
- Heat Pipe
- 6 x Ø6 mm
- Material
- Copper Cold Plate / Aluminum Fins
- Thermal Grease
- Dow Corning® TC-5888
- Fan Dimension
- 120 x 120 x 25 mm
- Fan Speed
- 600~1600 RPM ±10%
- Fan Air Flow (CFM)
- 29.46~69.63 CFM
- Air Flow (m3/h)
- 50.05~118.30 m³/h
- Fan Static Pressure (mm-H2O)
- 0.36~1.39 mmH2O
- Connector
- 4 Pin PWM
- Fan Noise (dBA)
- 25 dBA (Max)
- Fan Rated Voltage (V)
- 12V
- Fan Rated Current (A)
- 0.19A
- MTTF (FAN)
- ≧ 80,000 hrs
- ACCESSORY
- Thermal grease included
Shipping Information
- EAN
- 4713157729361
- UPC
- 819315029367
- Box Dimension
- 170 x 156 x 213 mm
- Gross Weight / unit
- 1.37 kg
- Carton Dimension
- 487 x 352 x 467 mm
- Q'ty / carton
- 12 pcs
- Gross Weight / Carton
- 17 kg
