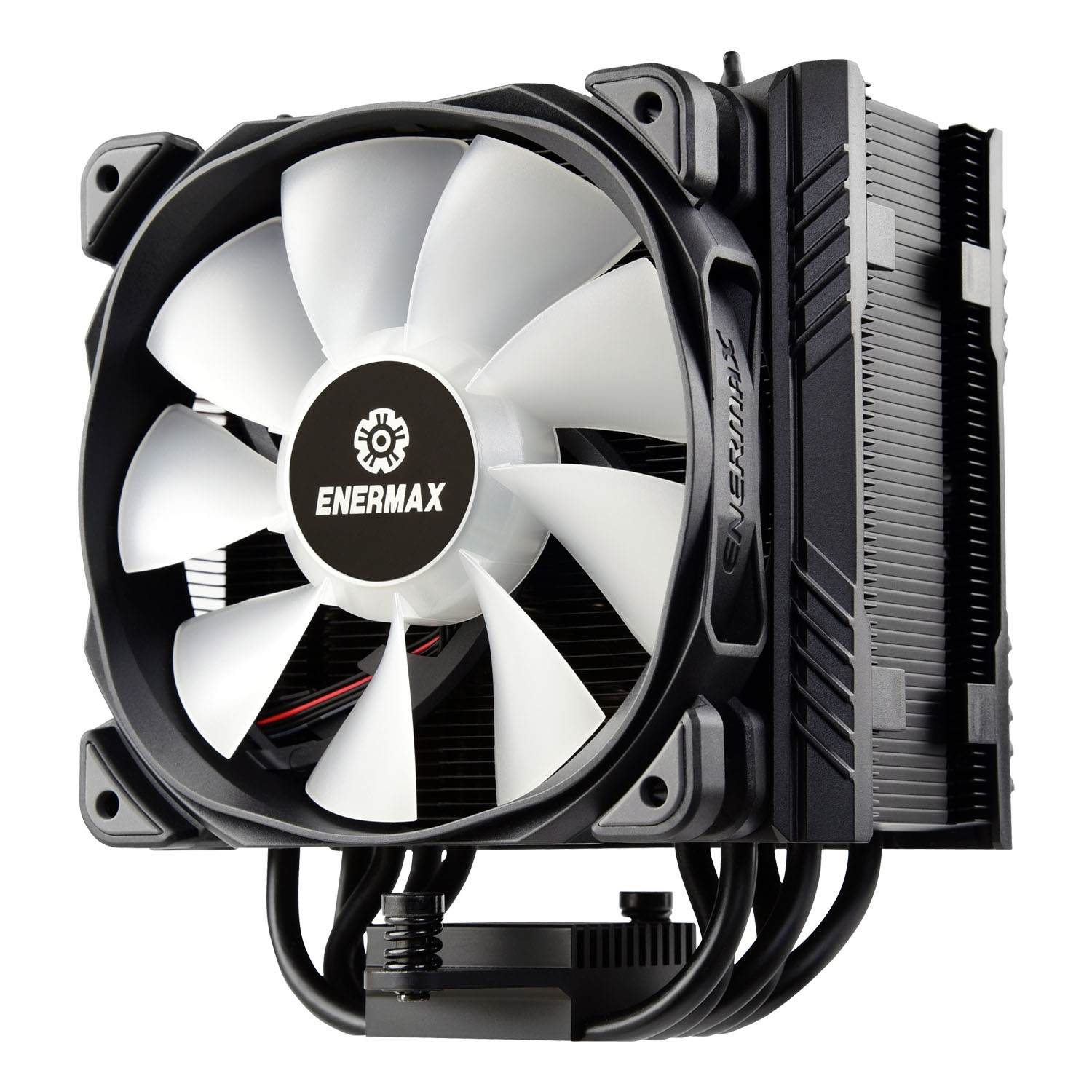

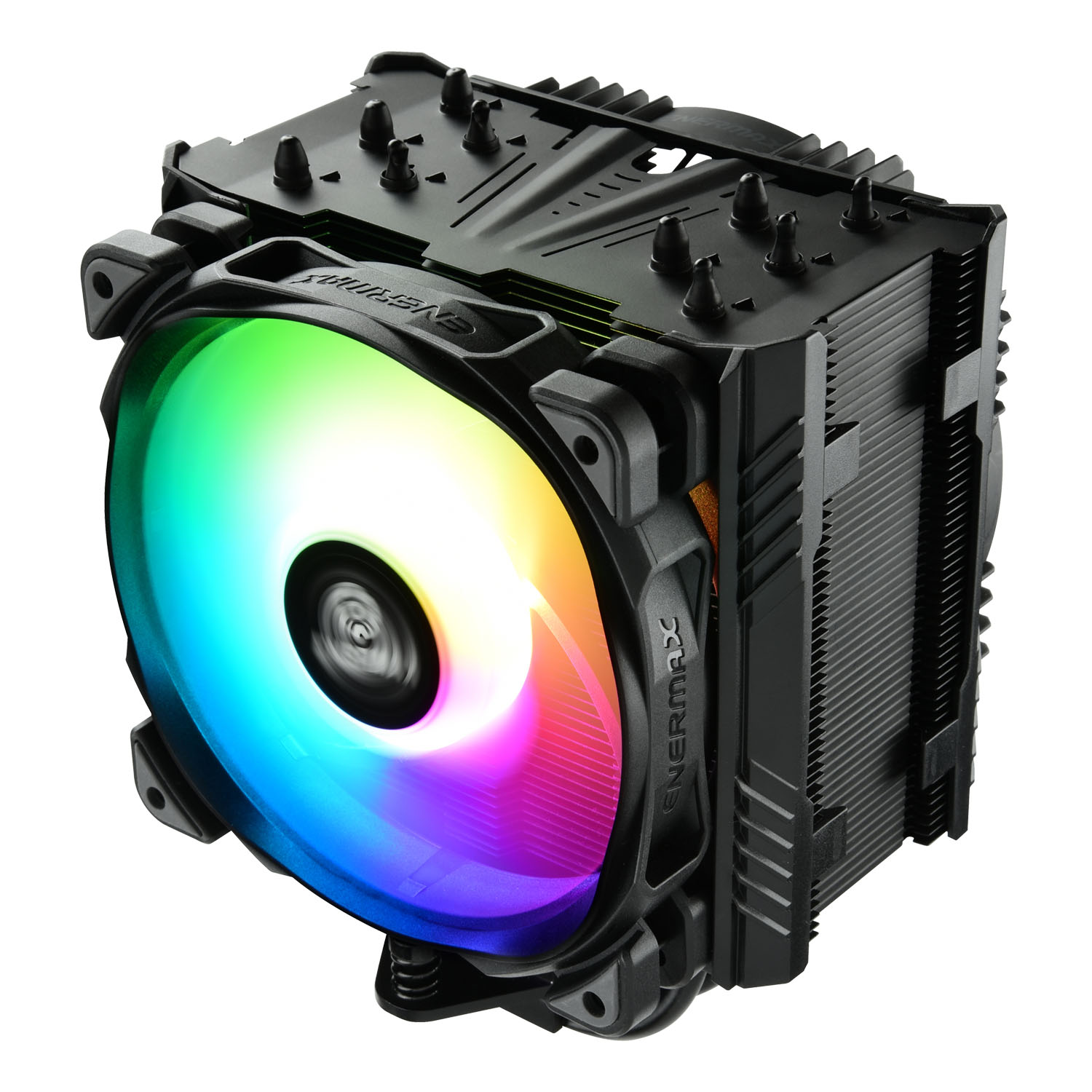

ETS-T50 AXE Series High Performance ARGB 120mm Air CPU Cooler
- Support up to 230W+ TDP
- High pressure blade design (max. 3.07 mm-H2O)
- Patented Rotatable Air Guide
- Support addressable RGB motherboard sync
- Plug & Play to display the rainbow RGB lighting effect,
- no software or adaptor needed
Color
Overview

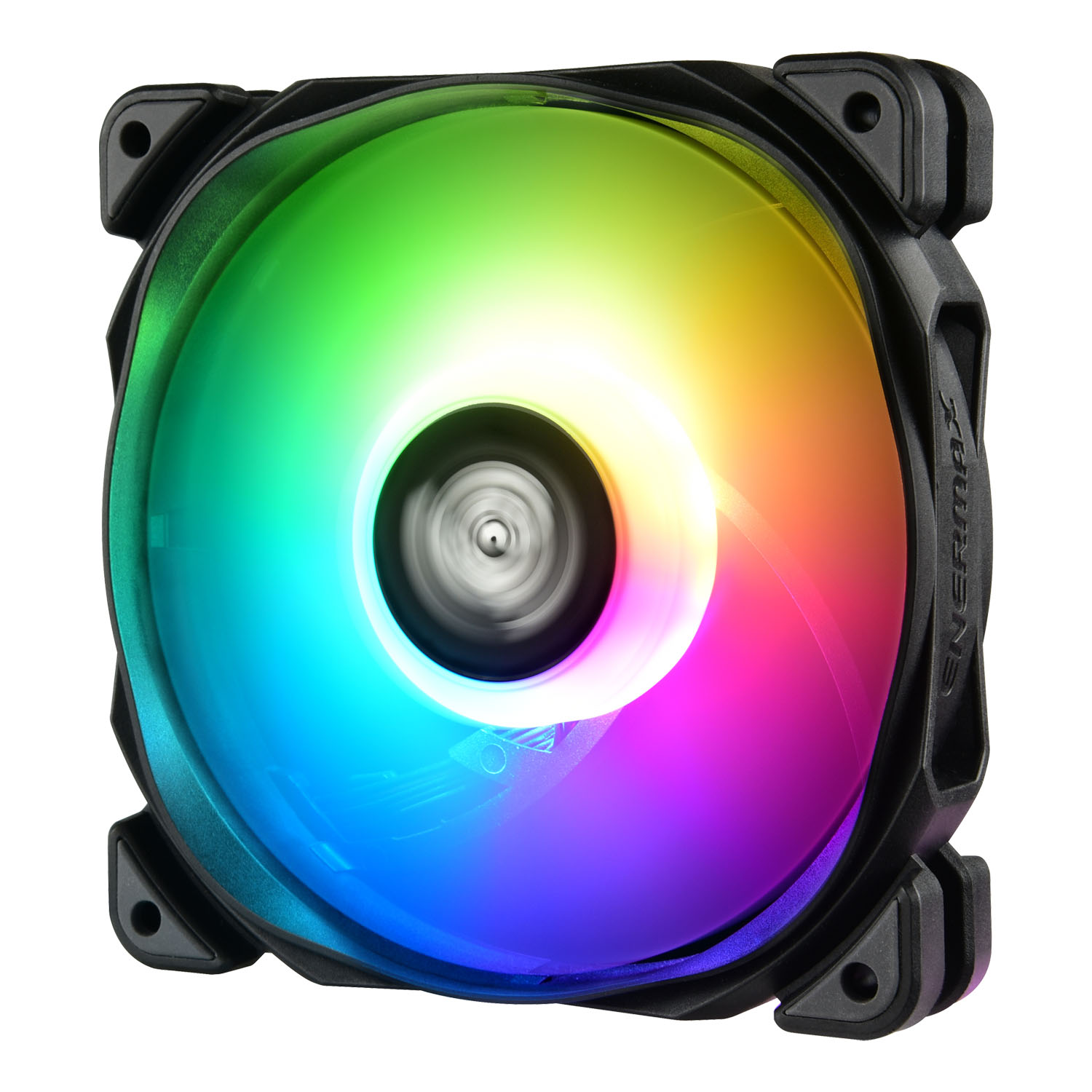

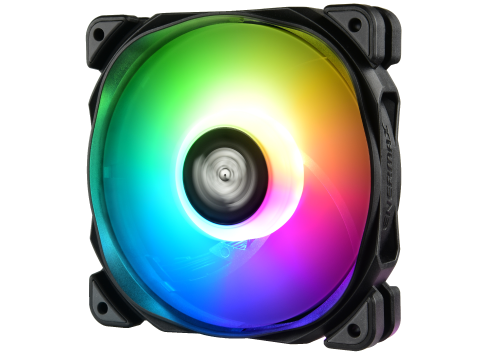

Luminous addressable RGB fan delivers 16.8 million colors with dynamic lighting effects

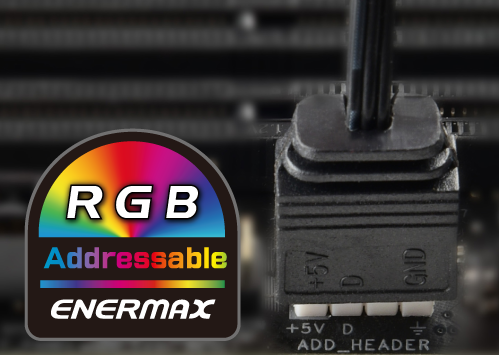

Support Addressable RGB lighting synchronization via motherboard
Users can sync the RGB lighting with motherboards featuring Addressable RGB header (3 pin assignment is 5V/D/G) and control lighting effects directly from ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome

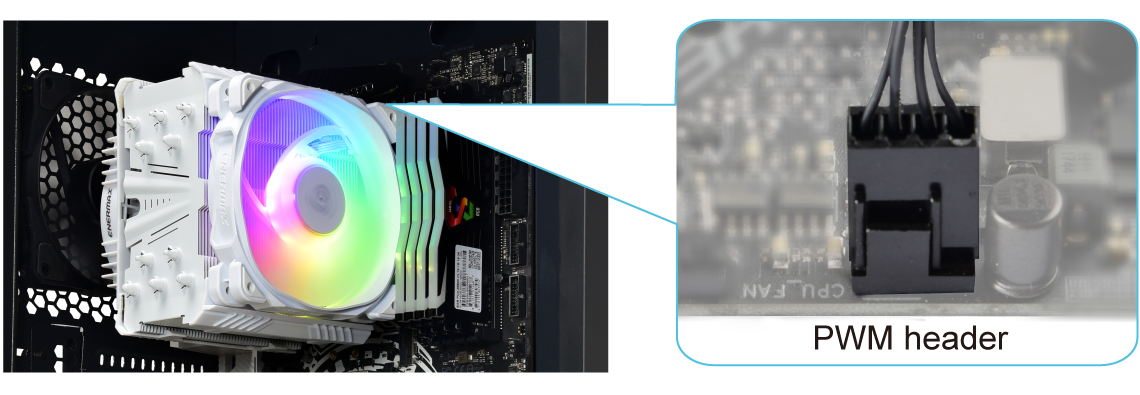

Plug & Play to display rainbow RGB lighting effects
Users can use the PWM power cable to connect the fan to create constant rainbow RGB lighting effects, no software or adaptor needed

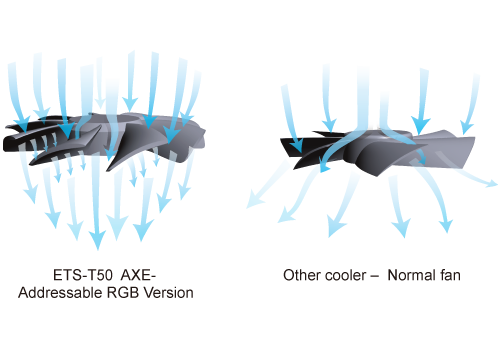

High Pressure Technology
High pressure blade design is a precision engineering of the blade angle and shape calculation. The blades centralize dispersed airflow to the center of the fan and create extremely high air pressure high airflow while maintaining outstanding quietness

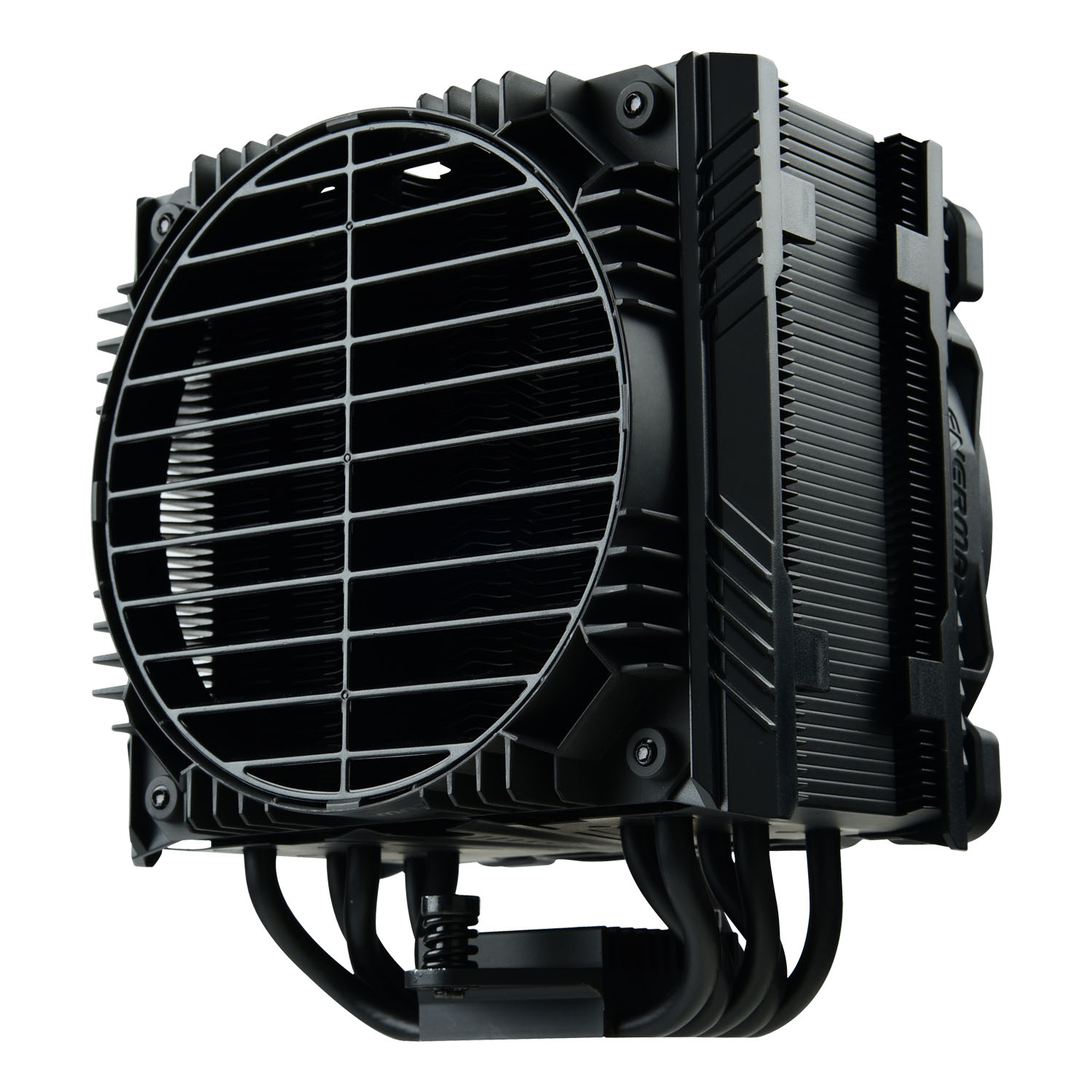

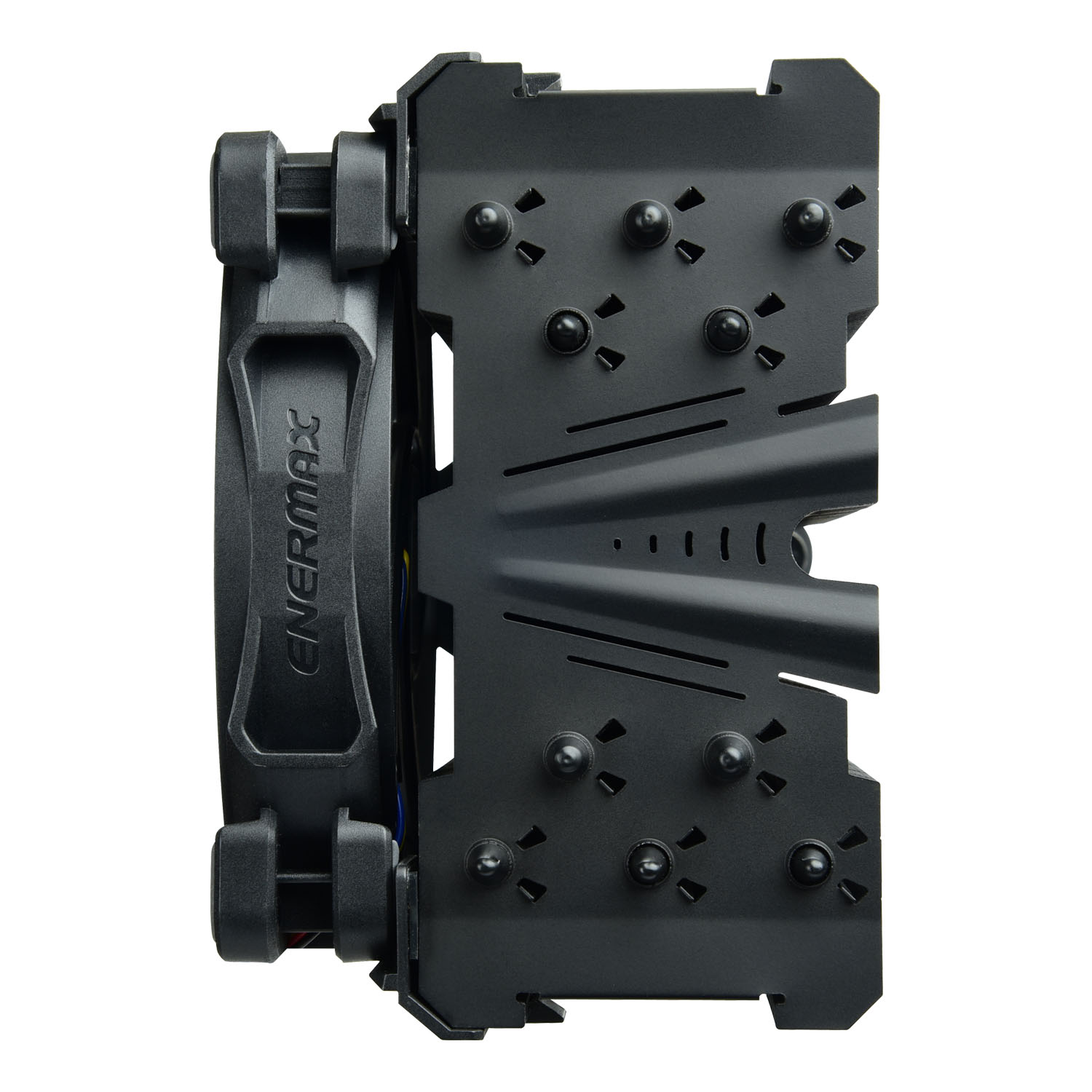

Patented Air Guide with rotatable grill
Patented Air Guide with rotatable grill for preferred airflow direction

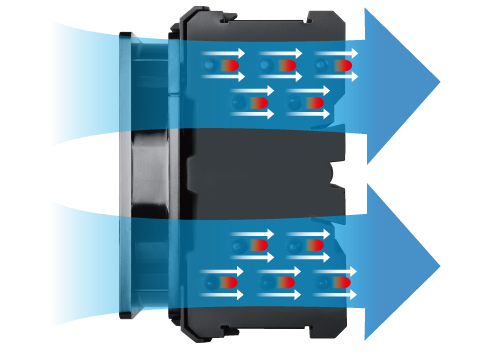

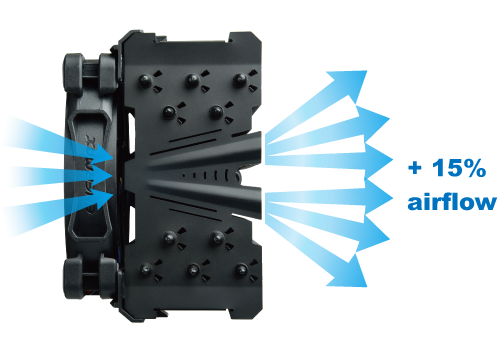

Patented Pressure Differential Flow (PDF) design
Patented Pressure Differential Flow (PDF) design uses differential wind pressure to increase 15% more airflow

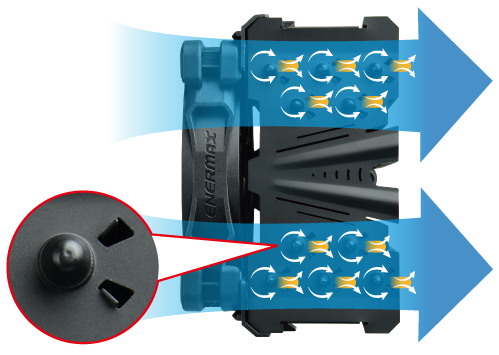

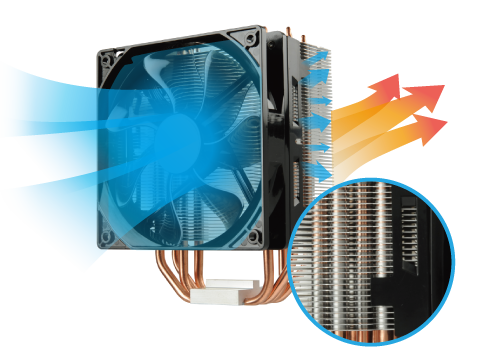

Patented Vortex Generation Flow (VGF) design
Patented Vortex Generation Flow (VGF) design to increase air convection around the heat pipe
ETS-T50 AXE
Other cooler

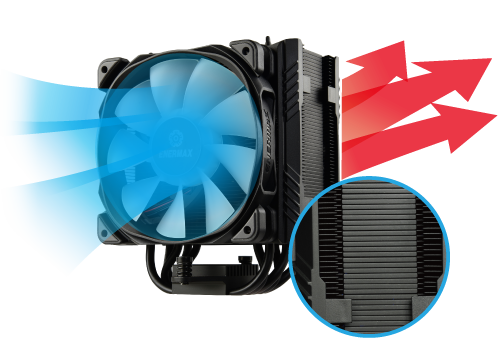

Unique air path creating high Vacuum Effect (VEF) to optimize airflow
ETS-T50 AXE – no air leaks from sides
Other cooler - air leaks from sides

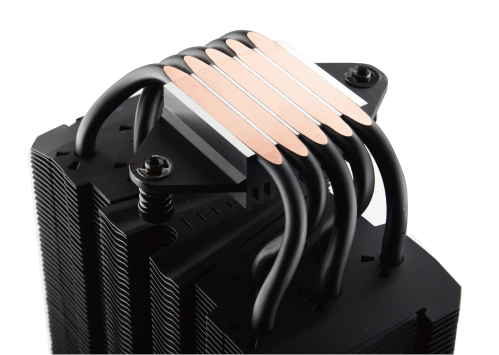

Heat-pipe Direct Touch (HDT) technology to ensure rapid thermal conduction and eliminate CPU hot spots

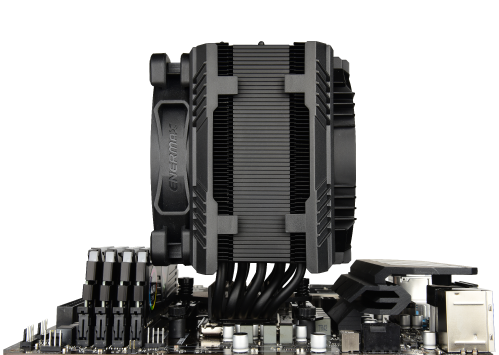

Asymmetric heat pipe design allows extra space for ideal RAM compatibility
Product Introduction
Installation Guide
Specifications
General Data
- Model
- ETS-T50A-BK-ARGB
- CPU Socket
- Intel® LGA 1851/1700/1200/115x/2066/2011/2011-3/1366 AMD® AM5/AM4/AM3+/FM2+/FM1
- Overall Dimension
- 138.7(L) x 112.5(W) x 160(H) mm
- Weight
- 860 g (w/ fan)
- TDP (W)
- 230W
- Heat Pipe
- 5 x Ø6 mm
- Material
- Copper Heat Pipes / Aluminum Fins
- Thermal Grease
- Dow Corning® TC-5121C
- Fan Dimension
- 120 x 120 x 25 mm
- Fan Speed
- 500 ~ 1600 (±10%) RPM
- Fan Air Flow (CFM)
- 23.81 ~ 71.32 CFM
- Air Flow (m3/h)
- 40.45 ~ 121.17 m3/h
- Fan Static Pressure (mm-H2O)
- 0.673 ~ 3.07 mm-H2O
- Connector
- 4 pin PWM connector 3 pin ARGB connector (5V/D/G)
- Fan Noise (dBA)
- 14 ~ 24 dBA
- Fan Rated Voltage (V)
- 12V
- Fan Rated Current (A)
- 0.16 A (or 0.39A when connecting to the PWM header only)
- Rated Voltage - RGB LED
- 5 V
- Rated Current - RGB LED
- 0.36 A
- Bearing Type
- Twister Bearing
- MTTF (FAN)
- ≧160,000 hours @ 25°C
- ACCESSORY
- Thermal grease included
- Heat Sink Dimension
- 135.2(L) x 65(W) x 160(H) mm
Shipping Information
- EAN
- 4713157724199
- UPC
- 819315024195
- Box Dimension
- 222 x 175 x 130 mm
- Gross Weight / unit
- 1.438 kg
- Carton Dimension
- 460 x 370 x 295 mm
- Q'ty / carton
- 8 PCS
- Gross Weight / Carton
- 12 kg
