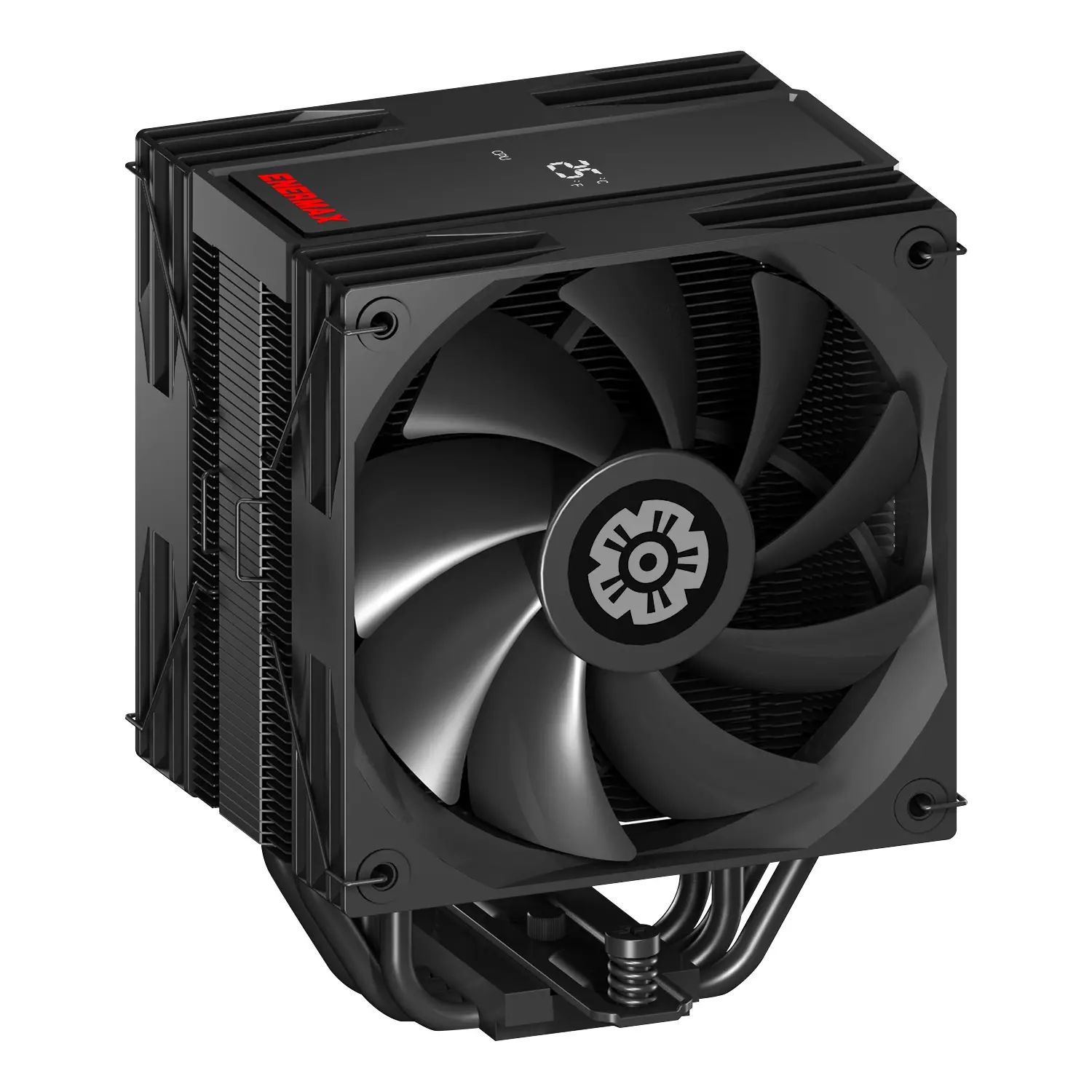

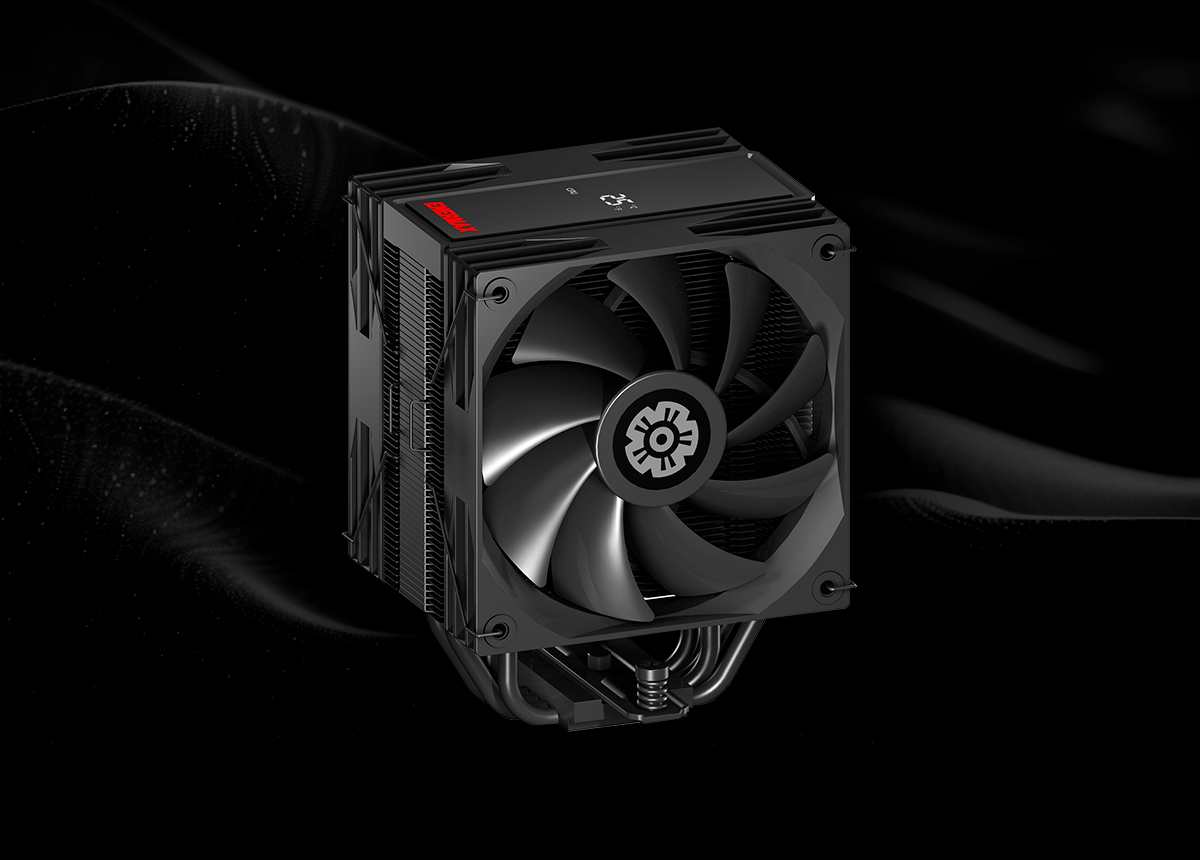

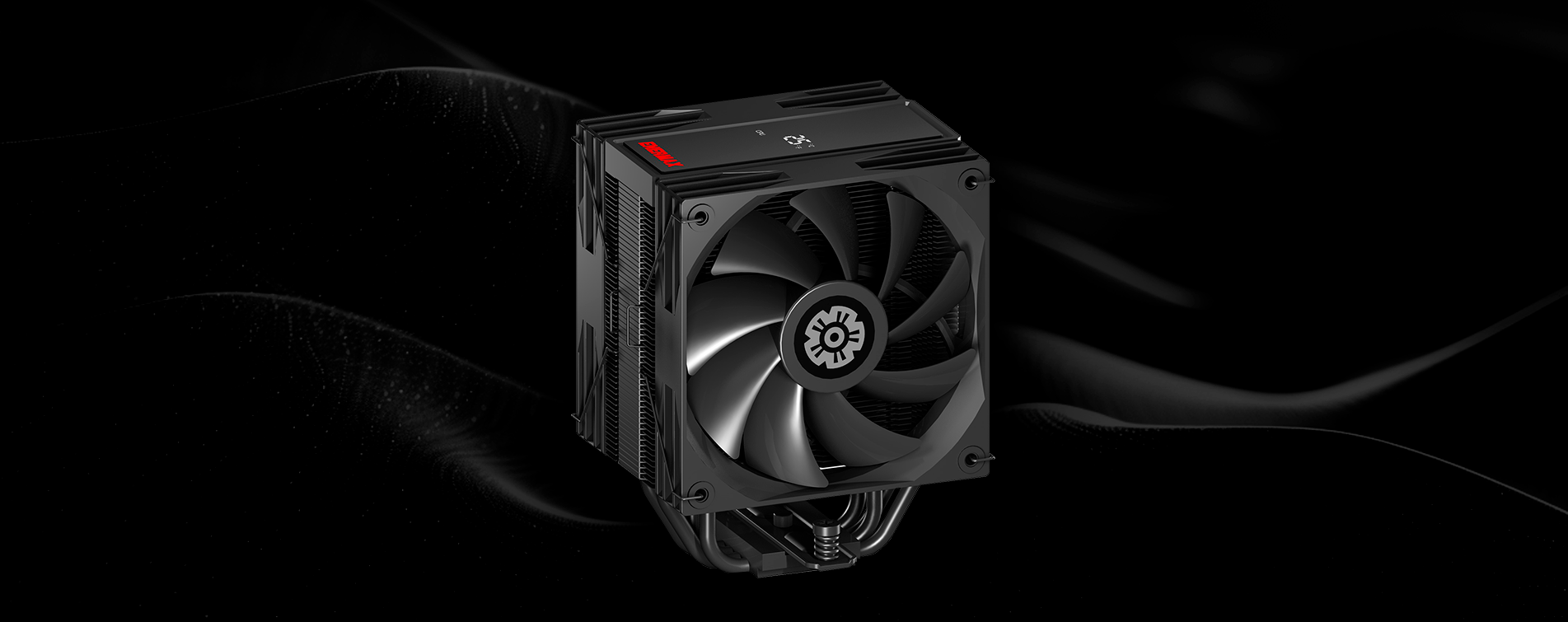

ETS-T41 Digital CPU Air Cooler
- Superior Cooling Capacity (250W TDP)
- Compact size design to fit in most computer chassis
- 2 x 120mm Fans Included
- PWM Controlled Fan for Optimizes Airflow and Silent Operation

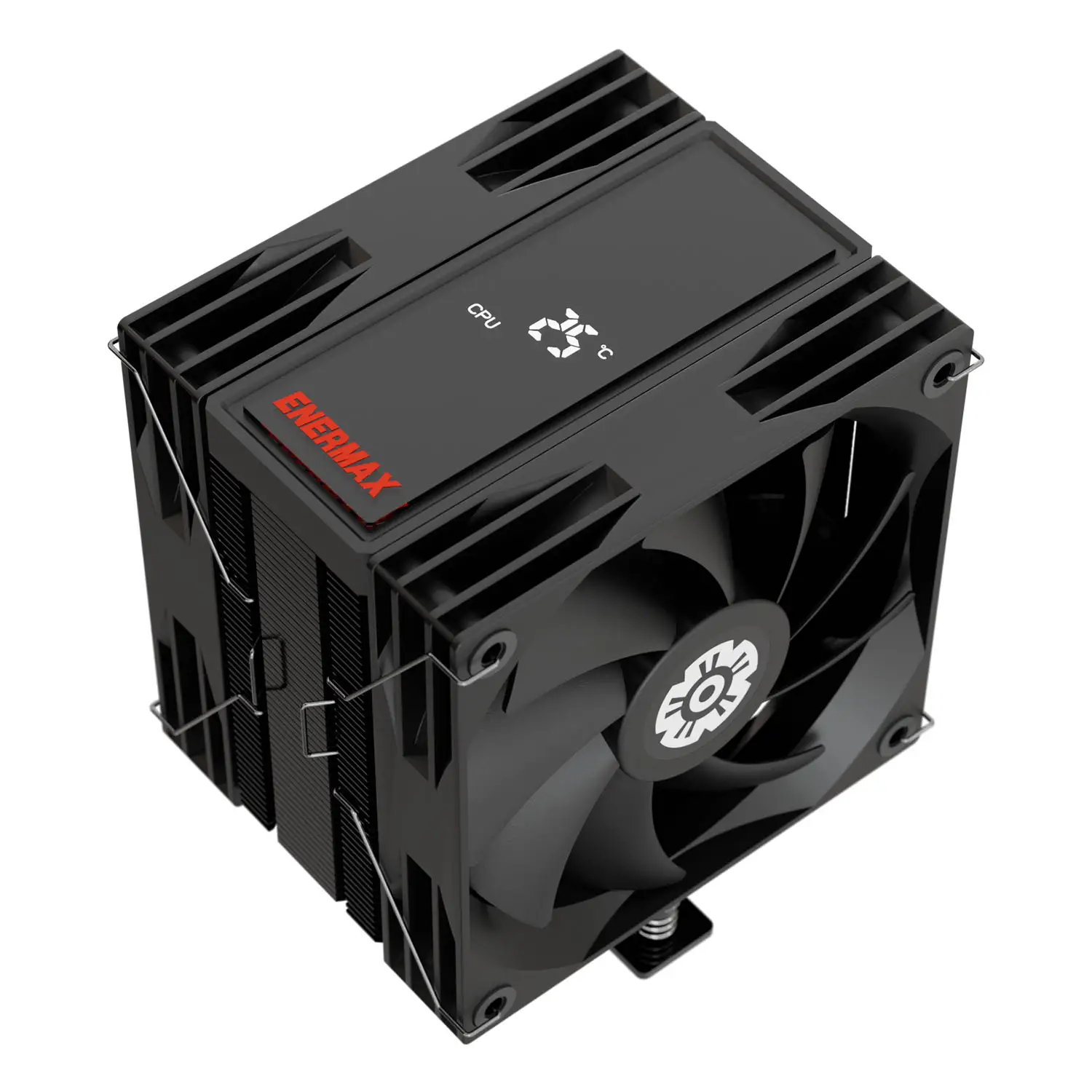

- Sleek Low-Profile Status Display
Color
OVERVIEW
Cooling Capacity
250W TDP
250W TDP

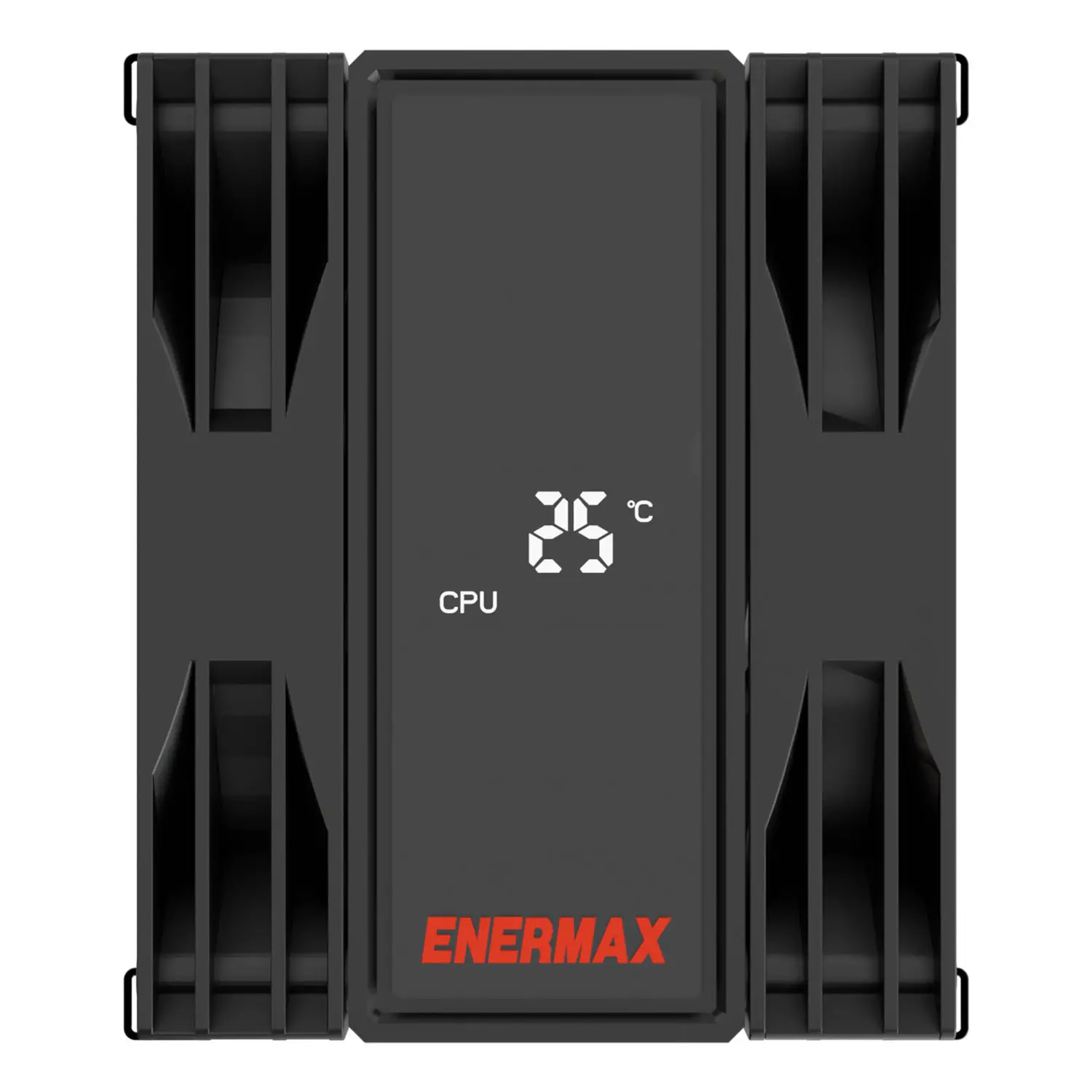

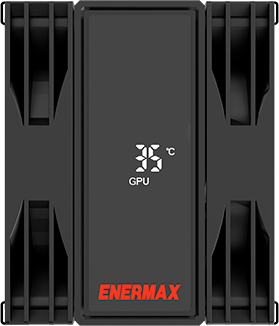

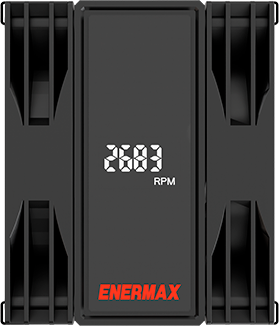

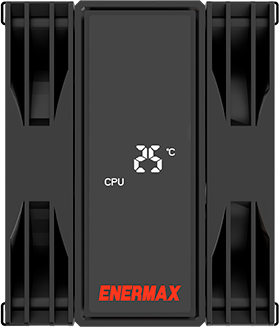

Low-Profile
Status Display
Status Display
Universal
CPU Support
CPU Support
High
Compatibility
Compatibility

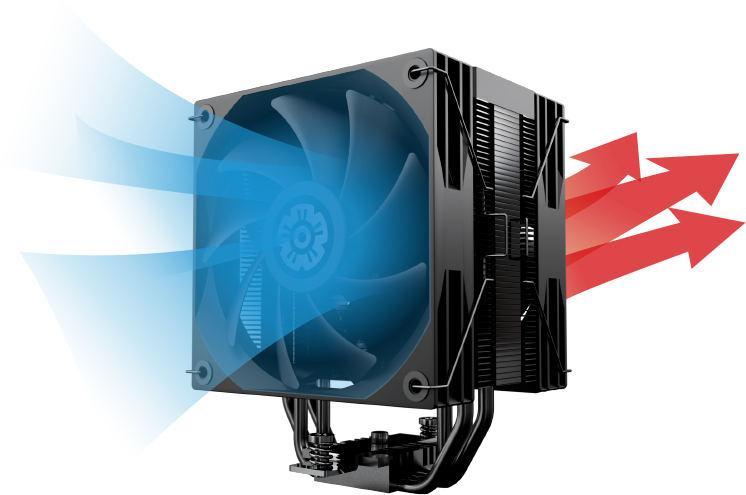

SUPERIOR COOLING CAPACITY, 250W TDP

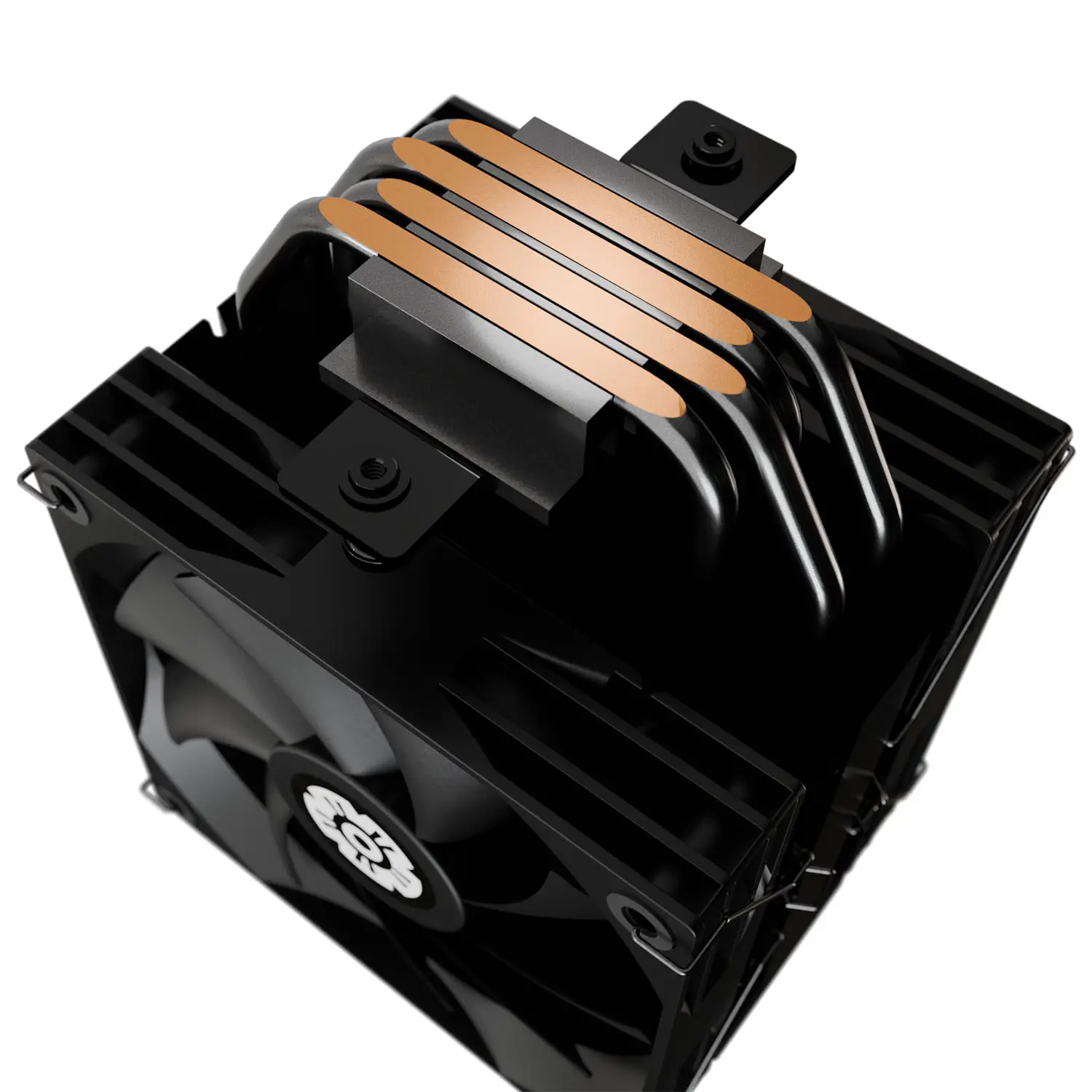

ETS-T41 Digital CPU air cool features 4 x Ø6 mm heat pipes and 2 x 120mm FDB fans to deliver cooling performance up to 250W TDP.

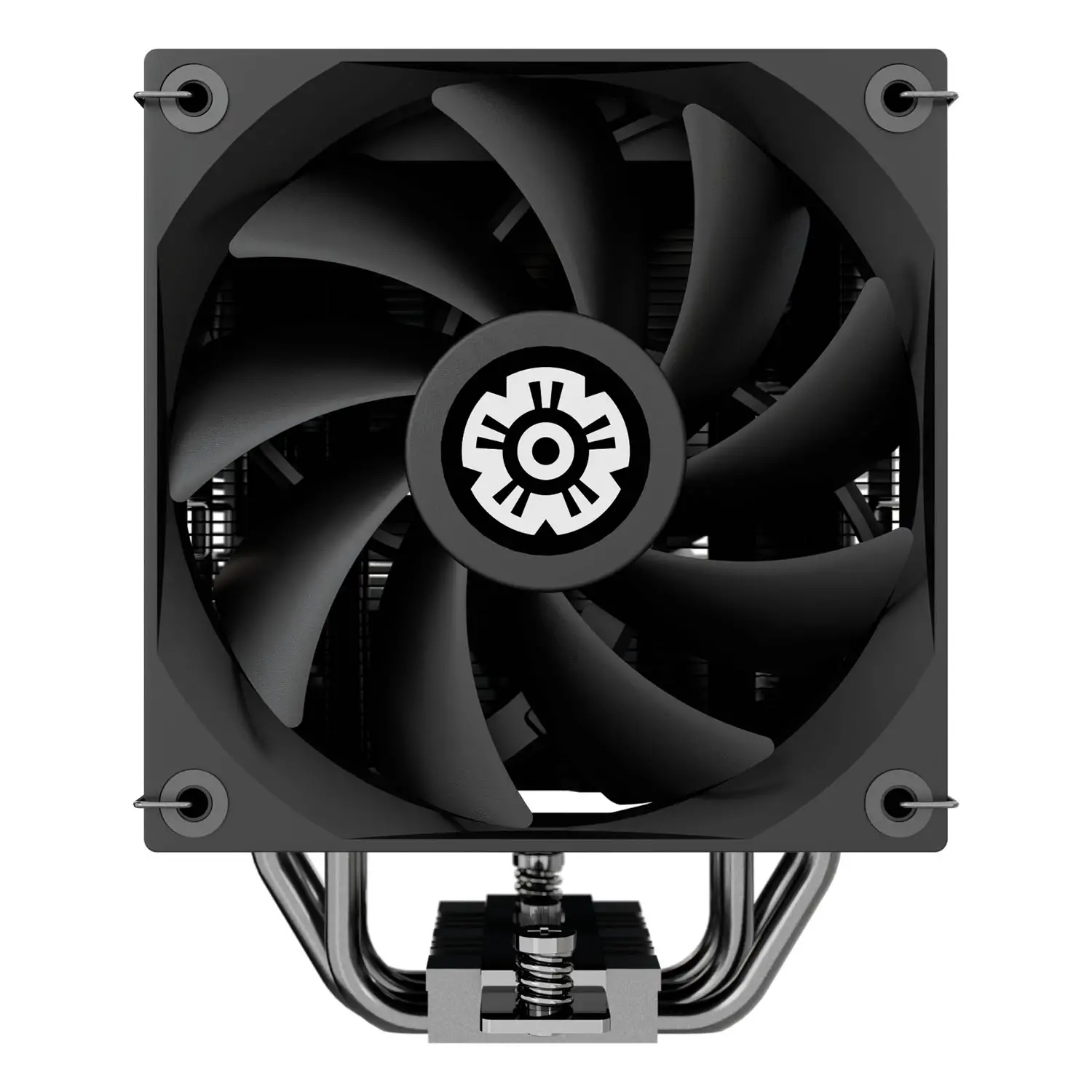

PWM CONTROLLED FAN WITH 9 FAN BLADE DESIGN
The 120mm PWM fan's 9-blade design optimizes airflow and acoustic performance.
COMPACT SIZE DESIGN TO FIT INTO MAINSTREAM CHASSIS
ETS-T41 Digital CPU air cooler’s compact 157mm height heatsink size can fit into many popular chassis.
DIMENSIONS
Unit: mm
Specifications
General Data
- Model
- ETS-T41D
- CPU Socket
- Intel® LGA1851/1700/115x/1200 AMD® AM5/AM4
- Overall Dimension
- 120 x 100 x 157 mm
- Weight
- 750g (W/ fan)
- TDP (W)
- 250W
- Heat Pipe
- 4 x Ø6 mm
- Material
- Copper Heat Pipes / Aluminum Fins
- Thermal Grease
- Dow Corning® TC-5888
- Fan Dimension
- 120 x 120 x 25 mm
- Fan Speed
- 600~1600 RPM ±10% / 600~1400 RPM ±10%
- Fan Air Flow (CFM)
- 29.46~69.63 CFM / 28.05~56.53 CFM
- Air Flow (m3/h)
- 50.05~118.30 m³/h / 47.66~96.04 m³/h
- Fan Static Pressure (mm-H2O)
- 0.36~1.39 mmH2O / 0.47~1.12 mmH2O
- Connector
- 4 Pin PWM
- Fan Noise (dBA)
- 25 dBA (Max) / 23.5 dBA (Max)
- Fan Rated Voltage (V)
- 12V
- Fan Rated Current (A)
- 0.19A / 0.16A
- Bearing Type
- Fluid Dynamic Bearing
- MTTF (FAN)
- ≧ 80,000 hrs
- ACCESSORY
- Thermal grease included
Shipping Information
- EAN
- 4713157729347
- UPC
- 819315029343
- Box Dimension
- 155 x 133 x 205 mm
- Gross Weight / unit
- 0.94 kg
- Carton Dimension
- 485 x 413 x 455 mm
- Q'ty / carton
- 18 pcs
- Gross Weight / Carton
- 18 kg
