ETS-T41 CPU Air Cooler
- Superior Cooling Capacity (250W TDP)
- Compact size design to fit in most computer chassis
- 2 x 120mm Fans Included
- PWM Controlled Fan for Optimizes Airflow and Silent Operation
Color
OVERVIEW
Cooling Capacity
250W TDP
250W TDP
Universal
CPU Support
CPU Support
High
Compatibility
Compatibility
SUPERIOR COOLING CAPACITY, 250W TDP

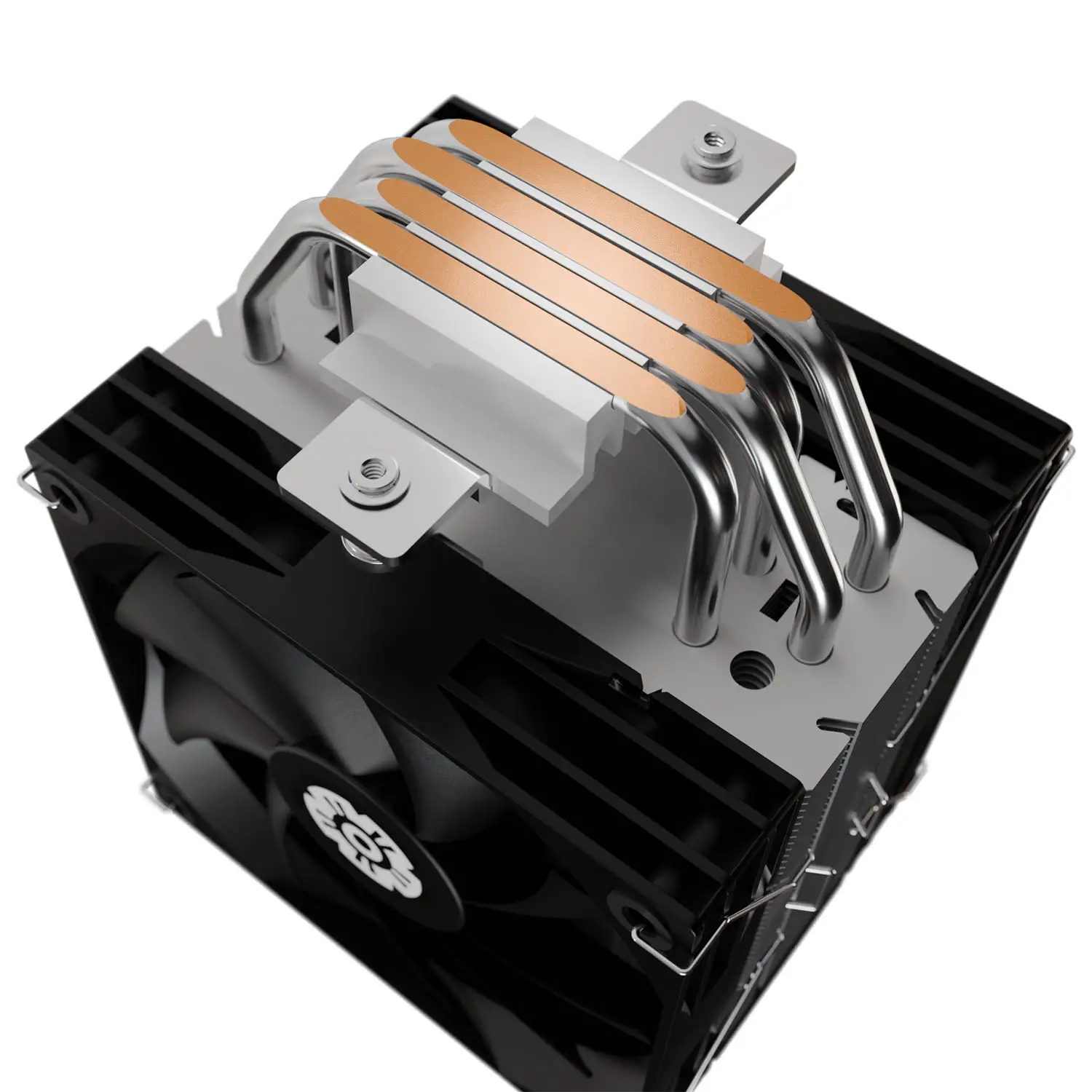

ETS-T41 CPU Air Cool features 4 x Ø 6 mm heat pipes and 2 x 120mm hydraulic bearing fans to deliver cooling performance up to 250W TDP.

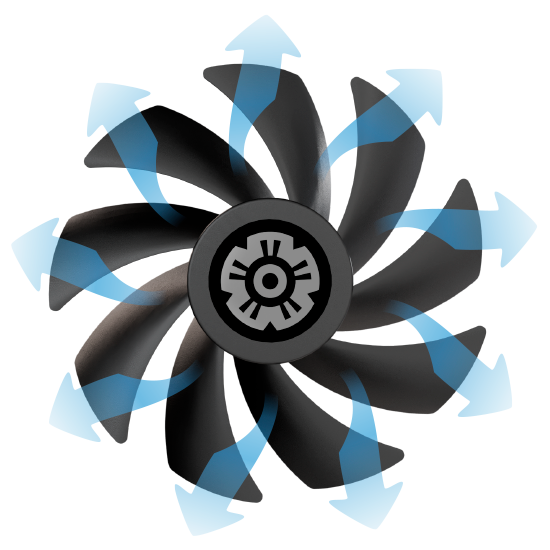

PWM CONTROLLED FAN WITH 9 FAN BLADE DESIGN
The 120mm PWM fan's 9-blade design optimizes airflow and acoustic performance.
COMPACT SIZE DESIGN TO FIT INTO MAINSTREAM CHASSIS
ETS-T41 CPU air cooler’s compact 157mm height heatsink size can fit into many popular chassis.
DIMENSIONS
Unit: mm
Specifications
General Data
- Model
- ETS-T41
- CPU Socket
- Intel® LGA1851/1700/115x/1200 AMD® AM5/AM4
- Overall Dimension
- 120 X 100 x 157 mm
- Weight
- 705g (W/ fan)
- TDP (W)
- 250W
- Heat Pipe
- 4 x Ø6 mm
- Material
- Copper Heat Pipes / Aluminum Fins
- Thermal Grease
- Dow Corning® TC-5121C
- Fan Dimension
- 120 x 120 x 25 mm
- Fan Speed
- 600~1600 RPM ±10% / 600~1400 RPM ±10%
- Fan Air Flow (CFM)
- 29.46~69.63 CFM / 28.05~56.53 CFM
- Air Flow (m3/h)
- 50.05~118.30 m³/h / 47.66~96.04 m³/h
- Fan Static Pressure (mm-H2O)
- 0.36~1.39 mmH2O / 0.47~1.12 mmH2O
- Connector
- 4 pin PWM
- Fan Noise (dBA)
- 25 dBA (Max) / 23.5 dBA (Max)
- Fan Rated Voltage (V)
- 12V
- Fan Rated Current (A)
- 0.19A / 0.16A
- Bearing Type
- Hydraulic Bearing
- MTTF (FAN)
- ≧ 40,000 hrs
- ACCESSORY
- Thermal grease included
Shipping Information
- EAN
- 4713157729330
- UPC
- 819315029336
- Box Dimension
- 155 x 133 x 205 mm
- Gross Weight / unit
- 0.93 kg
- Carton Dimension
- 485 x 413 x 455 mm
- Q'ty / carton
- 18 pcs
- Gross Weight / Carton
- 17 kg
