ETS-N31 Air CPU Cooler
- Support AMD socket AM5 and Intel socket LGA1700
- Superb compatibility with chassis and RAM modules
- Effective cooling solution
- 130W TDP cooling capacity
Color
Overview
Maximum compatibility

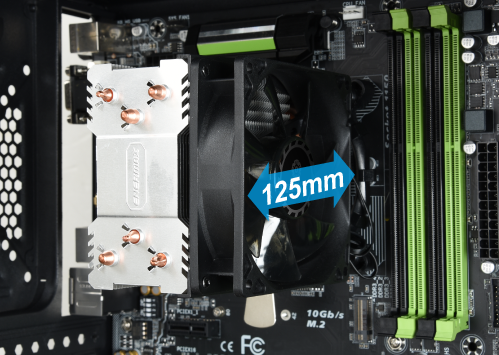

Compact size structure gives users greater flexibility in selecting chassis

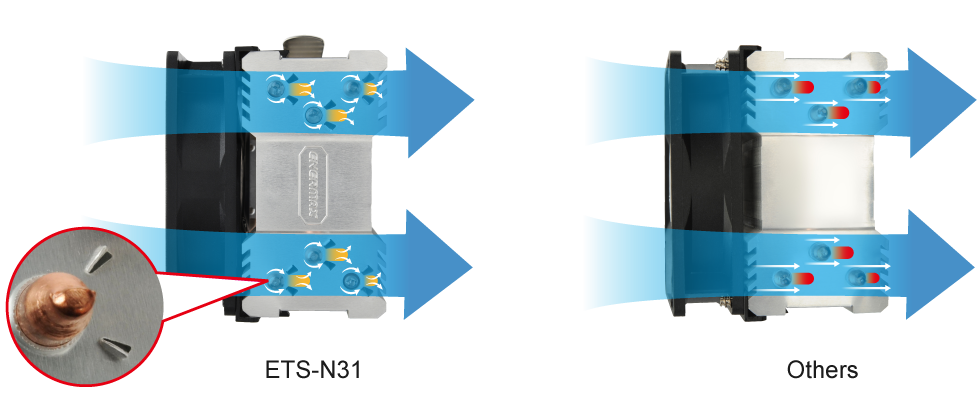

Patented VGF (Vortex Generator Flow) to increase air convection around the heat pipes

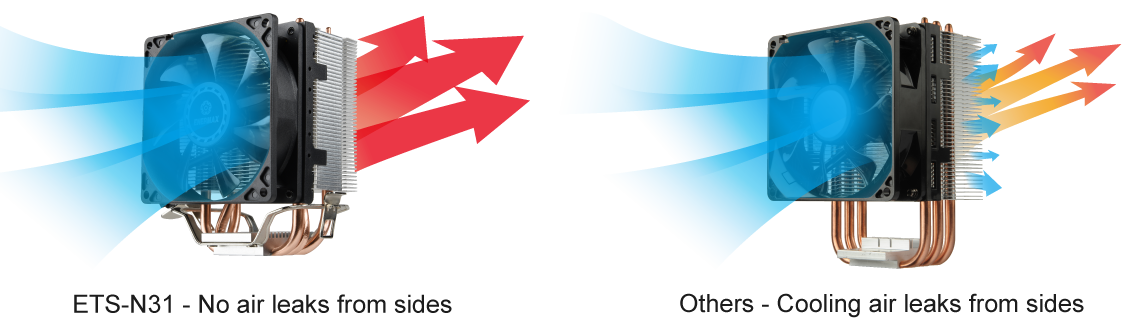

Unique air path creating high VEF (Vacuum Effect) to optimize the airflow

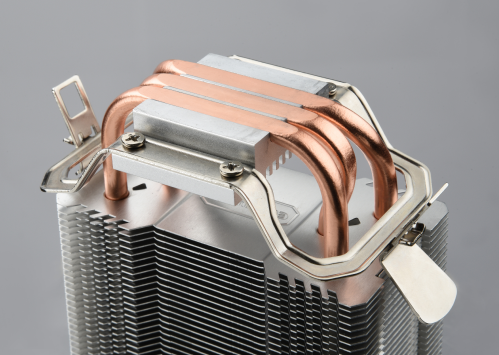

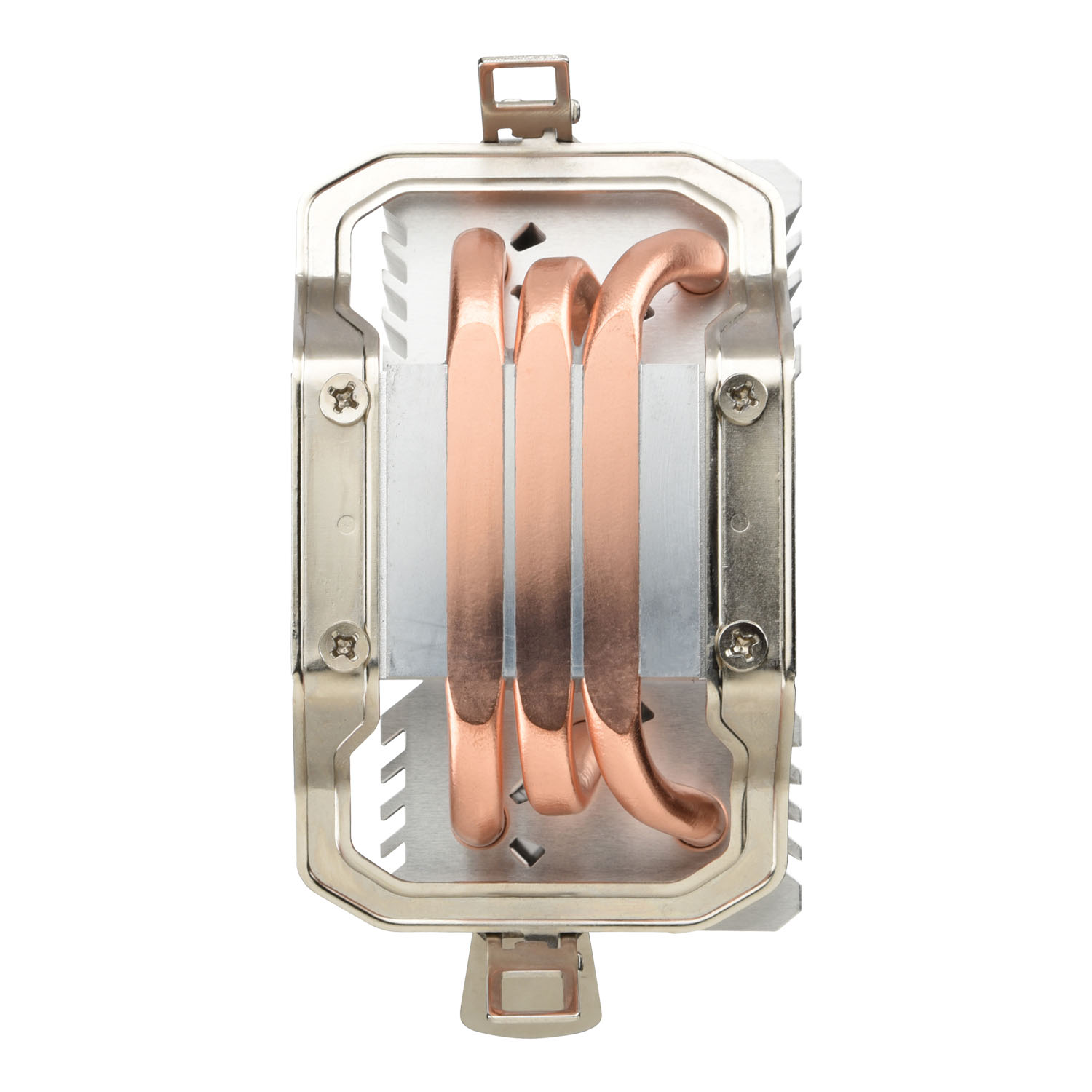

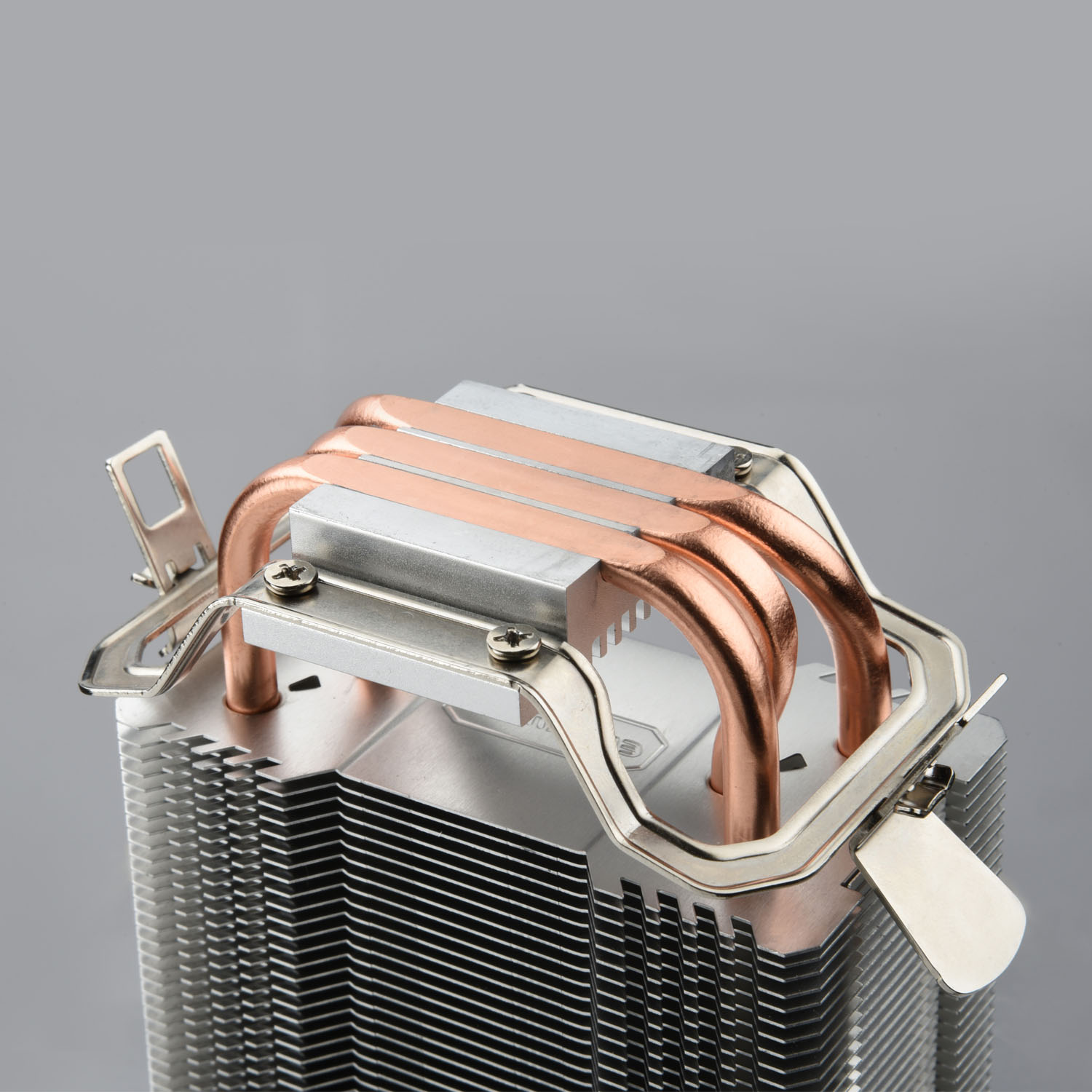

HDT (Heat-pipe Direct Touch) technology ensures rapid thermal conduction and eliminates CPU hot spots quickly

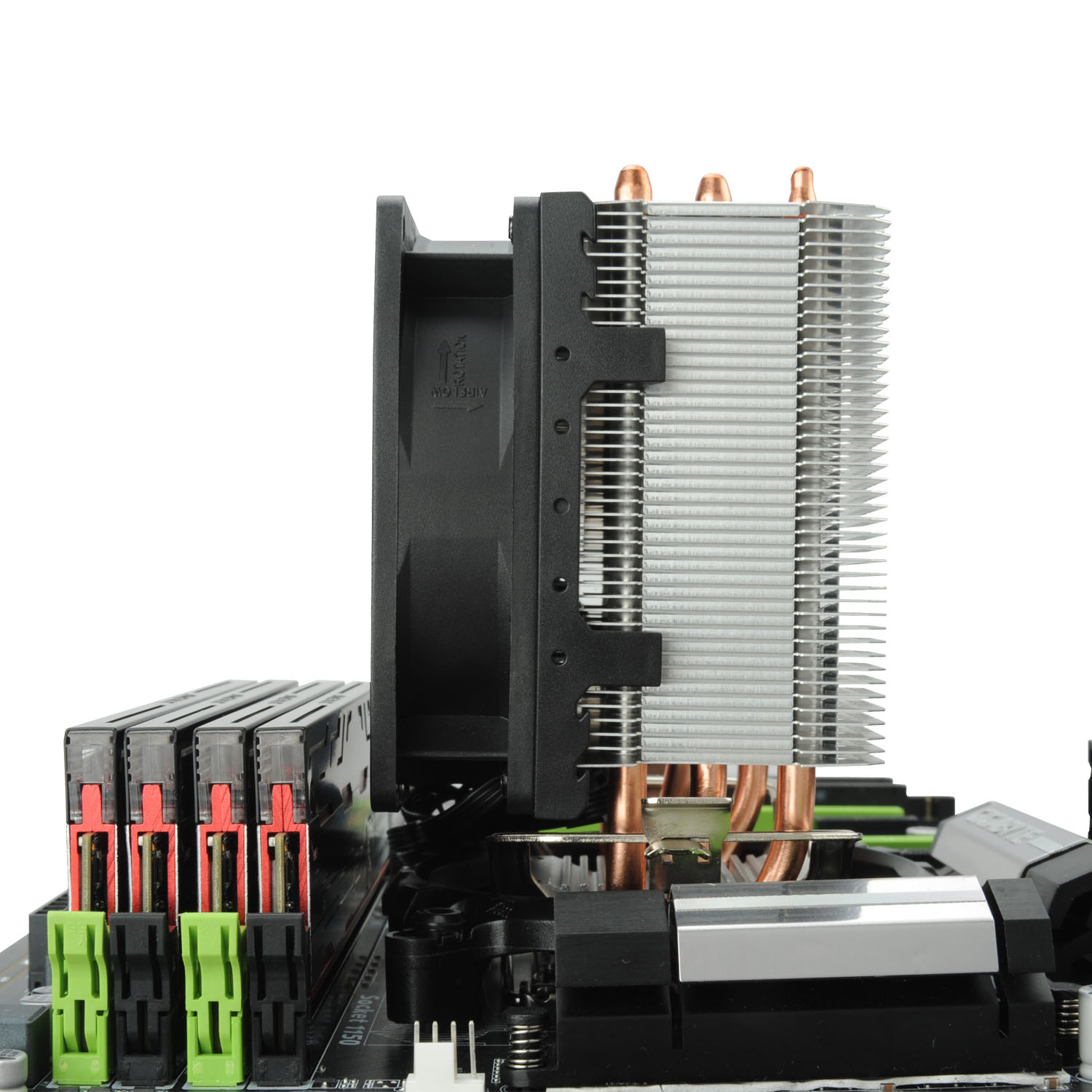

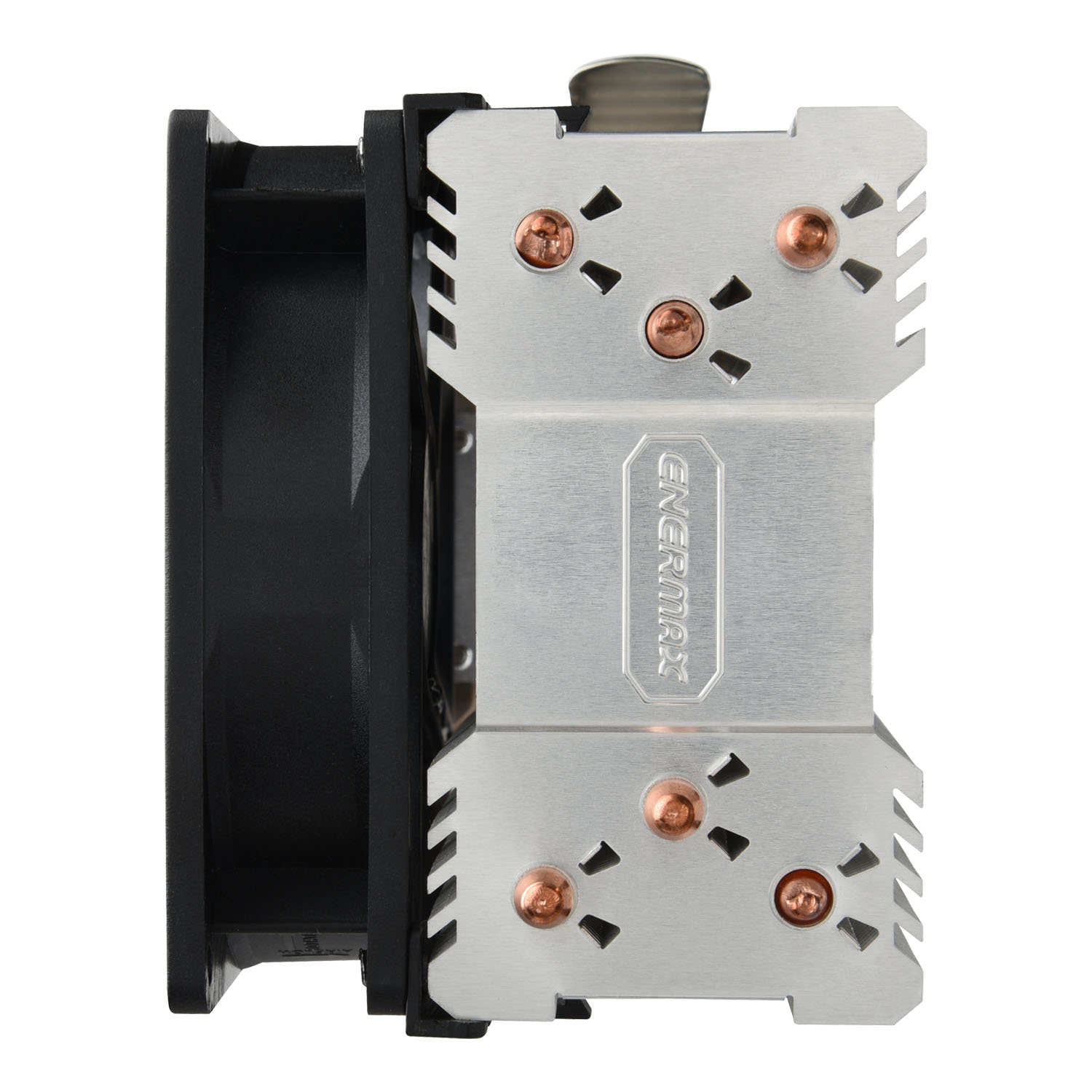

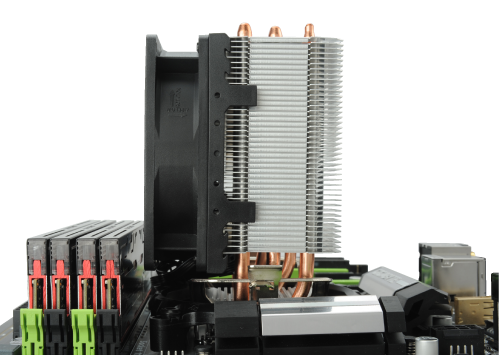

Asymmetric heat pipe design allows extra space for perfect RAM compatibility

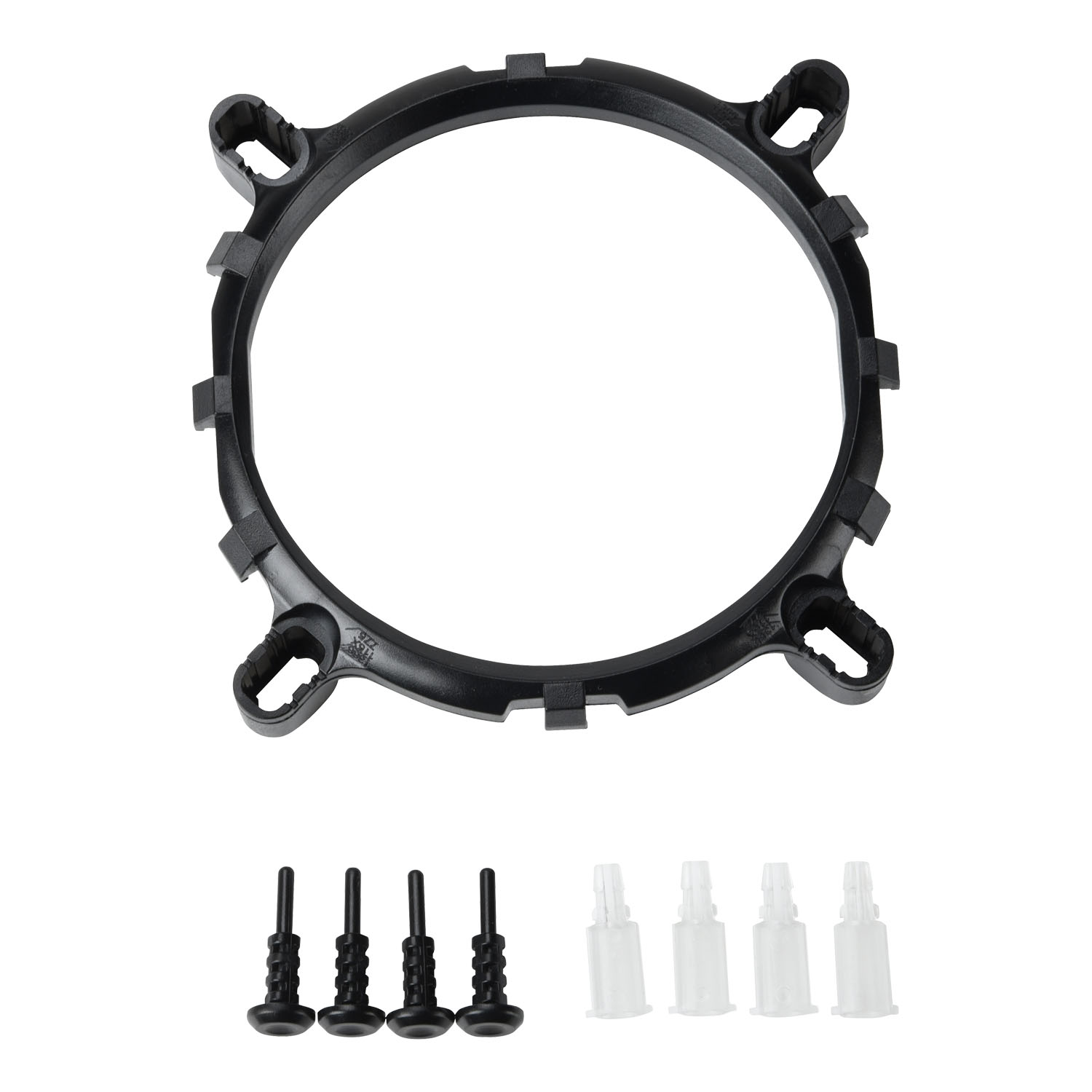

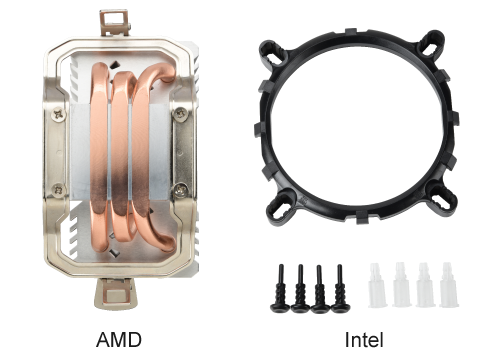

Tool-free mounting system ensures an effortless and easy installation

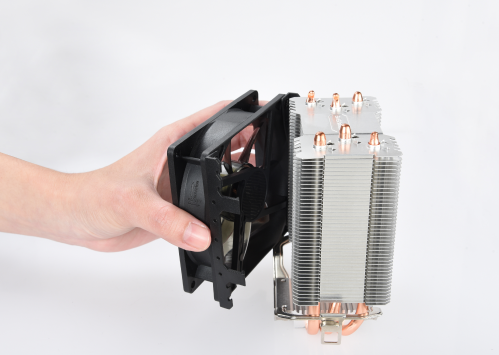

“1-clip” fan bracket design for user-friendly installation
Product Introduction
Installation Guide
Specifications
General Data
- Model
- ETS-N31-02
- CPU Socket
- Intel® LGA 1851/1700/1200/115x AMD® AM5/AM4/AM3+/FM2+/FM1
- Overall Dimension
- 95 (L) x 77.5 (W) x 125 (H) mm
- Weight
- 385 g
- TDP (W)
- 130W
- Heat Pipe
- 3 x Ø6 mm
- Material
- Copper Heat Pipes/Aluminum Fins
- Thermal Grease
- Dow Corning® TC-5121
- Fan Dimension
- 92 x 92 x 25 mm
- Fan Speed
- 800 ~ 2000 rpm
- Fan Air Flow (CFM)
- 13.12 ~ 32.8 CFM
- Air Flow (m3/h)
- 22.29 ~ 55.72 m3/h
- Fan Static Pressure (mm-H2O)
- 0.86 ~2.15 mm-H2O
- Connector
- 4 pin PWM connector
- Fan Noise (dBA)
- 24.5 dBA
- Heat Sink Dimension
- 95 (L) x 50 (W) x 125 (H) mm
Shipping Information
- EAN
- 4713157722768
- UPC
- 816163008988
- Box Dimension
- 120 x 115 x 136 mm
- Gross Weight / unit
- 485 g
- Carton Dimension
- 495 x 475 x 306 mm
- Q'ty / carton
- 32 PCS
- Gross Weight / Carton
- 16.4 kg
