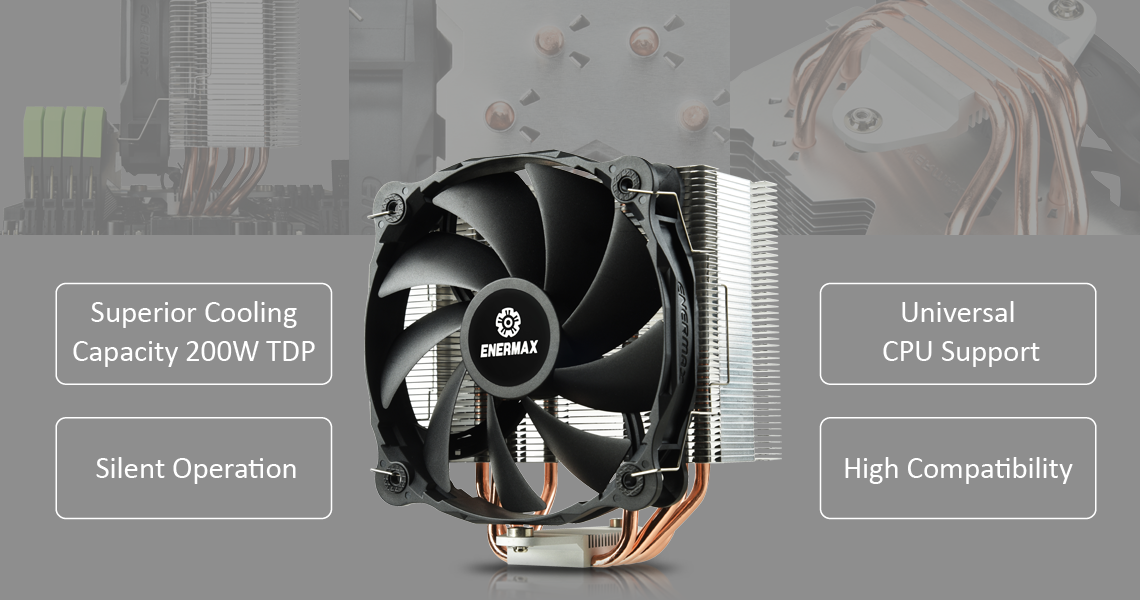

ETS-F40-FS Series 140mm Air CPU Cooler, FS
- Superior cooling capacity (200W TDP)
- Silent operation with starting fan speed 300rpm
- Compact size design to fit in most computer chassis
- Included fan clips for the 2nd fan installation
Color
OVERVIEW
Superior Cooling Capacity, 200W TDP
Thanks to ENERMAX patented Vortex Generation Flow (VGF) design and unique Vacuum Effect Flow (VEF) design, ETS-F40-FS can increase air convection around the heat pipe and centralize airflow in the heatsink to provide optimal cooling performance
Patented Vortex Generation Flow (VGF) design
Vacuum Effect Flow (VEF) design
The enlarged 140mm heat sink fin design provides a larger cooling surface for efficient heat dissipation. The additional fan clips allow users to install the 2nd fan on ETS-T40-FS for better cooling performance
Enlarged 140mm fin design
Additional fan clips design
High Efficient Heat Transfer
ETS-F40-FS is equipped with 4 x ø6 heatpipes with heat-pipe direct touch (HDT) technology to improve thermal conductivity and eliminate CPU hot spots quickly
Silent Operation

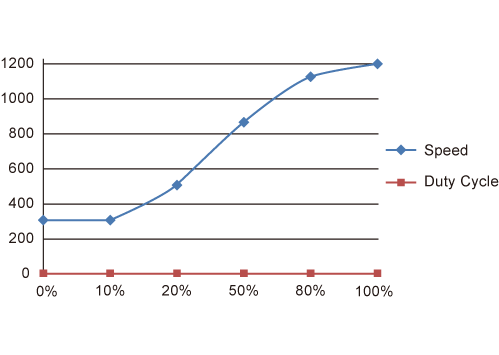

The 140mm fan, featuring smart PWM speed control function (speed range is 300 to 1200rpm), provides the balance between silence and performance
Compact Size Design to Fit into Mainstream Chassis
ETS-F40-FS is characterized by asymmetric heat-pipe design that creates more space for RAM installation, and its compact 156mm height heatsink size can fit into many popular chassis
Dimension
unit:mm
Product Introduction
Installation Guide
Specifications
General Data
- Model
- ETS-F40-FS
- CPU Socket
- Intel® LGA 1851/1700/1200/115x/2066/2011/2011-3/1366 AMD® AM5/AM4/AM3+/FM2+/FM1
- Overall Dimension
- 140 x 93 x 156 mm
- Weight
- 750g (W/ fan)
- TDP (W)
- 200W
- Heat Pipe
- 4 x Ø6 mm
- Material
- Copper Heat Pipes / Aluminum Fins
- Thermal Grease
- Dow Corning® TC-5121C
- Fan Dimension
- 140 x 140 x 25.5 mm
- Fan Speed
- 300 ~ 1200 ±10%
- Fan Air Flow (CFM)
- 18.11 ~ 74.33 CFM (Max.)
- Air Flow (m3/h)
- 30.75 ~ 126.21 m3/h
- Fan Static Pressure (mm-H2O)
- 0.13 ~ 2.17 mmH2O
- Connector
- 4 pin PWM
- Fan Noise (dBA)
- 10 ~ 23 dBA
- Fan Rated Voltage (V)
- 12V
- Fan Rated Current (A)
- 0.15A
- MTTF (FAN)
- ≧100,000
- ACCESSORY
- Thermal grease included
- Heat Sink Dimension
- 140 x 65 x 155.5 mm
Shipping Information
- EAN
- 4713157725172
- UPC
- 819315025178
- Box Dimension
- 145 x 124 x 182 mm
- Gross Weight / unit
- 0.9 kg
- Carton Dimension
- 388 x 305 x 394 mm
- Q'ty / carton
- 12pcs
- Gross Weight / Carton
- 12.3 kg
