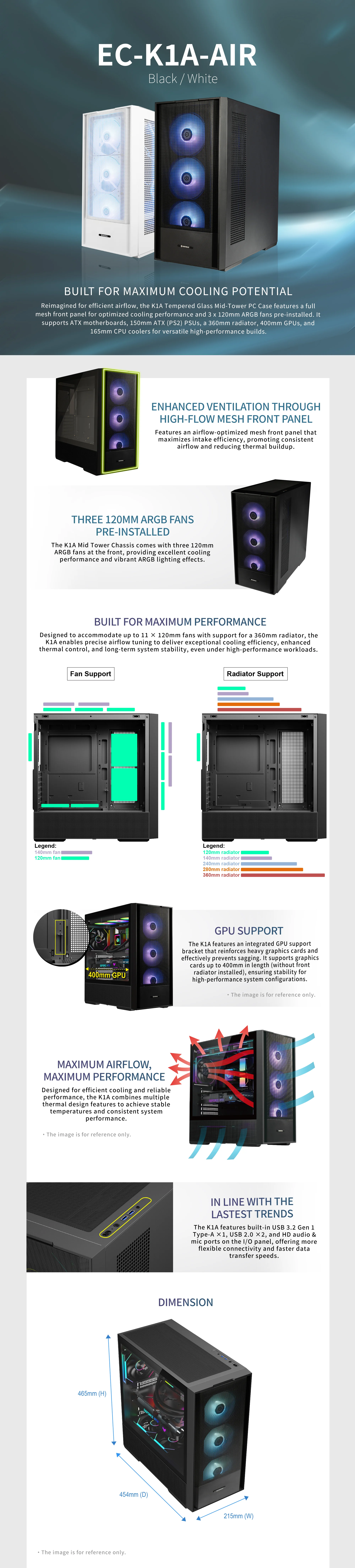

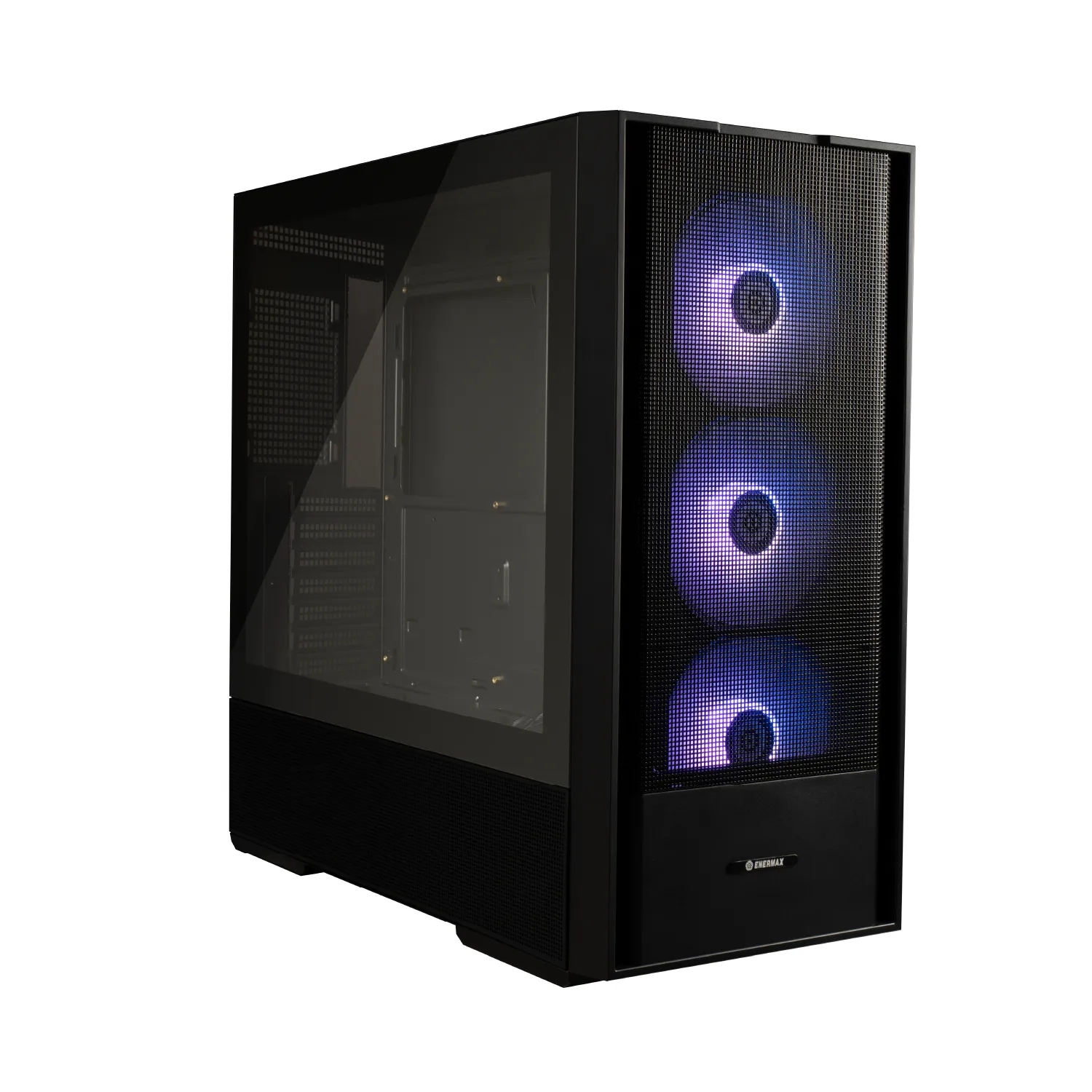

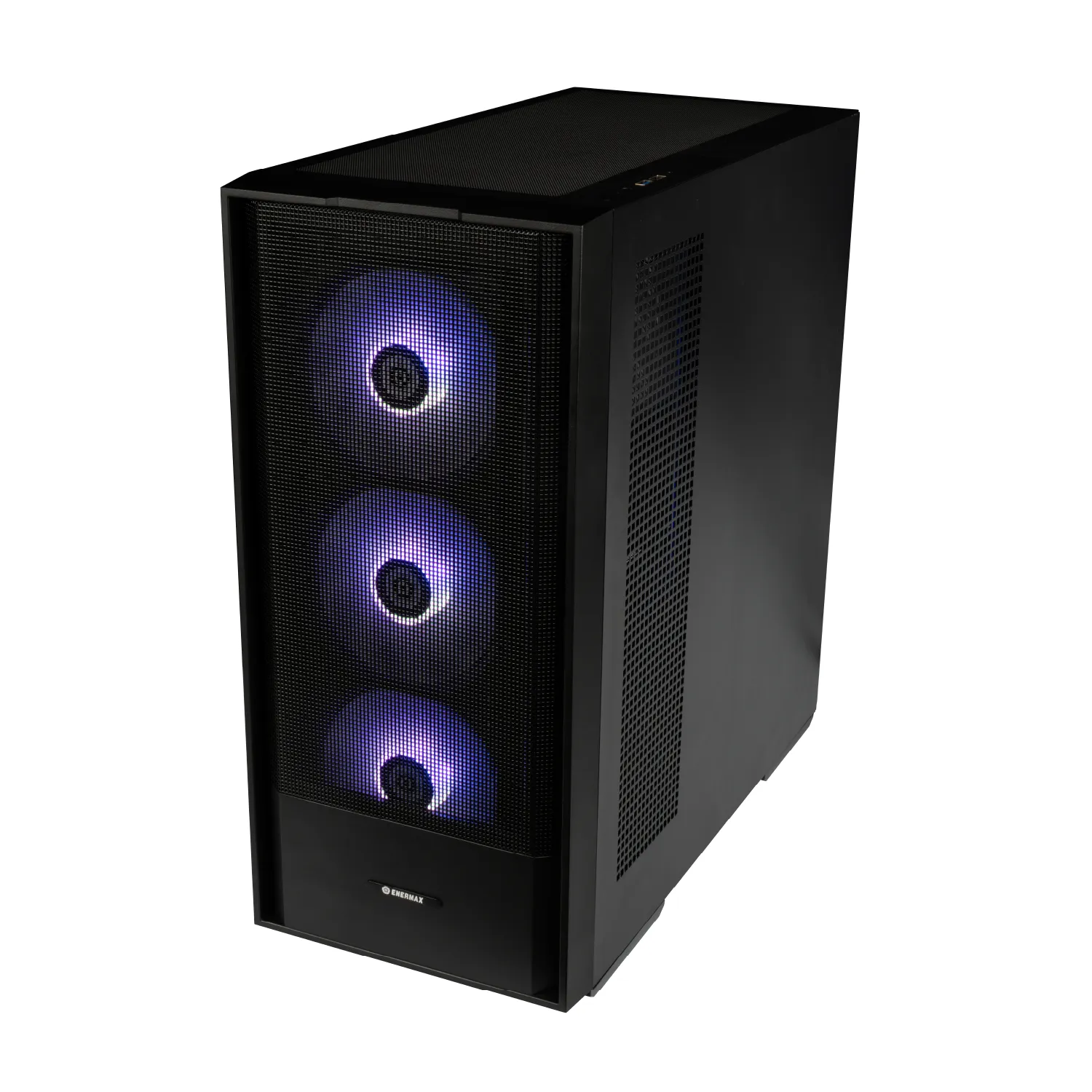

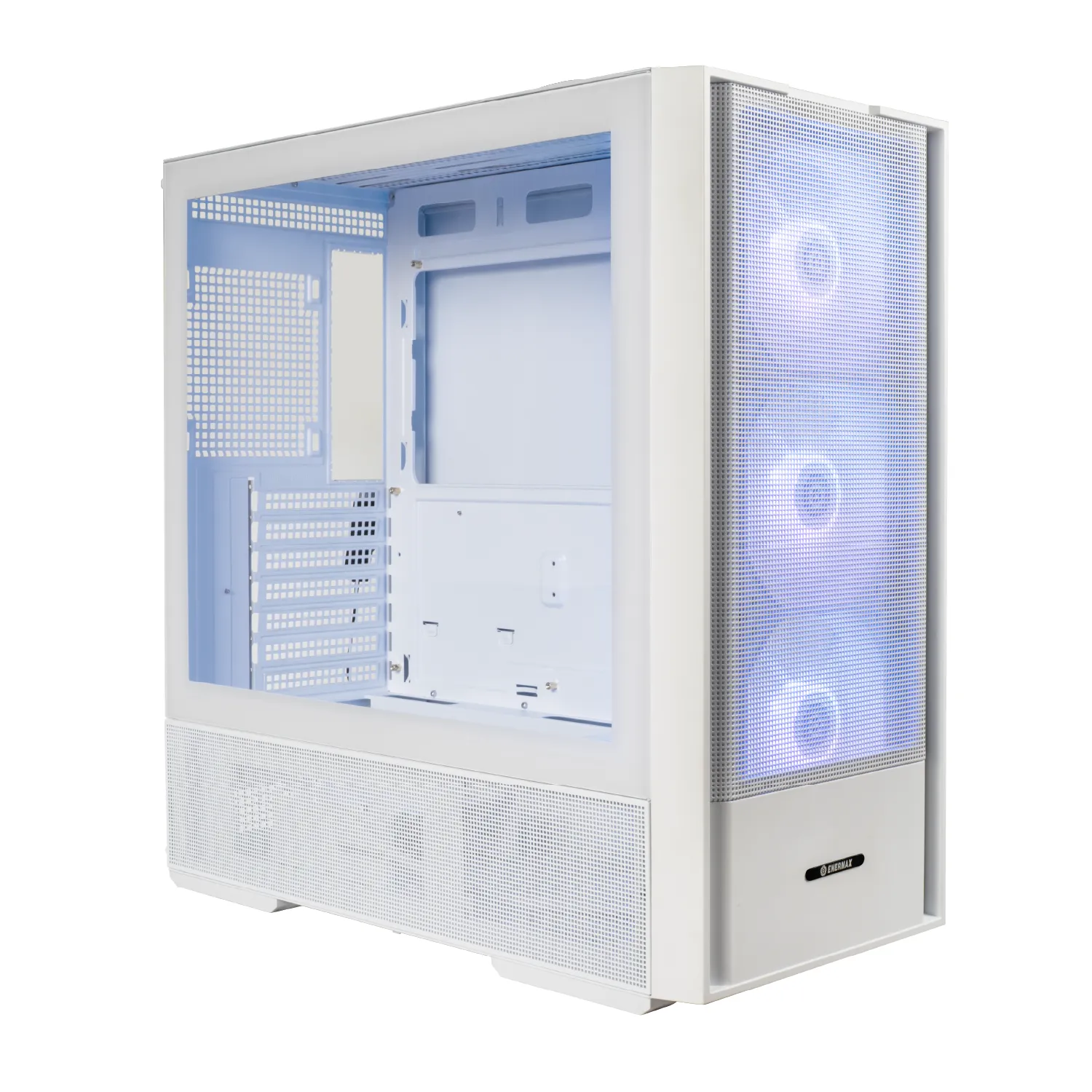

EC-K1A-AIR Tempered Glass Mid-Tower PC Case

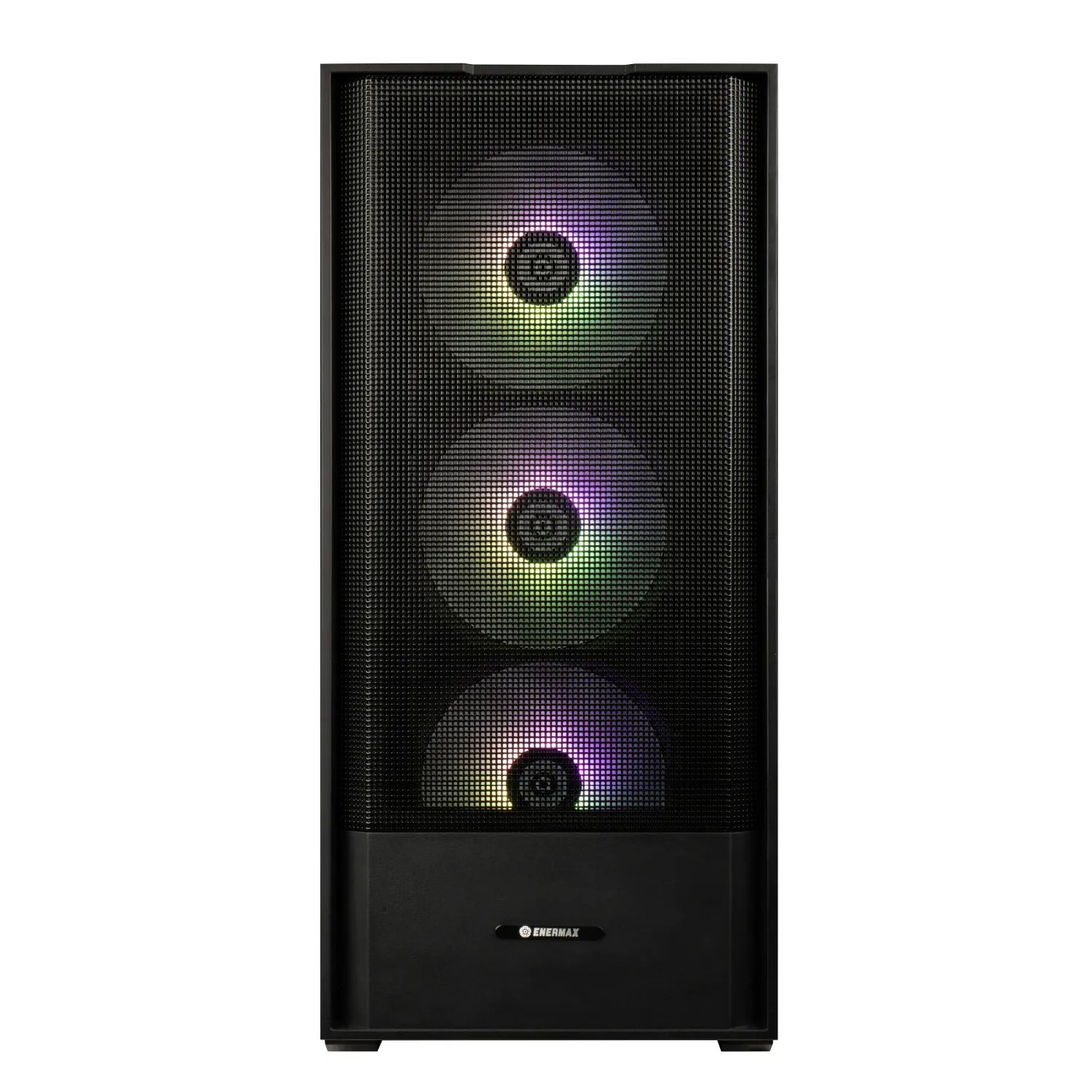

- Front-to-back directional airflow case with full mesh front panel
- Compatible with ATX motherboard and ATX (PS2) PSU up to 150mm
- Support 360mm radiator for exceptional cooling performance
- 3 x 120mm ARGB fans pre-installed
- Support maximum graphics card length of 400mm and CPU cooler height of 165mm
- Top I/O includes 1 x USB3.2 Gen 1 Type-A, USB 2.0 x 2, HD Audio & Mic
Color
Overview
| North America |    |
| Europe | |
| Taiwan |  |
| Worldwide |  |
Specifications
General Data
- Model Name
- EC-K1A-AIR/EC-K1A-AIR-W
- Dimensions (D x W x H)
- 454 x 215 x 465 mm
- M/B Type
- ATX, Micro-ATX, Mini-ITX
- I/O
- USB3.2 Gen 1 Type-A x 1 , USB2.0 x 2 , HD Audio x 1 & Mic
- 3.5'' Drive Bays
- 2 ( 1 x 3.5" and 1 x 2.5 "/3.5" )
- Material
- Tempered Glass, SPCC, Plastic, Mesh
- 2.5'' Drive Bays
- 1 Max. ( 1 x 2.5" / 3.5" )
- Expansion Slots
- 7
- Fan Slots - Front
- 3 x 120 mm / 2 x 140 mm
- Fan Slots - Top
- 3 x 120 mm / 2 x 140 mm
- Fan Slots - Rear
- 1 x 120mm
- Fan Slots - Tunnel
- 2 x 120mm
- Radiator Support - Top
- 120 / 140 / 240 / 280 / 360mm
- Radiator Support - Rear
- 120mm
- PSU Support
- ATX(PS2): 150mm
- Clearance - VGA card
- 400mm (without front radiator Installed)
- Clearance - CPU Cooler
- 165mm
- Cable Routing Space
- 25mm
- Fan Slots - Side
- 2 x 120mm
Shipping Information
- Carton dimensions (D x W x H), (mm)
- 510 x 276 x 533 mm
- Gross Weight (kg)
- 6.98 kg
- Net Weight (kg)
- 6.34 kg
