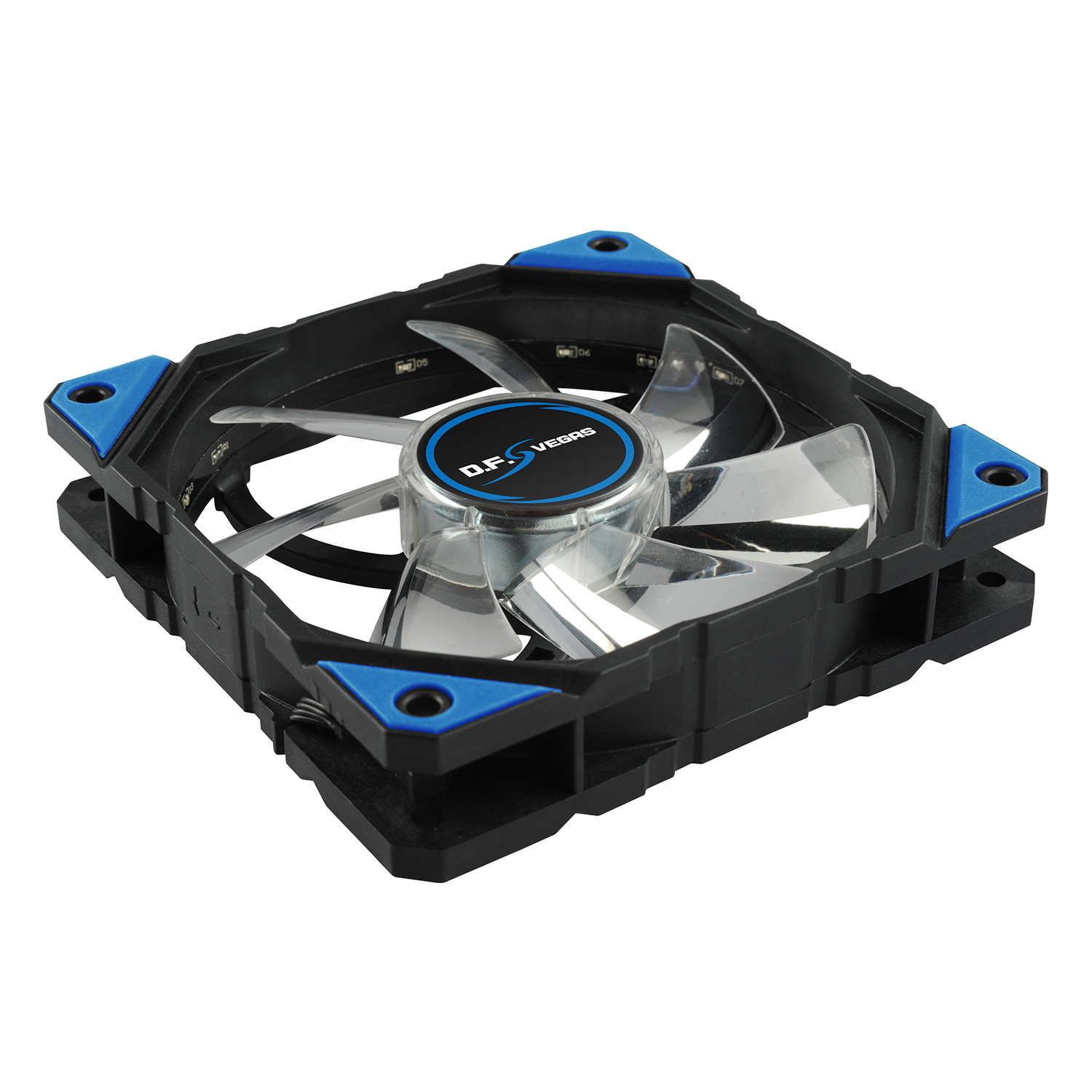

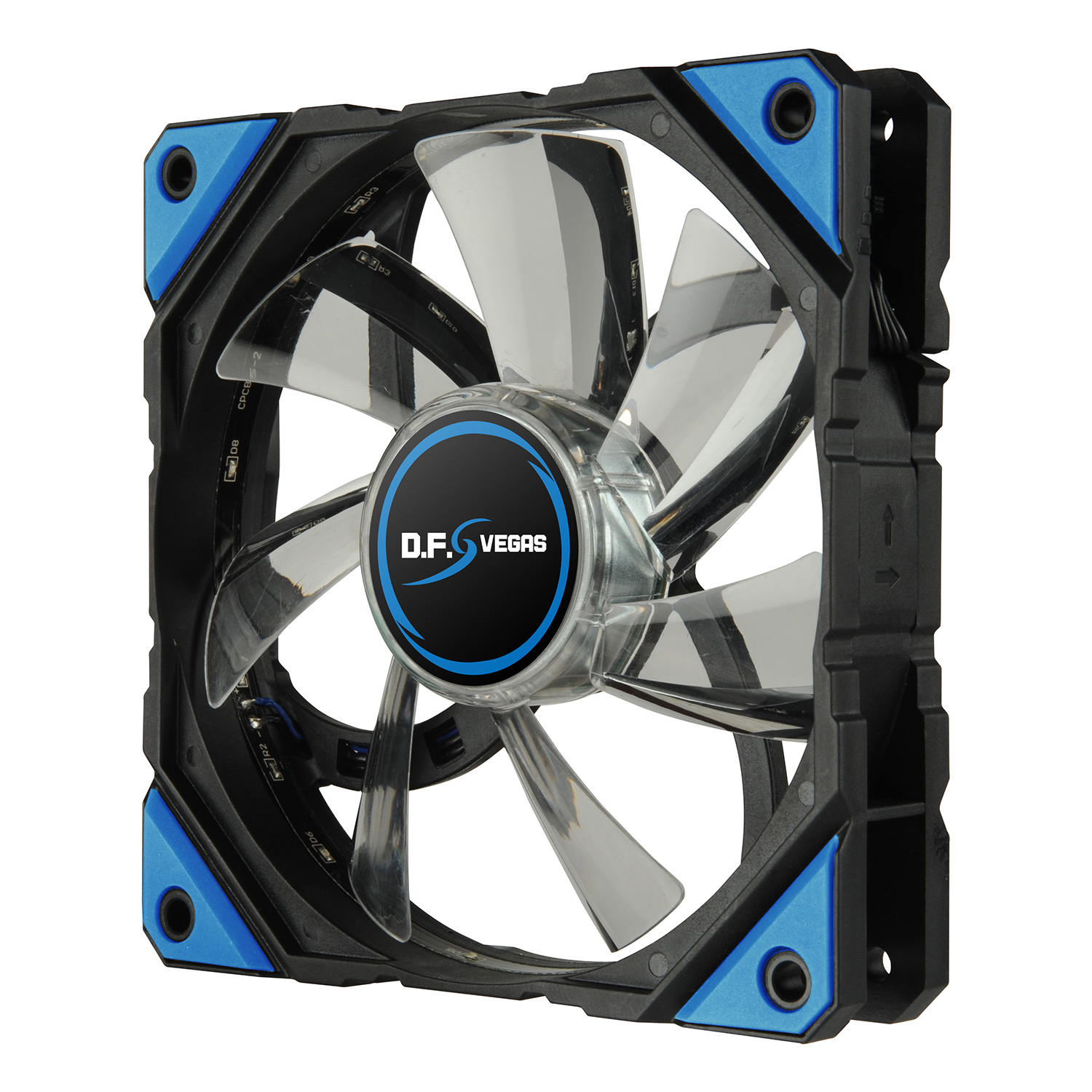

D.F.VEGAS
- Exclusive self-cleaning solution
- Eye-catching LED lighting effects
- Perfect for chassis and gaming rigs
Color
Overview
Patented DFR™ technology* instantly blows away the dust to prolong the lifespan
* Automatic LED self-testing will be activated during the DFR mode

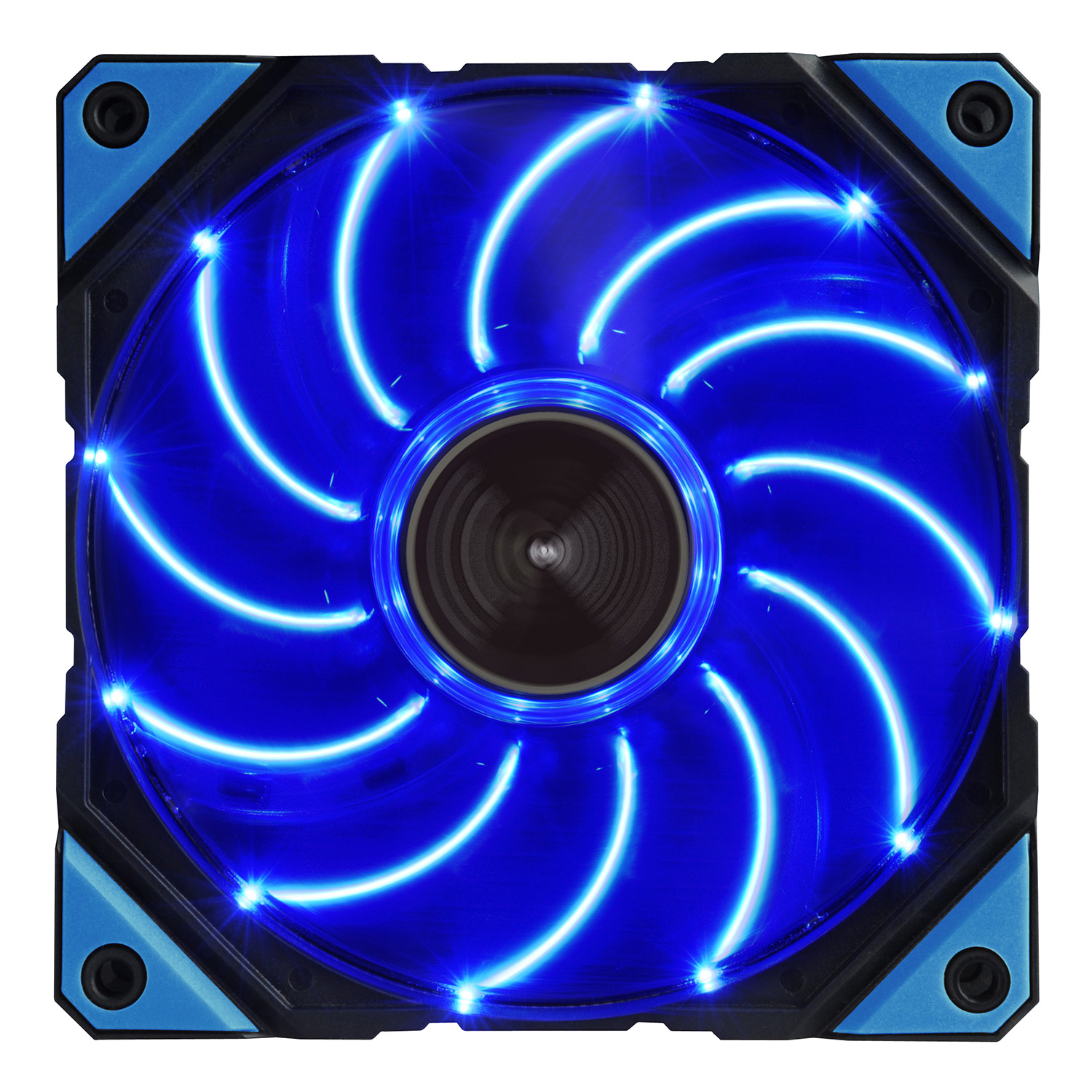

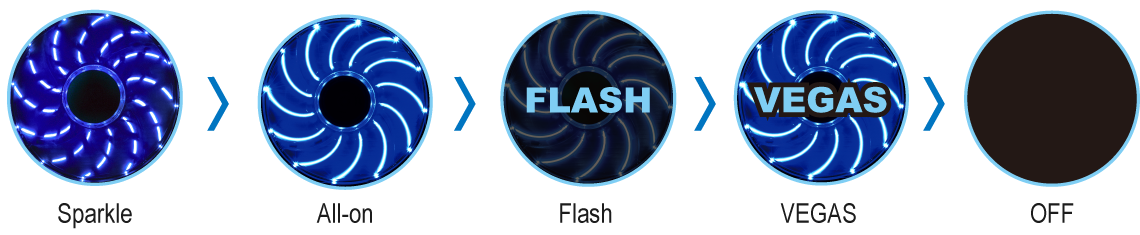

Patented Circular-type LED with 12 diodes and 5 VEGAS LED modes
- Vegas mode autoplays 1-3 mode
- Quick Off : Press the LED control button for 3 seconds for “OFF” mode
- Memory Function : Selected mode will resume when system starts

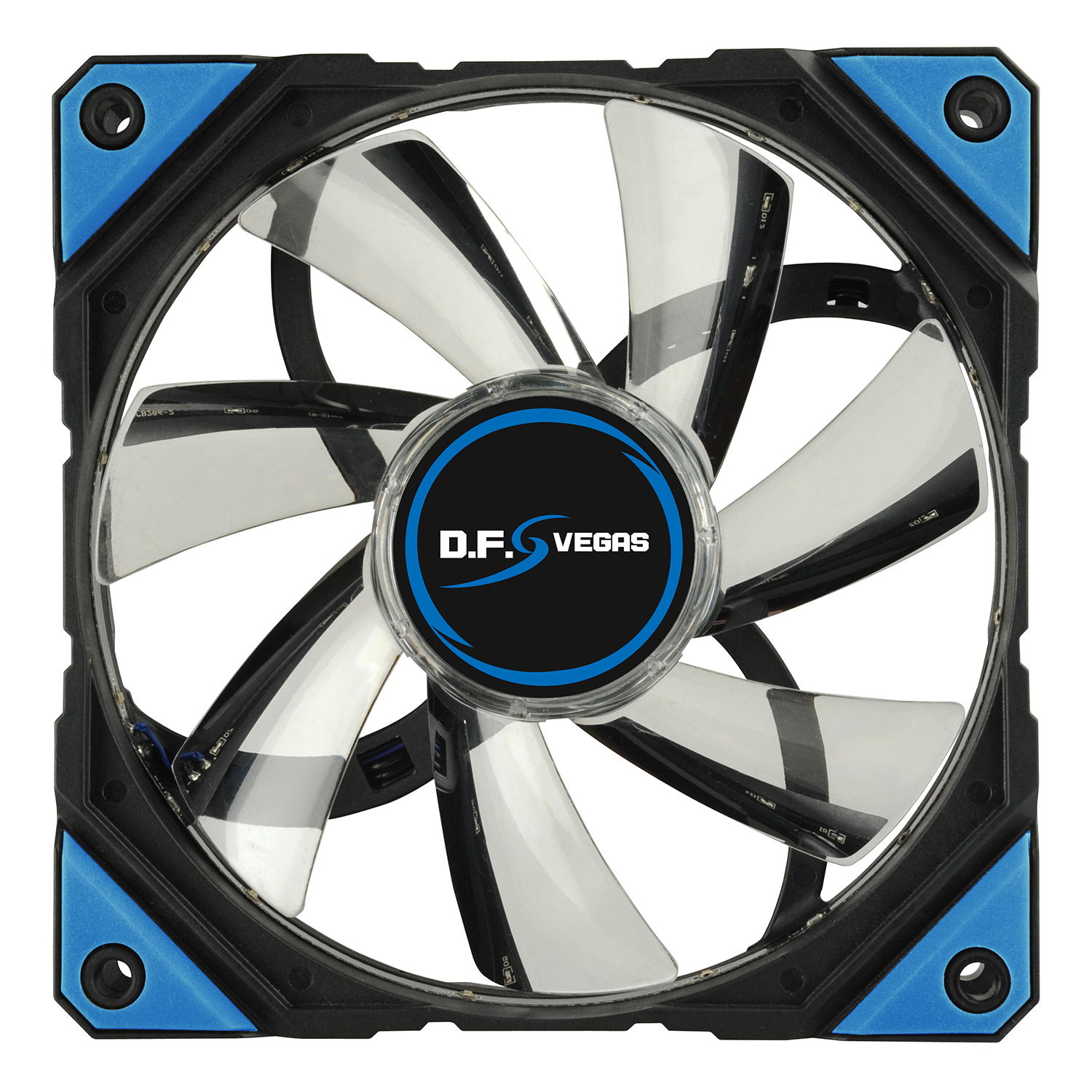

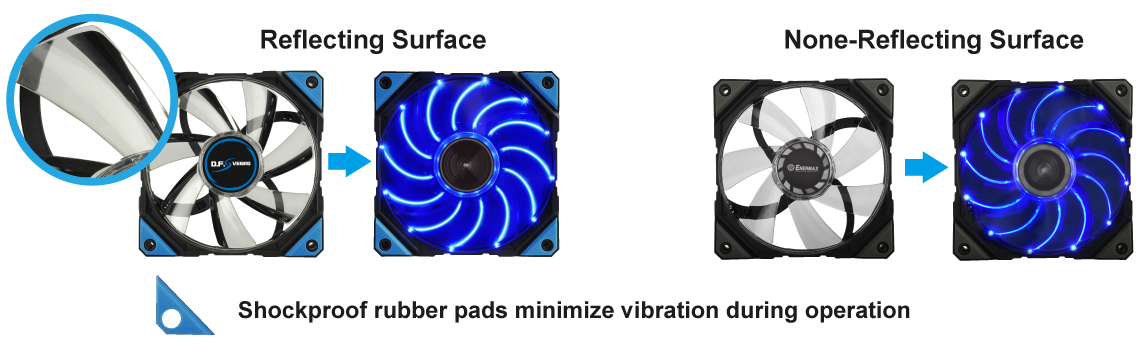

Focus Blades with light reflex strips to create exceptional, curved rays of light

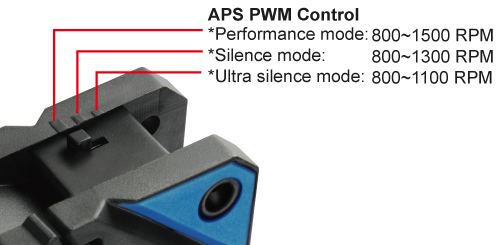

Patented APS (Adjustable Peak Speed) control provides 3 peak rpm options

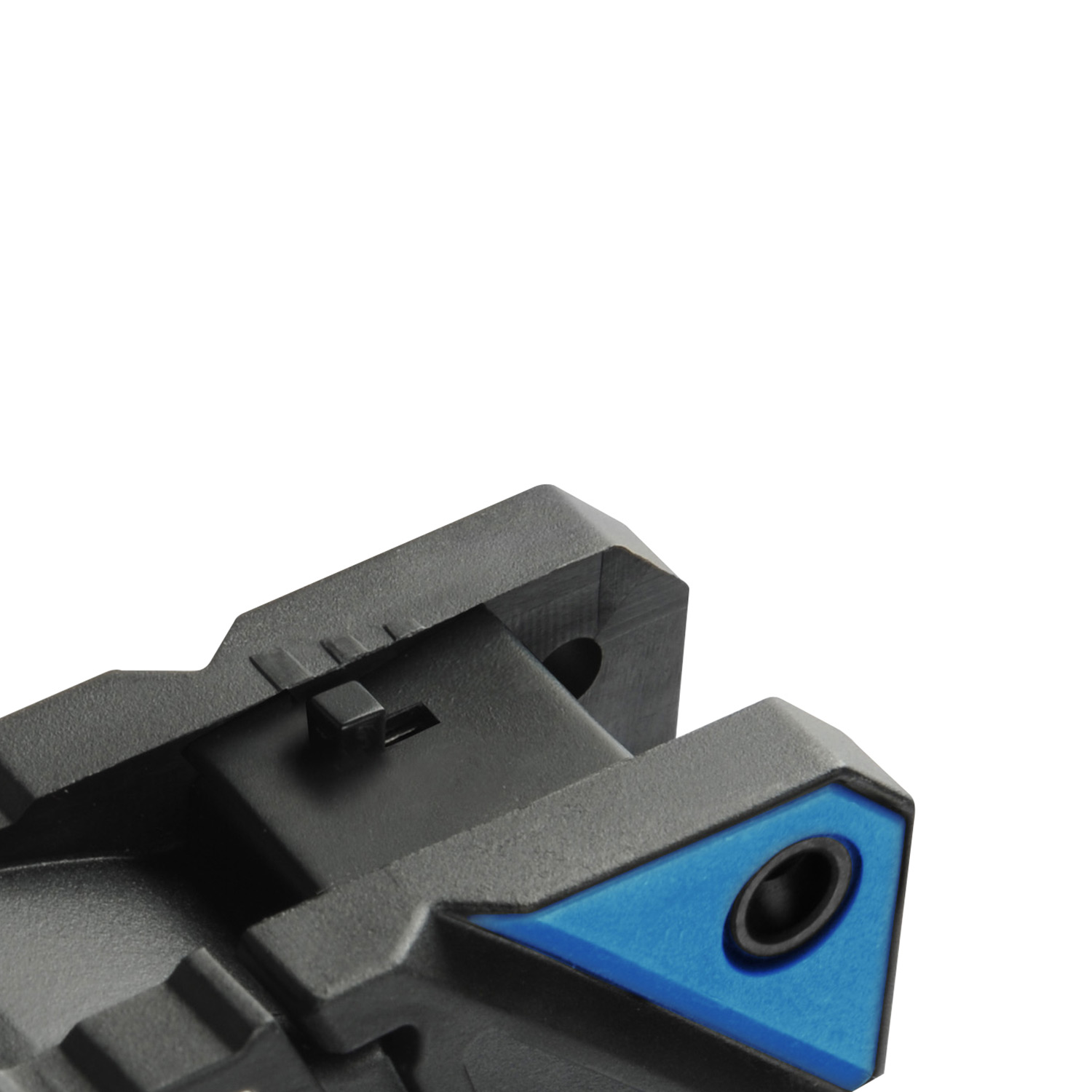

APS control allows users to adjust their preferred fan "PEAK" speed by shifting the speed control. The control switch is located on the side of the frame, making the fan speed adjustment much easier and safer.

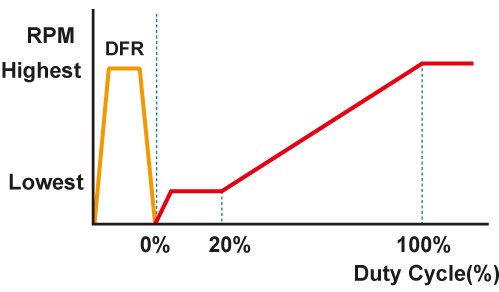

PWM speed control keeps your system cool and silent at all time
Patented Twister Bearing technology for long lifetime and low noise
Ultra silence: 16dBA

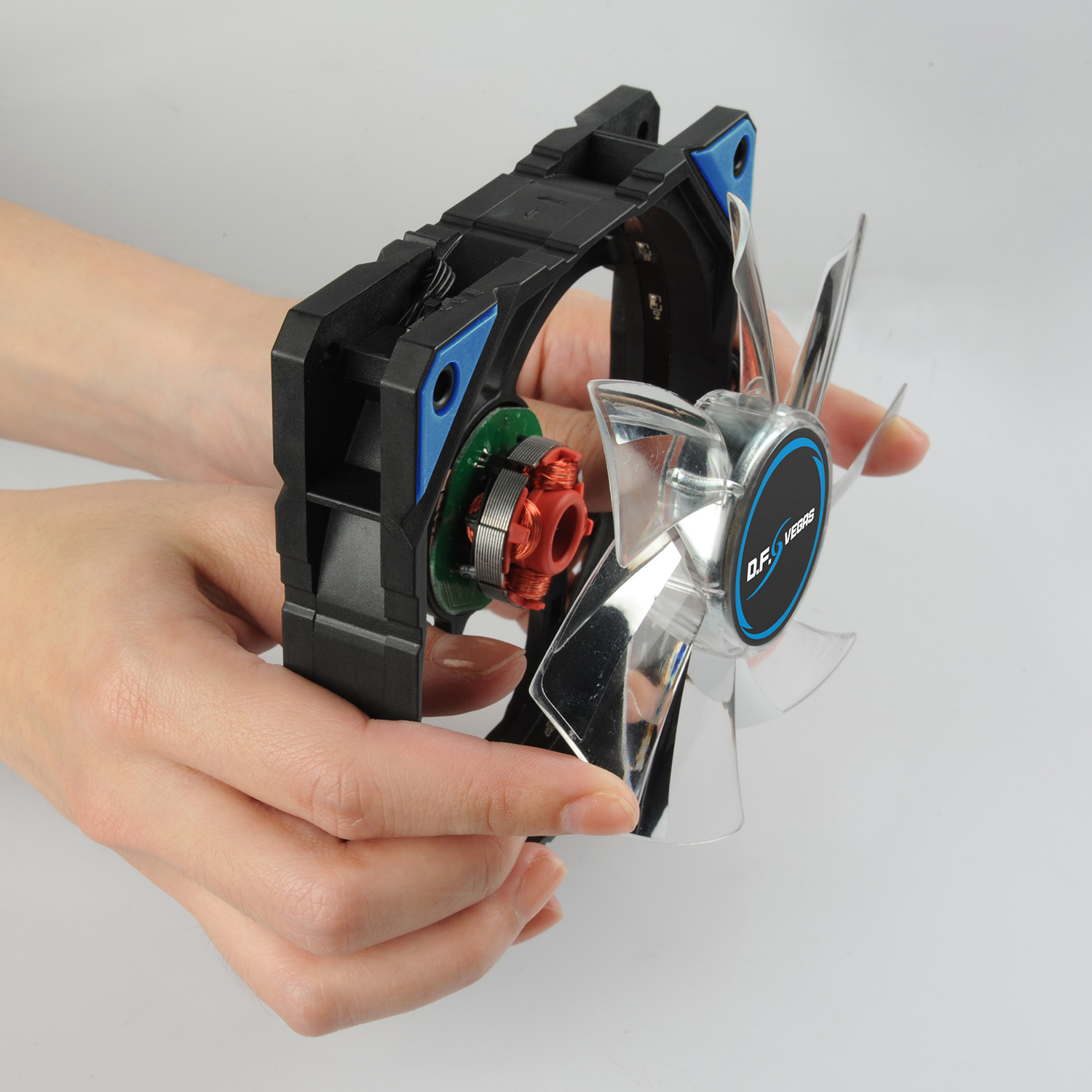

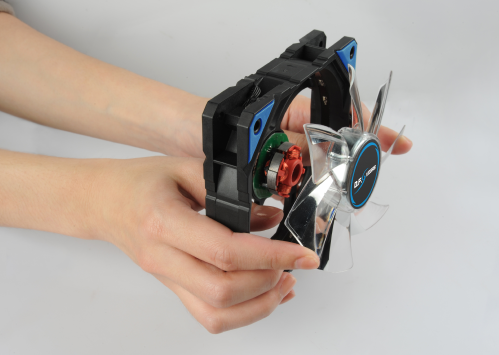

Detachable blade for easy cleaning
Product Introduction
Specifications
General Data
- Model
- UCDFV12P-BL
- Fans/Model
- 1
- Dimension (mm)
- 120(W) x 120(H) x 25(D)
- Speed (RPM)
- 800 ~ 1100/1300/1500 rpm
- Air Flow (CFM)
- 800 ~ 1100 rpm：33.21 ~ 45.33 CFM 800 ~ 1300 rpm：33.21 ~ 53.66 CFM 800 ~ 1500 rpm：33.21 ~ 61.92 CFM
- Air Flow (m³/h)
- 800 ~ 1100 rpm：56.43 ~ 77.02 m3/h 800 ~ 1300 rpm：56.43 ~ 91.17 m3/h 800 ~ 1500 rpm：56.43 ~ 105.20 m3/h
- Static Pressure (mm-H2O)
- 800 ~ 1100 rpm：0.979 ~ 1.297 mm-H2O 800 ~ 1300 rpm：0.979 ~ 1.425 mm-H2O 800 ~ 1500 rpm：0.979 ~ 1.898 mm-H2O
- Fan Maximum Noise (dBA)
- 800 ~ 1100 rpm：16 ~ 18 dBA 800 ~ 1300 rpm：16 ~ 20 dBA 800 ~ 1500 rpm：16 ~ 22 dBA
- Rated Voltage Fan (V)
- 12V
- Rated Current Fan (A)
- 800 ~ 1100 rpm：0.15 A 800 ~ 1300 rpm：0.17 A 800 ~ 1500 rpm：0.20 A
- MTTF (hours)
- ≧160,000 @ 25oC
- Connector
- 1 x 4 pin PWM connector , 1 x 4 pin fan power adaptor
- Accessory
- 8 x screws , 1 x adhesive tape
Shipping Information
- EAN
- 4713157722218
- UPC
- 816163008209
- Box Dimension
- 120 x 182 x 28 mm
- Gross Weight / unit
- 0.21 kg
- Carton Dimension
- 490 x 340 x 260 mm
- Q'ty / carton
- 60 pcs
- Gross Weight / Carton
- 12.5kg
