D.F.Pressure
- 12cm Dust Free Rotation technology fan
- Super high pressure up to 4.812mm-H2O
- Perfect for radiators and chassis

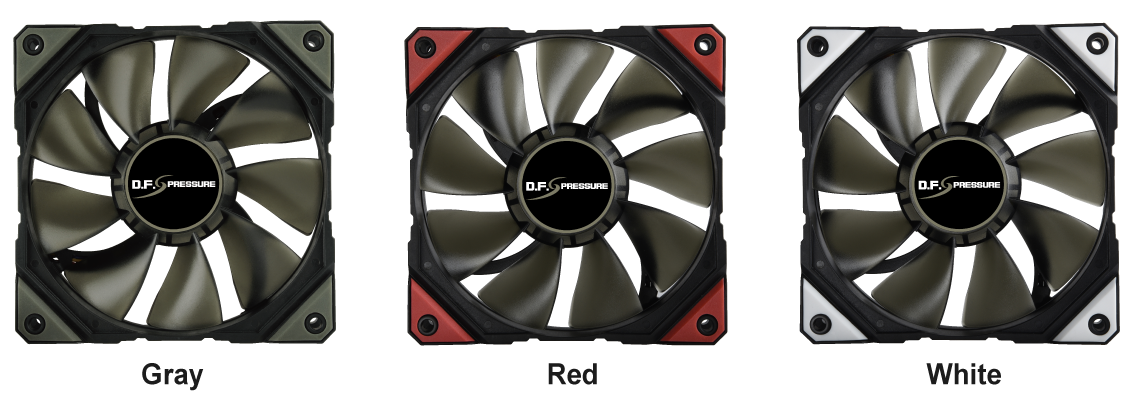

Color
Overview
Patented DFR™ technology instantly blows away the dust to prolong the lifespan
PWM speed control keeps your system cool and silent at all times

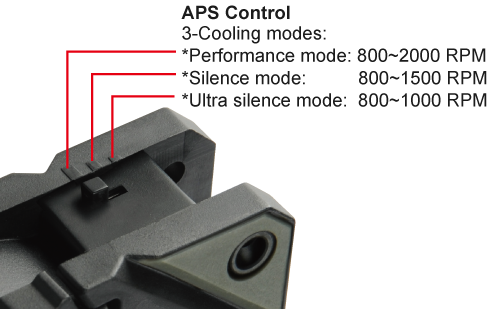

Patented APS (Adjustable Peak Speed) Control provides 3 peak rpm options
APS Control allows users to adjust their perferred fan "PEAK" speed by shifting the speed control. The control switch is located on the side of the frame, making the fan speed adjustment much easier and safer.The fan will run on a pre-set RPM range of customized performance between cooling performance and silent operation.
Patented Twister Bearing for low noise and long lifetime
Ultra silence: 16dBA
Detachable blade for easy cleaning
High Pressure Technology

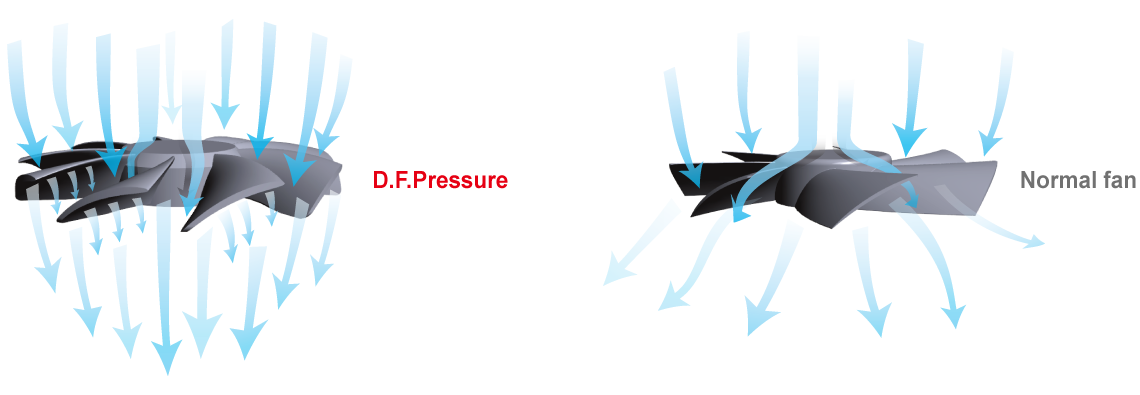

• Blade Design
High pressure blade design is a precision engineering of the blade angle and shape calculation. The blades centralize dispersed air flow to the center of the fan and create extremely high air pressure high airflow while maintaining outstanding quietness.

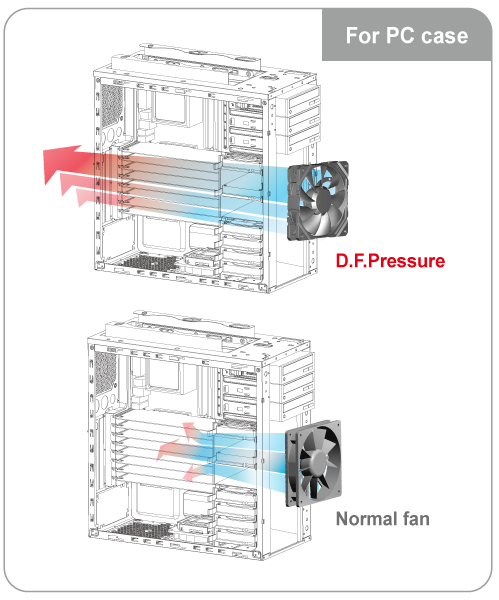

• Application

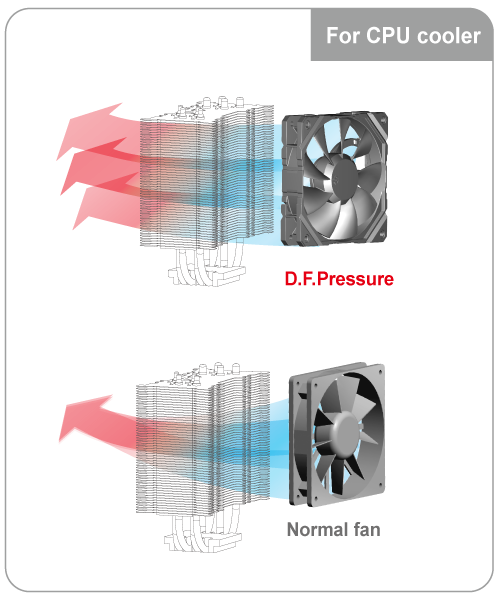

Ideal for cases, CPU coolers and radiators. The high air pressure design drives the airflow to a greater distance while directing the strong, concentrated wind to cool hot spots and boost the cooling efficiency.
3 sets of colored shockproof rubber pads to match your rigs
Product Introduction
Specifications
General Data
- Model
- UCDFP12P
- Fans/Model
- 1
- Dimension (mm)
- 120(W) x 120(H) x 25(D)
- Speed (RPM)
- 800 ~ 1000 / 1500 / 2000 RPM (3 peak rpm options)
- Air Flow (CFM)
- 800 ~ 1000 rpm：33.69 ~ 42.30 CFM 800 ~ 1500 rpm：33.69 ~ 66.87 CFM 800 ~ 2000 rpm：33.69 ~ 85.43 CFM
- Air Flow (m³/h)
- 800 ~ 1000 rpm：57.24 ~ 71.87 m3/h 800 ~ 1500 rpm：57.24 ~ 113.61 m3/h 800 ~ 2000 rpm：57.24 ~ 145.15 m3/h
- Static Pressure (mm-H2O)
- 800 ~ 1000 rpm：0.819 ~ 1.358 mm-H2O 800 ~ 1500 rpm：0.819 ~ 2.701 mm-H2O 800 ~ 2000 rpm：0.819 ~ 4.812 mm-H2O
- Fan Maximum Noise (dBA)
- 800 ~ 1000 rpm：16 ~ 18 dBA 800 ~ 1500 rpm：16 ~ 23 dBA 800 ~ 2000 rpm：16 ~ 27 dBA
- Rated Voltage Fan (V)
- 12V
- Rated Current Fan (A)
- 800 ~ 1000 rpm：0.10 A 800 ~ 1500 rpm：0.15 A 800 ~ 2000 rpm：0.30 A
- MTTF (hours)
- ≧160,000 hours @ 25oC
- Connector
- 4 pin connector
- Accessory
- 8 x screw , 1 x 4 pin fan power adaptor , rubber pads (red*4、white*4)
Shipping Information
- EAN
- 4713157722058
- UPC
- 816163008384
- Box Dimension
- 120 x 182 x 28 mm
- Gross Weight / unit
- 0.22g
- Carton Dimension
- 490 x 340 x 260 mm
- Q'ty / carton
- 60
- Gross Weight / Carton
- 14kg ( 60 units per carton)
