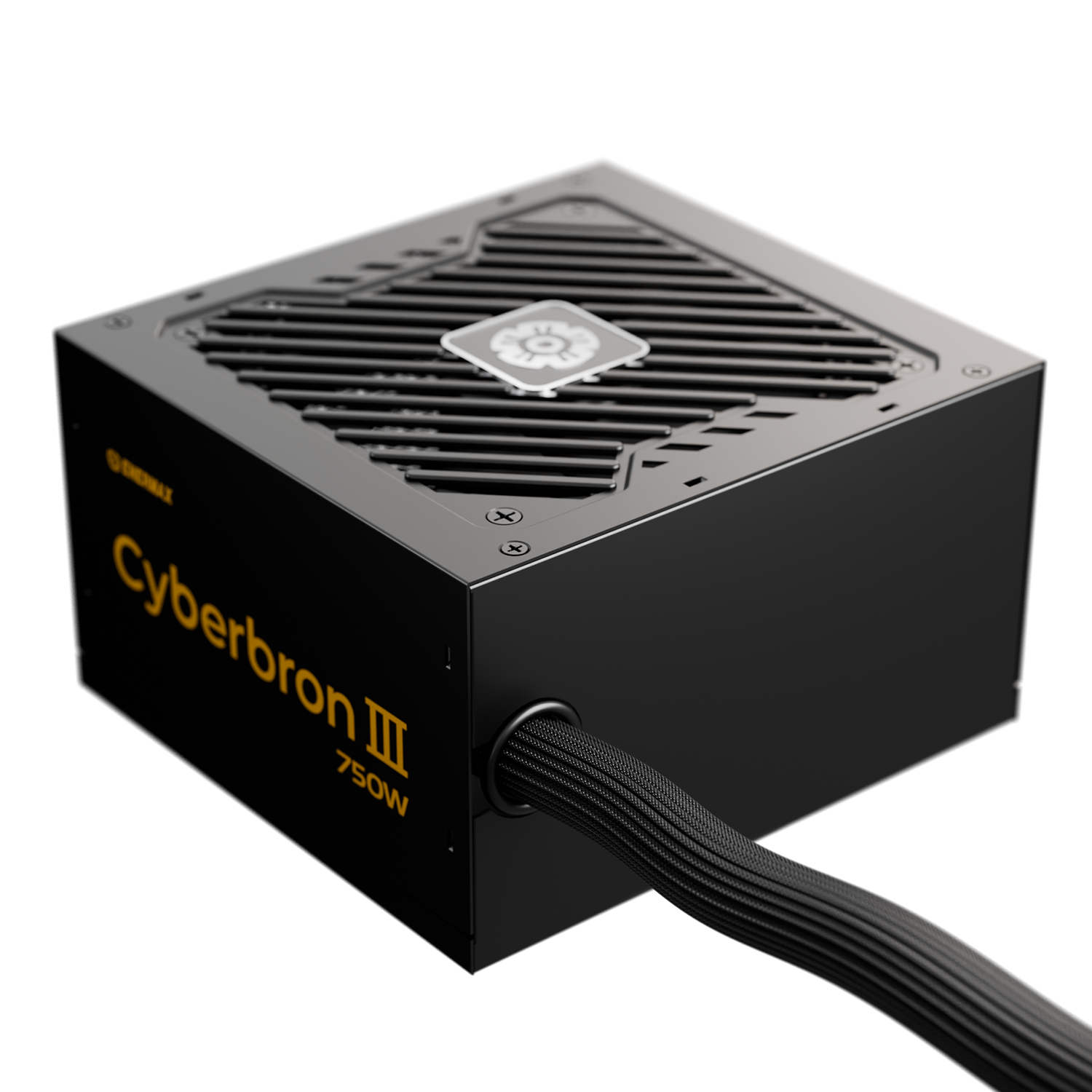

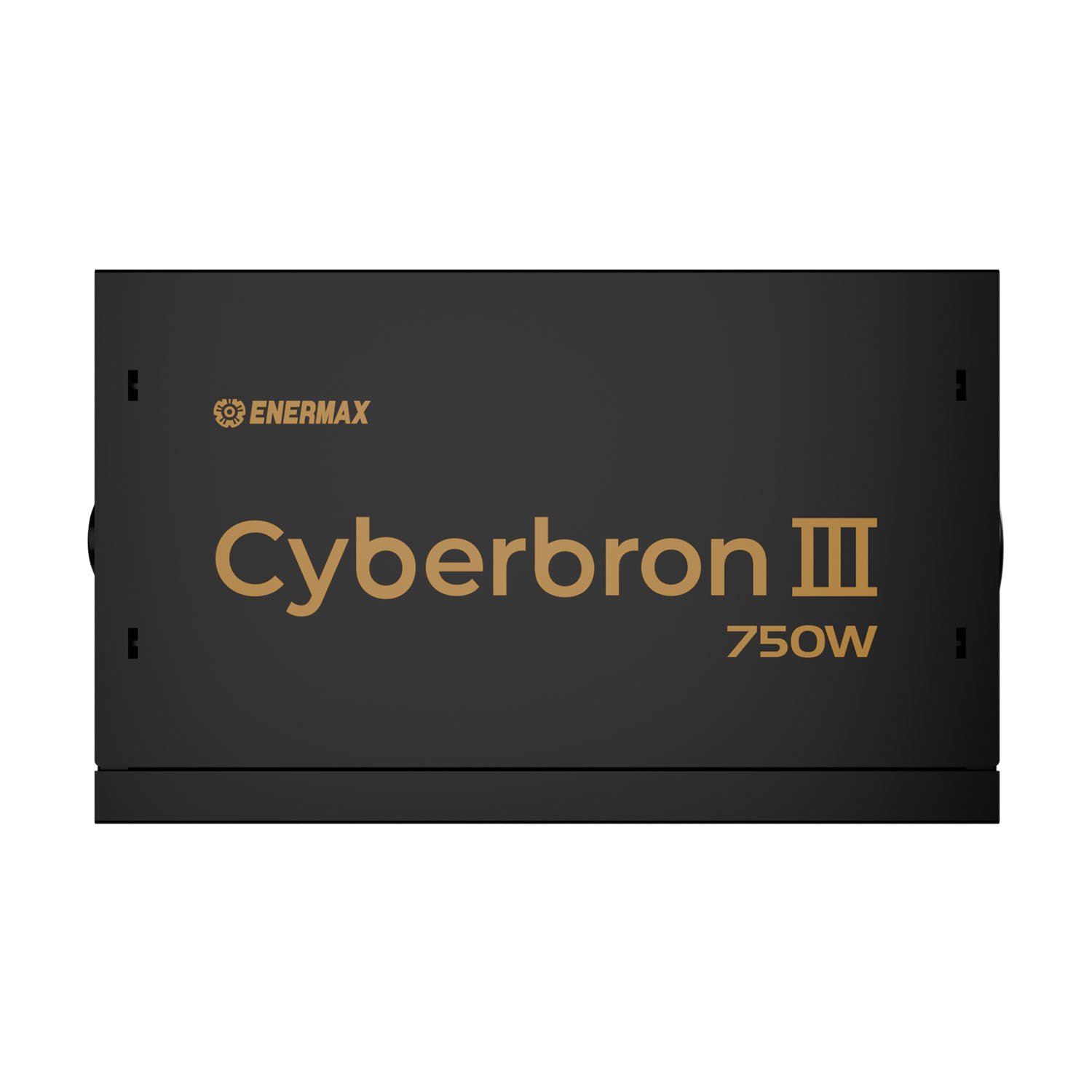

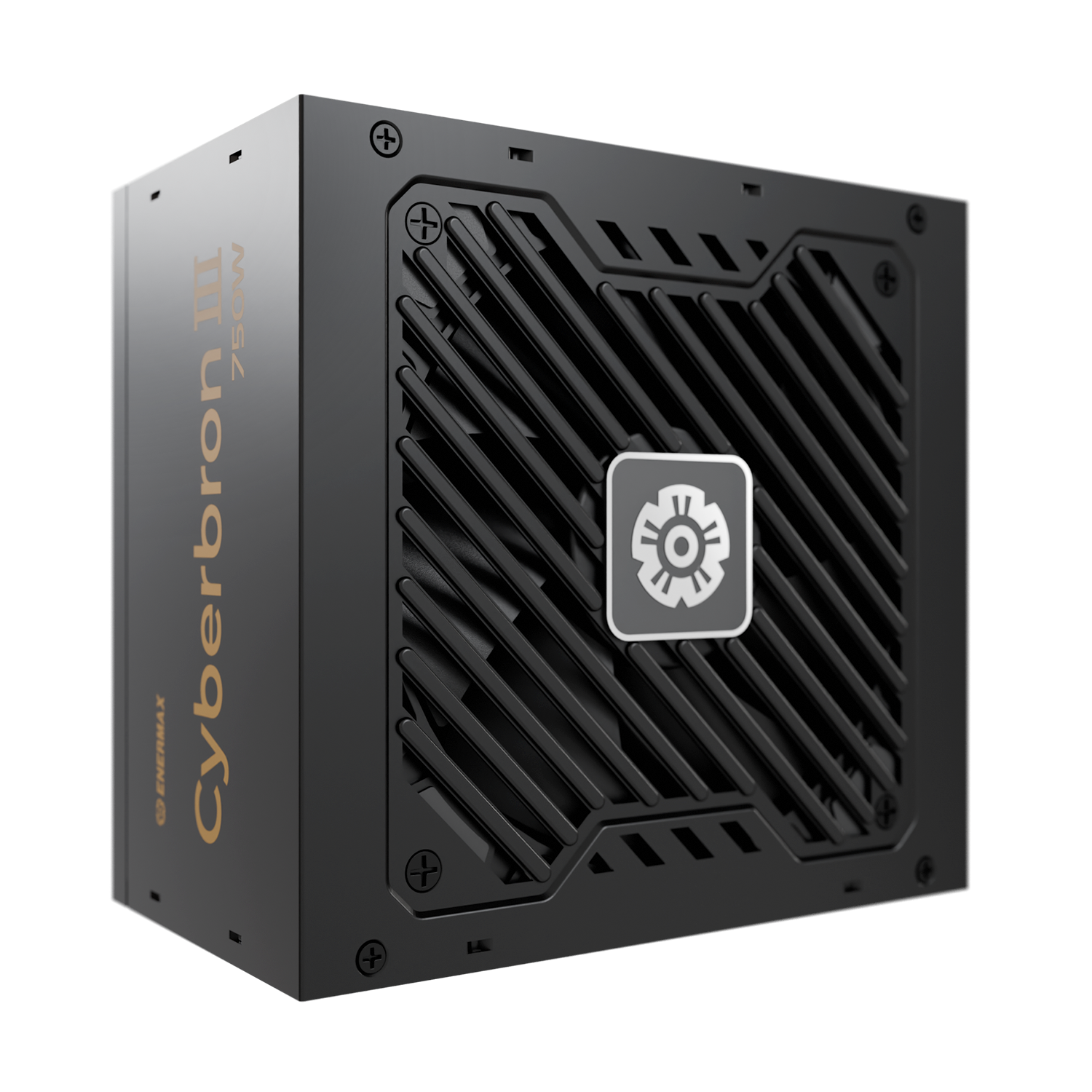

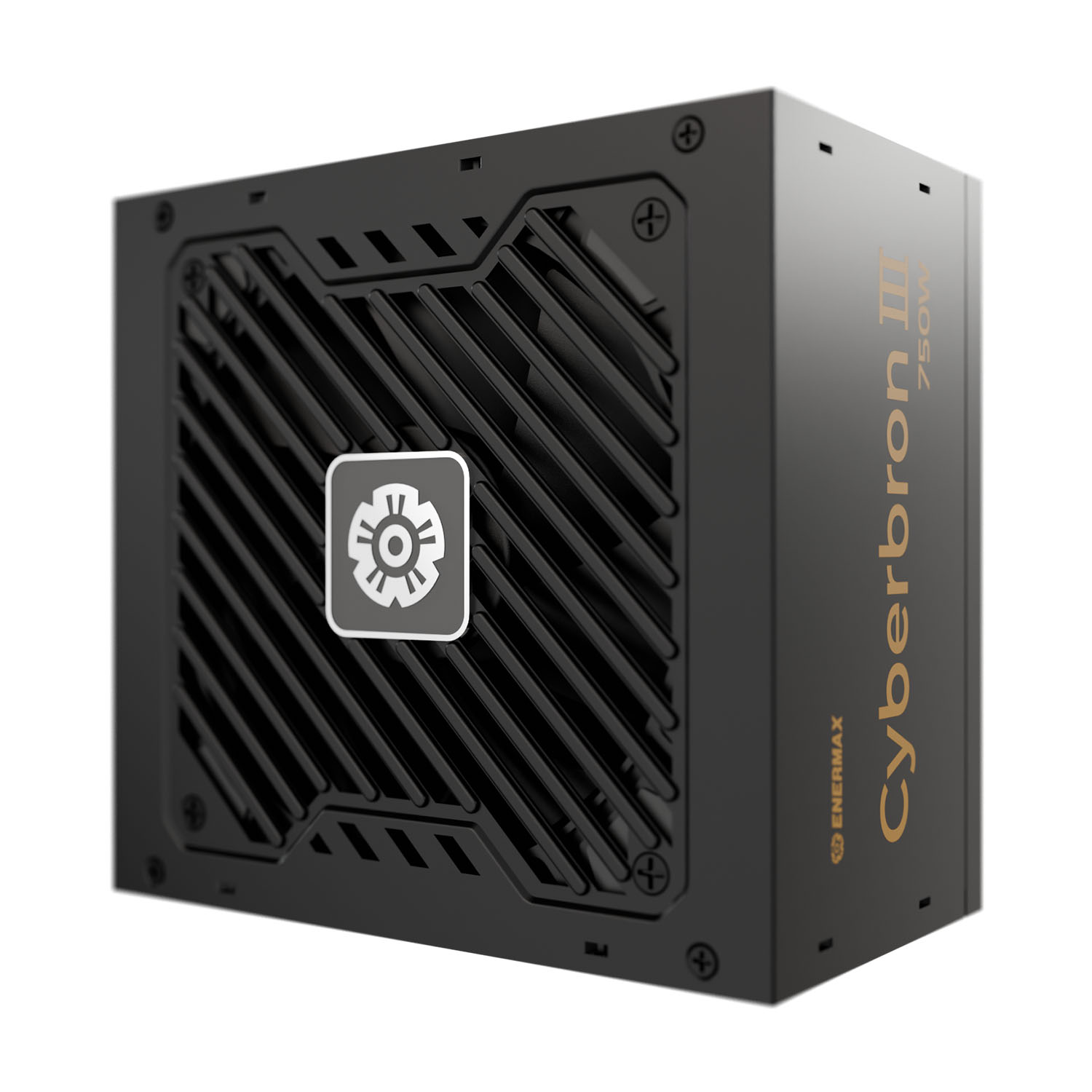

Cyberbron III 750 Watt 80 PLUS Bronze Non-Modular ATX 3.1 Power Supply
- 80 PLUS® Bronze Certified Power Supply
- Integrated with ATX 3.1
- Japanese Primary Capacitors
- DC to DC Circuit
- 120mm FDB Fan
- Non-Modular Design
Color
Overview
ATX 3.1 NON-MODULAR POWER SUPPLY
ENERGY CONSERVATION
- 80 PLUS® Bronze certified with 88% efficiency at 50% loading
- Better power factor performance with active PFC design

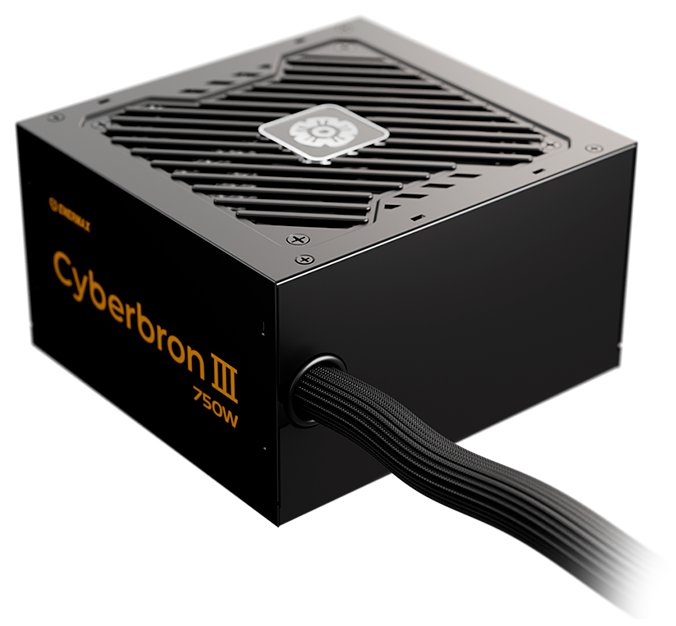

ATX 3.1 READY
Cyberbron III series meets the Intel ATX 3.1 standards, reaches 60% low load efficiency and complies with required power supply timing standards.
The 750W model provides one 450W 12V-2x6 cable and
850W model provides one 600W 12V-2x6 cable.
SILENT OPERATION
120mm FDB fan provides an ultra-silent user experience
NON-MODULAR DESIGN WITH MESH-SLEEVED CABLES
Non-modular design with essential cables for easy system assembly.
JAPANESE PRIMARY CAPACITORS
High-quality Japanese primary capacitors provide the power supply's durability and ensure the Cyberbron III series is stable and reliable.

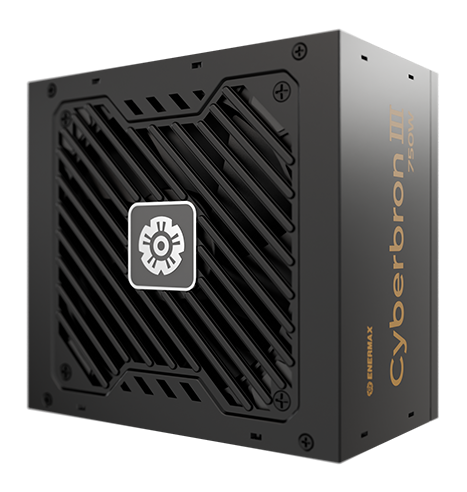

SINGLE RAIL & DC TO DC DESIGN
Delivers stable DC output and supports high-end graphics cards and processors.
| AC Input | 100-240VAC, 50-60Hz, 10-5A | ||||
|---|---|---|---|---|---|
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| 20A | 20A | 62A | 0.3A | 2.5A | |
| 130W | 744W | 3.6W | 12.5W | ||
| Total Power | 750W | ||||
INDUSTRIAL SAFETY STANDARDS
Over Current
Protection
Over Voltage
Protection
Under Voltage
Protection
Over Power
Protection
Over Temperature
Protection
Short Circuit
Protection
DIMENSIONS
Unit: mm
| Connect Type | Connector Quantity | Cable Quantity | Cable Length | |
| Motherboard 24 (20+4)pin |
1 |  |
1 | 55cm |
| CPU(4+4)Pin + (4+4)Pin |
2 |  |
1 | 60+15cm |
| PCIe (6+2) pin + (6+2) pin |
2 |  |
1 | 50+15cm |
| 2 x SATA + 4P Molex |
SATA: 2 4P Molex: 1 |
SATA  Molex  |
1 | 40+15+15cm |
| 3 x SATA + 4P Molex |
SATA: 3 4P Molex: 1 |
SATA Molex |
1 | 40+15+15+15cm |
| 12V-2x6 (12+4)Pin | 1 |  |
1 | 60cm |
Cables & Connectors
| EMB750EWT-NAC | |
| ATX Motherboard 24 (20+4)pin | 1 [ 1 x 55cm ] |
| CPU 4+4 pin | 2 [ 1 x 60/15cm ] |
| PCIe (6+2) Pin + (6+2) Pin | 2 [ 1 x 50/15cm ] |
| 12V-2x6 12+4 pin | 1 [ 1 x 60cm ] 450W |
| 2 x SATA + 1 x 4P Molex | 2 + 1 [ 1 x 40/15/15cm ] |
| 3 x SATA + 1 x 4P Molex | 3 + 1 [ 1 x 40/15/15/15cm ] |
Notice:
For users looking to put in high-end, power-demanding GPU cards, please connect the 6 / 6+2P PCIe connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply as a result of it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire meltdown and could void the warranty.
Specifications
General Data
- 80 PLUS Efficiency
- Bronze
- Modular
- Non-modular
- Cable type
- Individual Mesh-Sleeved Cable
- Total power (W)
- 750
- Input Voltage (V)
- 100-240
- Input Current (A)
- 10-5
- Input Frequency (Hz)
- 50-60
- Fan size (mm)
- 120
- Operating temperature (°C)
- 40
- MTBF (hours)
- >100K
- Protection
- OCP, OVP, UVP, OPP, OTP, SCP
Output
- +3.3V(A)
- 20
- +5V(A)
- 20
- +12V1(A)
- 62
- -12V(A)
- 0.3
- +5Vsb(A)
- 2.5
- Combined Wattage 12V (W)
- 744
- Combined Wattage 3.3V + 5V(W)
- 130
Shipping Information
- EAN code
- 4713157729156
- UPC code
- 819315029152
