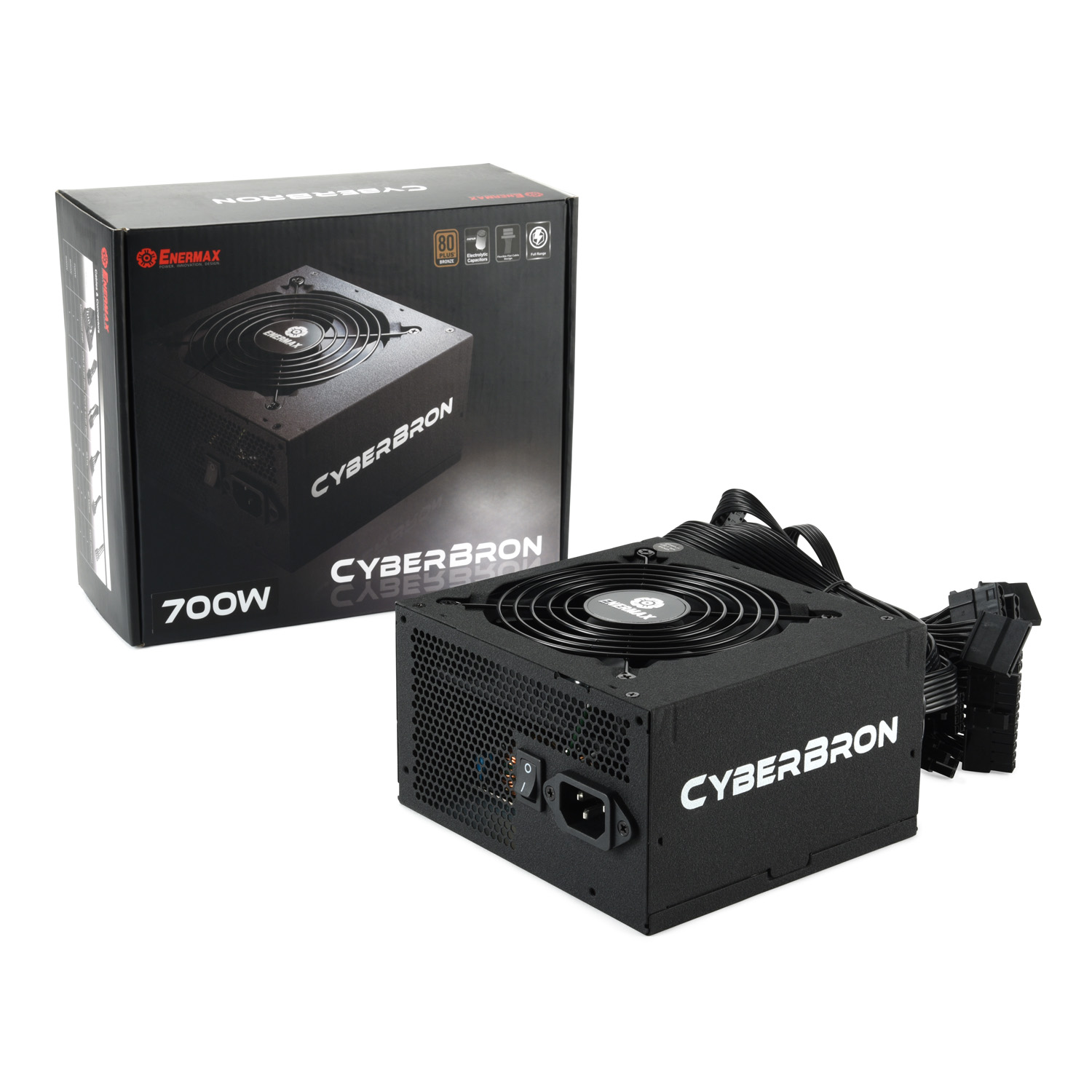

CYBERBRON 700 Watt 80 PLUS Bronze Non-Modular Power Supply
- 80 PLUS® Bronze certification
- Low-profile black flat cables
- Japanese electrolytic capacitors
- Single rail +12V design
- 120mm fan with intelligent RPM control
Color
Overview
Energy conservation
80 PLUS® Bronze certification with 88% efficiency @50% load
Reduce unnecessary power consumption and excess heat to conserve energy to reduce carbon footprint and lower electric bill
80 PLUS® Bronze certification ensures lower power and excess heat with up to 88% efficiency @230VAC 50% load.
Easy Installation
Low-profile black flat cables
- Easy to bend and be in storage inside the case
- Make cable management easier and improve airflow inside the PSU-shroud design chassis
Longer product lifespan
Using Japanese electrolytic capacitors
Provide long-term durability and reliability to ensure PSU have longer lifespan
Silence Operation
Equipped 120mm fan with intelligent RPM control
Provide excellent balance between cooling performance and silent operation
User friendly
Single rail +12V design
Make GPU and CPU operate with less restriction to avoid shutting down from playing games or other heavy usage like computer graphics
Safety
Multiple protection circuitries of OVP, UVP, OPP and SCP
Multiple protection circuitry of OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection) and SCP (Short Circuit Protection) to give your system fully protection
Product Introduction

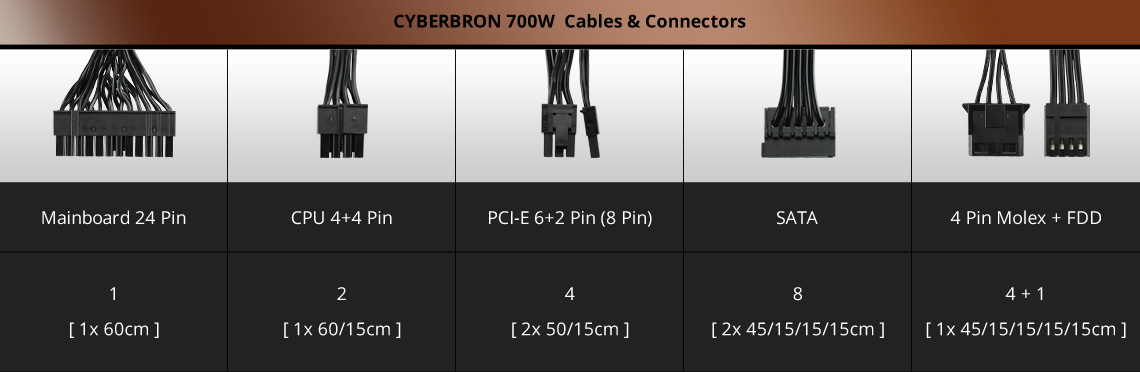

Cables & Connectors
| ECB700EWT | |
| Mainboard 24 Pin | 1 [ 1 x 60cm ] |
| CPU 4+4 Pin | 2 [ 1 x 60/15cm ] |
| PCI-E 6+2 Pin (8 Pin) | 4 [ 2 x 50/15cm ] |
| SATA | 8 [ 2 x 45/15/15/15cm ] |
| 4 x 4 Pin Molex + 1 x FDD | 4 + 1 [ 1 x 45/15/15/15/15cm ] |
Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.
Specifications
General Data
- 80 PLUS Efficiency
- BRONZE
- Modular
- Native
- Cable type
- Black flat
- Total power (W)
- 700
- Input Voltage (V)
- 100-240
- Input Current (A)
- 10
- Input Frequency (Hz)
- 47-63
- Fan size (mm)
- 120
- Operating temperature (°C)
- 40
- MTBF (hours)
- >100K
- Protection
- OVP, UVP, OPP, SCP
- Dimension (D x W x H), (mm)
- 140 x 150 x 86
Output
- +3.3V(A)
- 19
- +5V(A)
- 17
- +12V1(A)
- 54
- -12V(A)
- 0.3
- +5Vsb(A)
- 2.5
- Combined Wattage 12V (W)
- 648
- Combined Wattage 3.3V + 5V(W)
- 110
Shipping Information
- EAN code
- 4713157724960
- UPC code
- 819315024966
- Box dimensions (D x W x H), (mm)
- 230 x 200 x 98
- Gross Weight / unit (kg)
- 2.2
