CLUSTER ADVANCE (12cm)
- Patented Twister Bearing for longer life span and lower noise operation
- Batwing blades and carved Halo frame provide extra 20%~30% airflow
- PWM speed control with 3 peak speed APS (Adjustable Peak Speed) control to keep system stay cool and silent
- Detachable fan blades for easy cleaning
Color
Overview
Features

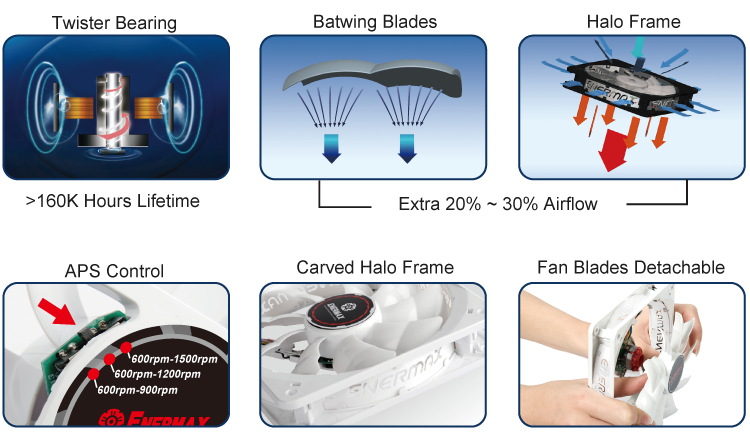

- PWM speed control to keep your system cool and silent all the time
- Smart APS (Adjustable Peak Speed) control providing 3 peak rpm options
- Twister Bearing technology for long lifetime and low noise
- Batwing Blades design and Carved Halo Frame for extra 20%~30% airflow
- Detachable fan blades for easy cleaning
- Isolator-mounts for shockproof and easy installation
- White lightning LED on/off
Specifications
General Data
- Model
- UCCLA12P
- Fans/Model
- 1
- Dimension (mm)
- 120 x 120 x 25
- Speed (RPM)
- 500 ~ 1200/1500/1800 RPM
- Air Flow (CFM)
- 500 ~ 1200 rpm：26.51~53.02 CFM 500 ~ 1500 rpm：26.51~71.25 CFM 500 ~ 1800 rpm：26.51~86.69 CFM
- Air Flow (m³/h)
- 500 ~ 1200 rpm：45.04~90.08 m3/h 500 ~ 1500 rpm：45.04~121.05 m3/h 500 ~ 1800 rpm：45.04~147.29 m3/h
- Static Pressure (mm-H2O)
- 500 ~ 1200 rpm：0.483~1.073 mm-H2O 500 ~ 1500 rpm：0.483~1.676 mm-H2O 500 ~ 1800 rpm：0.483~2.414 mm-H2O
- Fan Maximum Noise (dBA)
- 8 dBA
- Rated Voltage Fan (V)
- 12V
- Rated Current Fan (A)
- 500 ~ 1200 rpm：0.18A 500 ~ 1500 rpm：0.25A 500 ~ 1800 rpm：0.35A
- MTTF (hours)
- ≧ 160,000
- Connector
- 1 x 4 pin PWM connector ; 1 x 4 pin fan power adaptor
