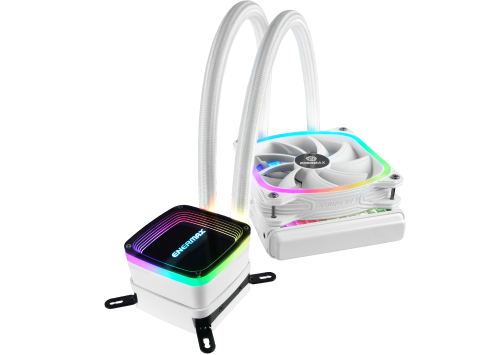

AQUAFUSION Series 120mm Liquid CPU Cooler, White
- Glossy acrylic and Aurabelt™ water block for
- vivid lighting effects
- Patented Dual Chamber water block design
- Patented Shunt Channel Technology
- ENERMAX SquA RGB fans included
- Supports addressable RGB M/B sync
Color
Overview

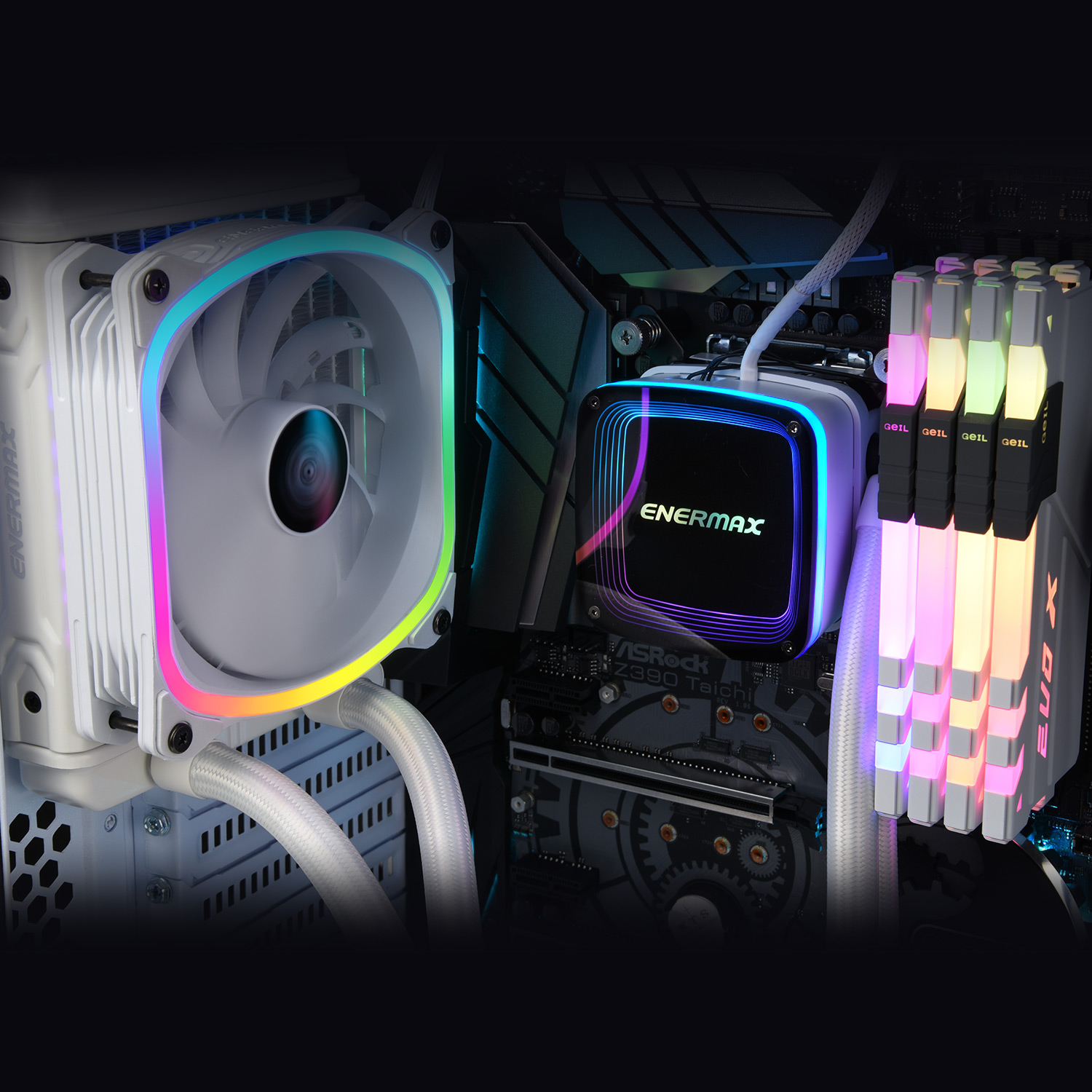

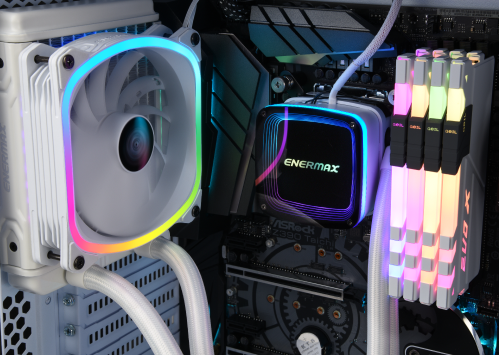

Luminous Aurabelt™ for vivid lighting effects
The 3D Layer Design with Aurabelt™ provides unique rainbow effects with 16.8 million colors

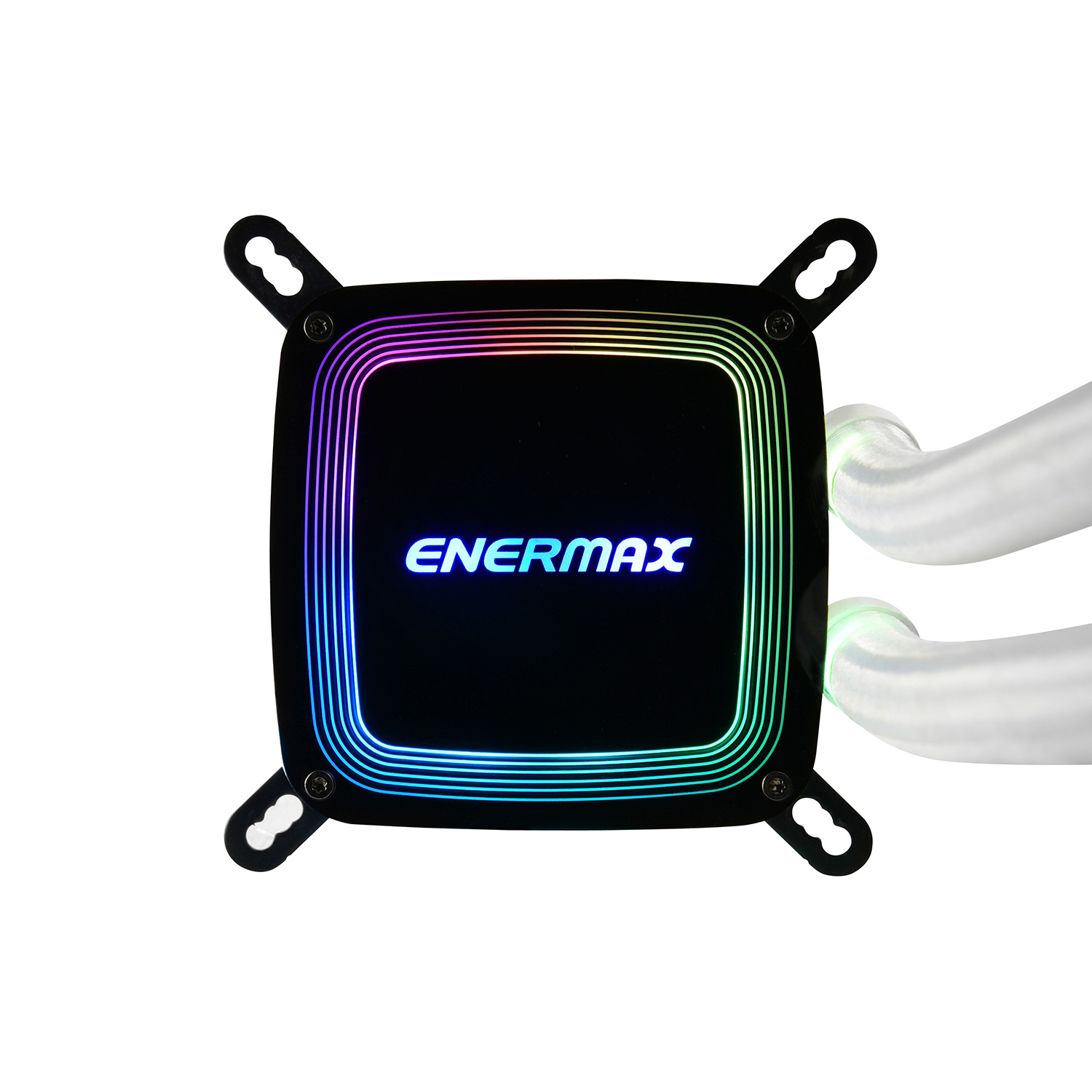

Patented Dual-Chamber Design water block
Patented Dual-Chamber Design isolate the pump from the heat to prolong the cooler’s lifetime
Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)
Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer

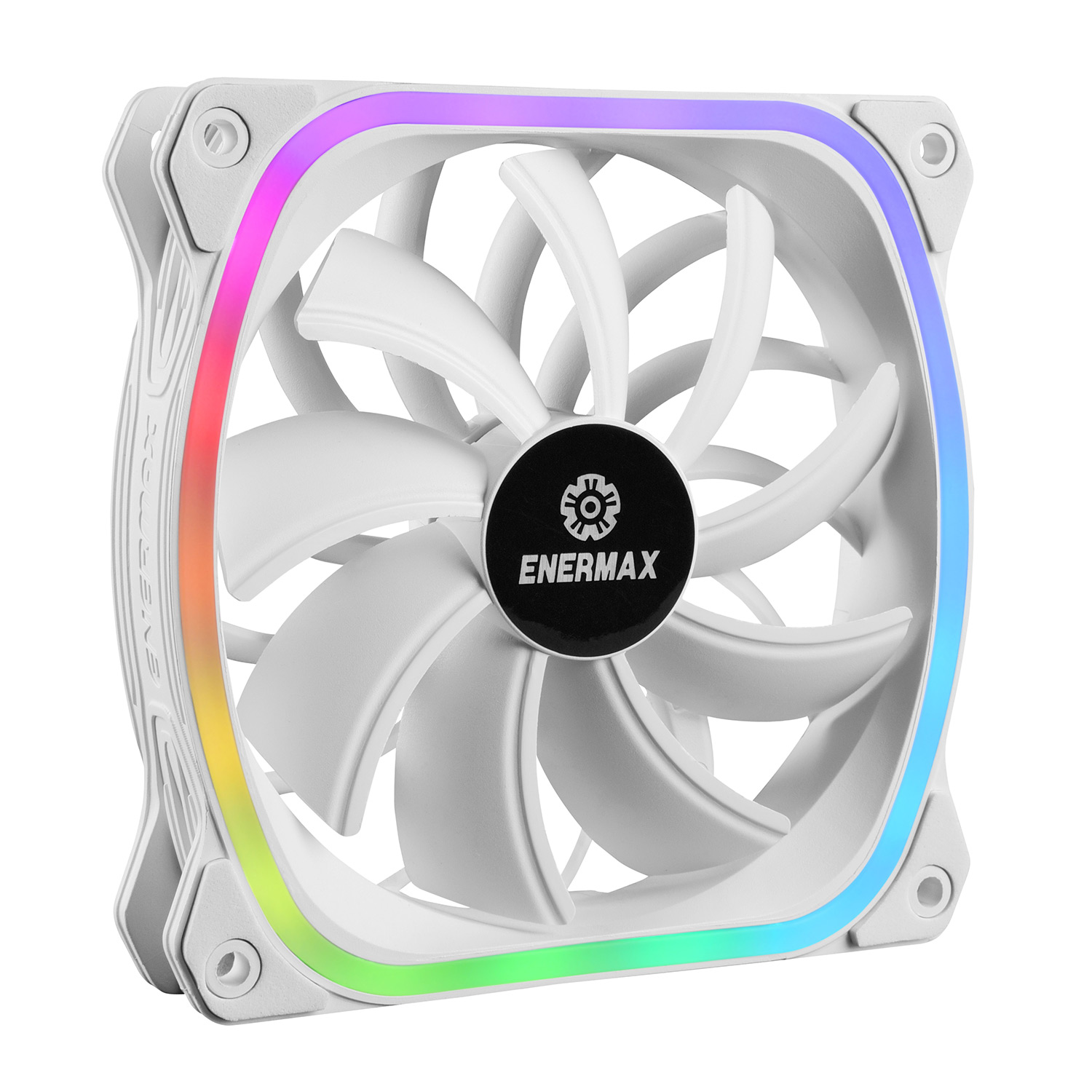

ENERMAX SquA RGB (fans)
ENERMAX SquA RGB, square-shaped addressable RGB fans featuring vortex frame design can generate centered, stronger air pressure, especially perfect for radiator
Addressable RGB lighting synchronization
AQUAFUSION is designed to synchronize with addressable RGB motherboards (3 pin assignment is 5V/D/G) which users can program preferred lighting effects via motherboard software
2 ways to control RGB lighting effects
Through Motherboard Software
Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)
Through ENERMAX RGB Control Box
Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speed
Premium 400mm weaved tubing is perfect for mainstream system builds

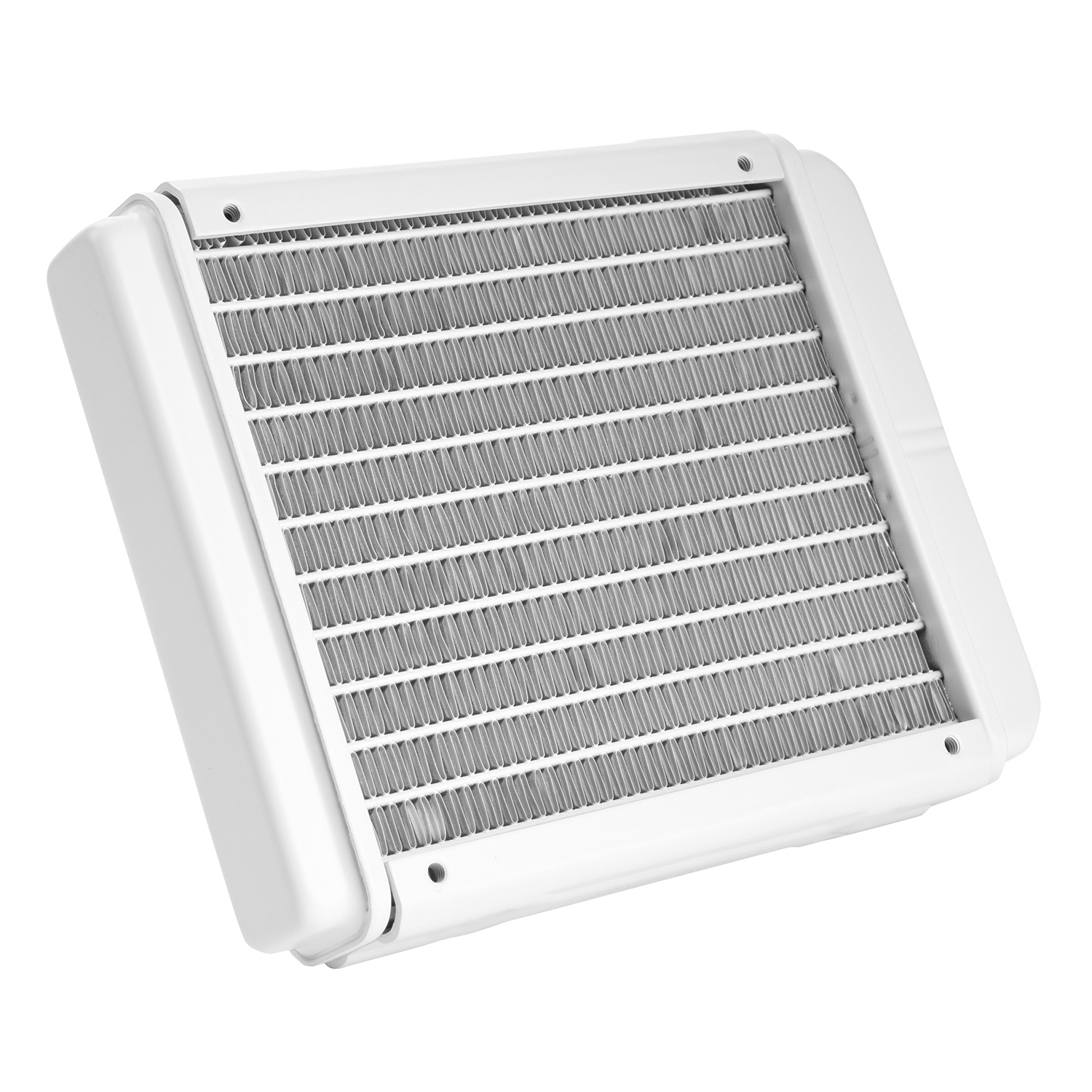

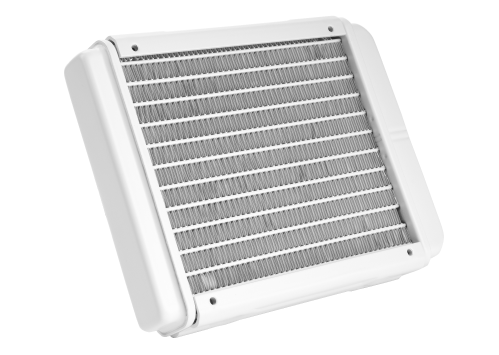

The channels on radiator are meticulously design, combined with thin aluminum fins to deliver high heat exchange capacity.
AQUAFUSION WHITE comes in 2 sizes：compact 120mm radiator and standard 240mm radiator
Dimension
Product Introduction
Installation Guide
Specifications
General Data
- Model
- ELC-AQF120-SQA-W
- CPU Socket
- Intel® LGA 1700/1200/115x/2066/2011/2011-3/1366 AMD® AM5/AM4/AM3+/FM2+/FM1
- TDP
- 300 W
- Cold Plate Material
- Copper
- Radiator Material
- Aluminum
- Radiator Dimension
- 154 x 120 x 27 mm
- Pump Bearing
- Ceramic Bearing
- Pump MTBF
- ≧ 50,000 hrs
- Pump Rated Voltage
- 12 V
- Fan Speed
- 500~2000 RPM ±10%
- Pump Rated Current
- 0.7 A
- Pump Rated Current - RGB LED
- 0.42 A
- Fan Dimension (Radiator)
- 120 x 120 x 26 mm
- Fan MTTF
- ≧ 100,000 hrs
- Fan Rated Voltage
- 12 V
- Fan Rated Current
- 0.38 A
- Fan Rated Current RGB LED
- 0.68 A
- Fan Air Flow
- 39~79.8 CFM
- Fan Static Pressure
- 0.67~3.6 mm-H2O
- Fan Connector
- 4 Pin PWM + 3 Pin RGB (W/ extension adapter)
- Fan Maximum Noise
- 17~32.6 dBA
- ACCESSORY
- Thermal grease included
- Fan Screw
- M3.5
Shipping Information
- EAN
- 4713157724274
- UPC
- 819315024270
- Box Dimension
- 259 x 215 x 137 mm
- Gross Weight / unit
- 1.53 kg
- Carton Dimension
- 539 x 300 x 460 mm
- Q'ty / carton
- 8 PCS
- Gross Weight / Carton
- 13.27 kg
