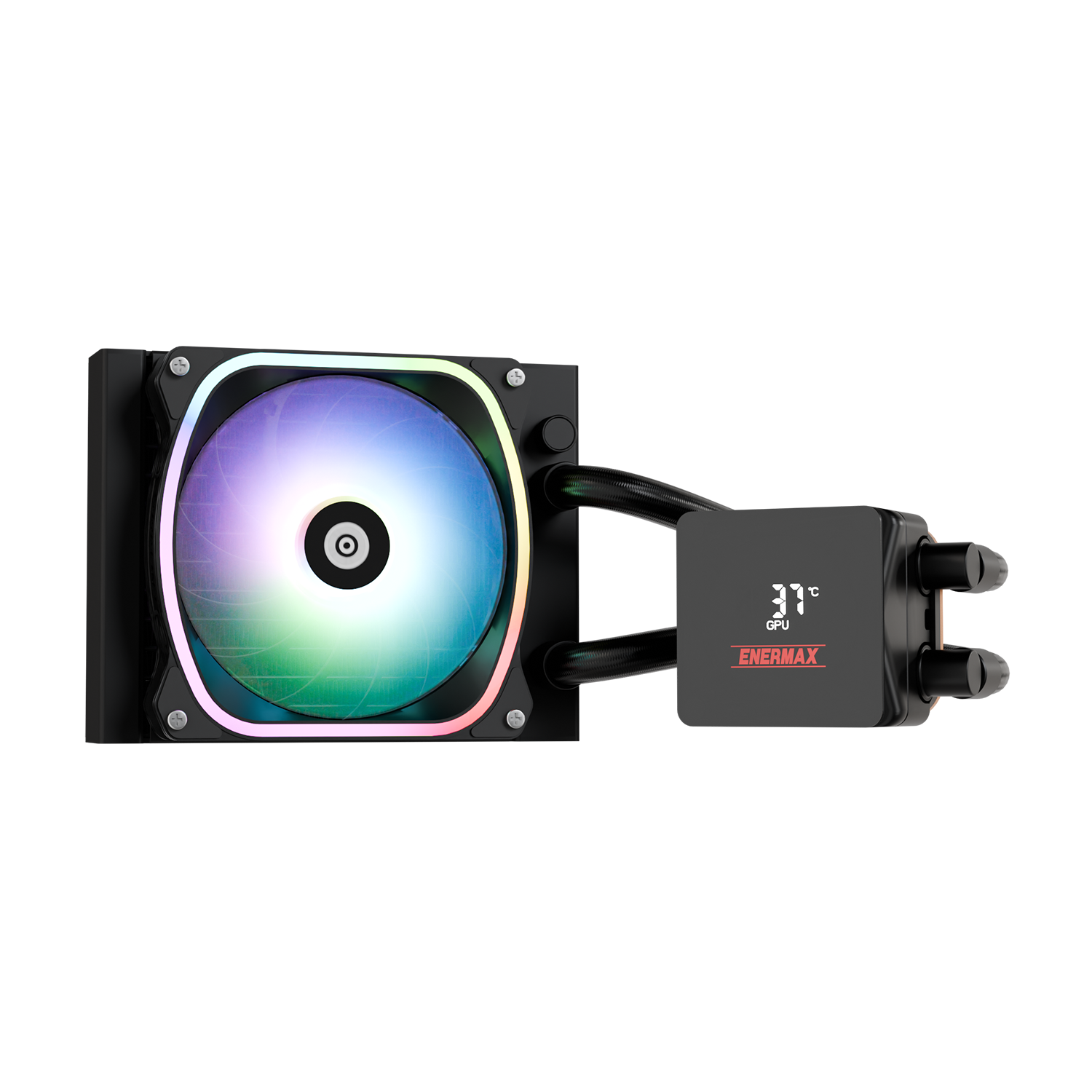

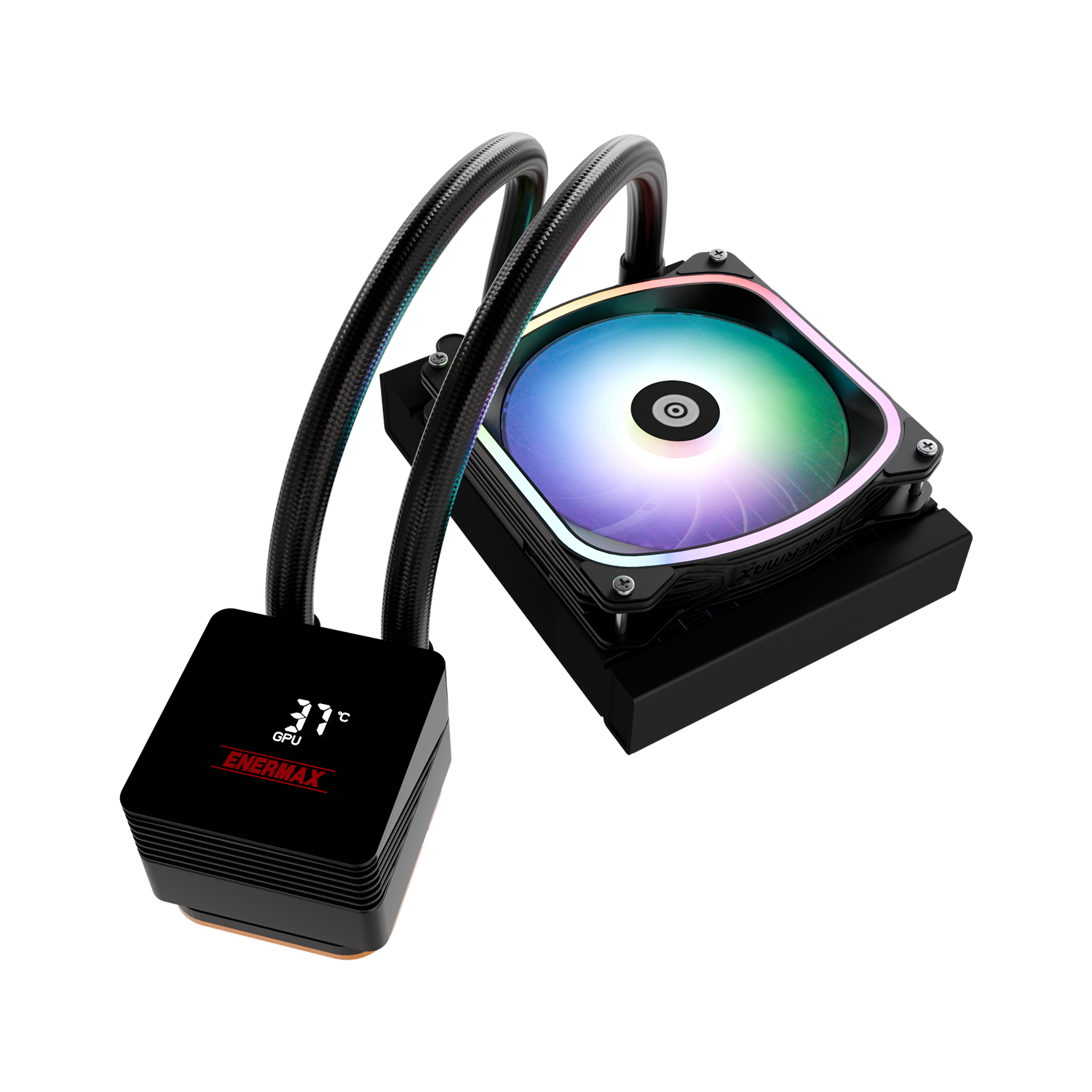

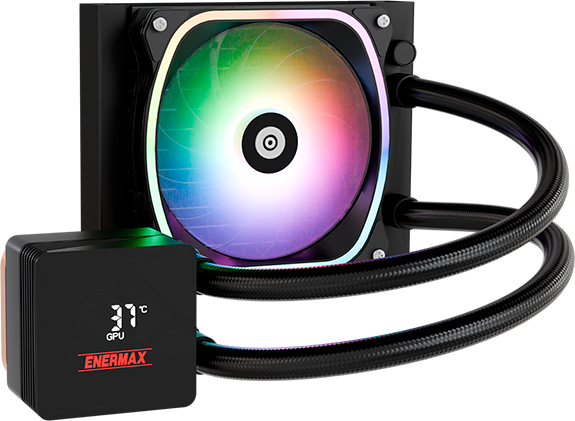

AQUAFUSION II ARGB Series 120mm Liquid CPU Cooler
- High-performance Cooling Capacity: 310W TDP
- Patented Dual-Chamber Water Block with Gen.2 Xtreme Pump Design
- ENERMAX SquA RGB ADV Fan
- Supports AMD AM5 and Intel LGA 1851
- Magnetic Rotatable Real-time Status Digital Display
Color
Overview
PATENTED DUAL-CHAMBER WATER BLOCK WITH ENERMAX GEN.2 XTREME PUMP DESIGN
Deliberately made with a larger cooler base and paired with our innovative pump design, the ENERMAX Gen.2 Xtreme Pump Technology can deliver unmatched cooling capacity.
ENERMAX GEN. 2 XTREME PUMP TECHNOLOGY
ENERMAX Gen.2 Xtreme Pump Technology features a 35% larger base for significantly better heat dissipation and is coupled with our most optimized pump yet: it now delivers a 31% boost in flow rate. This powerful combination can lower temperatures by 5°C on a 250W CPU compared to other high-performance liquid cooling solutions on the market, ensuring the best performance for even the most demanding systems.
Intel Ultra 9 285K Processor 250W Heat Load
ENERMAX SquA RGB ADV FANS
- Be stunned by the brilliant RGB hub
- Be cooled by the Vortex Frame Technology
SYNCED WITH YOU
The AQUAFUSION II AIO cooler is designed to synchronize with addressable RGB motherboards, providing 16.8 million colors possible combinations.
MAGNETIC ROTATABLE REAL-TIME STATUS DIGITAL DISPLAY
Our exclusive magnetic digital display on the water block allows users to manually adjust the display direction.
Experience seamless installation with the help of our 3100 Gauss magnets, coupled perfectly with our low-resistance digital displays.
DIMENSIONS
Unit: mm
Specifications
General Data
- Model
- ELC-AQFS120-SQA
- CPU Socket
- Intel® LGA 1851/1700/115x/2066 AMD® AM5/AM4
- TDP
- 310 W
- Cold Plate Material
- Copper
- Radiator Material
- Aluminum
- Radiator Dimension
- 154 x 120 x 27mm
- Pump Bearing
- Ceramic Bearing
- Pump MTBF
- 100,000 hrs
- Pump Rated Voltage
- 12 V
- Fan Speed
- 500~1800 RPM ±10%
- Pump Rated Current
- 0.35A
- Fan Dimension (Radiator)
- 120 x 120 x 26 mm
- Fan MTTF
- ≧ 100,000 hrs
- Fan Rated Voltage
- 12 V
- Fan Rated Current
- 0.25A
- Fan Rated Current RGB LED
- 1.08A
- Fan Air Flow
- 71.88 CFM
- Fan Static Pressure
- 2.08 mmH2O
- Fan Connector
- 8 Pin
- Fan Maximum Noise
- 27.4 dBA
- ACCESSORY
- Thermal grease included
Shipping Information
- EAN
- 4713157729293
- UPC
- 819315029299
- Box Dimension
- 245 x 137 x 218 mm
- Gross Weight / unit
- 1.5 kg
- Carton Dimension
- 510 x 455 x 320 mm
- Q'ty / carton
- 8 PCS
- Gross Weight / Carton
- 13.4 kg
