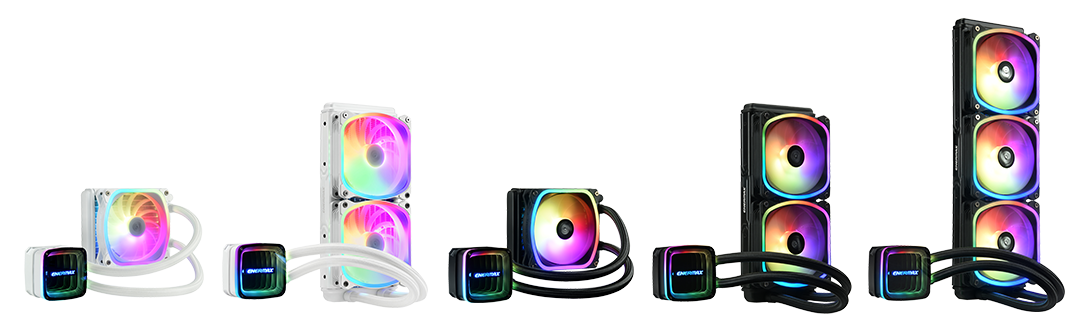

AQUAFUSION ADV Series 240mm Liquid CPU Cooler
- Luminous Aurabelt™ and Infinite RGB Reflection
- ENERMAX SquA RGB ADV Fans included
- Supports addressable RGB M/B sync
- Patented Dual Chamber Water block design
- Patented Shunt Channel Technology
Color
Overview
Luminous Aurebelt™ and Infinite RGB Reflection
Premium water block equipped with Luminous Aurabelt™ technology and unique Infinite RGB Reflection for a visually stunning experience
ENERMAX SquA RGB ADV Fans
- Designed for aesthetics with incredible stunning RGB hub lighting effect
- Optimal cooling performance with Vortex Frame Technology and a downsized hub design
Patented Dual Chamber Water Block Design
Patented Dual-chamber Mechanism that isolates the pump from the heat, significantly increases the cooler’s lifespan without compromising efficiency
Patented CCI + SCT Technology
- Central Coolant Inlet (CCI) technology injects the coolant at the hottest spot to prevent heat surges
- Shunt-channel Technology (SCT) design shortens the coolant flow path, resulting in faster heat transfer
Addressable RGB Lighting Synchronization
AQUAFUSION ADV is designed to synchronize to addressable RGB motherboards (3 pin assignment is 5V/D/G) which users can program preferred lighting effects via motherboard software
2 Ways to Control RGB Lighting Effects
Motherboard Synchronization
Coordinate your visual effects through supported RGB software and motherboard synchronization to access control for customized lighting effects
ENERMAX RGB Control Box
Preset 10 lighting effects; use the attached ENERMAX RGB control box to select your preferred lighting mode, brightness and speed
Robust Weaved Tubing
Premium 400mm weaved tubing is perfect for mainstream system builds
Premium Aluminum Radiator Channels
The channels on the radiator are meticulously designed, combined with thin aluminum fins to deliver high heat exchange capacity
Dimension
unit: mm
Product Introduction
Find Stores
| North America |    |
| Europe | |
| Taiwan |  |
| Worldwide |  |
Specifications
General Data
- Model
- ELC-AQFA240-SQA
- CPU Socket
- Intel® LGA 1851/1700/1200/115x/2066/2011/2011-3/1366 AMD® AM5/AM4/AM3+/FM2+/FM1
- TDP
- 360 W
- Cold Plate Material
- Copper
- Radiator Material
- Aluminum
- Radiator Dimension
- 274 x 120 x 27 mm
- Pump Bearing
- Ceramic Bearing
- Pump MTBF
- ≧ 50,000 hrs
- Pump Rated Voltage
- 12 V
- Fan Speed
- 500~2000 RPM ±10%
- Pump Rated Current
- 0.7 A
- Pump Rated Current - RGB LED
- 0.42 A
- Fan Dimension (Radiator)
- 120 x 120 x 26 mm
- Fan MTTF
- ≧ 100,000 hrs
- Fan Rated Voltage
- 12 V
- Fan Rated Current
- 0.38 A
- Fan Rated Current RGB LED
- 1.08 A
- Fan Air Flow
- 39~79.8 CFM
- Fan Static Pressure
- 0.67~3.6 mm-H2O
- Fan Connector
- 4 Pin PWM + 3 Pin RGB (W/ extension adapter)
- Fan Maximum Noise
- 15~36.2 dBA
- Fan Screw
- M3.5
- Fan Speed (With Noise Reducer Adaptor)
- 500~1700 RPM ±10%
- Fan Air Flow ((With Noise Reducer Adaptor)
- 39~67.1 CFM
- Fan Static Pressure (With Noise Reducer Adaptor)
- 0.67~2.1 mm-H2O
- Fan Maximum Noise (With Noise Reducer Adaptor)
- 15~27.4 dBA
Shipping Information
- EAN
- 4713157727145
- UPC
- 819315027141
- Box Dimension
- 322 x 205 x 137 mm
- Gross Weight / unit
- 1.92 kg
- Carton Dimension
- 435 x 338 x 440 mm
- Q'ty / carton
- 6 PCS
- Gross Weight / Carton
- 12.65 kg
